MD 2250 (7800201) - Murray 22" Walk-Behind Mower (2008) Handles & Controls - Push Parts Diagram

22" Walk-Behind Mower

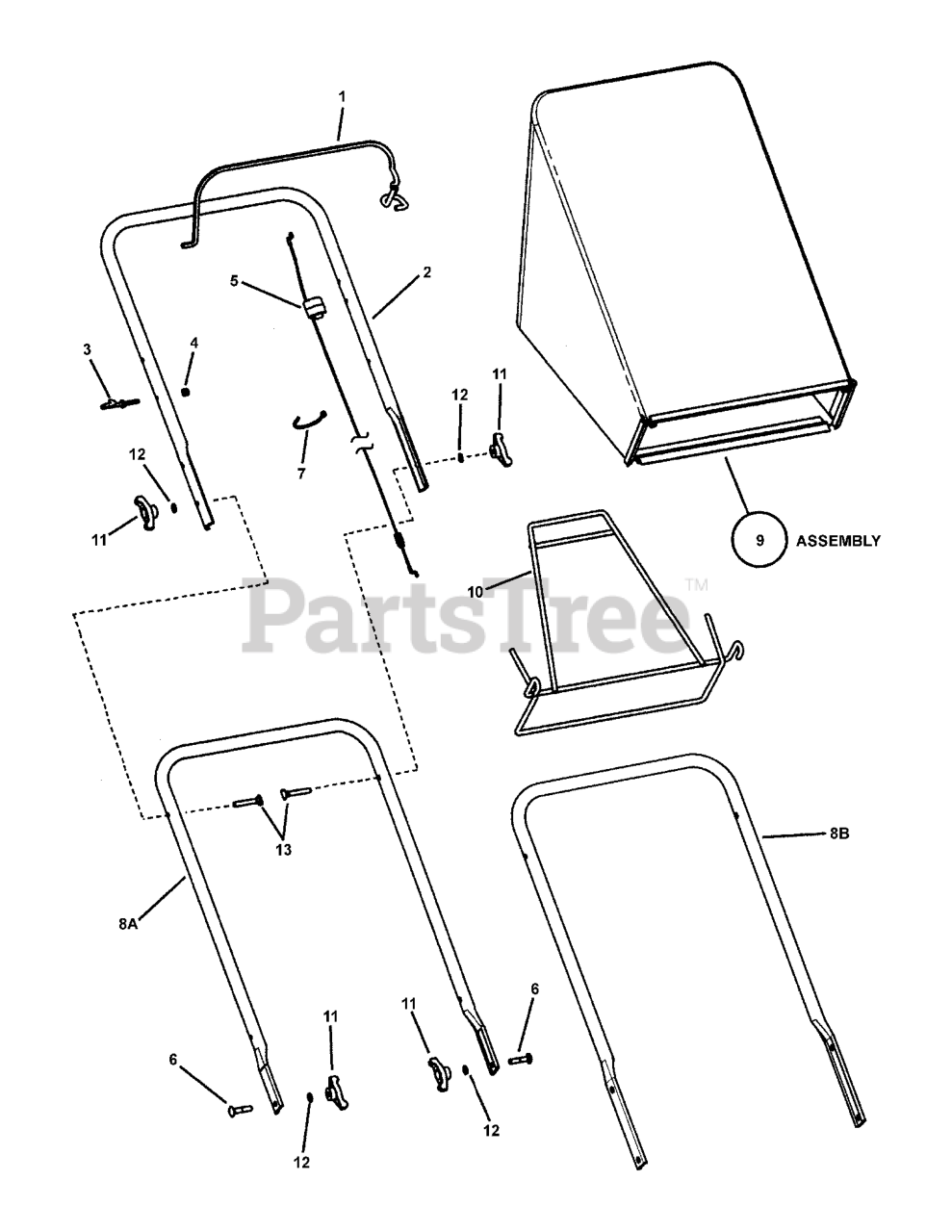

Handles & Controls - Push Parts Diagram

  • Title

1

Murray 7101675AYP

BAIL, OPC Push

$46.99

$

Usually ships in 2-12 days

0

2

Murray 7300705AMA

UPPER HANDLE, Propelled

$51.99

$

Usually ships in 2-12 days

0

3

Murray 071530MA

GUIDE, Rope (1/4-20 thread)

$5.99

$

Usually ships in 2-12 days

0

4

Murray 7076978SM

NUT, 1/4-20 Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

5

Murray 7101808YP

CABLE, Bail, (45.00" overall length)

Note: (used on 7800201, 7800239, 7800257 & 7800803)

$16.99

$

Usually ships in 2-12 days

0

5

Murray 7101330YP

CABLE, Bail, 22" WBM, (41.50" overall length)

Note: (used on 7800202, 7800240, 7800258 & 7800804)

$16.99

$

Usually ships in 2-12 days

0

5

Murray 7100074YP

CABLE, Zone Control (48.60" overall length)

Note: (used on 7800203, 7800241, 7800369 & 7800259)

$21.99

$

In Stock, only 1 left!

0

6

Murray 002X81MA

BOLT, 5/16-18 x 1-1/2" Square Neck Carriage GR 1

$3.49

$

Usually ships in 2-12 days

0

6

Murray 1931337SM

BOLT, 5/16-18 x 1-1/2" Short Square Neck Carriage GR 5
(Superseded to 703296)

$4.49

$

In Stock, Qty 10

0

7

Murray 7024649YP

WIRE TIE, 11 Inch Standard Black Nylon

$5.49

$

Usually ships in 2-12 days

0

8A

Murray 7300706AMA

HANDLE, Lower

Note: (used on 7800202, 7800203, 7800239, 7800240, 7800241, 7800257, 7800258, 7800259 & 7800369)

$152.99

$

In Stock, only 1 left!

0

8B

Murray 7301013AYP

HANDLE, Lower

Note: (used on 7800201, 7800803 & 7800804)

$143.99

$

Usually ships in 2-12 days

0

9

Murray 7101893MA

ASSY, Grass Bag, Cloth (incl. next item below)

Note: (used on 7800202, 7800258 & 7800203)

$189.99

$

In Stock, only 1 left!

0

--

Murray 1101005MA

BAG, Cloth, Grass Bag, Murray

$189.99

$

In Stock, only 1 left!

0

10

Murray 1101074MA

WELDMENT, Frame, Grass Bag

Note: (used on 7800202, 7800258 & 7800203)

$71.99

$

In Stock, only 1 left!

0

11

Murray 071294MA

KNOB, 5/16-18 Wing
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

12

Murray 7090391SM

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

13

Murray 7091189YP

BOLT, 5/16-18 x 2" Curved Head Square Neck GR 2
(Superseded to 703059)

$4.49

$

In Stock, Qty 10

0
