MD 22550 FC (7800804) - Murray 22" Walk-Behind Mower, Canada (2011) Deck Assembly - Push, M22550FC Parts Diagram

22" Walk-Behind Mower, Canada

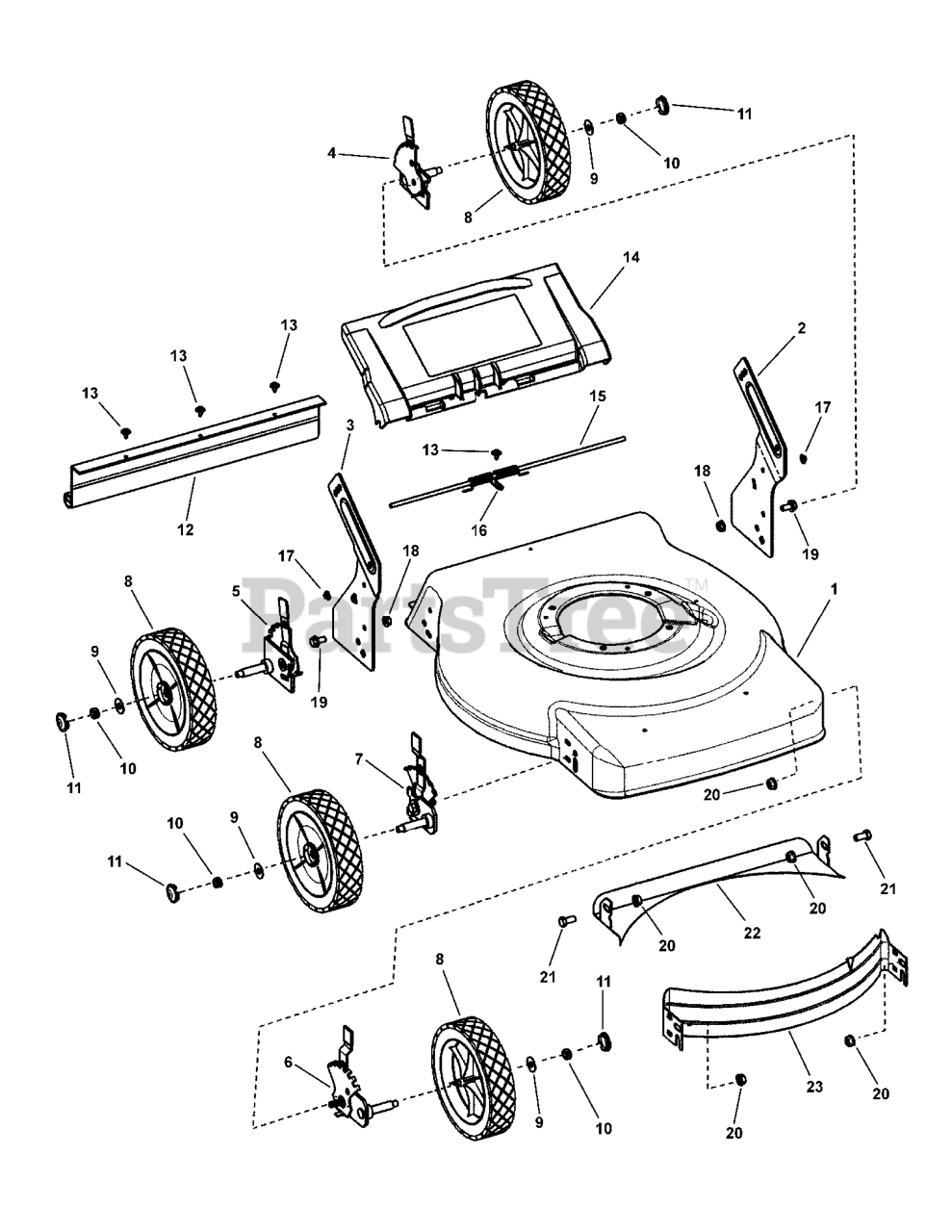

Deck Assembly - Push, M22550FC Parts Diagram

  • Title

1

Murray 7301192BIYP

DECK, 22 Walk-Behind

Note: (used on 7800804 model)

$211.99

$

Usually ships in 2-12 days

0

2

Murray 7300668BIYP

BRACKET, Lower Handle, 22 WBM, LH

$33.99

$

Usually ships in 2-12 days

0

3

Murray 7300669BIYP

BRACKET, Lower Handle, 22 WBM, RH

$33.99

$

Usually ships in 2-12 days

0

4

Murray 7501056YP

ASSEMBLY, Height-of-Cut, Right Rear

$27.99

$

Usually ships in 2-12 days

0

5

Murray 7501055YP

ASSEMBLY, Height-of-Cut, Left Rear

$

$

Not available

6

Murray 7501294YP

ASSEMBLY, Height-of-Cut, Left Front

$

$

Not available

7

Murray 7501293YP

ASSEMBLY, Height-of-Cut, Right Front

$40.99

$

Usually ships in 2-12 days

0

8

Murray 7502378YP

WHEEL, 8 x 2 Diamond-Pewter

$37.99

$

Usually ships in 2-12 days

0

9

Murray 17X169MA

WASHER, .382 ID x 1" OD x .031 Flat
(Superseded to 703966)

$4.49

$

In Stock, Qty 6

0

10

Murray 7091585SM

NUT, 3/8-16 Hex Center Lock, YZ
(Superseded to 703347)

$4.99

$

In Stock, Qty 12

0

11

Murray 1751539YP

HUBCAP, P290-Black

$4.99

$

Usually ships in 2-12 days

0

12

Murray 7103347YP

GUARD, Rear, 22 Deck Mower

$

$

Not available

13

Murray 7091286YP

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Sems)

$4.99

$

In Stock, Qty 12

0

14

Murray 7101243YP

DOOR, Rear, 22"

$54.99

$

Usually ships in 2-12 days

0

15

Murray 7101070YP

ROD, Pivot, Rear Door

$6.99

$

Usually ships in 2-12 days

0

16

Murray 7101461YP

SPRING, Torsion, Rear Door, 22 Walk

$6.99

$

Usually ships in 2-12 days

0

17

Murray 7091020YP

PUSHNUT, 1/4"
(Superseded to 704005)

$4.49

$

In Stock, Qty 16

0

18

Murray 7090951SM

NUT, 5/16-18 Large Flange Center Lock
(Superseded to 704001)

$4.49

$

In Stock, Qty 8

0

19

Murray 340720MA

BOLT, 5/16-18 Hex Flange Lock
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 20+

0

20

Murray 7900053MA

NUT, 3/8-16 Hex Flange Lock, GR 5
(Superseded to 703333)

$4.99

$

In Stock, Qty 15

0

21

Murray 7900054YP

SCREW, 3/8-16 x 3/4", Hex Head Cap, GR 5
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

22

Murray 7300854ZMA

BAFFLE, Rear, 22" Deck
(Superseded to 7300854DYP)

$45.99

$

Usually ships in 2-12 days

0

23

Murray 7300440ZMA

BAFFLE, Front, 22" WBM
(Superseded to 7300440BMYP)

$141.99

$

Usually ships in 2-12 days

0
