MF 2000 (2691189-00) - Massey Ferguson 42" Lawn Tractor, 22hp Briggs & Stratton 42" Mower Deck - Clutch Group Parts Diagram

42" Lawn Tractor, 22hp Briggs & Stratton

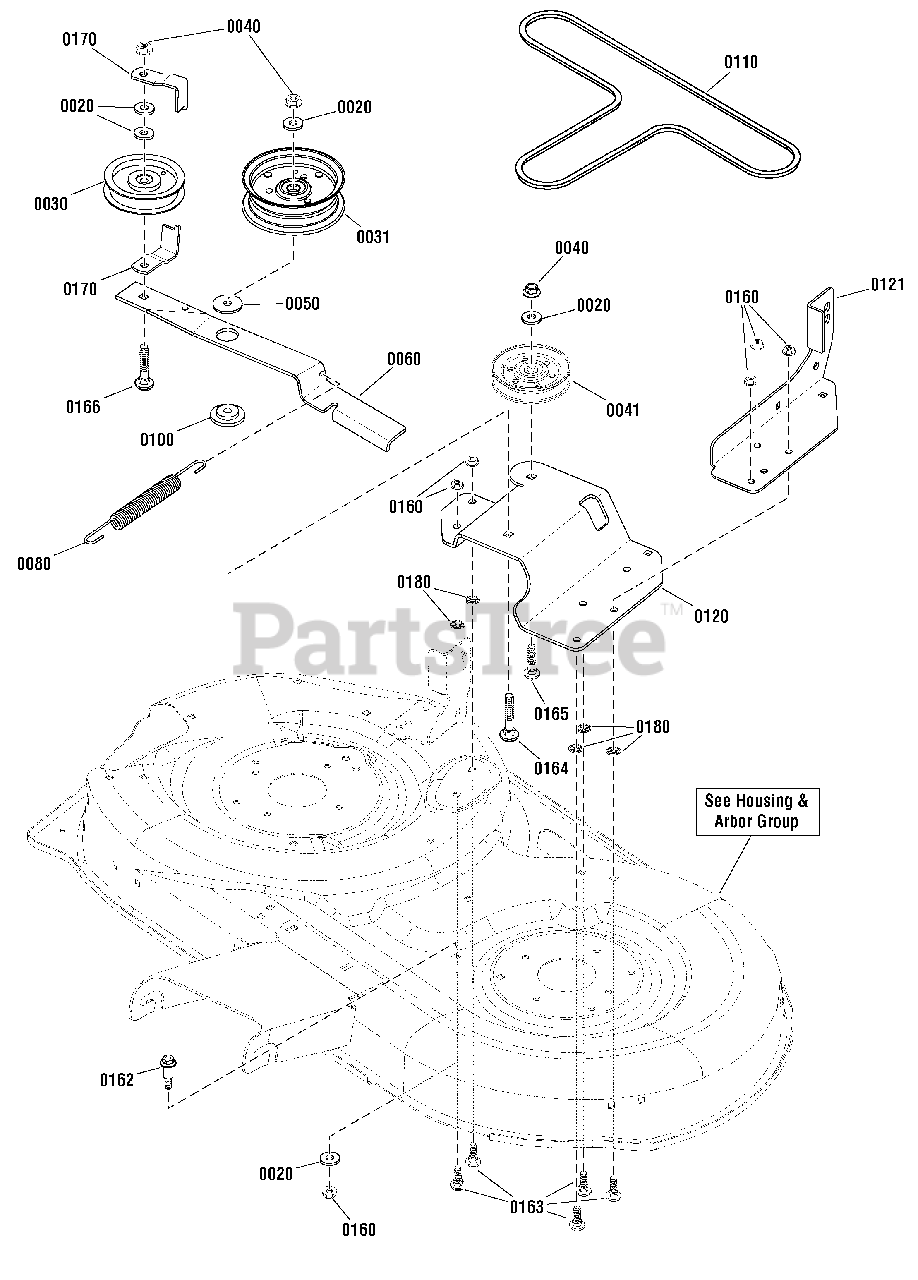

42" Mower Deck - Clutch Group Parts Diagram

  • Title

0020

Simplicity 704128

WASHER, Flat

$4.99

$

In Stock, Qty 11

0

0030

Simplicity 7018574SM

IDLER, Flat, 4 1/8

$38.99

$

In Stock, Qty 11

0

0031

Simplicity 1757894YP

PULLEY, Flat Idler, 4 1/2

$42.99

$

In Stock, only 1 left!

0

0040

Simplicity 1960339SM

NUT, Hex Flange, 3/8-16

$

$

Not available

0041

Simplicity 885937YP

PULLEY, Idler, 4

$34.99

$

In Stock, only 2 left!

0

0050

Simplicity 703591

WASHER, Flat

$5.49

$

In Stock, Qty 8

0

0060

Simplicity 706127

ARM, Idler 42

$52.99

$

In Stock, only 1 left!

0

0080

Simplicity 1734316SM

SPRING, Extension

$11.99

$

In Stock, only 4 left!

0

0100

Simplicity 706128

SPACER, Idler, 42

$6.99

$

Usually ships in 2-12 days

0

0110

Simplicity 1757811YP

V-BELT, HA, 122.3

$75.99

$

Usually ships in 2-12 days

0

0120

Simplicity 706129

BRACKET, Idler Support

$87.99

$

Usually ships in 2-12 days

0

0121

Simplicity 706130

SUPPORT, Mower

$58.99

$

Usually ships in 2-12 days

0

0160

Simplicity 703409

NUT, 5/16-18, Serrated Lock Flange, GR5

$5.49

$

In Stock, Qty 20+

0

0162

Simplicity 1732412SM

BOLT, Shoulder, 5/16-18 X .6

$15.99

$

Usually ships in 2-12 days

0

0163

Simplicity 704065

BOLT, Carriage, 5/16-18 X 7/8, GR5

$4.49

$

In Stock, Qty 12

0

0164

Simplicity 1960615SM

BOLT, Carriage, 3/8-16 X 2 1/2, GR5

$5.49

$

Usually ships in 2-12 days

0

0165

Simplicity 703858

BOLT, Carriage, 3/8-16 X 1 3/4, GR5

$4.99

$

In Stock, Qty 5

0

0166

Simplicity 7900009SM

BOLT, Carriage, 3/8-16 X 2 1/4, GR5

$3.99

$

In Stock, only 1 left!

0

0170

Simplicity 706131

GUARD, Spring

$16.99

$

In Stock, only 2 left!

0

0180

Simplicity 703297

RETAINER, 5/16

$3.99

$

In Stock, Qty 20+

0
