MF 2000 (2691221-00) - Massey Ferguson Lawn Tractor, 22hp Briggs & Stratton Engine Group - 22 Gross HP Briggs & Stratton Parts Diagram

Lawn Tractor, 22hp Briggs & Stratton

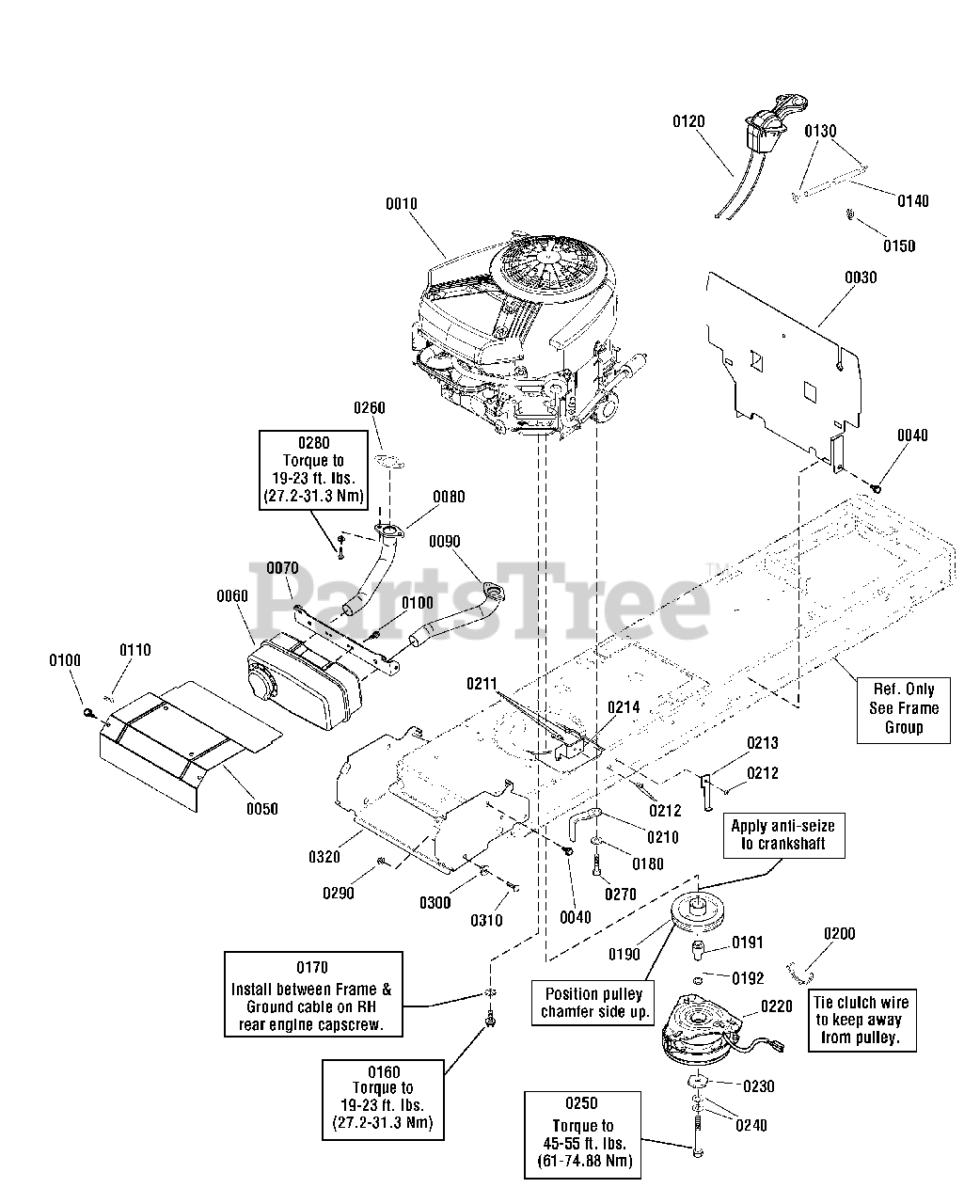

Engine Group - 22 Gross HP Briggs & Stratton Parts Diagram

  • Title

0010

Simplicity 44R677-0005-G1

* ENGINE, 22 Gross HP Briggs & Stratton Pro Series, VS Twin

Note: (Engine Model: 44R677-0005-G!)

$

$

Not available

0030

Simplicity 1738380AYP

HEAT SHIELD, Engine

$54.99

$

Usually ships in 2-12 days

0

0040

Simplicity 1930601SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 16

0

0050

Simplicity 1728058ASM

SHIELD, Heat
(Superseded to 1728058BMYP)

$19.99

$

Usually ships in 2-12 days

0

0060

Simplicity 1727994SM

MUFFLER, Briggs & Stratton Twin

$101.99

$

Usually ships in 2-12 days

0

0070

Simplicity 1727976BMYP

SUPPORT, Muffler

$15.99

$

Usually ships in 2-12 days

0

0080

Simplicity 1727979SM

PIPE, Exhaust, Flanged, R.H, 11/8 OD

$39.99

$

In Stock, only 1 left!

0

0090

Simplicity 1727980SM

PIPE, Exhaust, Flanged, L.H, 11/8 OD

$39.99

$

In Stock, only 2 left!

0

0100

Simplicity B4300GS

SCREW, Hex Washer Head, Taptite,1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 17

0

0110

Simplicity 703176

CLIP, Wire

$3.49

$

Usually ships in 2-12 days

0

0120

Simplicity 1736868YP

CONTROL, Throttle, Choke-A-Matic

$69.99

$

In Stock, only 1 left!

0

0130

Simplicity 93053B

CLAMP, Hose

$

$

Not available

0140

Simplicity 1734993SM

HOSE, Fuel, 1/4 ID x 1/2 OD, 55" Long, Low Perm.
(Superseded to 845503)

$37.99

$

Usually ships in 2-12 days

0

0150

Simplicity 1730268SM

CLIP, Hose, 1/2 Dia., Push In

$3.99

$

Usually ships in 2-12 days

0

0160

Simplicity 2827187SM

CAPSCREW, Hex Washer Head, Taptite, 3/8-16 x 1
(Superseded to 704000)

$5.49

$

In Stock, Qty 13

0

0170

Simplicity 703864

WASHER, External, 3/8

$4.49

$

Usually ships in 2-12 days

0

0180

Simplicity 703878

WASHER, Flat, 13/32

$3.99

$

In Stock, Qty 20+

0

0190

Simplicity 1732576SM

PULLEY & HUB ASSEMBLY, Engine

$44.99

$

In Stock, only 2 left!

0

0191

Simplicity 885679YP

SPACER, Electric Clutch

$14.99

$

Usually ships in 2-12 days

0

0192

Simplicity 885810YP

SPACER, Electric Clutch, Lower

$4.99

$

Usually ships in 2-12 days

0

0200

Simplicity 703586

TIE, Cable

$4.99

$

Usually ships in 2-12 days

0

0210

Simplicity 1737421AYP

GUIDE, Belt

$12.99

$

In Stock, Qty 6

0

0211

Simplicity 704287

CAPSCREW, Hex Head, 5/16-18 x 3/4, GR5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

0212

Simplicity 703409

NUT, 5/16-18, Serrated Lock Flange, GR5

$5.99

$

In Stock, Qty 20+

0

0213

Simplicity 1757405BMYP

BRACKET, Upstop, Lower Clutch

$30.99

$

Usually ships in 2-12 days

0

0214

Simplicity 885535AYP

BRACKET, Electric Clutch Torque

$29.99

$

Usually ships in 2-12 days

0

0220

Simplicity 1736105SM

CLUTCH, Ogura

$397.99

$

In Stock, only 1 left!

0

0230

Simplicity 1708264SM

WASHER, Hex

$8.99

$

In Stock, only 2 left!

0

0240

Simplicity 1960769YP

WASHER, Belleville

$5.49

$

In Stock, only 1 left!

0

0250

Simplicity 1960649SM

CAPSCREW, Hex Head, 7/16-20 X 3 1/2, G5

$7.99

$

In Stock, only 1 left!

0

0250

Simplicity 1960649SM

CAPSCREW, Hex Head, 7/16-20 X 3 1/2, G5

$7.99

$

In Stock, only 1 left!

0

0260

Simplicity 1731214SM

GASKET, Exhaust
(Superseded to 690970)

$4.99

$

In Stock, Qty 20+

0

0270

Simplicity 2828635SM

SCREW, Taptite, 3/8-16 X 1 1/4

$4.99

$

In Stock, Qty 20+

0

0280

Simplicity 690341

SCREW

$5.99

$

In Stock, only 3 left!

0

0290

Simplicity 703409

NUT, 5/16-18, Serrated Lock Flange, GR5

$5.99

$

In Stock, Qty 20+

0

0300

Simplicity 1728086SM

PIVOT, Hood, Powdered Metal

$6.49

$

In Stock, Qty 9

0

0310

Simplicity 703800

BOLT, Carriage, 5/16-18 X 1

$3.99

$

In Stock, Qty 19

0

0320

Simplicity 1727982ASM

SUPPORT, Muffler & Hood Pivot Ecoat

$74.99

$

Usually ships in 2-12 days

0
