MF 2600 (2691364-00) - Massey Ferguson 50" Lawn Tractor, 23hp Seat Group Parts Diagram

50" Lawn Tractor, 23hp

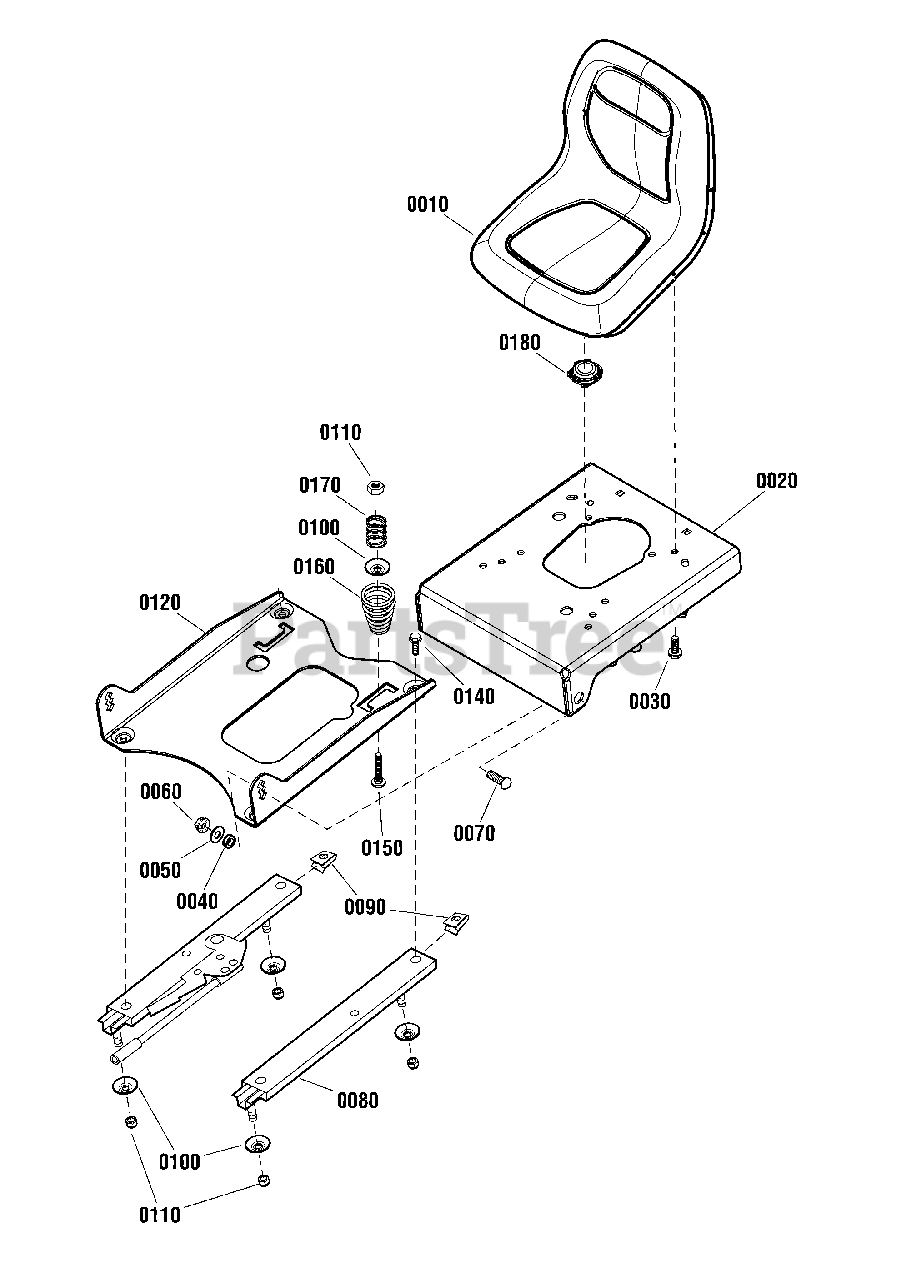

Seat Group Parts Diagram

  • Title

0010

Simplicity 1753728YP

SEAT, 18" Back

$591.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1722129ASM

BRACKET, 1-5/8 x 1-3/4

$62.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1960677SM

SCREW, Hex

$4.99

$

Usually ships in 2-12 days

0

0040

Simplicity 1663752SM

SPACER, 25/64 x 5/8 x 3/16, Hardened

$5.99

$

In Stock, only 2 left!

0

0050

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

0060

Simplicity 1930645SM

NUT, Hex Flange Two-Way Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, only 3 left!

0

0070

Simplicity 1931350SM

CARRIAGE BOLT, 3/8-16 x 1
(Superseded to 703815)

$4.49

$

In Stock, only 3 left!

0

0080

Simplicity 1722356SM

SLIDE, Seat, (2 piece set)

$62.99

$

In Stock, only 1 left!

0

0090

Simplicity 1935255SM

NUT, Speed, 5/16-18, Lug

$3.49

$

In Stock, Qty 6

0

0100

Simplicity 1709256SM

WASHER, Spring, 5/16 x 1-1/4, Black

$5.99

$

Usually ships in 2-12 days

0

0110

Simplicity 1960636SM

NUT, Hex KEPS, 5/16-18

$4.99

$

In Stock, only 1 left!

0

0120

Simplicity 1722128ASM

SUPPORT, Seat

$87.99

$

Usually ships in 2-12 days

0

0140

Simplicity 1930591SM

CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 8

0

0150

Simplicity 1931339SM

CARRIAGE BOLT, 5/16-18 x 2
(Superseded to 704035)

$4.49

$

In Stock, only 2 left!

0

0160

Simplicity 1717051SM

SPRING, Compression

$13.99

$

In Stock, Qty 15

0

0170

Simplicity 1714263SM

SPRING, Compression

$4.99

$

In Stock, only 1 left!

0

0180

Simplicity 1755878YP

SWITCH, Operator Presence

$17.99

$

Usually ships in 2-12 days

0
