MF 2827 (2690975) - Massey Ferguson Lawn Tractor, 27hp Hood, Grille & Dash Group Parts Diagram

Lawn Tractor, 27hp

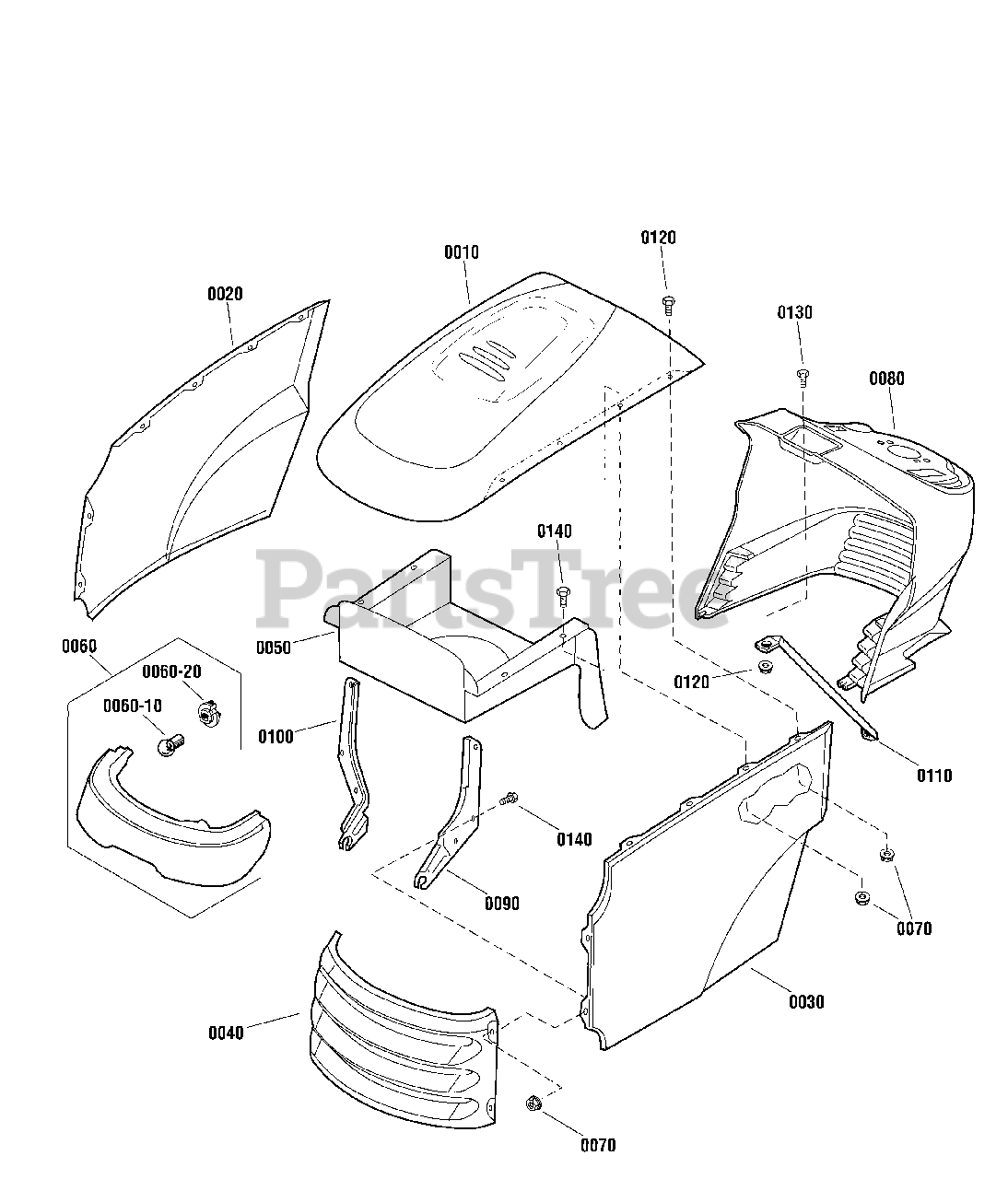

Hood, Grille & Dash Group Parts Diagram

  • Title

0010

Simplicity 1722110DSM

HOOD, with Louvers, Red

$323.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1721804DSM

PANEL, RH Side, Red

$181.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1721803DSM

PANEL, LH Side, Red

$181.99

$

Usually ships in 2-12 days

0

0040

Simplicity 1721802DSM

GRILLE, Red

$128.99

$

Usually ships in 2-12 days

0

0050

Simplicity 1722391ASM

DUCT, Air Inlet
(Superseded to 7102326YP)

$131.99

$

In Stock, only 1 left!

0

0060

Simplicity 1721810SM

HEADLIGHT ASSEMBLY

Note: (Includes Ref. Nos. 0060-10, 20)

$174.99

$

Usually ships in 2-12 days

0

0060-10

Simplicity 1677371SM

BULB, Headlight

$32.99

$

Usually ships in 2-12 days

0

0060-20

Simplicity 1723451SM

SOCKET, Headlight

$29.99

$

Usually ships in 2-12 days

0

0070

Simplicity 1930641SM

NUT, Hex Flange Lock, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 18

0

0080

Simplicity 1687055SM

DASHBOARD, RMO

$199.99

$

Usually ships in 2-12 days

0

0090

Simplicity 1721808ASM

HINGE, LH

$31.99

$

In Stock, only 1 left!

0

0100

Simplicity 1721809ASM

HINGE, RH

$31.99

$

Usually ships in 2-12 days

0

0110

Simplicity 1723123SM

ROD, Dash Support

$12.99

$

Usually ships in 2-12 days

0

0120

Simplicity 1933896SM

NUT, Hex Nylock,#10-24
(Superseded to 703412)

$4.49

$

In Stock, Qty 5

0

0130

Simplicity 1963737SM

SCREW, Washer Head, #10-24 x 5/8

$

$

Not available

0140

Simplicity 1960295SM

CAPSCREW, Hex Head Flange Lock,1/4-20

$4.49

$

In Stock, only 2 left!

0
