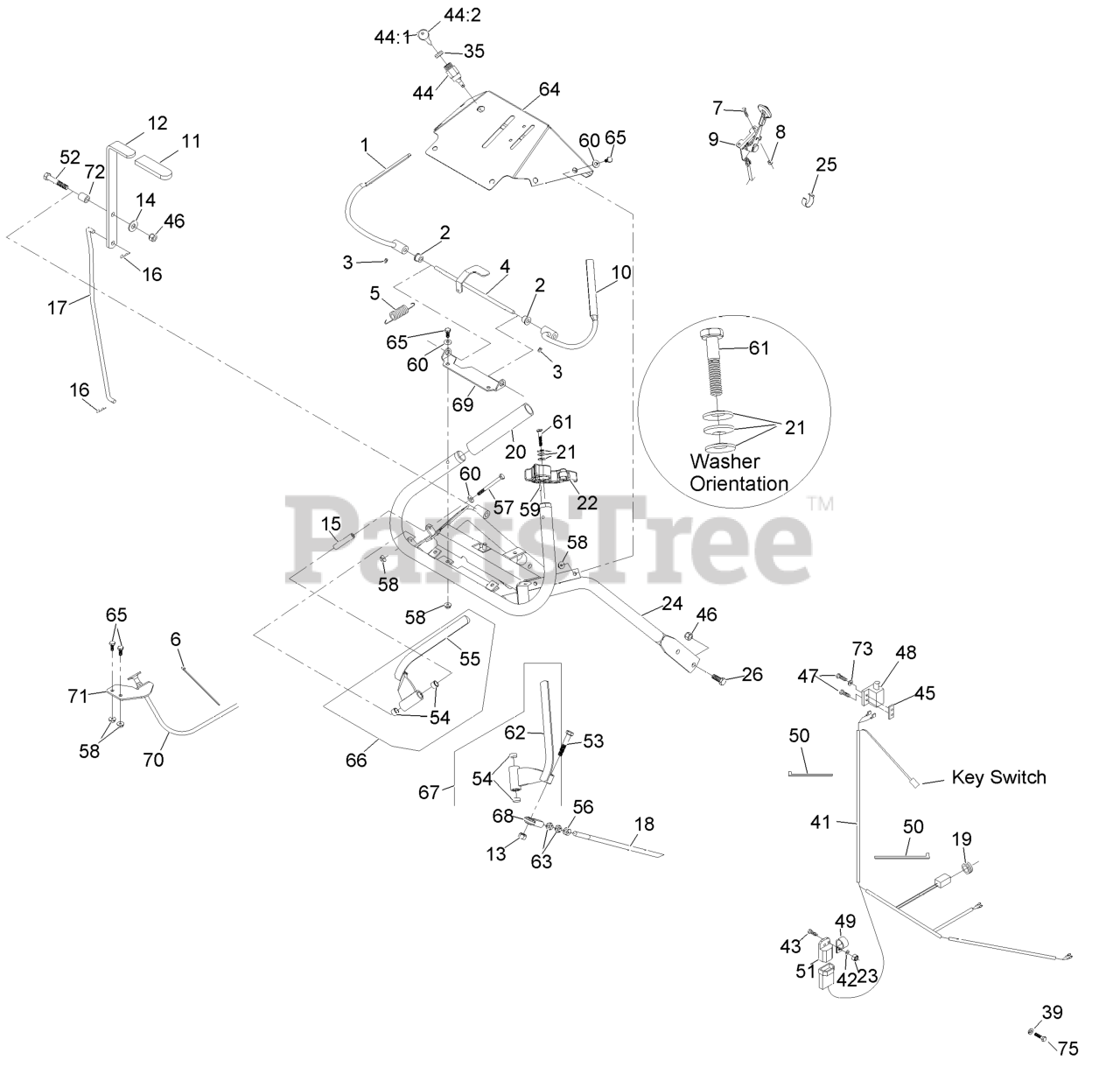

MG16KA483CA - Exmark 48" Metro Walk-Behind Mower, 16HP Kawasaki, CARB (SN: 920000 - 999999) (2011) > Parts Diagrams (6) > ECS Upper Handle and Controls

  • Title
116-4079

1

Wld, Lever, Opc (Lh)

Part# 116-4079

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $23.10

1-303365

2

Bushing-Nylon

Part# 1-303365

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.86

1-803322

3

Setscrew-5/16-24 X 5/16

Part# 1-803322

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.67

103-0769-03

4

Wld, Opc Axle Lever

Part# 103-0769-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $29.16

1-303363

5

Spring-Extension

Part# 1-303363

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.91

1-303335

6

Tie-Cable 7 15/16 (Large)

Part# 1-303335

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.98

1-807513

7

Bolt-Carriage #10-24 X 1/2

Part# 1-807513

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.21

3296-2

8

Nut-Nyloc #10-24

Part# 3296-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.29

116-2426

9

Cable, Throttle

Part# 116-2426

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $31.16

116-4080

10

Wld, Opc Lever (Rh)

Part# 116-4080

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $23.10

1-303020

11

Grip-Lever

Part# 1-303020

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.48

103-1629

12

Lever, Clutch W/Grip

Part# 103-1629

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $14.58

3296-29

13

Nut-Nyloc 5/16-18

Part# 3296-29

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.87

3256-4

14

Washer-3/8 Std

Part# 3256-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.23

103-0027

15

Bushing-Lever, Drive

Part# 103-0027

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.48

1-806003

16

Hairpin-Cotter

Part# 1-806003

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.26

103-1627

17

Linkage, Upper

Part# 103-1627

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $12.15

103-1604

18

Linkage, Wheel Drive

Part# 103-1604

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $15.79

1-543296

19

Grommet

Part# 1-543296

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.74

103-0815

20

Grip-Bar, Handle

Part# 103-0815

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.15

1-303435

21

Washer-Spring Disc 1/4

Part# 1-303435

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.01

103-1631

22

Latch, Thumb (Lh) (Not Shown)

Part# 103-1631

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $23.10

103-1630

22

Latch, Thumb (Rh)

Part# 103-1630

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $23.10

3296-42

23

Nut-Nyloc 1/4-20

Part# 3296-42

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.36

103-0770-03

24

Wld, Handle

Part# 103-0770-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $420.81

1-303088

25

Clip-Cable

Part# 1-303088

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.26

323-6

26

Screw-Hh 3/8-16 X 1

Part# 323-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.97

103-0498

35

Nut-Ignition

Part# 103-0498

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.34

33094-00

39

Washer

Part# 33094-00

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.13

116-2661

41

Harness-Wire

Part# 116-2661

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $63.48

3256-22

42

Washer-1/4 SAE

Part# 3256-22

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

321-4

43

Screw-Hh 1/4-20 X 3/4

Part# 321-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.81

1-403121

44

Switch-Key

Part# 1-403121

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $18.46

1-603511

44:1

Key-Ignition

Part# 1-603511

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.29

103-2106

44:2

Key-Exmark Logo

Part# 103-2106

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.10

1-633181

45

Plate-Tapped

Part# 1-633181

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.96

3296-39

46

Nut-Nyloc 3/8-16

Part# 3296-39

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.11

3290-500

47

Screw-Pph #10-24 X 5/8

Part# 3290-500

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.84

1-513051

48

Switch-N.O.

Part# 1-513051

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.65

1-323229

49

Clip-Loom 3/8

Part# 1-323229

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.09

1-303287

50

Tie-Cable 5 1/2 (Small)

Part# 1-303287

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.60

1-323430

51

Module-Interlock

Part# 1-323430

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $93.49

323-14

52

Screw-Hh 3/8-16 X 3

Part# 323-14

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.99

322-9

53

Screw-Hh 5/16-18 X 1 3/4

Part# 322-9

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.46

1-413152

54

Bushing-Sleeve

Part# 1-413152

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.45

116-4081

55

Lever, Drive Lh

Part# 116-4081

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $35.24

3219-3

56

Nut-Hex 3/8-24

Part# 3219-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.35

321-14

57

Screw-Hh 1/4-20 X 2 3/4

Part# 321-14

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.71

32128-33

58

Nut-Whizlock 1/4-20

Part# 32128-33

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.64

103-0464

59

Pin-Spring 1/8 X 1/2

Part# 103-0464 (Superseded to 126-2925)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.30

3256-22

60

Washer-1/4 SAE

Part# 3256-22

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

103-0235

61

Screw-Hh 1/4-20 X 1 1/8 W/Nylon

Part# 103-0235

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.79

116-4082

62

Lever, Drive Rh

Part# 116-4082

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $35.24

3220-3

63

Nut-Jam 3/8-24

Part# 3220-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.29

109-4934

64

Asm, Console (109-4649-03) W/Decals

Part# 109-4934

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $176.26

321-3

65

Screw-Hh 1/4-20 X 5/8

Part# 321-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.01

103-2513

66

Asm, Drive Lever Rh

Part# 103-2513

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $87.52

103-2514

67

Asm, Drive Lever Lh

Part# 103-2514

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $87.52

103-2463

68

Balljoint

Part# 103-2463

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $20.62

103-0489-03

69

Bracket, Opc Axle

Part# 103-0489-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $16.31

103-1796

70

Cable-Choke

Part# 103-1796

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $33.46

103-1797-01

71

Bracket-Cable, Choke

Part# 103-1797-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.24

1-633080

72

Spacer

Part# 1-633080

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.91

3256-14

73

Washer-#10 Std

Part# 3256-14

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

33114-016

75

Screw-Hh M8-1.25 X 16mm

Part# 33114-016

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.46
