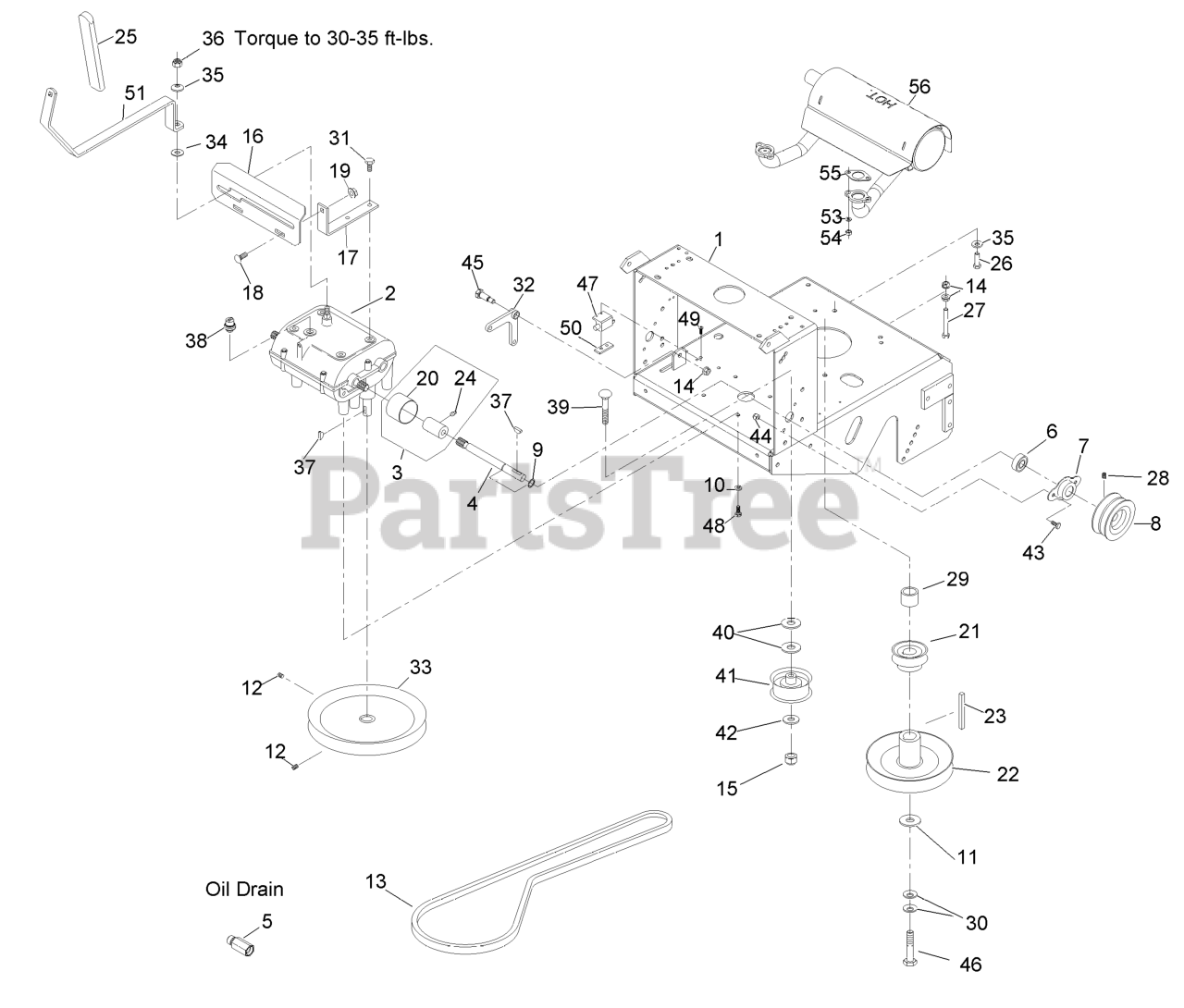

MG16KA483CA - Exmark 48" Metro Walk-Behind Mower, 16HP Kawasaki, CARB (SN: 920000 - 999999) (2011) > Parts Diagrams (6) > Engine Deck Assembly

  • Title
103-3499

1

Rear Deck (117-3521-01) W/Decals

Part# 103-3499 (Superseded to 116-6131)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $657.68

1-323500

2

Transmission

Part# 1-323500 (Superseded to 137-4105)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $441.29

1-324340

3

Asm, Coupling, W/Guard And Zerk

Part# 1-324340

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $46.16

1-323502

4

Shaft-Transmission

Part# 1-323502

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $24.23

103-2587

5

Adapter

Part# 103-2587

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $11.65

1-323252

6

Bearing-Shaft

Part# 1-323252

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.99

1-323254

7

Flange-Output

Part# 1-323254

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.26

103-6511

8

Sheave-Transmission

Part# 103-6511

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $83.10

32151-62

9

Ring-Retaining

Part# 32151-62

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.40

1-805005

10

Washer-Lock 5/16 Heavy

Part# 1-805005

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.78

1-373034

11

Washer

Part# 1-373034

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.29

3245-41

12

Setscrew-1/4-20 X 3/8

Part# 3245-41

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.73

1-323280

13

Belt, Transmission

Part# 1-323280

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $21.01

3290-357

14

Nut-Whizlock 3/8-16

Part# 3290-357

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.75

3296-39

15

Nut-Nyloc 3/8-16

Part# 3296-39

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.11

103-3498

16

Shifter Plate (1-323387-03) W/Decals

Part# 103-3498

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $41.32

1-323389-03

17

Bracket-Plate, Shift

Part# 1-323389-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $21.58

3230-1

18

Bolt-Carriage 5/16-18 X 3/4

Part# 3230-1

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.29

32128-20

19

Nut-Whizlock 5/16-18

Part# 32128-20

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.69

51-4220

20

Guard-Coupler

Part# 51-4220

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $13.64

103-1666

21

Sheave-Transmission

Part# 103-1666 (Superseded to 1-323256)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $56.55

103-1667

22

Sheave

Part# 103-1667 (Superseded to 1-403160)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $60.01

103-4177

23

Key

Part# 103-4177

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.45

302-19

24

Zerk-1/4-28 Str

Part# 302-19

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.82

103-1733

25

Grip

Part# 103-1733

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.71

323-7

26

Screw-Hh 3/8-16 X 1 1/4

Part# 323-7

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.29

323-13

27

Screw-Hh 3/8-16 X 2 3/4

Part# 323-13

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.91

1-803310

28

Setscrew-5/16-18 X 3/8

Part# 1-803310

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.26

1-633453

29

Spacer-Clutch

Part# 1-633453

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $13.51

1-603610

30

Washer-Spring Disc 7/16

Part# 1-603610

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.40

9264964

31

Bolt-Hwh 5/16-18 X 3/4 Tap

Part# 9264964

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.05

1-303186

32

Bellcrank

Part# 1-303186

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $39.23

1-323278

33

Sheave-Transmission

Part# 1-323278

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $57.70

1-323379

34

Washer

Part# 1-323379

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.24

98-5975

35

Washer-Spring Disc 3/8

Part# 98-5975

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.29

3296-6

36

Nut-Nyloc 3/8-24

Part# 3296-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.29

3257-5

37

Key-Woodruff #9 3/4 X 3/16

Part# 3257-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.03

1-303282

38

Switch-Start, Neutral

Part# 1-303282

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $34.61

3231-6

39

Bolt-Carriage 3/8-16 X 2

Part# 3231-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.15

3256-5

40

Washer-7/16 Std

Part# 3256-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.28

1-323285

41

Pulley-Idler, Flat

Part# 1-323285 (Superseded to 130-8362)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $27.69

3256-24

42

Washer-3/8 SAE

Part# 3256-24

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.51

321-3

43

Screw-Hh 1/4-20 X 5/8

Part# 321-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.01

3296-42

44

Nut-Nyloc 1/4-20

Part# 3296-42

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.36

1-603403

45

Bolt-Shoulder

Part# 1-603403

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $11.53

116-3702

46

Screw, Hh 7/16-20 X 1 1/4

Part# 116-3702

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.43

1-513051

47

Switch-N.O.

Part# 1-513051

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.65

322-3

48

Screw-Hh 5/16-18 X 3/4

Part# 322-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.69

3290-500

49

Screw-Pph #10-24 X 5/8

Part# 3290-500

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.84

1-633181

50

Plate-Tapped

Part# 1-633181

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.96

103-1606

51

Asm Shift Lever, W/Grip

Part# 103-1606

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $37.68

114-3550

53

Washer-Lock, Spring

Part# 114-3550

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.85

114-3549

54

Nut-M8

Part# 114-3549

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.71

1-653313

55

Gasket-Exhaust

Part# 1-653313

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.65

116-4397

56

Muffler

Part# 116-4397

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $312.42
