MG16KA483CA - Exmark 48" Metro Walk-Behind Mower, 16HP Kawasaki, CARB (SN: 920000 - 999999) (2011)

48" Metro Walk-Behind Mower, 16HP Kawasaki, CARB

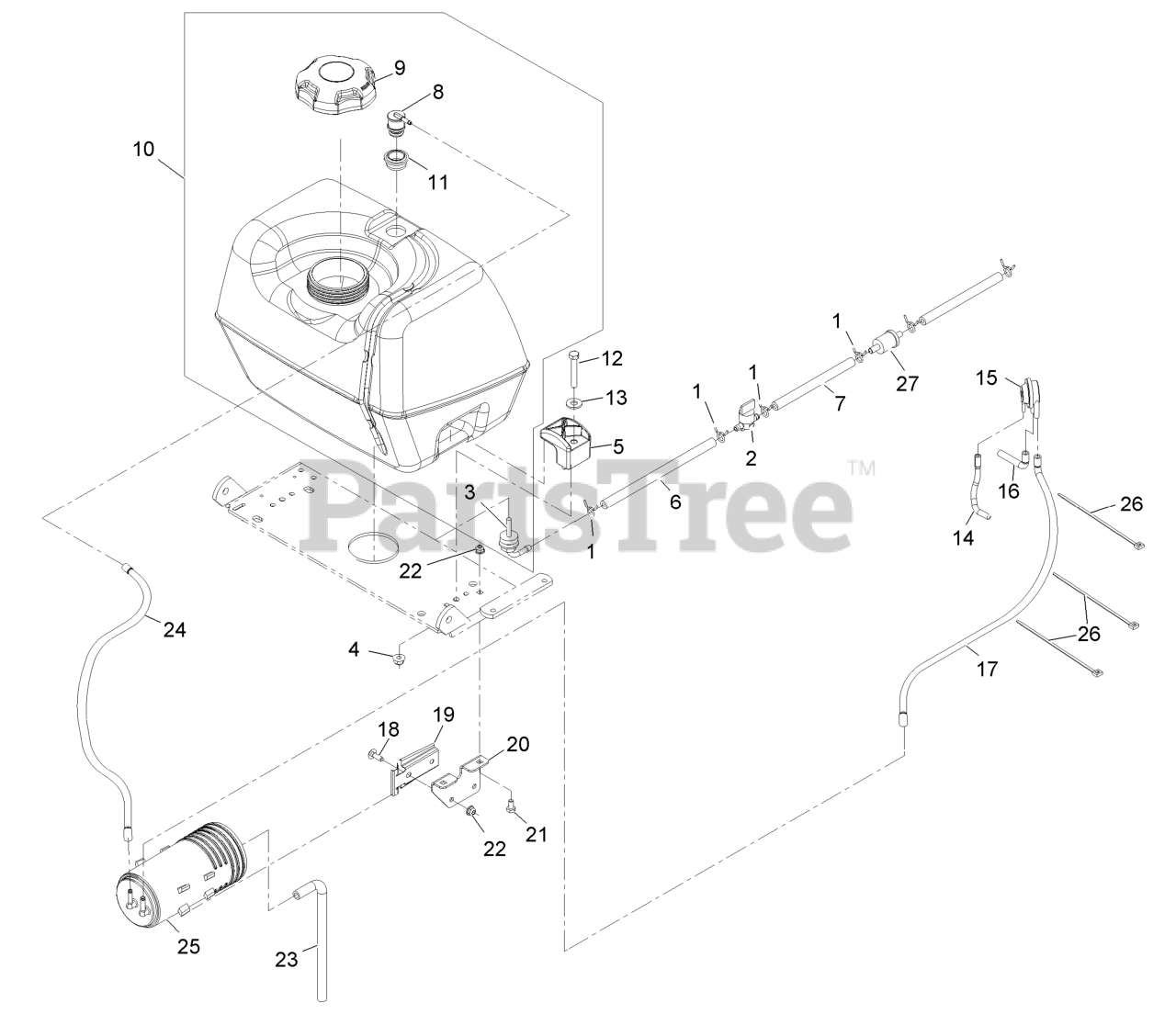

MG16KA483CA - Exmark 48" Metro Walk-Behind Mower, 16HP Kawasaki, CARB (SN: 920000 - 999999) (2011) > Parts Diagrams (6) > Fuel Tank Assembly

  • Title
2412-98

1

Clamp-Hose

Part# 2412-98

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.94

1-603770

2

Valve-Fuel

Part# 1-603770

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.91

103-2605

3

Fitting-Fuel Bulkhead W/Strainer

Part# 103-2605

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $24.86

104-8300

4

Nut-Nyloc 5/16-18 Flg

Part# 104-8300

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.82

107-4543

5

Clamp

Part# 107-4543

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.84

109-0650

6

Hose-Fuel

Part# 109-0650

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.99

99-9415

7

Hose-Fuel

Part# 99-9415

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.42

114-0285

8

Valve-Rollover

Part# 114-0285 (Superseded to 119-3547)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.00

115-4465

9

Cap-Fuel, Ratcheting

Part# 115-4465 (Superseded to 137-4119)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $18.98

116-3656

10

Asm-Fuel Tank

Part# 116-3656 (Superseded to 135-2855)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $215.16

119-6549

11

Grommet-Valve, Roll Over

Part# 119-6549 (Superseded to 114-0284)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.89

322-10

12

Screw-Hh 5/16-18 X 2

Part# 322-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.73

3256-3

13

Washer-5/16 Std

Part# 3256-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.35

116-2394

14

Hose-Formed

Part# 116-2394

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.48

116-2232

15

Valve-Control, Vacuum

Part# 116-2232

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $17.31

116-2233

16

Hose-Formed

Part# 116-2233

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.48

116-2231

17

Formed-Hose

Part# 116-2231

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $23.83

321-2

18

Screw-Hh 1/4-20 X 1/2

Part# 321-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.11

114-0292

19

Bracket-Canister, Carbon

Part# 114-0292

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.07

115-4486-01

20

Bracket-Canister, Carbon

Part# 115-4486-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $10.27

3229-1

21

Bolt-Carriage 1/4-20 X 3/4

Part# 3229-1

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.71

104-7201

22

Nut-Nyloc 1/4-20 Flg

Part# 104-7201

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.03

115-0962

23

Hose-Vent, Canister

Part# 115-0962

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.08

114-0286

24

Hose-Vent

Part# 114-0286

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.53

117-1221

25

Canister-Carbon, 800cc

Part# 117-1221

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $53.81

1-303335

26

Tie-Cable 7 15/16 (Large)

Part# 1-303335

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.98

Pn 41019-1055 Filter W/6in Fuel Line

27

Pn 41019-1055 Filter W/6in Fuel Line

Part# Pn 41019-1055 Filter W/6in Fuel Line

Not available
