MG16KA483P - Exmark 48" Metro Walk-Behind Mower, 16HP Kawasaki (SN: 920000 - 999999) (2011)

48" Metro Walk-Behind Mower, 16HP Kawasaki

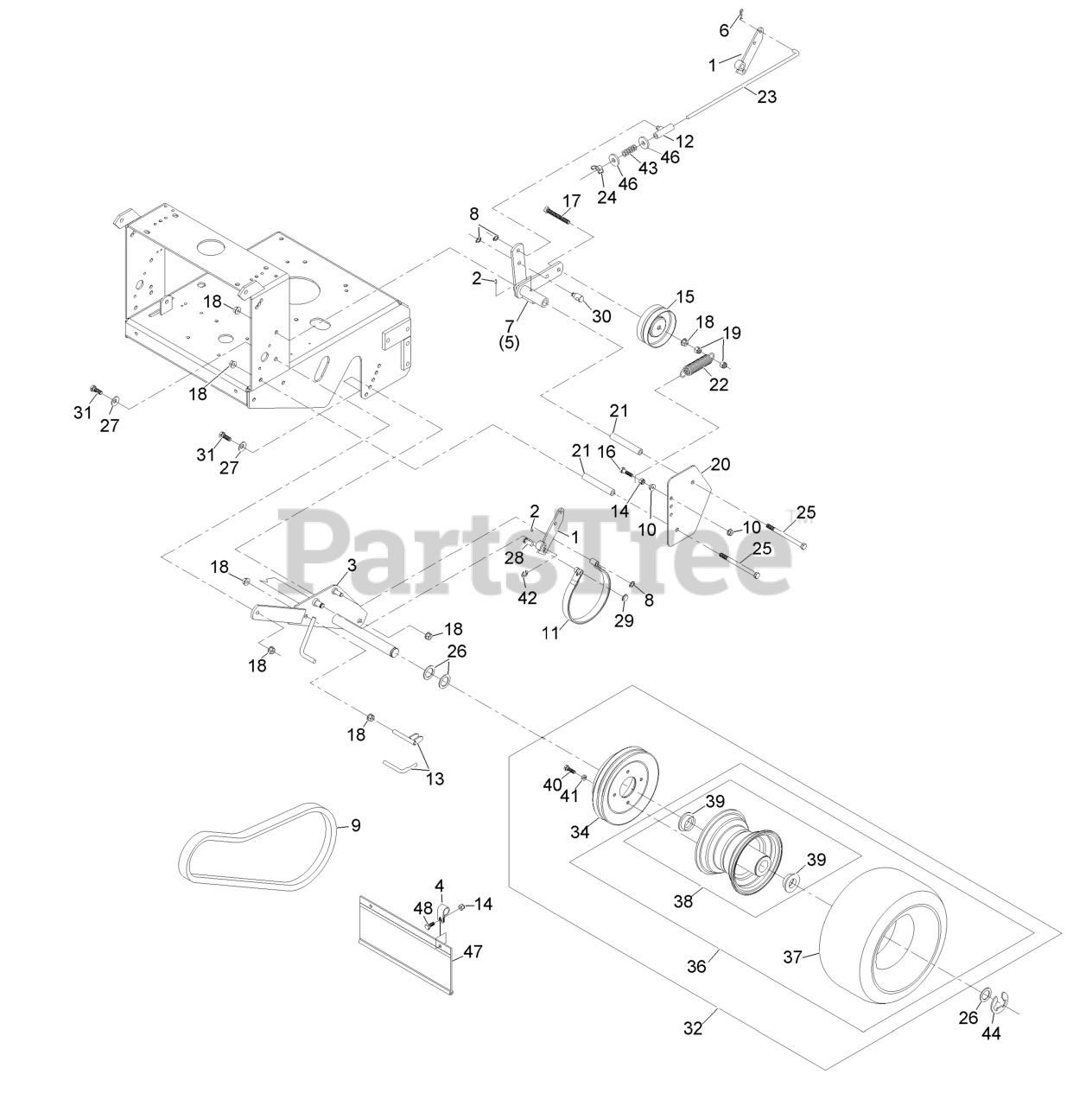

MG16KA483P - Exmark 48" Metro Walk-Behind Mower, 16HP Kawasaki (SN: 920000 - 999999) (2011) > Parts Diagrams (6) > Engine Deck Assembly (cont.)

  • Title
103-1611-03

1

Arm-Brake

Part# 103-1611-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $52.60

302-19

2

Zerk-1/4-28 Str

Part# 302-19

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.93

1-322117-03

3

Axle

Part# 1-322117-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $256.94

2412-104

4

Clamp-R

Part# 2412-104

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.64

103-1615-03

5

Arm-Idler, Lh

Part# 103-1615-03 (Superseded to 116-7542-03)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $61.17

1-806003

6

Hairpin-Cotter

Part# 1-806003

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.34

103-1616-03

7

Arm-Idler, Rh

Part# 103-1616-03 (Superseded to 116-7543-03)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $61.17

32151-47

8

Ring-Retaining

Part# 32151-47

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.49

1-323288

9

Belt, Wheel Drive (36"&48" Models)

Part# 1-323288

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $74.38

32128-20

10

Nut-Whizlock 5/16-18

Part# 32128-20

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.74

1-323262

11

Band-Brake

Part# 1-323262

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $45.26

110-5866

12

Swivel-Brake

Part# 110-5866

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $18.18

1-412358

13

Scraper

Part# 1-412358

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $23.24

3296-29

14

Nut-Nyloc 5/16-18

Part# 3296-29

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.98

1-323277

15

Idler-Wheel, Drive

Part# 1-323277

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $25.68

322-6

16

Screw-Hh 5/16-18 X 1 1/4

Part# 322-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.38

99-8664

17

Bolt-Hh 3/8-16 X 3 Tap

Part# 99-8664

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.34

3290-357

18

Nut-Whizlock 3/8-16

Part# 3290-357

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.79

3296-39

19

Nut-Nyloc 3/8-16

Part# 3296-39

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.24

1-323287-01

20

Shield-Wheel, Drive

Part# 1-323287-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $35.40

1-323283

21

Spacer-Shield

Part# 1-323283

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.26

1-603402

22

Spring-Extension

Part# 1-603402

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.10

1-323548

23

Linkage-Brake

Part# 1-323548

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.39

1-513959

24

Wingnut-Nyloc 5/16

Part# 1-513959

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.63

323-39

25

Screw-Hh 3/8-16 X 5

Part# 323-39

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.28

1-523157

26

Washer

Part# 1-523157

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.06

1-543436

26

Washer-Spacer

Part# 1-543436

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.67

98-5975

27

Washer-Spring Disc 3/8

Part# 98-5975

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.43

1-323307

28

Pin-Clevis 1/2 X 1

Part# 1-323307

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.83

1-803051

29

Nut-Push 3/8

Part# 1-803051

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.31

103-1864

30

Swivel-Lever, Drive

Part# 103-1864

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.50

323-6

31

Screw-Hh 3/8-16 X 1

Part# 323-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.09

109-4721

32

Asm, Wheel Drive (36"&48" Models)

Part# 109-4721

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $231.25

109-4359

34

Drum And Sheave Asm

Part# 109-4359

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $62.40

1-323719

36

Wheel And Tire Asm

Part# 1-323719

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $170.31

1-323720

37

Tire-Turfmaster

Part# 1-323720

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $88.09

1-323328

38

Wheel And Hub Asm

Part# 1-323328

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $132.14

1-323329

39

Bearing-Flanged

Part# 1-323329

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $44.04

322-5

40

Screw-Hh 5/16-18 X 1

Part# 322-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.45

1-805005

41

Washer-Lock 5/16 Heavy

Part# 1-805005

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.83

32120-47

42

Ring-Retaining

Part# 32120-47

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.61

1-323245

43

Spring-Compression

Part# 1-323245

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.90

1-808519

44

Ring-Snap

Part# 1-808519

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.52

3256-23

46

Washer-5/16 SAE

Part# 3256-23

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.82

98-3259

47

Shield-Trailing

Part# 98-3259

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $50.15

322-3

48

Screw-Hh 5/16-18 X 3/4

Part# 322-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.74
