MG481KA483P - Exmark 48" Metro Walk-Behind Mower, Kawasaki FS481V (SN: 312000000 - 312999999) (2012)

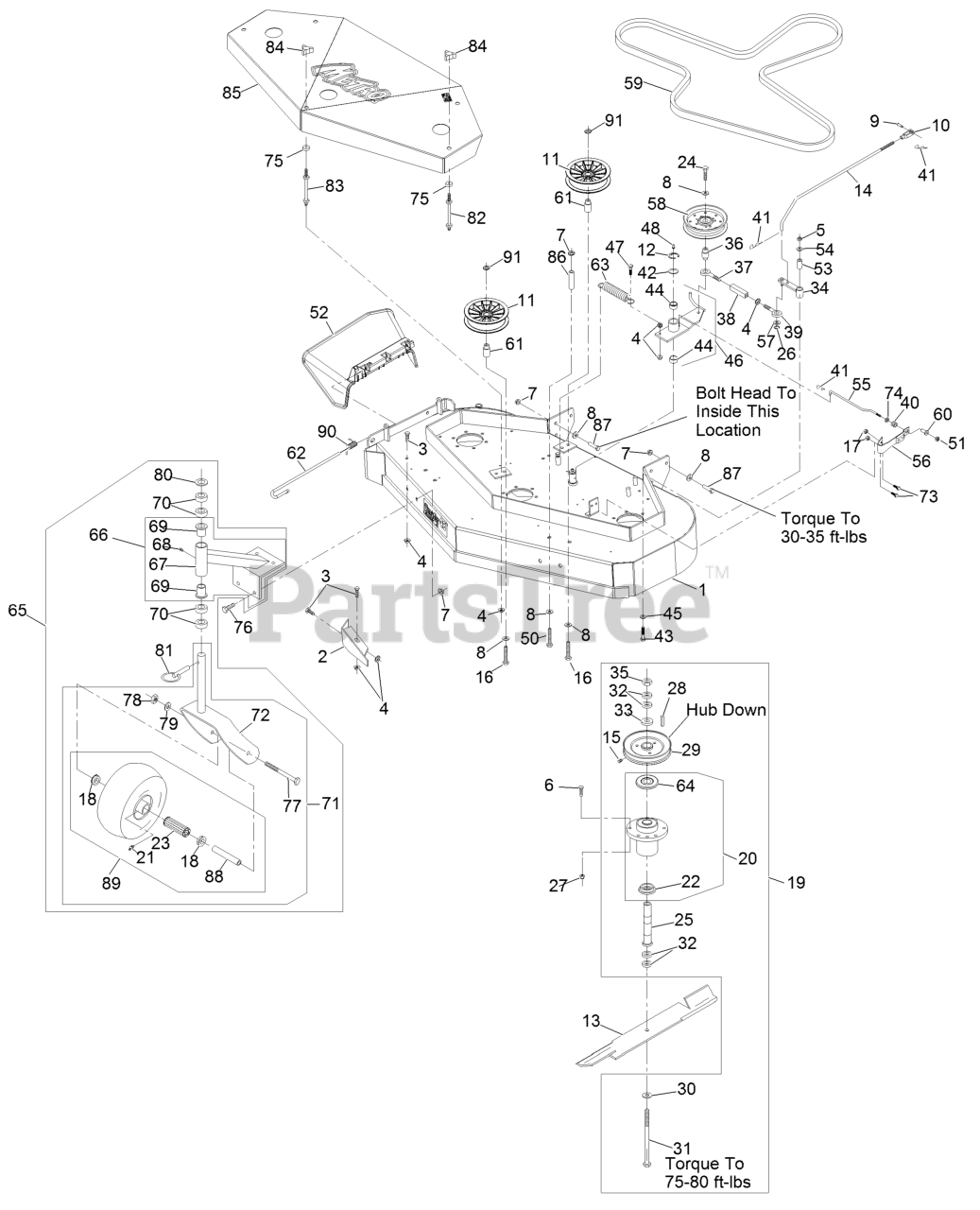

48" Metro Walk-Behind Mower, Kawasaki FS481V

MG481KA483P - Exmark 48" Metro Walk-Behind Mower, Kawasaki FS481V (SN: 312000000 - 312999999) (2012) > Parts Diagrams (6) > Mower Deck Assembly

  • Title
109-2601

1

Deck (116-0617-01)W/Decals Dogleg & Discharge Deflector

Part# 109-2601 (Superseded to 1-404257)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1823.52

1-402107-01

2

Baffle-Dogleg

Part# 1-402107-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $34.61

322-2

3

Screw-Hh 5/16-18 X 5/8

Part# 322-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.91

32128-20

4

Nut-Whizlock 5/16-18

Part# 32128-20

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.69

3296-29

5

Nut-Nyloc 5/16-18

Part# 3296-29

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.87

323-7

6

Screw-Hh 3/8-16 X 1 1/4

Part# 323-7

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.29

3290-357

7

Nut-Whizlock 3/8-16

Part# 3290-357

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.75

98-5975

8

Washer-Spring Disc 3/8

Part# 98-5975

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.29

1-808280

9

Pin-Clevis 5/16 X 1 49/64

Part# 1-808280

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.79

1-303105

10

Yoke-Adjustable

Part# 1-303105

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $10.03

109-0977

11

Pulley,Idler 5"

Part# 109-0977

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $53.08

32151-103

12

E-Ring

Part# 32151-103

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.20

103-6583

13

Blade, Notched

Part# 103-6583 (Superseded to 103-6583-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $23.08

103-6581

13

Blade, Mulching

Part# 103-6581 (Superseded to 103-6581-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $24.23

103-6738

13

Blade, Low Lift

Part# 103-6738 (Superseded to 103-6738-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $23.08

103-1577

13

Blade, Solid

Part# 103-1577 (Superseded to 103-1577-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $26.54

116-5178

13

Blade, Extreme (32 )

Part# 116-5178 (Superseded to 116-5178-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $25.38

1-323303

14

Linkage-Arm

Part# 1-323303

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $16.90

3246-18

15

Setscrew-5/16-18 X 3/8

Part# 3246-18

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.95

323-13

16

Screw-Hh 3/8-16 X 2 3/4

Part# 323-13

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.91

3296-42

17

Nut-Nyloc 1/4-20

Part# 3296-42

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.36

1-513810

18

Bushing-Flanged

Part# 1-513810

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.46

103-8387

19

Asm, Cutter Housing Complete

Part# 103-8387

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $381.18

103-8280

20

Kit, Cutter Housing

Part# 103-8280

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $184.68

302-61

21

Zerk-45deg 1/4-28

Part# 302-61

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.90

103-2535

22

Spacer-Guard Bottom

Part# 103-2535

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.07

1-513809

23

Bearing

Part# 1-513809

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $23.90

702809

24

Screw-Hh

Part# 702809

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.92

1-323529

25

Tube-Spindle, Short

Part# 1-323529

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $58.86

32120-35

26

E-Ring

Part# 32120-35

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.11

3296-39

27

Nut-Nyloc 3/8-16

Part# 3296-39

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.11

1-807267

28

Key-Machine 1/4 X 3/16 X 1 1/4

Part# 1-807267

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.78

1-403183

29

Sheave

Part# 1-403183

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $55.40

1-513208

30

Washer-Spring Disc 5/8

Part# 1-513208

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.88

1-800861

31

Screw-Cap, Hh

Part# 1-800861

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.88

1-323539

32

Spacer-Blade Drive

Part# 1-323539

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.07

1-323339

33

Washer

Part# 1-323339

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.06

1-322235

34

Arm-Assist

Part# 1-322235

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $36.93

3219-6

35

Nut-Hex 5/8-18

Part# 3219-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.09

1-303434

36

Bushing-Engagement

Part# 1-303434

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $10.38

1-303348

37

Eyebolt-Thread, Lh

Part# 1-303348

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.86

1-303236

38

Body-Turnbuckle

Part# 1-303236

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.88

1-303238

39

Eyebolt-Thread, Rh

Part# 1-303238

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.86

1-323747

40

Spring-Compression

Part# 1-323747

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.10

1-806003

41

Hairpin-Cotter

Part# 1-806003

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.26

1-303352

42

Washer-Spindle

Part# 1-303352

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.26

322-10

43

Screw-Hh 5/16-18 X 2

Part# 322-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.73

1-323729

44

Sleeve-Bearing

Part# 1-323729

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.24

1-303334

45

Washer-Spring Disc 5/16

Part# 1-303334

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.33

103-3600

46

Idler Arm Asm

Part# 103-3600

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $90.02

116-3515

47

Screw,Hh Special 5/16-18 X 1.25

Part# 116-3515

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.89

302-19

48

Zerk-1/4-28 Str

Part# 302-19

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.82

323-20

50

Screw-Hh 3/8-16 X 3-1/4

Part# 323-20

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.71

3296-56

51

Nut-Nyloc 1/4-20 Thin

Part# 3296-56

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.52

109-5151

52

Deflector-Discharge

Part# 109-5151

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $36.45

1-403179

53

Tube-Pivot

Part# 1-403179

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.69

3256-3

54

Washer-5/16 Std

Part# 3256-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.35

1-323714

55

Rod-Brake

Part# 1-323714

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $19.61

1-324372

56

Pad And Spring Asm

Part# 1-324372

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $46.16

3256-23

57

Washer-5/16 SAE

Part# 3256-23

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.72

116-3626

58

Pulley-Idler

Part# 116-3626 (Superseded to 132-4718)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $23.94

1-403174

59

Belt, Drive (Main Deck)

Part# 1-403174

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $51.05

1-323746

60

Spacer-Flanged

Part# 1-323746

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.89

1-413113

61

Bushing-Idler

Part# 1-413113

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.46

109-8854

62

Pin-Chute

Part# 109-8854

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $10.77

1-323071

63

Spring-Extension

Part# 1-323071

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $11.31

103-1330

64

Guard-Bearing Top

Part# 103-1330

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.14

103-1238

65

Asm , Caster/Mount Complete

Part# 103-1238

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $229.70

1-302203

66

Support Asm

Part# 1-302203

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $200.84

1-302194-01

67

Support-Caster

Part# 1-302194-01 (Superseded to 1-302203)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $200.84

302-52

68

Zerk-1/8-27 Str

Part# 302-52

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.00

1-303514

69

Bearing-Flanged

Part# 1-303514

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.46

1-303314

70

Spacer-Caster

Part# 1-303314

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.94

103-1236

71

Asm, Caster Wheel Assembly

Part# 103-1236

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $136.20

1-322145-01

72

Fork

Part# 1-322145-01 (Superseded to 116-7942-01)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $64.63

321-4

73

Screw-Hh 1/4-20 X 3/4

Part# 321-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.81

1-323748

74

Ring-Push On

Part# 1-323748

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.06

1-323417

75

Washer-Belt Shield

Part# 1-323417

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.21

323-4

76

Screw-Hh 3/8-16 X 3/4

Part# 323-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.05

325-20

77

Screw-Hh 1/2-13 X 6

Part# 325-20

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.89

3217-9

78

Nut-Hex 1/2-13

Part# 3217-9

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.44

3253-7

79

Washer-Lock 1/2

Part# 3253-7

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.79

1-513338

80

Washer

Part# 1-513338

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.33

1-809020

81

Pin

Part# 1-809020

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.42

1-303537

82

Stud-Shield, Belt (Short)

Part# 1-303537

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.41

1-303536

83

Stud-Shield, Belt (Long)

Part# 1-303536

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.02

1-323385

84

Knob-3 Prong

Part# 1-323385

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.75

116-2707

85

Shield (1-402100-01)W/Decals 48

Part# 116-2707

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $345.24

1-403188

86

Spacer

Part# 1-403188

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $10.38

323-8

87

Screw-Hh 3/8-16 X 1 1/2

Part# 323-8

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.52

1-513547

88

Spacer

Part# 1-513547

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.07

103-2171

89

Kit, Tire & Wheel Asm W/ Spacer

Part# 103-2171

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $92.34

116-0962

90

Spring, Torsion

Part# 116-0962

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.76

104-8301

91

Nut-Nyloc 3/8-16 Flg

Part# 104-8301

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.93
