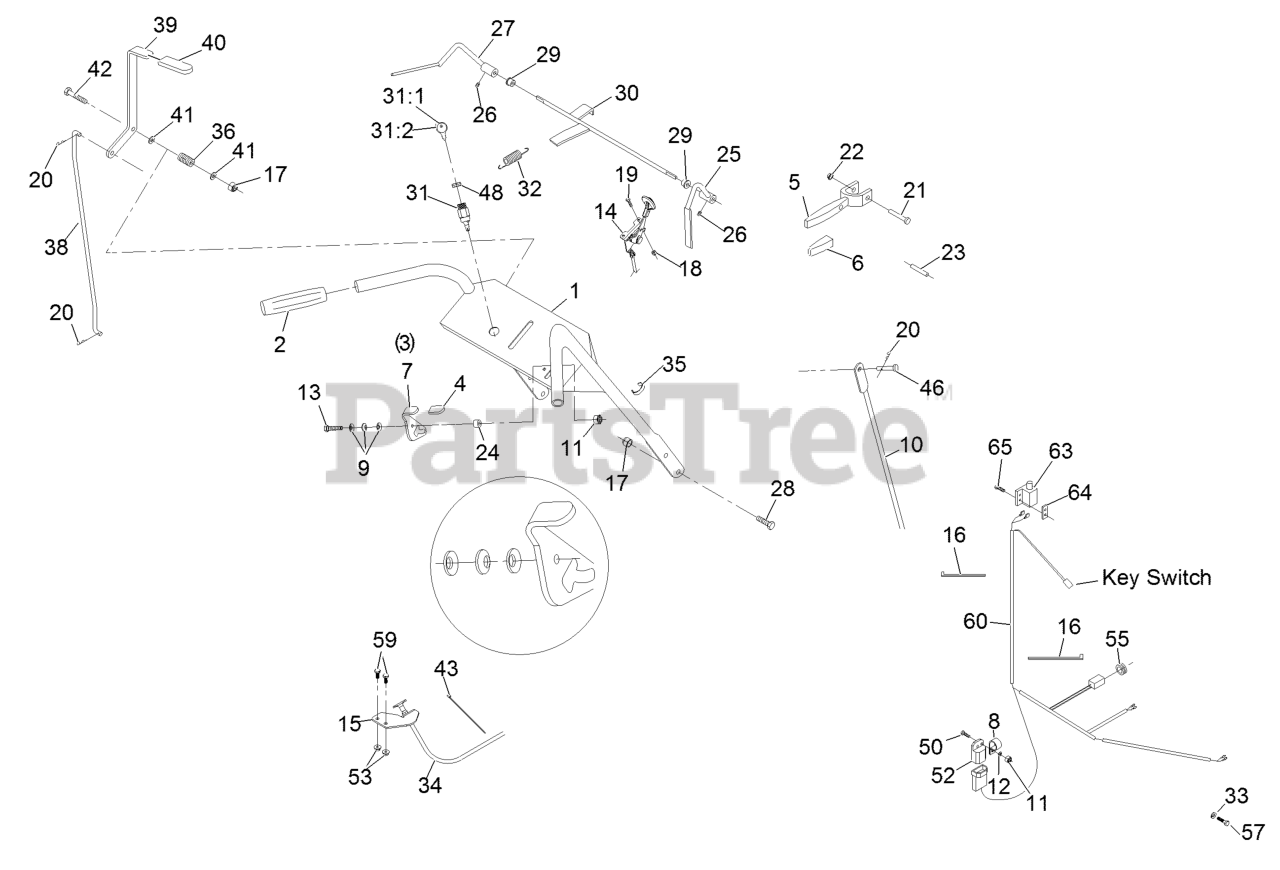

MG481KA483P - Exmark 48" Metro Walk-Behind Mower, Kawasaki FS481V (SN: 312000000 - 312999999) (2012) > Parts Diagrams (6) > Pistol Grip Upper Handle and Controls

  • Title
109-4695

1

Kit, Handle (109-4682-03) W/Decals

Part# 109-4695

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $364.69

1-303097

2

Grip-Handle

Part# 1-303097 (Superseded to 104-9838)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.03

1-324279

3

Lh Thumb Latch Asm

Part# 1-324279 (Superseded to 137-9508)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $18.46

1-303019

4

Grip-Latch

Part# 1-303019

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.26

1-302006

5

Drive Lever Asm

Part# 1-302006

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $35.78

1-303021

6

Grip-Lever, Drive

Part# 1-303021

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.04

1-324280

7

Rh Thumb Latch Asm

Part# 1-324280 (Superseded to 137-9507)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $18.46

1-323229

8

Clip-Loom 3/8

Part# 1-323229

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.09

1-303435

9

Washer-Spring Disc 1/4

Part# 1-303435

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.01

1-323359

10

Linkage-Wheel, Drive

Part# 1-323359

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.29

3296-42

11

Nut-Nyloc 1/4-20

Part# 3296-42

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.36

3256-22

12

Washer-1/4 SAE

Part# 3256-22

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

321-18

13

Screw-Hh 1/4-20 X 2 1/4

Part# 321-18

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.64

116-2426

14

Cable, Throttle

Part# 116-2426

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $31.16

103-1797-01

15

Bracket-Cable, Choke

Part# 103-1797-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.24

1-303287

16

Tie-Cable 5 1/2 (Small)

Part# 1-303287

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.60

3296-39

17

Nut-Nyloc 3/8-16

Part# 3296-39

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.11

3296-2

18

Nut-Nyloc #10-24

Part# 3296-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.29

1-807513

19

Bolt-Carriage #10-24 X 1/2

Part# 1-807513

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.21

1-806003

20

Hairpin-Cotter

Part# 1-806003

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.26

1-808250

21

Pin-Lever, Drive

Part# 1-808250

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.39

1-803001

22

Nut

Part# 1-803001

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.82

1-806340

23

Pin-Roll

Part# 1-806340 (Superseded to 1-806340)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.43

1-323549

24

Spacer

Part# 1-323549

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.63

1-412185-03

25

Lever-Rh

Part# 1-412185-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $26.12

1-803322

26

Setscrew-5/16-24 X 5/16

Part# 1-803322

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.67

1-412183-03

27

Lever-Lh

Part# 1-412183-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $26.12

323-6

28

Screw-Hh 3/8-16 X 1

Part# 323-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.97

1-303365

29

Bushing-Nylon

Part# 1-303365

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.86

1-322192-03

30

Rod, Connecting

Part# 1-322192-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $29.16

1-403121

31

Switch-Key

Part# 1-403121

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $18.46

1-603511

31:1

Key-Ignition

Part# 1-603511

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.29

103-2106

31:2

Key-Exmark Logo

Part# 103-2106

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.10

1-303363

32

Spring-Extension

Part# 1-303363

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.91

33094-00

33

Washer

Part# 33094-00

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.13

103-1796

34

Cable-Choke

Part# 103-1796

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $33.46

1-303088

35

Clip-Cable

Part# 1-303088

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.26

1-303160

36

Spring-Compression

Part# 1-303160

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.70

1-323298

38

Linkage-Blade, Upper

Part# 1-323298

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $61.17

116-6331

39

Asm-Lever W/Grip

Part# 116-6331

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $36.93

1-303020

40

Grip-Lever

Part# 1-303020

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.48

3256-4

41

Washer-3/8 Std

Part# 3256-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.23

323-10

42

Screw-Hh 3/8-16 X 2

Part# 323-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.64

1-303335

43

Tie-Cable 7 15/16 (Large)

Part# 1-303335

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.98

1-808286

46

Pin-Clevis

Part# 1-808286

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.67

103-0498

48

Nut-Ignition

Part# 103-0498

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.34

321-4

50

Screw-Hh 1/4-20 X 3/4

Part# 321-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.81

1-323430

52

Module-Interlock

Part# 1-323430

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $93.49

32128-33

53

Nut-Whizlock 1/4-20

Part# 32128-33

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.64

1-543296

55

Grommet

Part# 1-543296

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.74

33114-016

57

Screw-Hh M8-1.25 X 16mm

Part# 33114-016

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.46

321-3

59

Screw-Hh 1/4-20 X 5/8

Part# 321-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.01

116-2661

60

Harness-Wire

Part# 116-2661

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $63.48

1-513051

63

Switch-N.O.

Part# 1-513051

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.65

1-633181

64

Plate-Tapped

Part# 1-633181

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.96

3290-500

65

Screw-Pph #10-24 X 5/8

Part# 3290-500

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.84
