MGS481CKA36200 - Exmark 36" Metro S-Series Walk-Behind Mower, Kawasaki FS (SN: 402082300 - 404314158) (2018) ECS Upper Handle and Controls Parts Diagram

36" Metro S-Series Walk-Behind Mower, Kawasaki FS

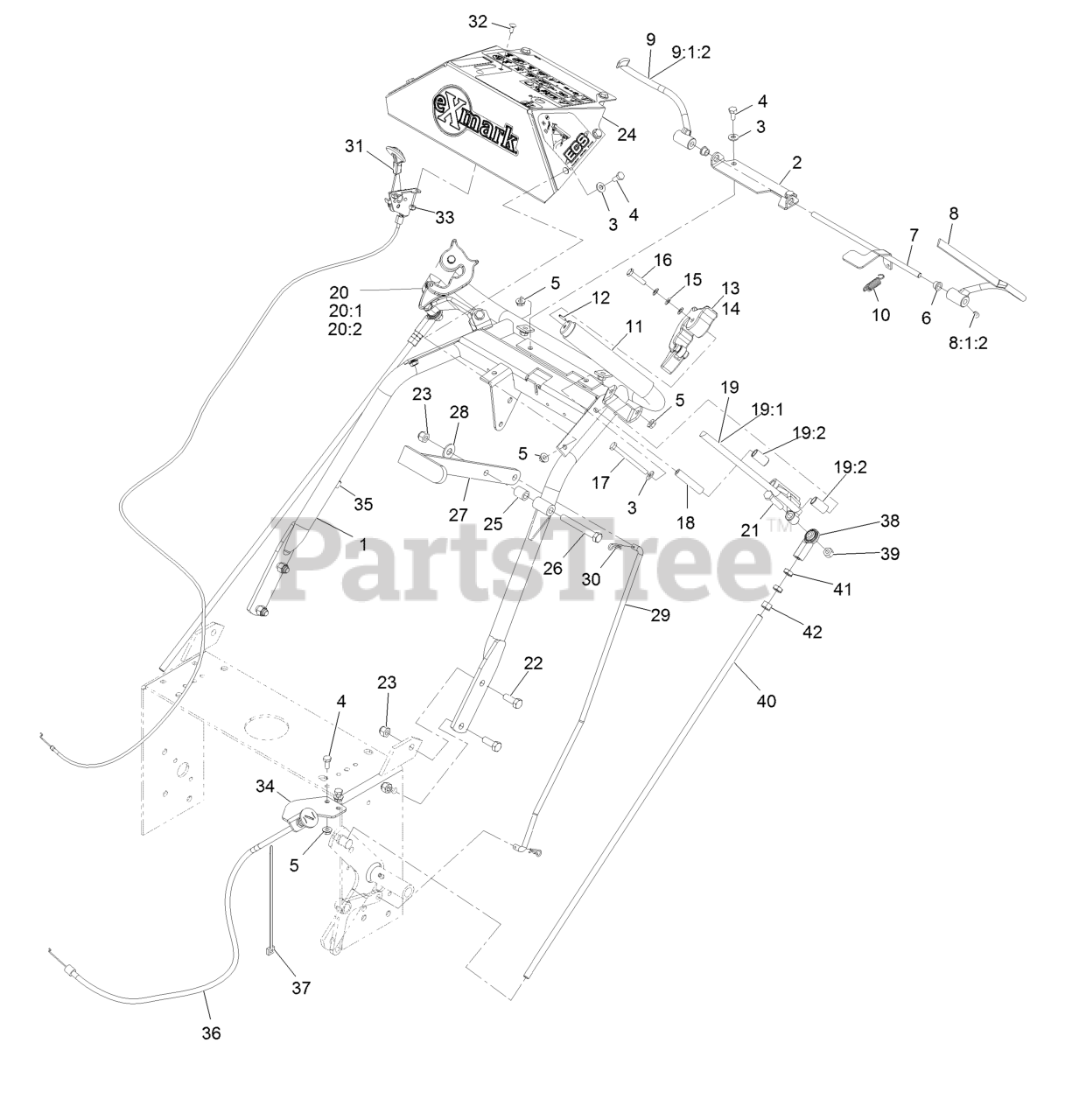

ECS Upper Handle and Controls Parts Diagram

  • Title

1

Exmark 103-0770-03

Handle Weldment

$715.99

$

Usually ships in 3-6 days

0

2

Exmark 103-0489-03

Bracket, Opc Axle

$26.99

$

In Stock, only 3 left!

0

3

Exmark 3256-22

Washer-1/4 SAE

$0.99

$

In Stock, Qty 20+

0

4

Exmark 321-3

Screw-HH 1/4-20 X 5/8

$1.49

$

In Stock, Qty 20+

0

5

Exmark 32128-33

Nut-Whizlock 1/4-20

$0.99

$

In Stock, Qty 20+

0

6

Exmark 1-303365

Bushing-Nylon

$5.49

$

In Stock, Qty 20+

0

7

Exmark 103-0769-03

Rod Weldment, OPC

$50.99

$

In Stock, Qty 20+

0

8

Exmark 116-4079

Wld,LH OPC Lever

$40.99

$

In Stock, Qty 12

0

8:1:2

Exmark 1-803322

Setscrew-5/16-24 X 5/16

$1.49

$

In Stock, Qty 20+

0

9

Exmark 116-4080

Wld,RH OPC Lever

$40.99

$

In Stock, Qty 11

0

9:1:2

Exmark 1-803322

Setscrew-5/16-24 X 5/16

$1.49

$

In Stock, Qty 20+

0

10

Exmark 1-303363

Spring-Extension

$6.99

$

In Stock, Qty 9

0

11

Exmark 103-0815

Grip-Bar, Handle

$13.99

$

In Stock, Qty 11

0

12

Exmark 126-2925

Pin-Spring

$1.49

$

In Stock, Qty 6

0

13

Exmark 103-1631

Latch, Thumb LH

$40.99

$

Usually ships in 3-6 days

0

14

Exmark 103-1630

Latch, Thumb RH

$40.99

$

In Stock, only 3 left!

0

15

Exmark 1-303435

Washer-Spring Disc 1/4

$1.99

$

In Stock, Qty 20+

0

16

Exmark 103-0235

Screw-HH 1/4-20 X 1 1/8 W/Nylon

$1.49

$

In Stock, Qty 19

0

17

Exmark 321-14

Screw-HH 1/4-20 X 2 3/4

$5.49

$

In Stock, Qty 12

0

18

Exmark 103-0027

Bushing-Lever, Drive

$21.99

$

In Stock, only 3 left!

0

19

Exmark 103-2514

Asm, Drive Lever LH

$149.99

$

In Stock, only 4 left!

0

19:1

Exmark 116-4081

Wld,LH Drive Lever

$60.99

$

In Stock, only 1 left!

0

19:2

Exmark 126-9366

Bushing, Sleeve

$2.99

$

Usually ships in 3-6 days

0

20

Exmark 103-2513

Asm, Drive Lever RH

$149.99

$

In Stock, only 1 left!

0

20:1

Exmark 116-4082

Wld,RH Drive Lever

$60.99

$

Usually ships in 3-6 days

0

20:2

Exmark 126-9366

Bushing, Sleeve

$2.99

$

Usually ships in 3-6 days

0

21

Exmark 322-9

Screw-HH 5/16-18 X 1 3/4

$3.99

$

In Stock, Qty 20+

0

22

Exmark 323-6

Screw-HH 3/8-16 X 1

$2.99

$

In Stock, Qty 20+

0

23

Exmark 3296-39

Nut-Nyloc 3/8-16

$2.99

$

In Stock, Qty 20+

0

24

Exmark 109-4934

Asm, Console (109-4649-03) W/Decals

$299.99

$

Usually ships in 3-6 days

0

25

Exmark 1-633080

Spacer

$11.99

$

Usually ships in 3-6 days

0

26

Exmark 323-14

Screw-HH 3/8-16 X 3

$4.49

$

In Stock, Qty 20+

0

27

Exmark 103-1629

Clutch Lever W/Grip

$23.99

$

Usually ships in 3-6 days

0

28

Exmark 3256-4

Washer-3/8 Std

$1.99

$

In Stock, Qty 20+

0

29

Exmark 103-1627

Linkage, Upper

$21.99

$

Usually ships in 3-6 days

0

30

Exmark 1-806003

Hairpin-Cotter

$1.99

$

In Stock, Qty 20+

0

31

Exmark 116-2426

Control, Throttle

$51.99

$

In Stock, only 1 left!

0

31

Exmark 116-2426RT02

Control, Throttle

$

$

Currently unavailable

32

Exmark 1-807513

Bolt-Carriage #10-24 X 1/2

$2.99

$

In Stock, Qty 20+

0

33

Exmark 3296-2

Nut-Nyloc #10-24

$2.49

$

In Stock, Qty 20+

0

34

Exmark 103-1797-01

Bracket-Cable, Choke

$9.99

$

In Stock, only 1 left!

0

35

Exmark 1-303088

Clip-Cable

$2.99

$

Usually ships in 3-6 days

0

36

Exmark 103-1796

Cable-Choke

$46.99

$

Usually ships in 3-6 days

0

36

Exmark 103-1796RT01

Cable-Choke

$

$

Currently unavailable

37

Exmark 1-303335

Tie-Cable 7 15/16 (Large)
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 7

0

38

Exmark 103-2463

Balljoint

$29.99

$

In Stock, only 4 left!

0

39

Exmark 3296-29

Nut-Nyloc 5/16-18

$2.49

$

In Stock, Qty 20+

0

40

Exmark 103-1604

Linkage, Wheel Drive

$27.99

$

In Stock, only 4 left!

0

41

Exmark 3220-3

Nut-Jam 3/8-24

$0.99

$

In Stock, Qty 5

0

42

Exmark 3219-3

Nut-Hex 3/8-24

$1.99

$

In Stock, Qty 20+

0
