MGS481CKA36200 - Exmark 36" Metro S-Series Walk-Behind Mower, Kawasaki FS (SN: 404314159 - 406294344) (2019)

36" Metro S-Series Walk-Behind Mower, Kawasaki FS

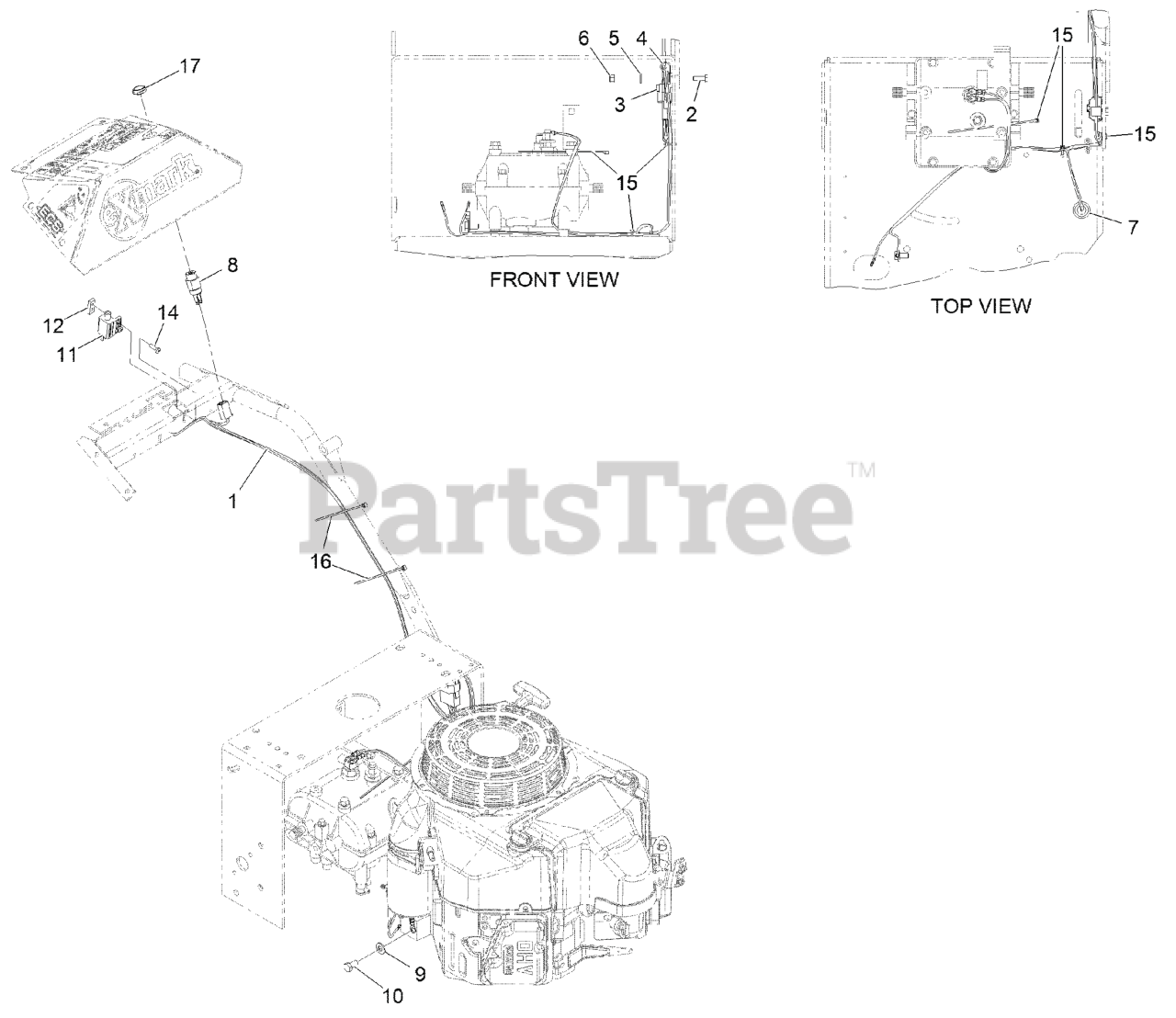

MGS481CKA36200 - Exmark 36" Metro S-Series Walk-Behind Mower, Kawasaki FS (SN: 404314159 - 406294344) (2019) > Parts Diagrams (15) > Electrical Assembly

  • Title
116-2661

1

HARNESS-WIRE

Part# 116-2661

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $63.48

321-4

2

SCREW-HH

Part# 321-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.81

1-323430

3

MODULE-INTERLOCK

Part# 1-323430

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $93.49

1-513762

4

CLIP-LOOM

Part# 1-513762

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.86

3256-22

5

WASHER-FLAT

Part# 3256-22

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

3296-42

6

NUT-LOCK, NI

Part# 3296-42

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.36

1-543296

7

GROMMET

Part# 1-543296

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.74

1-403121

8

SWITCH & KEY (INCLUDES NU

Part# 1-403121

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $18.46

33094-00

9

WASHER-PLAIN

Part# 33094-00

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.13

33114-016

10

SCREW-HH

Part# 33114-016

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.46

1-513051

11

SWITCH-OPEN, NORMALLY

Part# 1-513051

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.65

1-633181

12

PLATE-TAPPED

Part# 1-633181

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.96

3290-500

14

SCREW-PPH

Part# 3290-500

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.84

1-303287

15

TIE-CABLE

Part# 1-303287

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.60

1-303287

16

TIE-CABLE

Part# 1-303287

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.60

103-0498

17

NUT-SWITCH, IGNITION

Part# 103-0498

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.34
