MGS481CKA36200 - Exmark 36" Metro S-Series Walk-Behind Mower, Kawasaki FS (SN: 404314159 - 406294344) (2019)

36" Metro S-Series Walk-Behind Mower, Kawasaki FS

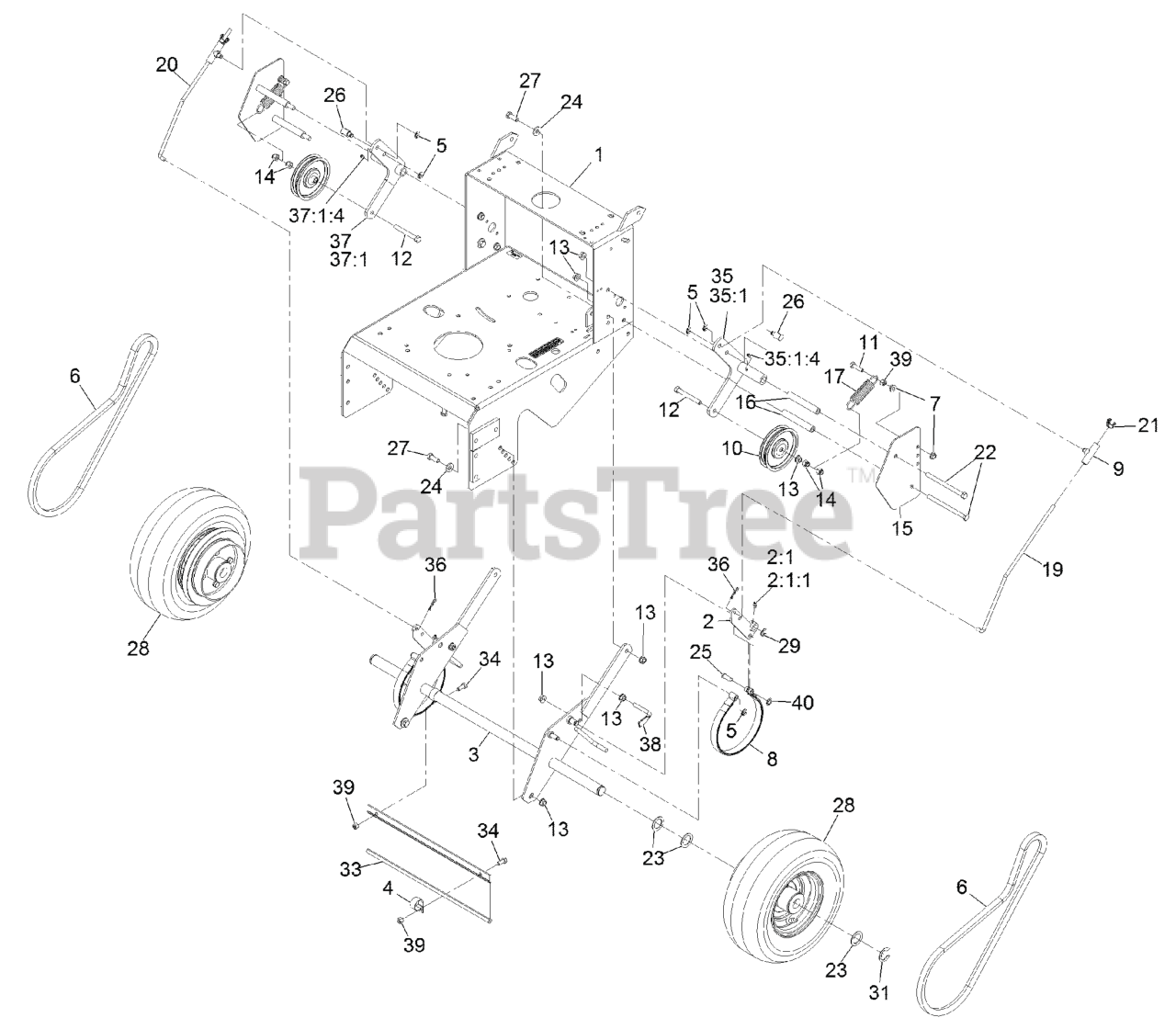

MGS481CKA36200 - Exmark 36" Metro S-Series Walk-Behind Mower, Kawasaki FS (SN: 404314159 - 406294344) (2019) > Parts Diagrams (15) > Engine Deck W/Transmission

  • Title
116-6131

1

ASM, METRO ENGINE DECK W/

Part# 116-6131

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $657.68

103-1611-03

2

ARM-BRAKE

Part# 103-1611-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $49.63

2:1

Wld,Brake Arm

Part#

Note: Not serviced separately

Not available

1-324154

2:1:1

ASM,BUSHING/ZERK

Part# 1-324154

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.22

1-322117-03

3

AXLE

Part# 1-322117-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $242.39

2412-104

4

CLAMP-R

Part# 2412-104

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.31

32151-47

5

RING-RETAINING

Part# 32151-47

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.35

1-323288

6

BELT,WHEEL DRIVE

Part# 1-323288

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $74.38

32128-20

7

NUT-HF

Part# 32128-20

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.69

1-323262

8

BAND-BRAKE

Part# 1-323262

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $42.70

110-5866

9

SWIVEL-BRAKE

Part# 110-5866

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $17.15

1-323277

10

IDLER-WHEEL, DRIVE

Part# 1-323277

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $24.23

116-3515

11

SCREW-HH, SPECIAL

Part# 116-3515

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.89

99-8664

12

SCREW-HH

Part# 99-8664

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.26

3290-357

13

NUT-HHF, WHIZ

Part# 3290-357

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.75

3296-39

14

NUT-LOCK, NI

Part# 3296-39

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.11

1-323287-01

15

SHIELD-WHEEL, DRIVE

Part# 1-323287-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $33.40

1-323283

16

SPACER-SHIELD

Part# 1-323283

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.84

1-603402

17

SPRING-EXTENSION

Part# 1-603402

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.76

103-1619

19

LINKAGE-BRAKE, LH

Part# 103-1619

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $12.15

103-1620

20

LINKAGE-BRAKE, RH

Part# 103-1620

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $12.15

1-513959

21

WINGNUT-NYLOCK

Part# 1-513959

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.37

323-39

22

SCREW-HH

Part# 323-39

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.75

1-523157

23

WASHER-SPACER

Part# 1-523157

Note: QTY As Required

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.01

1-543436

23

WASHER-SPACER

Part# 1-543436

Note: QTY As Required

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.64

98-5975

24

WASHER-BELLEVILLE

Part# 98-5975

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.29

1-323307

25

PIN-CLEVIS

Part# 1-323307

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.67

103-1618

26

SWIVEL-DRIVE LEVER, 3/8 L

Part# 103-1618

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.15

323-6

27

SCREW-HH

Part# 323-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.97

126-4482

28

DRIVE WHEEL ASM

Part# 126-4482

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $218.16

32120-47

29

RING-RETAINING, EXTERNAL

Part# 32120-47

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.52

1-808519

31

RING-SNAP

Part# 1-808519

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.43

98-3259

33

SHIELD-TRAILING

Part# 98-3259

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $47.31

322-3

34

SCREW-HH

Part# 322-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.69

116-7542-03

35

ARM-IDLER, LH

Part# 116-7542-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $57.70

35:1

Idler Arm LH Assy

Part#

Note: Not serviced separately

Not available

302-19

35:1:4

FITTING-GREASE

Part# 302-19

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.82

1-806003

36

PIN-COTTER

Part# 1-806003

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.26

116-7543-03

37

ARM-IDLER, RH

Part# 116-7543-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $57.70

37:1

Idler Arm RH Assy

Part#

Note: Not serviced separately

Not available

302-19

37:1:4

FITTING-GREASE

Part# 302-19

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.82

1-412358

38

SCRAPER

Part# 1-412358

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $21.92

3296-29

39

NUT-LOCK, NI

Part# 3296-29

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.87

1-803051

40

RING-RETAIN,PUSH,EXT,FLAT

Part# 1-803051

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.23
