MGS481CKA36200 - Exmark 36" Metro S-Series Walk-Behind Mower, Kawasaki FS (SN: 408644346 - 411294211) (Rev A) (2021) Fuel Tank Assembly Parts Diagram

36" Metro S-Series Walk-Behind Mower, Kawasaki FS

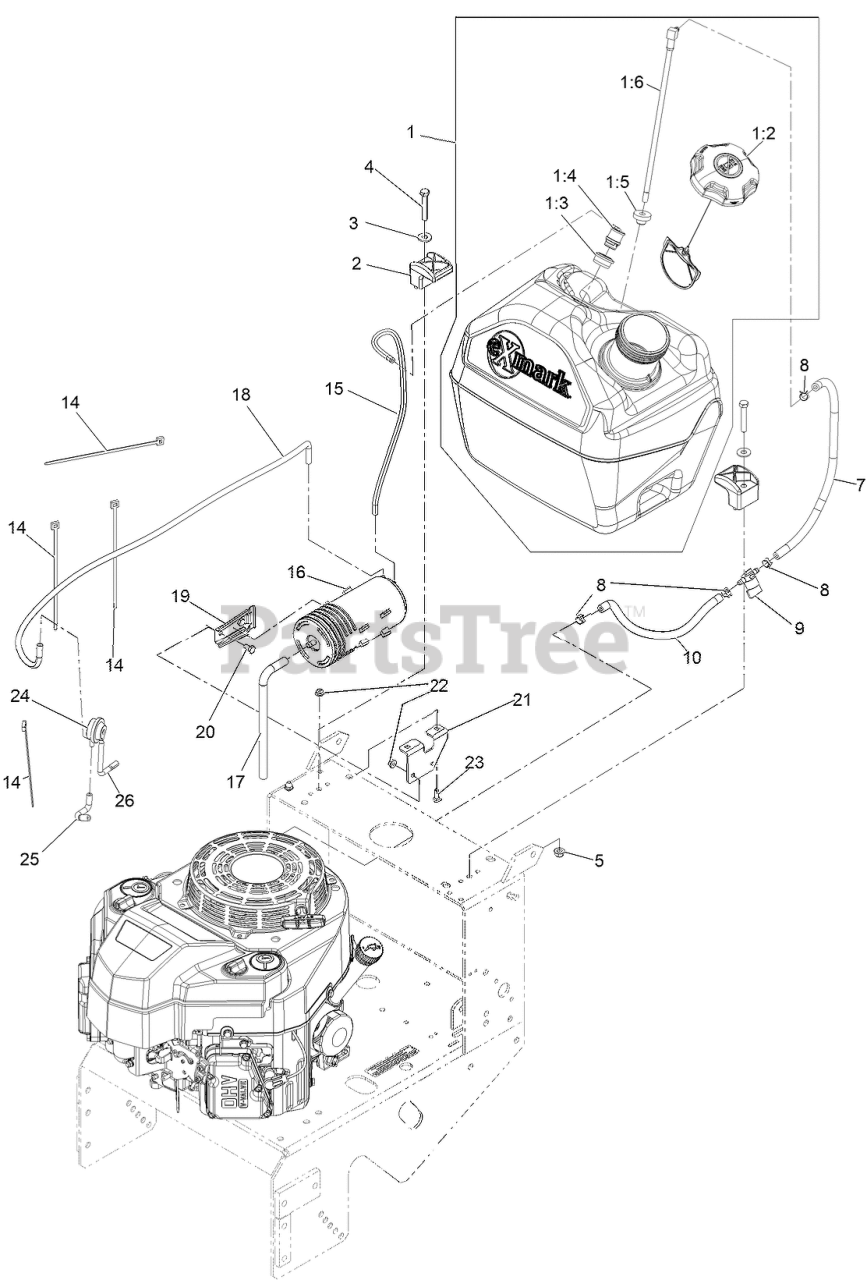

Fuel Tank Assembly Parts Diagram

  • Title

1

Exmark 135-2855

ASM, FUEL TANK 5 GAL
(Superseded to 140-4343)

$320.99

$

In Stock, only 2 left!

0

1:2

Exmark 137-4119

CAP-FUEL, RATCHETING

$29.99

$

In Stock, only 4 left!

0

1:3

Exmark 114-0284

GROMMET

$3.49

$

In Stock, Qty 8

0

1:4

Exmark 119-3547

VALVE-VENT, FUEL

$17.99

$

In Stock, only 2 left!

0

1:5

Exmark 46-6560

BUSHING

$6.49

$

In Stock, Qty 20+

0

1:6

Exmark 109-9364

FITTING, FUEL W/LINE AND SCREEN
(Superseded to 116-2459)

$44.99

$

In Stock, only 2 left!

0

2

Exmark 107-4543

CLAMP

$15.99

$

Usually ships in 3-6 days

0

3

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

4

Exmark 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

5

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Exmark 114-4428

HOSE-FUEL

$11.99

$

Usually ships in 3-6 days

0

8

Exmark 2412-98

CLAMP-HOSE

$1.99

$

In Stock, Qty 20+

0

9

Exmark 1-603770

VALVE-FUEL

$8.99

$

In Stock, Qty 12

0

10

Exmark 109-0293

HOSE-FUEL

$6.99

$

Usually ships in 3-6 days

0

14

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 9

0

15

Exmark 114-0286

HOSE-VENT

$8.99

$

Usually ships in 3-6 days

0

16

Exmark 117-1221

CANISTER-CARBON, 800CC

$82.99

$

In Stock, only 1 left!

0

17

Exmark 115-0962

HOSE-VENT, CANISTER

$10.99

$

In Stock, only 3 left!

0

18

Exmark 116-2231

HOSE-VENT, FORMED

$38.99

$

Usually ships in 3-6 days

0

19

Exmark 114-0292

BRACKET-CANISTER, CARBON

$13.99

$

Usually ships in 3-6 days

0

20

Exmark 321-2

SCREW-HH

$3.99

$

In Stock, only 4 left!

0

21

Exmark 115-4486-01

BRACKET-CANISTER, CARBON

$15.99

$

Usually ships in 3-6 days

0

22

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

23

Exmark 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 5

0

24

Exmark 116-2232

VALVE-CONTROL, VACUUM

$36.99

$

In Stock, only 1 left!

0

25

Exmark 119-8502

HOSE-VENT, FORMED

$6.99

$

Usually ships in 3-6 days

0

26

Exmark 119-8501

HOSE-VENT, FORMED

$6.99

$

Usually ships in 3-6 days

0

28

Pn 41019-1055 Filter W/6In Fuel Line

Note: Not illustrated | Not serviced separately | Obtain parts from www.kawpower.com

$

$

Not available
