MGS481CKA48300 - Exmark 48" Metro S-Series Walk-Behind Mower, Kawasaki FS (SN: 402082300 - 404314158) (2018) Engine Assembly Parts Diagram

48" Metro S-Series Walk-Behind Mower, Kawasaki FS

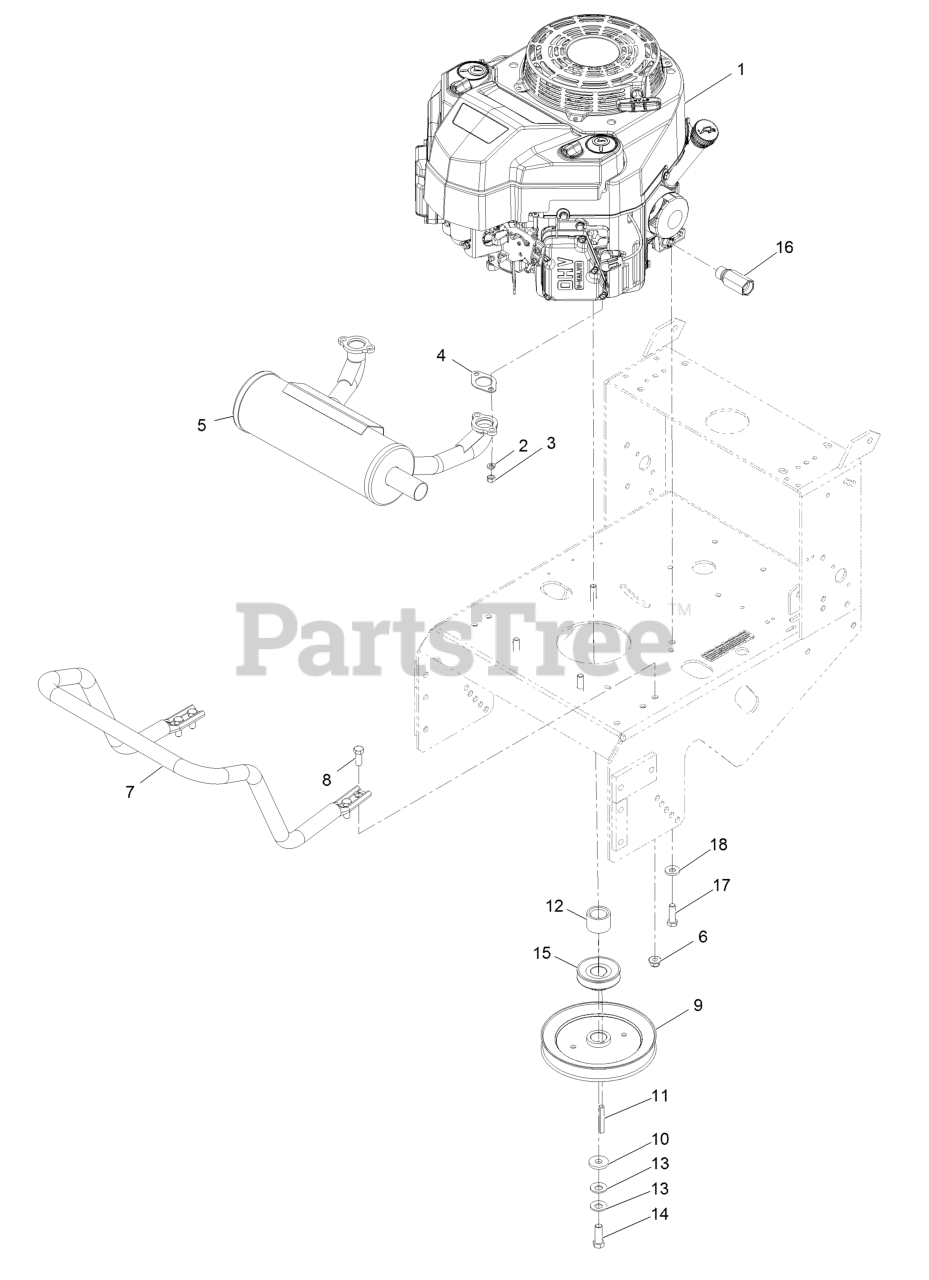

Engine Assembly Parts Diagram

  • Title

1

Engine-Kawasaki

$

$

Not available

2

Exmark 114-3550

Washer-Spring Lock M8

$1.49

$

In Stock, Qty 8

0

3

Exmark 114-3549

Nut-M8

$1.99

$

In Stock, Qty 20+

0

4

Exmark 1-653313

Gasket-Exhaust

$4.99

$

Usually ships in 3-6 days

0

5

Exmark 116-3735

Muffler-Horizontal

$210.99

$

Usually ships in 3-6 days

0

6

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

7

Exmark 116-6278-03

Guard-Muffler
(Superseded to 135-4729-03)

$85.99

$

In Stock, only 1 left!

0

8

Exmark 323-6

Screw-HH 3/8-16 X 1

$2.49

$

In Stock, Qty 20+

0

9

Exmark 103-1667

Sheave
(Superseded to 1-403160)

$79.99

$

Usually ships in 3-6 days

0

10

Exmark 1-373034

Washer

$3.49

$

In Stock, Qty 20+

0

11

Exmark 103-4177

Key

$5.49

$

In Stock, only 1 left!

0

12

Exmark 1-633453

Spacer-Clutch

$19.99

$

Usually ships in 3-6 days

0

13

Exmark 1-603610

Washer-Spring Disc 7/16

$5.49

$

In Stock, Qty 20+

0

14

Exmark 116-3702

Screw-HH

$5.49

$

Usually ships in 3-6 days

0

15

Exmark 103-1666

Sheave-Transmission

$42.99

$

Usually ships in 3-6 days

0

16

Exmark 103-2587

Adapter

$17.99

$

Usually ships in 3-6 days

0

17

Exmark 323-7

Screw-HH 3/8-16 X 1 1/4

$2.99

$

In Stock, Qty 20+

0

18

Exmark 98-5975

Washer-Spring Disc 3/8

$3.49

$

In Stock, Qty 20+

0
