Exmark MGS481CKA48300 - Exmark 48" Metro S-Series Walk-Behind Mower, Kawasaki FS (SN: 408644346 - 411294211) (Rev A) (2021) Deck Assembly Parts Lookup with Diagrams

1

Exmark 1-404257

DECK-SERVICE, 48

$2899.99

$

Usually ships in 3-6 days

2

Exmark 116-1729-01

BAFFLE-DOGLEG

$28.99

$

Usually ships in 3-6 days

3

Exmark 322-2

SCREW-HH

$2.99

$

In Stock, only 4 left!

4

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

5

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

6

Exmark 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

7

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

8

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

9

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 2 left!

10

Exmark 1-303105

YOKE-ADJUSTABLE

$13.99

$

In Stock, only 4 left!

11

Exmark 109-0977

PULLEY,IDLER 5

$85.99

$

In Stock, Qty 13

12

Exmark 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 20+

13

Exmark 103-1577

USE 103-1577-S

(Superseded to 103-1577-S) 

Note: Optional Equipment

$44.99

$

In Stock, only 3 left!

13

Exmark 103-6581

USE 103-6581-S

(Superseded to 103-6581-S) 

Note: Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.

$36.99

$

In Stock, Qty 20+

13

Exmark 103-6583

USE 103-6583-S

(Superseded to 103-6583-S) 

$34.99

$

In Stock, Qty 9

13

Exmark 103-6738

USE 103-6738-S

(Superseded to 103-6738-S) 

Note: Optional Equipment

$37.99

$

In Stock, only 4 left!

13

Exmark 116-5178

USE 116-5178-S

(Superseded to 116-5178-S) 

Note: Optional Equipment

$38.99

$

In Stock, only 3 left!

14

Exmark 1-323303

ARM-ASSIST, LINKAGE

$27.99

$

In Stock, only 2 left!

15

Exmark 323-13

SCREW-HH

$3.99

$

In Stock, Qty 20+

16

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

17

Exmark 103-8387

ASM, CUTTER HOUSING OUTER

$631.99

$

Usually ships in 3-6 days

18

Exmark 702809

SCREW-HH

$5.49

$

In Stock, only 2 left!

19

Exmark 32120-35

RING-RETAINING, EXT

$4.49

$

In Stock, only 3 left!

20

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

21

Exmark 1-322235

ARM-ASSIST, 32/36

$58.99

$

In Stock, only 2 left!

22

Exmark 1-303434

BUSHING-ENGAGEMENT

$15.99

$

In Stock, Qty 20+

23

Exmark 1-303348

EYEBOLT-THREAD, LH

$6.99

$

In Stock, Qty 20+

24

Exmark 1-303236

BODY-TURNBUCKLE

$22.99

$

In Stock, Qty 6

25

Exmark 1-303238

EYEBOLT-THREAD, RH

$6.99

$

In Stock, Qty 14

26

Exmark 1-323747

SPRING-COMPRESSION

$3.49

$

In Stock, only 2 left!

27

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

28

Exmark 1-303352

WASHER-SPINDLE

$2.99

$

In Stock, Qty 9

29

Exmark 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

30

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 8

31

Exmark 103-3600

IDLER ARM ASM

$141.99

$

Usually ships in 3-6 days

31:2

Exmark 1-323729

SLEEVE-BEARING

$5.49

$

In Stock, Qty 20+

32

Exmark 116-3515

SCREW-HH, SPECIAL

$

Not available 

33

Exmark 302-19

FITTING-GREASE

$2.99

$

In Stock, Qty 20+

34

Exmark 323-20

SCREW-HH

$3.99

$

In Stock, Qty 11

35

Exmark 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

36

Exmark 109-5151

CHUTE DEFLECTOR XRK M056

$64.99

$

In Stock, only 2 left!

37

Exmark 1-403179

TUBE-PIVOT

$19.99

$

In Stock, only 2 left!

38

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 15

39

Exmark 1-323714

ROD-BRAKE

$30.99

$

In Stock, only 2 left!

40

Exmark 1-324372

PAD AND SPRING ASM

$75.99

$

Usually ships in 3-6 days

40:1

Exmark 1-323709

PAD-BRAKE

Note: Not illustrated

$30.99

$

Usually ships in 3-6 days

40:2

Exmark 1-323710

USE 1-324372

(Superseded to 1-324372) 

Note: Not illustrated

$75.99

$

Usually ships in 3-6 days

40:3

Exmark 103-0138

RIVET-POP

Note: Not illustrated

$1.49

$

In Stock, Qty 10

41

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

42

Exmark 116-3626

132-4718

(Superseded to 132-4718) 

$35.99

$

In Stock, Qty 11

43

Exmark 1-403174

USE 1-403174-SL

(Superseded to 1-403174-SL) 

$100.99

$

In Stock, Qty 20+

44

Exmark 1-323746

SPACER-FLANGED

$1.49

$

In Stock, Qty 13

45

Exmark 1-413113

BUSHING-IDLER

$6.49

$

In Stock, Qty 20+

46

Exmark 109-8854

PIN-CHUTE

$17.99

$

In Stock, only 3 left!

47

Exmark 1-323071

SPRING-EXTENSION

$17.99

$

In Stock, Qty 20+

48

Exmark 116-8245

ASM-CASTER MNT W/WEIGHT

$853.99

$

Usually ships in 3-6 days

49

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

50

Exmark 1-323748

RING-PUSH ON

$1.99

$

In Stock, Qty 7

51

Exmark 1-323417

WASHER

$3.49

$

In Stock, Qty 20+

52

Exmark 323-4

SCREW-HH

$4.49

$

In Stock, Qty 14

53

Exmark 1-303537

STUD-SHIELD, BELT (SHORT)

$6.99

$

In Stock, only 2 left!

54

Exmark 1-303536

STUD-SHIELD, BELT (LONG)

$8.49

$

In Stock, Qty 20+

55

Exmark 1-323385

KNOB-3 PRONG

$5.99

$

In Stock, Qty 20+

56

Exmark 116-2707

ASM,SHIELD W/DECALS 48 METRO

$597.99

$

In Stock, only 1 left!

57

Exmark 1-403188

SPACER

$15.99

$

Usually ships in 3-6 days

58

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

59

Exmark 116-0962

SPRING, TORSION

$9.99

$

In Stock, only 2 left!

60

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

61

Exmark 126-6890

DECAL-METRO

$

Not available 

62

Exmark 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 1 left!

63

Exmark 1-323529

TUBE-SPINDLE, SHORT

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

$94.99

$

In Stock, only 3 left!

64

Exmark 103-2535

SPACER-GUARD, BOTTOM

$13.99

$

In Stock, only 4 left!

65

Exmark 1-403183

SHEAVE

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

$74.99

$

In Stock, only 2 left!

66

Exmark 1-800861

SCREW-CAP, HH

$20.99

$

In Stock, Qty 10

67

Exmark 1-323539

SPACER

$2.49

$

In Stock, Qty 20+

68

Exmark 1-513208

WASHER-SPRING

$9.99

$

In Stock, Qty 8

69

Exmark 1-323339

WASHER-RETAINER, SHEAVE

$5.49

$

In Stock, only 3 left!

70

Exmark 1-807267

KEY

$2.99

$

In Stock, Qty 16

71

Exmark 103-1330

GUARD-BEARING, TOP

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

$5.99

$

In Stock, Qty 20+

72

Exmark 3219-6

NUT-HEX

$4.49

$

In Stock, Qty 20+

73

Exmark 3246-18

SETSCREW

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$5.49

$

Usually ships in 3-6 days

74

Cutter Housing ASM

Note: Not serviced separately

$

Not available 

74

Exmark 103-8280

KIT, CUTTER HOUSING

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

$290.99

$

In Stock, only 2 left!

74:2

Exmark 103-2477

BEARING-JACKSHAFT

$64.99

$

In Stock, only 3 left!

74:3

Exmark 103-2534

SPACER-BEARING

$9.49

$

In Stock, only 4 left!

74:4

Exmark 32120-8

RING-SNAP

$2.99

$

In Stock, only 2 left!

MGS481CKA48300 - Exmark 48" Metro S-Series Walk-Behind Mower, Kawasaki FS (SN: 408644346 - 411294211) (Rev A) (2021) Deck Assembly Parts Diagram

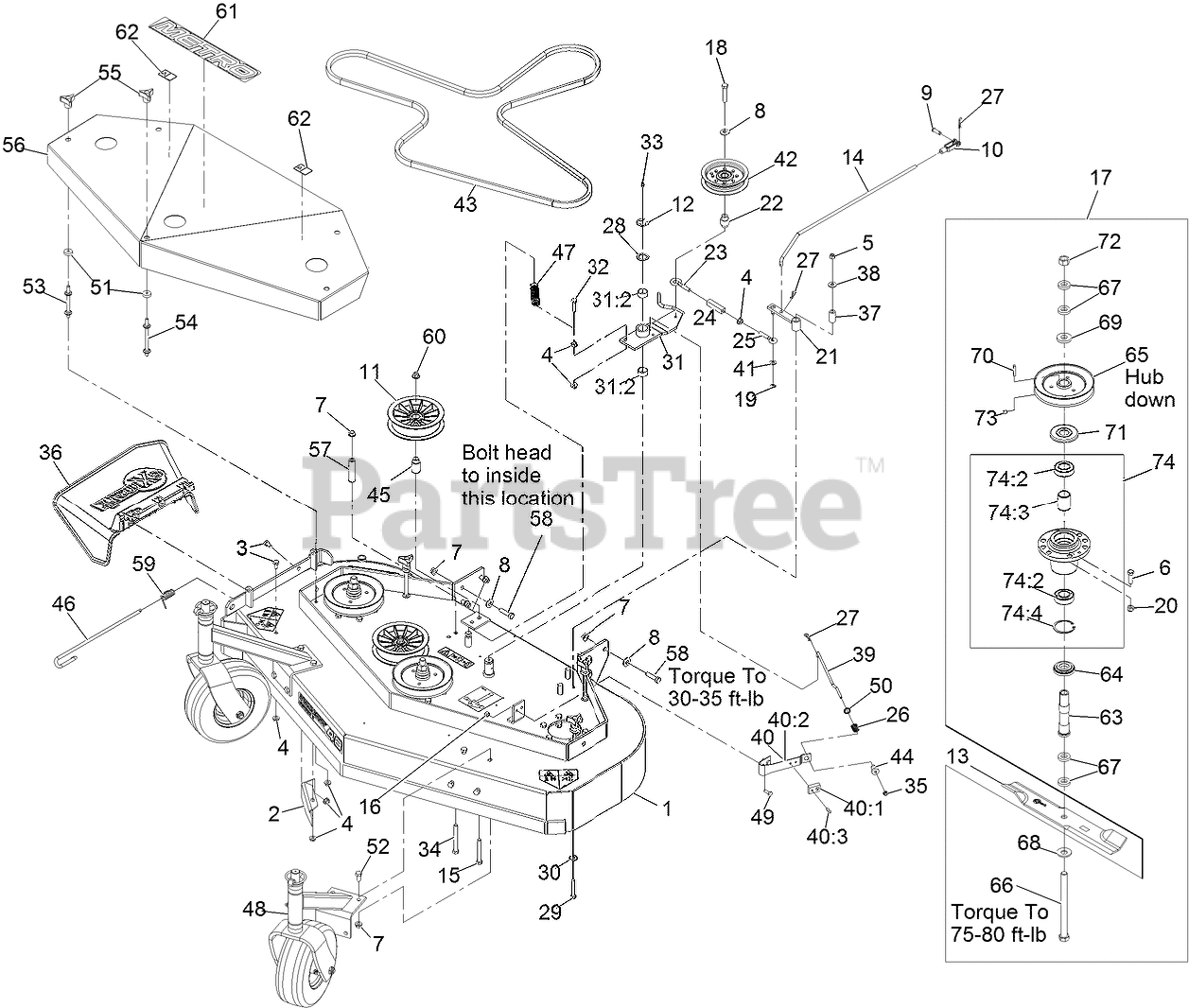

Deck Assembly Parts Diagram
