MGS481GKA322P0 - Exmark 32" Metro S-Series Walk-Behind Mower, Kawasaki FS (SN: 315000000 - 315999999) (2015)

32" Metro S-Series Walk-Behind Mower, Kawasaki FS

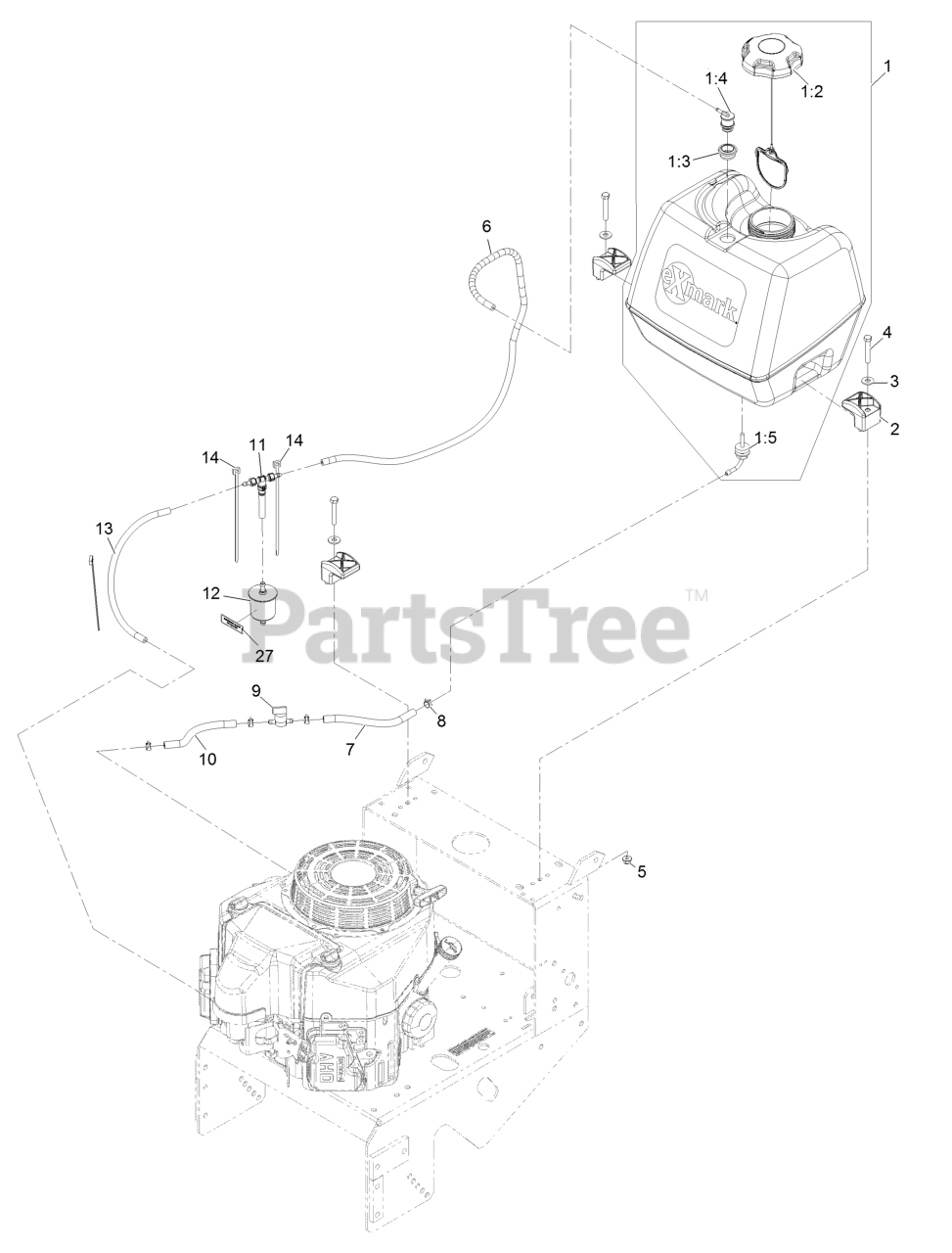

MGS481GKA322P0 - Exmark 32" Metro S-Series Walk-Behind Mower, Kawasaki FS (SN: 315000000 - 315999999) (2015) > Parts Diagrams (14) > Fuel Assembly

  • Title
126-1525

1

ASM, Fuel Tank

Part# 126-1525 (Superseded to 135-2855)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $215.16

120-5461

1:2

Cap-Fuel, Ratcheting

Part# 120-5461 (Superseded to 137-4119)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $18.98

114-0284

1:3

Grommet

Part# 114-0284

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.89

119-3547

1:4

Valve-Vent, Fuel

Part# 119-3547

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.00

103-2605

1:5

Fitting-Fuel Bulkhead W/Strainer

Part# 103-2605

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $24.86

107-4543

2

Clamp

Part# 107-4543

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.84

3256-3

3

Washer-5/16 Std

Part# 3256-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.35

322-10

4

Screw-HH 5/16-18 X 2

Part# 322-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.73

104-8300

5

Nut-Nyloc 5/16-18 Flg

Part# 104-8300

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.82

116-4346

6

Hose-Emissions

Part# 116-4346

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.63

109-0650

7

Hose-Fuel

Part# 109-0650

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.99

2412-98

8

Clamp-Hose

Part# 2412-98

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.94

1-603770

9

Valve-Fuel

Part# 1-603770

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.91

99-9415

10

Hose-Fuel

Part# 99-9415

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.42

116-5464

11

Tee And Check

Part# 116-5464

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $32.11

120-2235

12

Filter-Fuel

Part# 120-2235

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.49

115-7872

13

Hose-Fuel

Part# 115-7872

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.52

1-303335

14

Tie-Cable 7 15/16 (Large)

Part# 1-303335

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.98

116-4769

27

Decal-Filter, Emissions

Part# 116-4769

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.68

Pn 41019-1055 Filter W/6In Fuel Line

28

Pn 41019-1055 Filter W/6In Fuel Line

Part# Pn 41019-1055 Filter W/6In Fuel Line

Not available
