MGS481GKA322P0 - Exmark 32" Metro S-Series Walk-Behind Mower, Kawasaki FS (SN: 400000000 - 402082299) (2017) Pistol Grip Upper Handle and Controls Parts Diagram

32" Metro S-Series Walk-Behind Mower, Kawasaki FS

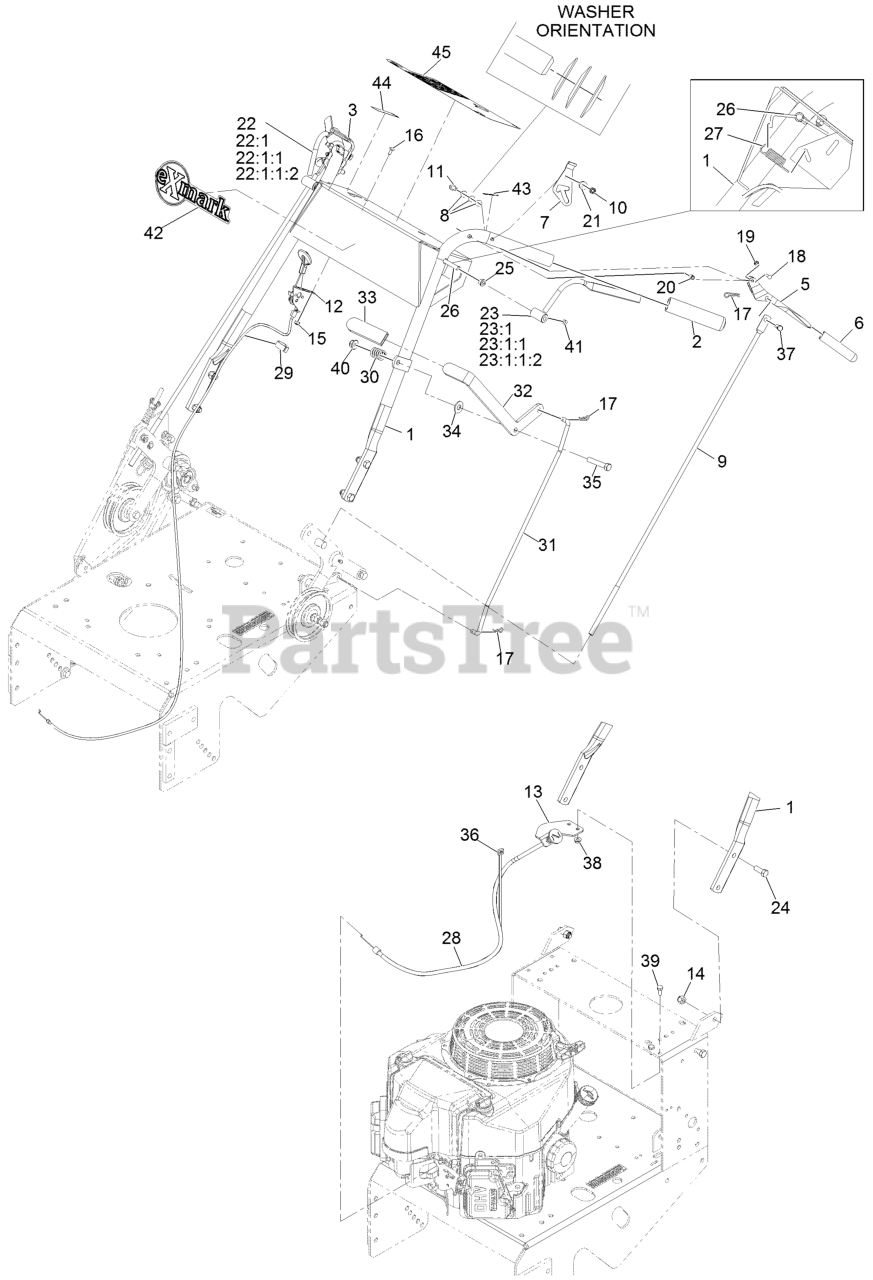

Pistol Grip Upper Handle and Controls Parts Diagram

  • Title

1

Exmark 109-4682-03

Wld,Handle Metro
(Superseded to 109-4695)

$526.99

$

Usually ships in 3-6 days

0

1

Exmark 109-4695

KIT,HANDLE W/DECALS METRO

$526.99

$

Usually ships in 3-6 days

0

2

Exmark 104-9838

GRIP-FOAM

$5.99

$

In Stock, Qty 20+

0

3

Exmark 1-324279

137-9508
(Superseded to 137-9508)

$26.99

$

In Stock, only 2 left!

0

4

Exmark 1-303019

GRIP-LATCH

$2.99

$

In Stock, only 2 left!

0

5

Exmark 1-302006

DRIVE LEVER ASM

$54.99

$

In Stock, Qty 20+

0

6

Exmark 1-303021

GRIP-LEVER, DRIVE

$1.49

$

In Stock, Qty 20+

0

7

Exmark 1-324280

137-9507
(Superseded to 137-9507)

$26.99

$

In Stock, only 2 left!

0

8

Exmark 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 20+

0

9

Exmark 1-323359

LINKAGE-WHEEL, DRIVE

$20.99

$

In Stock, Qty 6

0

10

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

11

Exmark 321-18

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

12

Exmark 116-2426

CONTROL, THROTTLE

$44.99

$

In Stock, Qty 5

0

13

Exmark 103-1797-01

BRACKET-CABLE, CHOKE

$8.99

$

Usually ships in 3-6 days

0

14

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

15

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 18

0

17

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

18

Exmark 1-808250

PIN-LEVER, DRIVE

$2.99

$

In Stock, Qty 20+

0

19

Exmark 1-803001

NUT-PUSH

$1.49

$

In Stock, Qty 20+

0

20

Exmark 1-806340

PIN-ROLL
(Superseded to 1-806340)

$5.49

$

In Stock, Qty 10

0

21

Exmark 1-323549

SPACER

$13.99

$

In Stock, only 2 left!

0

22

Exmark 1-412185-03

LEVER-RH

Note: Use Pro-Lock retaining type, Part no. 1-840023 (.5cc tube) on inside of bore of OPC hub.

$37.99

$

In Stock, Qty 5

0

22:1

Lever-RH

Note: Not serviced separately

$

$

Not available

22:1:1

Lever

Note: Not serviced separately

$

$

Not available

22:1:1:2

Exmark 1-803322

SCREW-SET

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$1.49

$

In Stock, Qty 20+

0

23

Exmark 1-412183-03

LEVER-LH

Note: Use Pro-Lock retaining type, Part no. 1-840023 (.5cc tube) on inside of bore of OPC hub.

$37.99

$

In Stock, Qty 6

0

23:1

Lever

Note: Not serviced separately

$

$

Not available

23:1:1

ASM,Hub/Setscrew

Note: Not serviced separately

$

$

Not available

23:1:1:2

Exmark 1-803322

SCREW-SET

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$1.49

$

In Stock, Qty 20+

0

24

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

25

Exmark 1-303365

BUSHING-NYLON

$5.49

$

In Stock, Qty 20+

0

26

Exmark 1-322192-03

WLD,ROD OPC

$42.99

$

In Stock, only 3 left!

0

27

Exmark 1-303363

SPRING-EXTENSION

$6.49

$

In Stock, only 3 left!

0

28

Exmark 103-1796

CABLE-CHOKE

$47.99

$

In Stock, Qty 15

0

29

Exmark 1-303088

CLIP-CABLE

$2.99

$

Usually ships in 3-6 days

0

30

Exmark 1-303160

SPRING-COMPRESSION

$6.49

$

In Stock, only 2 left!

0

31

Exmark 1-323298

LINKAGE-BLADE, UPPER

$87.99

$

Usually ships in 3-6 days

0

32

Exmark 116-6331

LEVER ASM

$53.99

$

Usually ships in 3-6 days

0

33

Exmark 1-303020

GRIP-LEVER

$2.99

$

In Stock, Qty 8

0

34

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

35

Exmark 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

36

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 14

0

37

Exmark 1-808286

PIN-CLEVIS

$5.49

$

In Stock, Qty 19

0

38

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

39

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 12

0

40

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

41

Exmark 1-803322

SCREW-SET

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$1.49

$

In Stock, Qty 20+

0

42

Exmark 126-6877

DECAL, EXMARK LOGO

$7.49

$

In Stock, Qty 20+

0

43

Exmark 116-7878

DECAL-NEUTRAL BRAKE

$20.99

$

Usually ships in 3-6 days

0

44

Exmark 106-2733

DECAL-THROTTLE

$9.49

$

Usually ships in 3-6 days

0

45

Exmark 116-7880

DECAL-CONSOLE METRO PG

$51.99

$

Usually ships in 3-6 days

0
