MGS481GKA322P0 - Exmark 32" Metro S-Series Walk-Behind Mower, Kawasaki FS (SN: 408644346 - 411294211) (Rev A) (2021) Deck Assembly Parts Diagram

32" Metro S-Series Walk-Behind Mower, Kawasaki FS

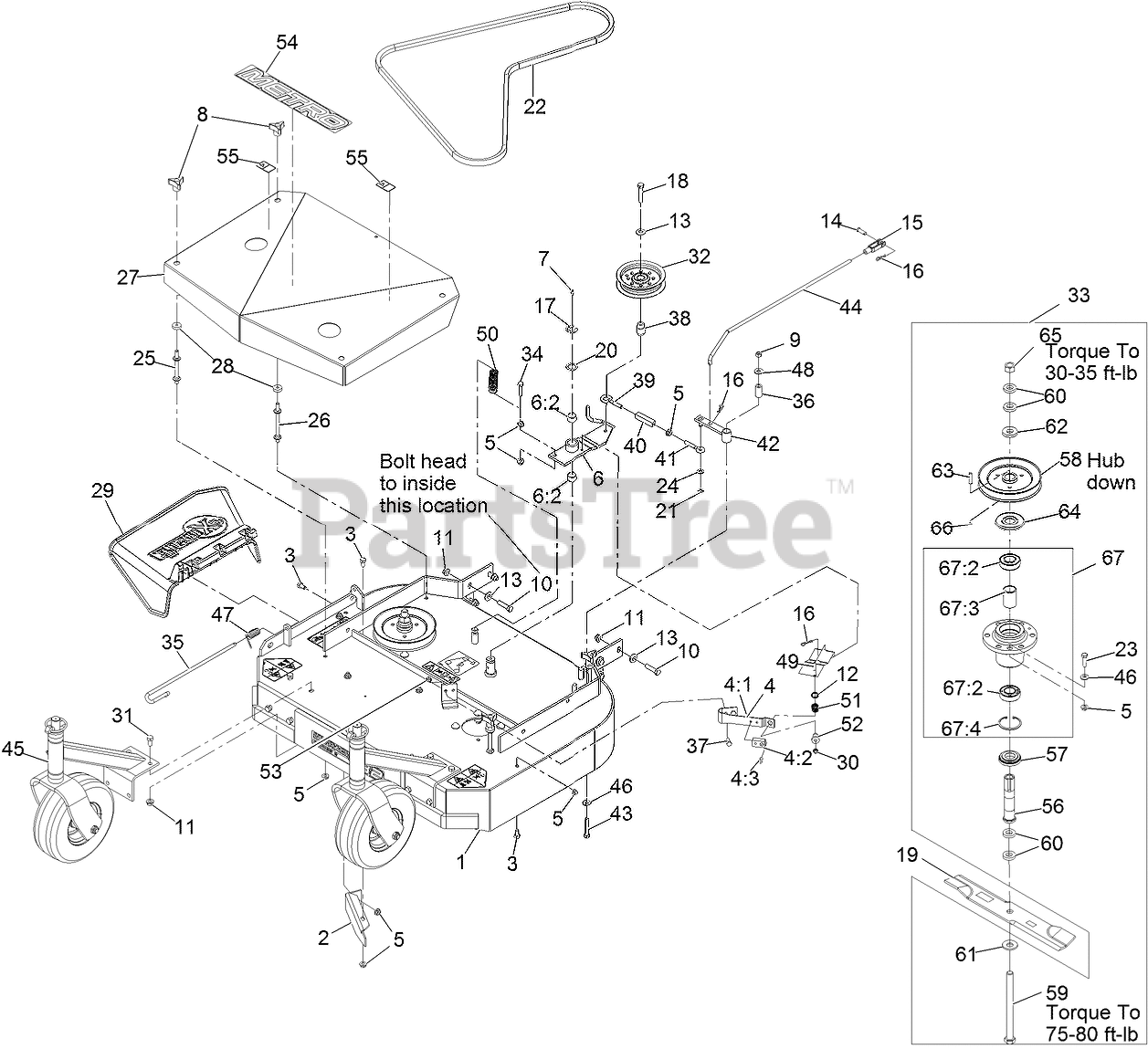

Deck Assembly Parts Diagram

  • Title

1

Exmark 103-2313

ASM, DECK 32 RIGID

$3088.99

$

Usually ships in 3-6 days

0

2

Exmark 116-1730-01

BAFFLE-DOGLEG

$27.99

$

Usually ships in 3-6 days

0

3

Exmark 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

4

Exmark 1-324372

PAD AND SPRING ASM

$72.99

$

In Stock, Qty 8

0

4:1

Exmark 1-323709

PAD-BRAKE

Note: Not illustrated

$29.99

$

In Stock, only 2 left!

0

4:2

Exmark 1-323710

USE 1-324372
(Superseded to 1-324372)

Note: Not illustrated

$72.99

$

In Stock, Qty 8

0

4:3

Exmark 103-0138

RIVET-POP

Note: Not illustrated

$1.49

$

In Stock, Qty 14

0

5

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

6

Exmark 103-3600

IDLER ARM ASM

$141.99

$

Usually ships in 3-6 days

0

6:2

Exmark 1-323729

SLEEVE-BEARING

$5.49

$

In Stock, Qty 20+

0

7

Exmark 302-19

FITTING-GREASE

$2.99

$

In Stock, Qty 20+

0

8

Exmark 1-323385

KNOB-3 PRONG

$5.49

$

In Stock, Qty 20+

0

9

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

12

Exmark 1-323748

RING-PUSH ON

$1.99

$

In Stock, Qty 14

0

13

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

14

Exmark 1-808280

PIN-CLEVIS

$2.99

$

Usually ships in 3-6 days

0

15

Exmark 1-303105

YOKE-ADJUSTABLE

$13.99

$

In Stock, only 2 left!

0

16

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

17

Exmark 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 20+

0

18

Exmark 702809

SCREW-HH

$5.49

$

In Stock, only 3 left!

0

19

Exmark 103-1577

USE 103-1577-S
(Superseded to 103-1577-S)

Note: Optional Equipment

$39.99

$

Usually ships in 3-6 days

0

19

Exmark 103-6581

USE 103-6581-S
(Superseded to 103-6581-S)

Note: Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.

$36.99

$

In Stock, Qty 20+

0

19

Exmark 103-6583

USE 103-6583-S
(Superseded to 103-6583-S)

$34.99

$

In Stock, Qty 20+

0

19

Exmark 103-6738

USE 103-6738-S
(Superseded to 103-6738-S)

Note: Optional Equipment

$34.99

$

In Stock, Qty 7

0

19

Exmark 116-5178

USE 116-5178-S
(Superseded to 116-5178-S)

$38.99

$

In Stock, Qty 7

0

20

Exmark 1-303352

WASHER-SPINDLE

$2.99

$

In Stock, Qty 13

0

21

Exmark 32120-35

RING-RETAINING, EXT

$4.49

$

In Stock, only 3 left!

0

22

Exmark 1-323734

USE 1-323734-SL
(Superseded to 1-323734-SL)

$95.99

$

Usually ships in 3-6 days

0

23

Exmark 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

24

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

25

Exmark 1-303537

STUD-SHIELD, BELT (SHORT)

$6.99

$

In Stock, Qty 20+

0

26

Exmark 1-303536

STUD-SHIELD, BELT (LONG)

$8.49

$

In Stock, Qty 20+

0

27

Exmark 116-2705

ASM,SHIELD W/DECALS 32 METRO

$508.99

$

Usually ships in 3-6 days

0

28

Exmark 1-323417

WASHER

$3.49

$

In Stock, Qty 20+

0

29

Exmark 109-5151

CHUTE DEFLECTOR XRK M056

$62.99

$

In Stock, Qty 8

0

30

Exmark 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

31

Exmark 323-4

SCREW-HH

$4.49

$

In Stock, Qty 14

0

32

Exmark 116-3626

132-4718
(Superseded to 132-4718)

$35.99

$

In Stock, Qty 20+

0

33

Exmark 103-8387

ASM, CUTTER HOUSING OUTER

$613.99

$

Usually ships in 3-6 days

0

34

Exmark 116-3515

SCREW-HH, SPECIAL

$

$

Not available

35

Exmark 109-8854

PIN-CHUTE

$17.99

$

In Stock, Qty 16

0

36

Exmark 1-403179

TUBE-PIVOT

$19.99

$

In Stock, only 2 left!

0

37

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

38

Exmark 1-303434

BUSHING-ENGAGEMENT

$15.99

$

In Stock, Qty 20+

0

39

Exmark 1-303348

EYEBOLT-THREAD, LH

$6.99

$

In Stock, Qty 20+

0

40

Exmark 1-303236

BODY-TURNBUCKLE

$22.99

$

In Stock, Qty 15

0

41

Exmark 1-303238

EYEBOLT-THREAD, RH

$6.99

$

In Stock, Qty 20+

0

42

Exmark 1-322235

ARM-ASSIST, 32/36

$58.99

$

In Stock, only 2 left!

0

43

Exmark 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

44

Exmark 1-323303

ARM-ASSIST, LINKAGE

$26.99

$

In Stock, only 2 left!

0

45

Exmark 103-1238

ASM,CASTER/MOUNT

$345.99

$

Usually ships in 3-6 days

0

46

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 20+

0

47

Exmark 116-0962

SPRING, TORSION

$9.99

$

In Stock, only 3 left!

0

48

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

49

Exmark 1-323718

ROD-BRAKE

$27.99

$

Usually ships in 3-6 days

0

50

Exmark 1-323071

SPRING-EXTENSION

$17.99

$

In Stock, Qty 20+

0

51

Exmark 1-323747

SPRING-COMPRESSION

$3.49

$

In Stock, Qty 9

0

52

Exmark 1-323746

SPACER-FLANGED

$1.49

$

In Stock, Qty 20+

0

53

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

54

Exmark 126-6890

DECAL-METRO

$26.99

$

Usually ships in 3-6 days

0

55

Exmark 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 2 left!

0

56

Exmark 1-323529

TUBE-SPINDLE, SHORT

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

$94.99

$

In Stock, Qty 8

0

57

Exmark 103-2535

SPACER-GUARD, BOTTOM

$13.99

$

In Stock, only 4 left!

0

58

Exmark 1-403183

SHEAVE

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

$74.99

$

In Stock, Qty 6

0

59

Exmark 1-800861

SCREW-CAP, HH

$20.99

$

In Stock, Qty 15

0

60

Exmark 1-323539

SPACER

$2.49

$

In Stock, Qty 20+

0

61

Exmark 1-513208

WASHER-SPRING

$9.49

$

In Stock, Qty 20+

0

62

Exmark 1-323339

WASHER-RETAINER, SHEAVE

$5.49

$

In Stock, Qty 13

0

63

Exmark 1-807267

KEY

$2.99

$

In Stock, Qty 20+

0

64

Exmark 103-1330

GUARD-BEARING, TOP

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

$5.49

$

In Stock, Qty 12

0

65

Exmark 3219-6

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

66

Exmark 3246-18

SETSCREW

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$5.49

$

Usually ships in 3-6 days

0

67

Exmark 103-8280

KIT, CUTTER HOUSING

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

$282.99

$

In Stock, Qty 14

0

67

Cutter Housing ASM

Note: Not serviced separately

$

$

Not available

67:2

Exmark 103-2477

BEARING-JACKSHAFT

$62.99

$

In Stock, Qty 6

0

67:3

Exmark 103-2534

SPACER-BEARING

$9.49

$

In Stock, only 3 left!

0

67:4

Exmark 32120-8

RING-SNAP

$2.99

$

In Stock, Qty 20+

0
