MHD 9222 (866044) - Murray Hedge Trimmer (2012) Engine Group (702189) Parts Diagram

Hedge Trimmer

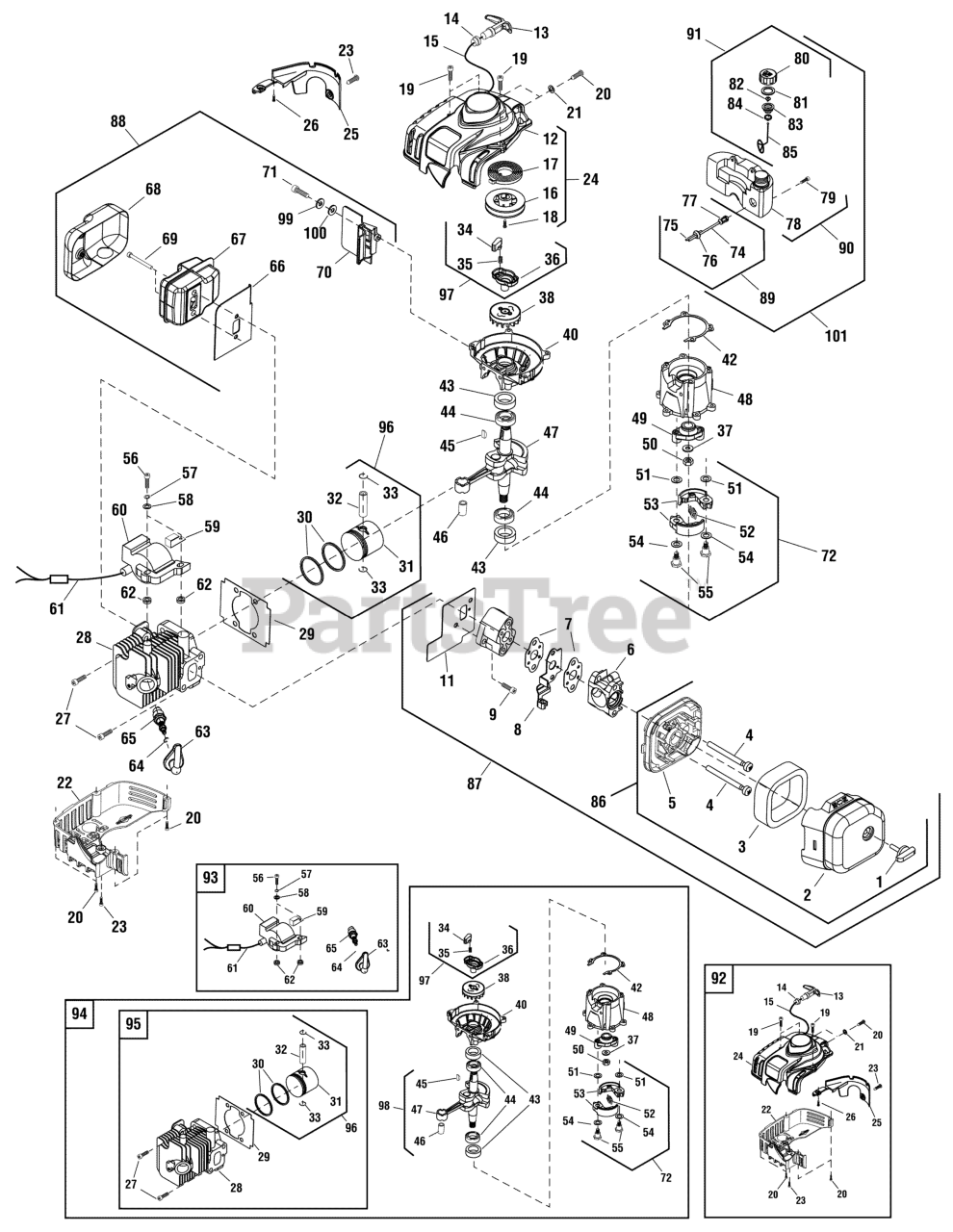

Engine Group (702189) Parts Diagram

  • Title

1

Murray 701882

BOLT, Big Head

$2.49

$

Usually ships in 3-10 days

0

2

Murray 701828

COVER, Cleaner, Outer

$

$

Currently unavailable

3

Murray 701829

AIR CLEANER

$

$

Currently unavailable

4

Murray 701832

BOLT, M5 x 55

$

$

Currently unavailable

5

Murray 702081

COVER, Cleaner, Inner

$6.49

$

Usually ships in 2-12 days

0

6

Murray 700934

CARBURETOR

$

$

Not available

7

Murray 700936

GASKET, Carburetor

$

$

Currently unavailable

8

Murray 700937

BRACKET, Cable

$

$

Currently unavailable

9

Murray 701834

BOLT, M5 x 16

$

$

Currently unavailable

10

Murray 700938

ADMITTING PIPE

$

$

Currently unavailable

11

Murray 702100

GASKET, Admitting Pipe

$

$

Currently unavailable

12

Murray 702191

SHROUD, Top

$

$

Currently unavailable

13

Murray 702222

HANDLE, Starter

$

$

Currently unavailable

14

Murray 702223

GUARD, Cord

$

$

Currently unavailable

15

Murray 702068

CORD, Starter

$

$

Currently unavailable

16

WHEEL, Starter

Note: (Not a serviceable part. Order Ref. No. 24)

$

$

Not available

17

SPRING, Starter

Note: (Not a serviceable part. Order Ref. No. 24)

$

$

Not available

18

SCREW, Self Tapping

Note: (Not a serviceable part. Order Ref. No. 24)

$

$

Not available

19

Murray 701841

BOLT, M5 x 20

$2.49

$

Usually ships in 3-10 days

0

20

Murray 701839

SCREW, Self Tapping, ST4.2 x 16-F

$

$

Currently unavailable

21

Murray 701840

WASHER, Flat, 0.4

$

$

Currently unavailable

22

Murray 701836

SHROUD, Bottom

$

$

Currently unavailable

23

Murray 701842

BOLT, M5 x 12

$

$

Not available

24

Murray 702186

KIT, Shroud, Upper

Note: (Includes Ref. Nos. 12, 13, 14, 15, 16, 17 & 18)

$

$

Currently unavailable

25

Murray 702187

Inner Air Flow Wall

$

$

Currently unavailable

26

Murray 701843

BOLT, M5 x 8

$

$

Currently unavailable

27

Murray 701846

BOLT, M5 x 20

$

$

Currently unavailable

28

Murray 701845

CYLINDER HEAD

$

$

Not available

29

Murray 700943

GASKET, Cylinder

$

$

Currently unavailable

30

Murray 700947

PISTON RING

$

$

Currently unavailable

31

Murray 700948

PISTON

$7.49

$

Usually ships in 3-10 days

0

32

Murray 700946

PIN, Piston

$

$

Currently unavailable

33

Murray 700945

RETAINING RING, Pin

$

$

Currently unavailable

34

Murray 700972

CLINCH, Starter

$

$

Not available

35

Murray 700973

SPRING, Starter

$

$

Currently unavailable

36

Murray 700974

START REEL

$

$

Currently unavailable

37

Murray 700380

WASHER, Flat, 8

$2.99

$

Usually ships in 2-12 days

0

38

Murray 702115

FLYWHEEL

$2.49

$

Usually ships in 3-10 days

0

39

Murray 701850

BOLT, M5 x 25

$3.49

$

Usually ships in 2-12 days

0

40

Murray 700955

CRANK CASE, Front

$

$

Currently unavailable

41

Murray 701001

PIN, Cylindrical, B3 x 10

$

$

Not available

42

Murray 700954

GASKET, Crank Case

$

$

Currently unavailable

43

Murray 700345

SEAL, Oil, 11.7 x 22 x 7

$3.99

$

Usually ships in 2-12 days

0

44

BEARING, 6001/P6

$

$

Not available

45

Murray 700950

KEY

$

$

Currently unavailable

46

Murray 700951

BEARING

$

$

Currently unavailable

47

Murray 701848

CRANK SHAFT

$

$

Not available

48

Murray 701849

CRANK CASE, Rear

$

$

Currently unavailable

49

Murray 700975

PLATE, Clutch

$

$

Currently unavailable

50

Murray 701000

NUT, Hex, M8 x 1

$

$

Currently unavailable

51

Murray 700999

WASHER, Flat

$

$

Currently unavailable

52

Murray 700977

SRPING, Extension

$

$

Currently unavailable

53

Murray 700978

EXPANDER

$

$

Currently unavailable

54

Murray 700998

WASHER, Wave

$

$

Currently unavailable

55

Murray 700997

SCREW, Shaft

$

$

Currently unavailable

56

Murray 700991

BOLT, M4 x 20

$

$

Currently unavailable

57

Murray 700987

WASHER, Spring, 4

$

$

Not available

58

Murray 700988

WASHER, Flat, 4

$

$

Currently unavailable

59

Murray 700992

CLAMP, Wire

$2.49

$

Usually ships in 3-10 days

0

60

Murray 702114

MAGNETO COIL

$

$

Currently unavailable

61

Murray 700965

CORD, Complete

$

$

Not available

62

Murray 700993

INSULATOR

$

$

Currently unavailable

63

Murray 701858

BOOT, Spark Plug

$

$

Currently unavailable

64

Murray 700962

CLIP, Spark Plug

$

$

Currently unavailable

65

Murray 700983

SPARK PLUG

$

$

Currently unavailable

66

Murray 701852

GASKET, Muffler

$

$

Not available

67

Murray 700959

MUFFLER

$

$

Not available

68

Murray 701856

GUARD, Muffler

$

$

Currently unavailable

69

Murray 701853

BOLT, M5 x 55-10.9

$

$

Not available

70

Murray 701855

PROTECT PIECE, Muffler

$2.49

$

Usually ships in 3-10 days

0

71

Murray 701854

BOLT, M4 x 16

$

$

Currently unavailable

72

Murray 702101

KIT, Expander

Note: (Includes Ref. Nos. 51, 52, 53, 54 & 55)

$97.99

$

Usually ships in 3-10 days

0

74

Murray 702093

LINE, Fuel

$

$

Currently unavailable

75

Murray 701864

PIPE, Fuel

$2.99

$

Usually ships in 3-10 days

0

76

PLUG

Note: (Not a serviceable part. Order Ref. No. 89)

$

$

Not available

77

Murray 702224

FILTER, Fuel

$

$

Currently unavailable

78

Murray 700980

TANK, Fuel

$

$

Currently unavailable

79

Murray 701862

BOLT, M5 x 16

$

$

Not available

80

CAP, Fuel Tank

Note: (Not a serviceable part. Order Ref. No. 91)

$

$

Not available

81

GASKET

Note: (Not a serviceable part. Order Ref. No. 91)

$

$

Not available

82

INLET

Note: (Not a serviceable part. Order Ref. No. 91)

$

$

Not available

83

LID, Fuel Tank, Inner

Note: (Not a serviceable part. Order Ref. No. 91)

$

$

Not available

84

COVER, End

Note: (Not a serviceable part. Order Ref. No. 91)

$

$

Not available

85

CHAIN

Note: (Not a serviceable part. Order Ref. No. 91)

$

$

Not available

86

Murray 701827

KIT, Air Cleaner

Note: (Includes Ref. Nos. 1, 2, 3, 4 & 5)

$

$

Currently unavailable

87

Murray 701826

AIR INTAKE ASSEMBLY

$

$

Currently unavailable

88

Murray 701851

KIT, Muffler

Note: (Includes Ref. Nos. 66, 67, 68, 69, 70, 71, 99 & 100)

$

$

Currently unavailable

89

Murray 701863

KIT, Fuel Line

Note: (Includes Ref. Nos. 74, 75, 76 & 77)

$2.49

$

Usually ships in 3-10 days

0

90

Murray 701861

KIT, Fuel Tank

Note: (Includes Ref. Nos. 78 & 79)

$

$

Currently unavailable

91

Murray 700369

KIT, Fuel Cap

Note: (Includes Ref. Nos. 80, 81, 82, 83, 84 & 85)

$

$

Currently unavailable

92

Murray 702188

KIT, Shroud, Upper & Lower

Note: (Includes Ref. Nos. 19, 20, 21, 22, 23, 24, 25 & 26)

$

$

Currently unavailable

93

Murray 702113

KIT, Magneto Coil

Note: (Includes Ref. Nos. 56, 57, 58, 59, 60, 61, 62, 63 & 64)

$

$

Currently unavailable

94

Murray 701844

KIT, Cylinder Assembly

Note: (Includes Ref. Nos. 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 50, 72, 95, 98 & 97)

$

$

Currently unavailable

95

Murray 702063

KIT, Cylinder Head

Note: (Includes Ref. Nos. 27, 28, 29 & 96)

$

$

Currently unavailable

96

Murray 700944

KIT, Piston

Note: (Includes Ref. Nos. 30, 31, 32 & 33)

$

$

Currently unavailable

97

Murray 700971

KIT, Start Reel

Note: (Includes Ref. Nos. 34, 35 & 36)

$

$

Currently unavailable

98

Murray 702094

KIT, Crank Shaft

Note: (Includes Ref. Nos. 45, 46 & 47)

$

$

Currently unavailable

99

Murray 700987

WASHER, Spring, 4

Note: (Not a serviceable part. Order Ref. No. 88)

$

$

Not available

100

Murray 700988

WASHER, Flat, 4

Note: (Not a serviceable part. Order Ref. No. 88)

$

$

Currently unavailable

101

Murray 702228

KIT, Fuel Tank

Note: (Includes Ref. Nos. 89, 90 & 91)

$

$

Currently unavailable
