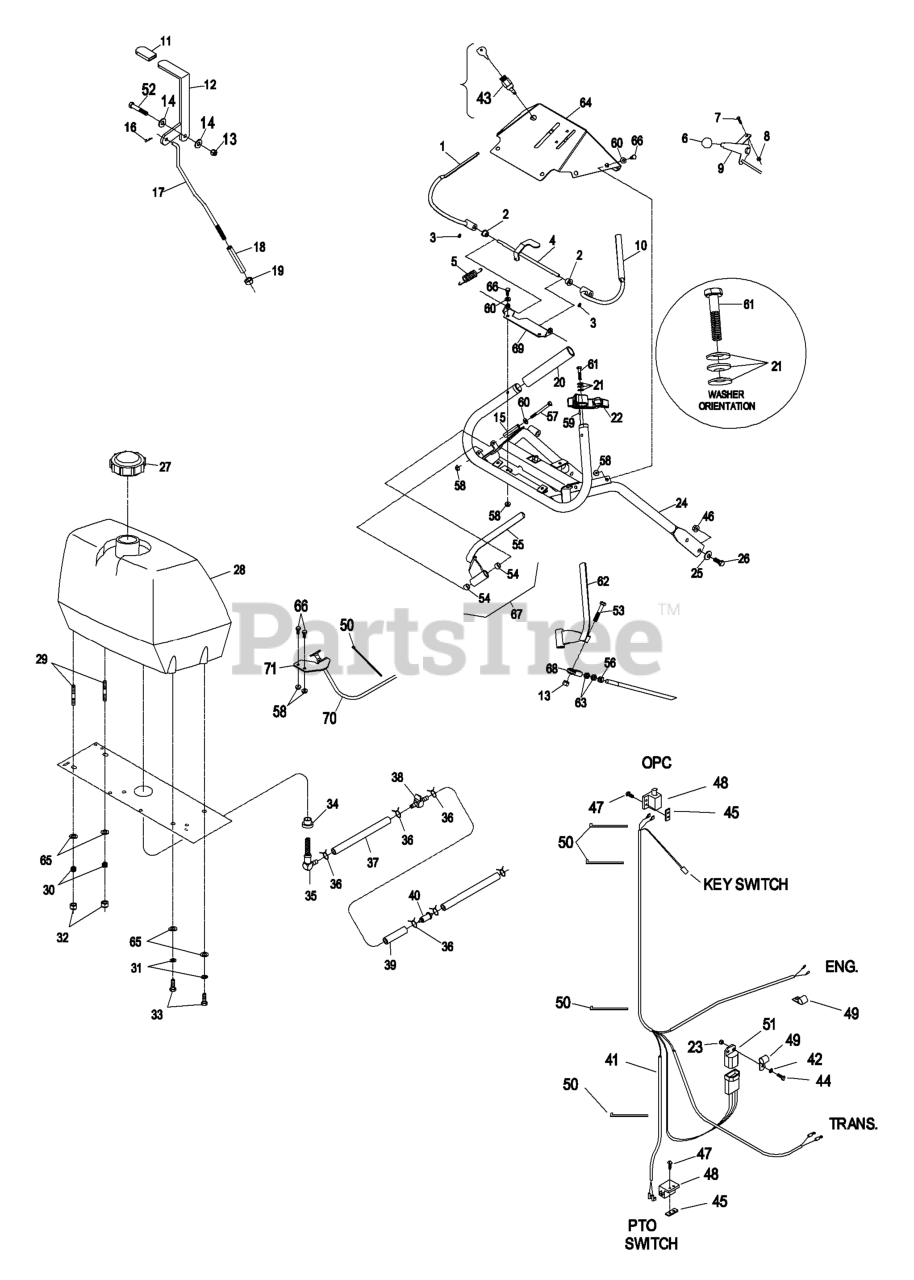

MHP3615KAC - Exmark 36" Metro HP Walk-Behind Mower, 15HP Kawasaki (SN: 320000 - 369999) (2002)

36" Metro HP Walk-Behind Mower, 15HP Kawasaki

MHP3615KAC - Exmark 36" Metro HP Walk-Behind Mower, 15HP Kawasaki (SN: 320000 - 369999) (2002) > Parts Diagrams (7) > ECS Upper Handles And Controls

  • Title
103-1566-03

1

Lever, Weldment Opc Lh

Part# 103-1566-03 (Superseded to 116-4079)

Note: Use Pro-Lock retaining type, P/N 1-840023 (.5cc tube) on inside of bore of OPC hub and on fuel tank studs.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $22.36

1-303365

2

Bushing, Nylon

Part# 1-303365

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

1-803322

3

Screw, Set .312-24 X .312

Part# 1-803322

Note: Use Pro-Lock nut type, P/N 1-840022 (.5cc tube) on setscrew threads and shifter knob threads.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

103-0769-03

4

Rod Weldment, Opc

Part# 103-0769-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $28.24

1-303363

5

Spring, Actuator

Part# 1-303363

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.46

1-513592

6

Knob, Ball Red

Part# 1-513592

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.46

1-807513

7

Bolt, Carr. #10-24 X 1/2 G2

Part# 1-807513

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

3296-2

8

Nut, Nyloc #10-24

Part# 3296-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.24

1-633696

9

Cable, Throttle Control

Part# 1-633696

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $40.30

103-1567-03

10

Lever, Weldment Opc Rh

Part# 103-1567-03 (Superseded to 116-4080)

Note: Use Pro-Lock retaining type, P/N 1-840023 (.5cc tube) on inside of bore of OPC hub and on fuel tank studs.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $22.36

1-303020

11

Grip, Lever

Part# 1-303020

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.34

1-414234

12

Clutch Lever W/Grip

Part# 1-414234 (Superseded to 116-6334)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $40.02

3296-39

13

Nut, Nyloc 3/8-16

Part# 3296-39

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.05

3256-24

14

Washer, Flat SAE 3/8

Part# 3256-24

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.50

103-0027

15

Spacer

Part# 103-0027

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.52

1-806003

16

Pin, Hair Cotter .0585 #2

Part# 1-806003

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.22

103-1149

17

Linkage, Upper

Part# 103-1149

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $16.47

1-413279

18

Turnbuckle, 3/8-16 Ss

Part# 1-413279

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $30.60

3217-7

19

Nut, Reg Hex 3/8-16

Part# 3217-7

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.27

103-0815

20

Grip, Handle

Part# 103-0815

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.89

1-303435

21

Washer, Disc Spring 1/4

Part# 1-303435

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

103-1631

22

Latch, Thumb Lh

Part# 103-1631

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $22.36

103-1630

Latch, Thumb Rh

Part# 103-1630

Note: (Shown)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $22.36

3296-42

23

Nut, Nyloc 1/4-20

Part# 3296-42

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.35

103-0770-03

24

Handle Weldment (1-412449)

Part# 103-0770-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $407.57

98-5975

25

Washer, Disc Spring 3/8

Part# 98-5975

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.24

323-6

26

Screw, Hex Cap 3/8-16 X 2 1/2

Part# 323-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.90

1-513508

27

Cap, Fuel Tank

Part# 1-513508

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $17.70

1-413179

28

Tank, Fuel Intermediate

Part# 1-413179 (Superseded to 109-6930)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $210.74

1-633023

29

Stud

Part# 1-633023

Note: Use Pro-Lock retaining type, P/N 1-840023 (.5cc tube) on inside of bore of OPC hub and on fuel tank studs.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.50

1-633349

30

Spring, Fuel Tank

Part# 1-633349

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

1-805005

31

Wshr, Lock Hlcl Spg 5/16 Hvy

Part# 1-805005

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

3296-47

32

Nut, Nyloc 5/16-18

Part# 3296-47

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.19

322-3

33

Screw, Hex Cap 5/16-18 X 3/4

Part# 322-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.67

1-513645

34

Bushing, Fuel Valve

Part# 1-513645 (Superseded to 46-6560)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.37

1-543277

35

Elbow W/Screen

Part# 1-543277

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.23

1-303077

36

Clamp, Fuel Line

Part# 1-303077

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

1-603955

37

Hose, Fuel Line 6"

Part# 1-603955

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.37

1-603770

38

Valve, Fuel

Part# 1-603770

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.70

1-303022

39

Hose, Fuel Line 12"

Part# 1-303022

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.37

Kawasaki P/N 41019-1055 W/6" Fuel Line

40

Kawasaki P/N 41019-1055 W/6" Fuel Line

Part# Kawasaki P/N 41019-1055 W/6" Fuel Line

Not available

103-1710

41

Harness, Wiring

Part# 103-1710

Note: Use dielectric grease on all electrical connectors.

OEM Warranty Repair Part for Exmark

Not available

3256-2

42

Washer, Flat Std 1/4

Part# 3256-2 (Superseded to 3256-2)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.45

1-403121

43

Switch, On/Off

Part# 1-403121

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $17.88

1-603511

Key, Ignition

Part# 1-603511

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.34

103-2106

Key, Exmark Logo

Part# 103-2106

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.52

321-4

44

Screw, Hex Cap 1/4-20 X 3/5

Part# 321-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.78

1-633181

45

Plate, Tapped

Part# 1-633181

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.69

3290-357

46

Nut, Whizlock 3/8-16

Part# 3290-357

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.73

3290-500

47

Scrw, Mach Crph 10-24 X 5/8

Part# 3290-500

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

1-513051

48

Switch, Neutral Lockout

Part# 1-513051

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.29

1-323229

49

Clip, 3/8 Loom

Part# 1-323229

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.34

1-303287

50

Tie, Plastic

Part# 1-303287

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

1-323430

51

Module, Wiring Harness

Part# 1-323430

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $95.36

323-11

52

Screw, 3/8-16 X 2 1/4

Part# 323-11

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.67

323-10

53

Screw, 3/8-16 X 2

Part# 323-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.62

1-413152

54

Bearing

Part# 1-413152

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

103-0771-03

55

Lever, Drive Lh

Part# 103-0771-03 (Superseded to 103-2482)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $105.95

3219-3

56

Nut, 3/8-24 Reg Hex

Part# 3219-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.31

321-14

57

Screw, 1/4-20 X 2 3/4

Part# 321-14

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.60

32128-33

58

Nut, 1/4-20 Whizlock

Part# 32128-33

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.62

103-0464

59

Pin, 1/8 X 1/3 Spring

Part# 103-0464 (Superseded to 126-2925)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

3256-22

60

Washer, 1/4 SAE Flat

Part# 3256-22

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.13

103-0235

61

Screw, 1/4-20 X 1 1/8 W/Nylon

Part# 103-0235

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

103-0772-03

62

Lever, Drive Rh

Part# 103-0772-03 (Superseded to 103-2481)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $105.95

3220-3

63

Nut, 3/8-24 Jam

Part# 3220-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.28

103-0546-03

64

Wld, Upper Handle Console

Part# 103-0546-03 (Superseded to 103-2458)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $164.82

3256-23

65

Washer, 5/16 SAE Flat

Part# 3256-23

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.67

321-3

66

Screw, 1/4-20 X 5/8

Part# 321-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.97

103-1915

67

Asm, Drive Lever Rh

Part# 103-1915 (Superseded to 103-2481)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $105.95

103-1916

Asm, Drive Lever Lh

Part# 103-1916 (Superseded to 103-2482)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $105.95

103-0608

68

Joint, .375 Ball End

Part# 103-0608

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $21.58

103-0489-03

69

Bracket, Opc Axle

Part# 103-0489-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $15.79

103-1796

70

Cable, Choke Push/Pull

Part# 103-1796

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $33.08

103-1797-01

71

Bracket, Choke Cable

Part# 103-1797-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.76

1-412449

103-0214

Part# 1-412449 (Superseded to 103-0214)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $515.69

1-840022

Pro-Lock (Nut Type)

Part# 1-840022

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $12.94

1-840023

Pro-Lock (Retaining Type)

Part# 1-840023

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $12.94
