MHP4815KAC - Exmark 48" Metro HP Walk-Behind Mower, 15hp Kawasaki (SN: 440000 - 509999) (2004) Engine Deck Group Parts Diagram

48" Metro HP Walk-Behind Mower, 15hp Kawasaki

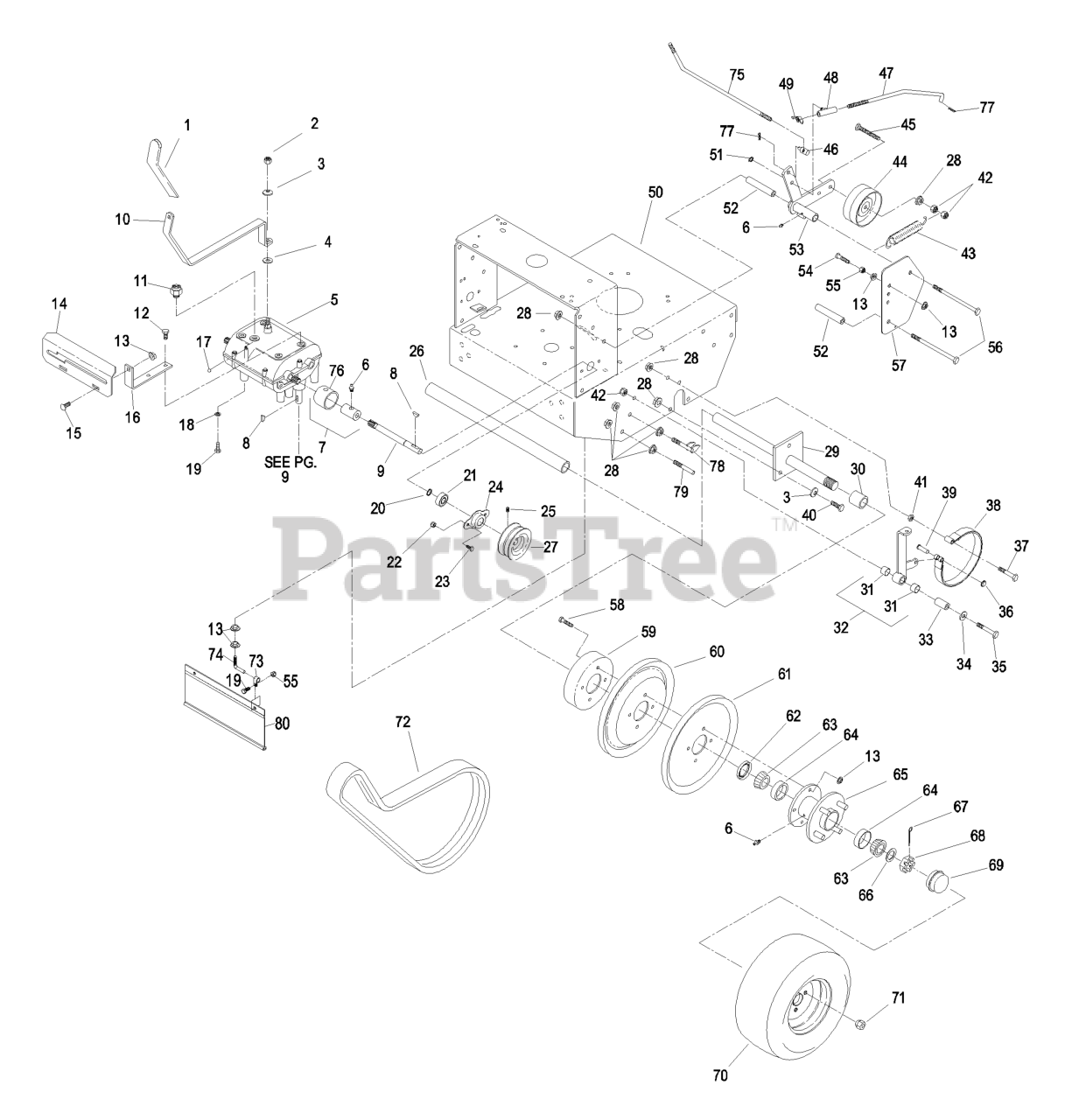

Engine Deck Group Parts Diagram

  • Title

1

Exmark 103-1733

GRIP,FOAM

$17.99

$

In Stock, Qty 5

0

2

Exmark 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 10

0

3

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

4

Exmark 1-323379

WASHER

$3.49

$

In Stock, only 3 left!

0

5

Exmark 1-323500

137-4105
(Superseded to 137-4105)

$658.99

$

In Stock, only 1 left!

0

6

Exmark 302-19

FITTING-GREASE

$2.99

$

In Stock, Qty 20+

0

7

Exmark 1-324340

ASM,COUPLER/ZERK

$63.99

$

Usually ships in 3-6 days

0

8

Exmark 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, Qty 16

0

9

Exmark 1-323502

SHAFT-TRANSMISSION

Note: Apply anti-seize compound between transmission output shafts & bearings and between transmission output shafts and sheaves.

$33.99

$

In Stock, Qty 5

0

10

Exmark 103-1606

ASM,SHIFT LEVER

$65.99

$

Usually ships in 3-6 days

0

11

Exmark 1-303282

SWITCH-START, NEUTRAL

$53.99

$

In Stock, only 2 left!

0

12

Exmark 9264964

SCREW-HWH, THREAD CUT

$1.99

$

Usually ships in 3-6 days

0

13

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

14

Exmark 103-3498

PLATE,SHIFTER W/DECAL

$70.99

$

Usually ships in 3-6 days

0

15

Exmark 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

16

Exmark 1-323389-03

BRACKET-PLATE, SHIFT

$33.99

$

Usually ships in 3-6 days

0

17

Exmark 1-323526

BALL,DETENT (SERVICE ONL

$2.99

$

In Stock, only 1 left!

0

18

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 19

0

19

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

20

Exmark 32151-62

RING-RETAINING

$1.99

$

In Stock, Qty 20+

0

21

Exmark 1-323252

BEARING-SHAFT

Note: Apply anti-seize compound between transmission output shafts & bearings and between transmission output shafts and sheaves.

$20.99

$

In Stock, only 2 left!

0

22

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

23

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

24

Exmark 1-323254

FLANGE-OUTPUT

$11.99

$

In Stock, only 4 left!

0

25

Exmark 1-803310

SCREW-SET

Note: Use Pro-lock (Nut type) Part No. 1-840022 (.5ml tube) on setscrew threads.

$2.99

$

Usually ships in 3-6 days

0

26

Exmark 1-413355-03

SLEEVE,AXLE

$

$

Not available

27

Exmark 1-413334-03

103-6513
(Superseded to 103-6513)

Note: Apply anti-seize compound between transmission output shafts & bearings and between transmission output shafts and sheaves.

$188.99

$

Usually ships in 3-6 days

0

28

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

29

Exmark 1-412376-03

WLD,AXLE

$108.99

$

In Stock, only 1 left!

0

30

Exmark 1-543556

SPACER,WHEEL SHORT

$11.99

$

Usually ships in 3-6 days

0

31

Exmark 1-413347

SLEEVE-BUSHING

$2.99

$

In Stock, Qty 14

0

32

Exmark 103-1695

ASM,RH BRAKE LEVER W/BSHG

Note: (Shown)

$

$

Not available

Exmark 103-1694

ASM,LH BRAKE LEVER W/BSHG

Note: (Not shown)

$

$

Not available

33

Exmark 1-413344

BUSHING-PIVOT

$20.99

$

In Stock, only 2 left!

0

34

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

35

Exmark 323-10

SCREW-HH

$1.49

$

In Stock, Qty 9

0

36

Exmark 1-803051

RING-RETAIN,PUSH,EXT,FLAT

$2.99

$

In Stock, Qty 6

0

37

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

38

Exmark 1-323262

BAND-BRAKE

$95.99

$

In Stock, Qty 5

0

39

Exmark 1-323307

PIN-CLEVIS

$5.49

$

In Stock, only 3 left!

0

40

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

41

Exmark 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 12

0

42

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

43

Exmark 1-603402

SPRING-EXTENSION

$8.99

$

In Stock, only 1 left!

0

44

Exmark 1-323277

IDLER-WHEEL, DRIVE

$34.99

$

In Stock, only 4 left!

0

45

Exmark 99-8664

SCREW-HH

$2.99

$

In Stock, only 2 left!

0

46

Exmark 103-1618

SWIVEL-DRIVE LEVER, 3/8 L

$21.99

$

In Stock, Qty 5

0

47

Exmark 103-1700

DISCONTINUED

$

$

Not available

48

Exmark 1-322125

110-5866
(Superseded to 110-5866)

$27.99

$

Usually ships in 3-6 days

0

49

Exmark 1-513959

WINGNUT-NYLOCK

$6.99

$

In Stock, only 3 left!

0

50

Exmark 103-3497

DECK,ENGINE W/DECALS

$1238.99

$

Usually ships in 3-6 days

0

51

Exmark 32151-47

RING-RETAINING

$2.99

$

In Stock, Qty 11

0

52

Exmark 1-323283

SPACER-SHIELD

$9.49

$

In Stock, only 3 left!

0

53

Exmark 103-1703-03

WLD,RH IDLER ARM

Note: (Shown)

$

$

Not available

Exmark 103-1702-03

WLD,LH IDLER ARM

Note: (Not Shown)

$

$

Not available

54

Exmark 322-7

SCREW-HH

$1.49

$

In Stock, only 3 left!

0

55

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

56

Exmark 323-39

SCREW-HH

$12.99

$

In Stock, Qty 20+

0

57

Exmark 1-413359-01

SHIELD,WHEEL DRIVE

$

$

Not available

58

Exmark 322-6

SCREW-HH

$4.49

$

In Stock, Qty 17

0

59

Exmark 1-323261

DRUM-BRAKE

$21.99

$

In Stock, only 3 left!

0

60

Exmark 1-413331

SHEAVE,WHEEL DRIVE

$426.99

$

Usually ships in 3-6 days

0

61

Exmark 1-413332

SHEAVE,WHEEL DRIVE

$122.99

$

Usually ships in 3-6 days

0

62

Exmark 1-543511

SEAL-GREASE

$12.99

$

In Stock, only 2 left!

0

63

Exmark 1-543509

Cone-Bearing Tapered Roller

$15.99

$

In Stock, Qty 20+

0

64

Exmark 1-543508

CUP-BEARING

$8.49

$

In Stock, Qty 18

0

65

Exmark 1-413333

HUB/WHEEL ASM

$

$

Not available

66

Exmark 1-523157

WASHER-SPACER

$1.99

$

In Stock, Qty 20+

0

67

Exmark 1-806800

PIN-COTTER

$2.99

$

In Stock, Qty 11

0

68

Exmark 1-809082

NUT-SHH

$15.99

$

In Stock, only 2 left!

0

69

Exmark 1-543513

CAP-GREASE

$8.99

$

Usually ships in 3-6 days

0

70

Exmark 1-413473

WHEEL AND TIRE ASM

$221.99

$

Usually ships in 3-6 days

0

Exmark 1-413474

TIRE-TURFMASTER

$142.99

$

Usually ships in 3-6 days

0

Exmark 1-603715

RIM-WHEEL
(Superseded to 107-2475)

$77.99

$

In Stock, only 2 left!

0

71

Exmark 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, Qty 16

0

72

Exmark 1-413341

BELT,WHEEL DRIVE BANDED
(Superseded to 1-413341-SL)

$147.99

$

In Stock, only 2 left!

0

73

Exmark 1-413510

CLIP-LOOM

$2.99

$

In Stock, only 2 left!

0

74

Exmark 1-413511

MOUNT,DRAG SHIELD

$9.49

$

In Stock, only 1 left!

0

75

Exmark 103-1701

LINKAGE,DRIVE (PLT)

$

$

Not available

76

Exmark 51-4220

GUARD-COUPLER

$21.99

$

In Stock, only 1 left!

0

77

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

78

Exmark 1-412358

SCRAPER

$34.99

$

Usually ships in 3-6 days

0

79

Exmark 1-413353

DISCONTINUED (EXMARK)

$

$

Not available

80

Exmark 98-3259

SHIELD-TRAILING

$77.99

$

In Stock, Qty 12

0

Exmark 1-850337

PAINT,SPRAY RED

$36.99

$

In Stock, Qty 10

0

Exmark 1-840022

PRO-LOCK,NUT TYPE

$21.99

$

In Stock, only 1 left!

0
