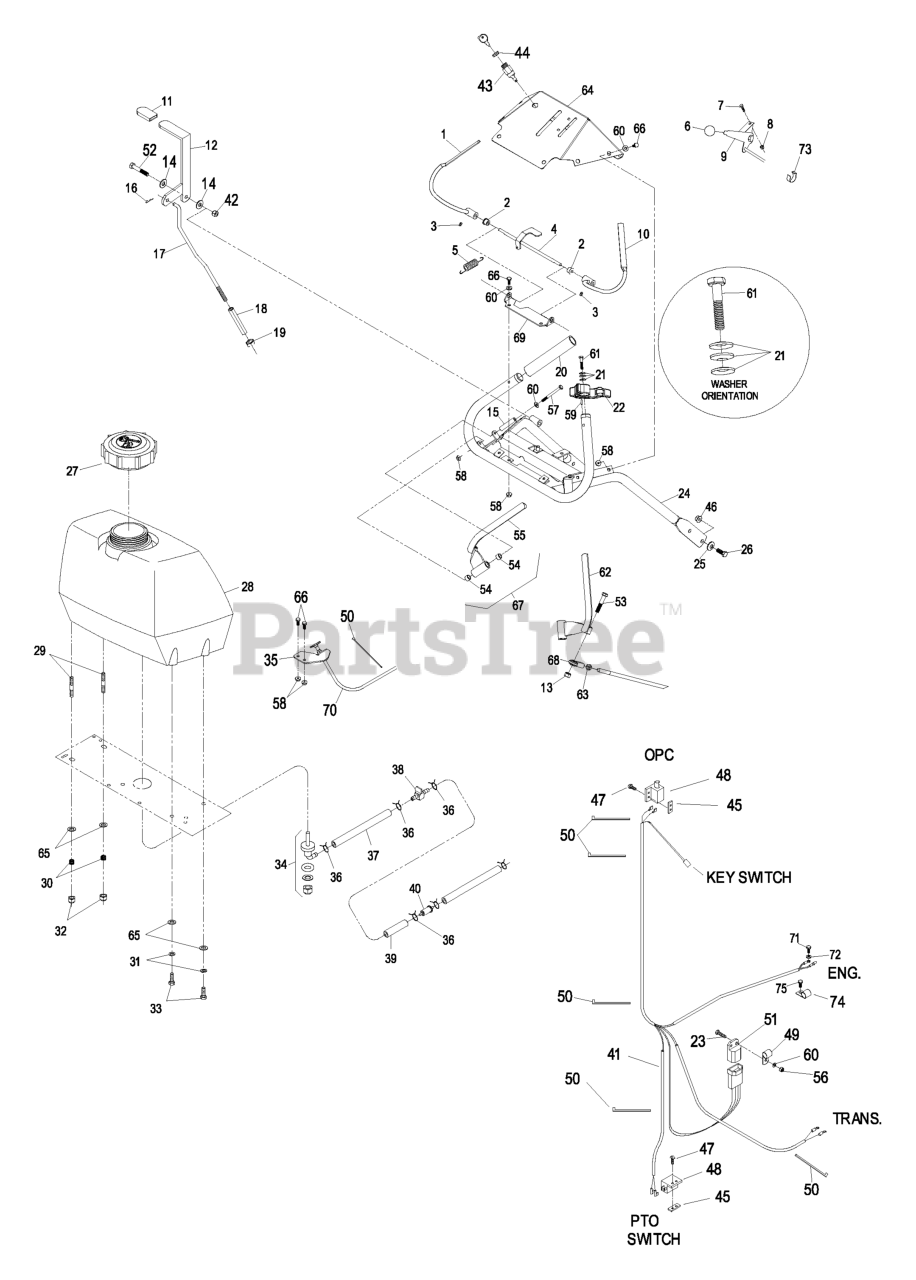

MHP4815KAC - Exmark 48" Metro HP Walk-Behind Mower, 15HP Kawasaki (SN: 510000 - 539999) (2005)

48" Metro HP Walk-Behind Mower, 15HP Kawasaki

MHP4815KAC - Exmark 48" Metro HP Walk-Behind Mower, 15HP Kawasaki (SN: 510000 - 539999) (2005) > Parts Diagrams (7) > ECS Upper Handles And Controls

  • Title
103-1566-03

1

Wld, Opc Lever Lh

Part# 103-1566-03 (Superseded to 116-4079)

Note: Use Pro-Lock retaining type, Part no. 1-840023 (.5cc tube) on inside of bore of OPC hub and on fuel tank studs, where studs are inserted into tank.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $22.36

1-303365

2

Bushing, Nylon

Part# 1-303365

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

1-803322

3

Setscrew, 5/16-24 X 5/16

Part# 1-803322

Note: Use Pro-Lock nut type, Part no. 1-840022 (.5cc tube) on setscrew threads, on thumblatch screws, and on fuel fitting.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

103-0769-03

4

Wld, Opc Rod

Part# 103-0769-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $28.24

1-303363

5

Spring, Actuator

Part# 1-303363

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.46

1-513592

6

Knob, Ball Red

Part# 1-513592

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.46

1-807513

7

Bolt, Carriage #10-24 X 1/2

Part# 1-807513

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

3296-2

8

Nut, Nyloc #10-24

Part# 3296-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.24

1-633696

9

Cable, Throttle Control

Part# 1-633696

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $40.30

103-1567-03

10

Wld, Opc Lever Rh

Part# 103-1567-03 (Superseded to 116-4080)

Note: Use Pro-Lock retaining type, Part no. 1-840023 (.5cc tube) on inside of bore of OPC hub and on fuel tank studs, where studs are inserted into tank.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $22.36

1-303020

11

Grip,

Part# 1-303020

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.34

1-414234

12

Asm. Clutch Lever W/Grip

Part# 1-414234 (Superseded to 116-6334)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $40.02

296-29

13

Nut, Nyloc 5/16-18

Part# 296-29

OEM Warranty Repair Part for Exmark

Currently unavailable

3256-24

14

Washer, 3/8 SAE

Part# 3256-24

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.50

103-0027

15

Spacer

Part# 103-0027

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.52

1-806003

16

Washer, 3/8 SAE

Part# 1-806003

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.22

103-1149

17

Linkage, Upper

Part# 103-1149

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $16.47

1-413279

18

Turnbuckle, 3/8-16 Ss

Part# 1-413279

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $30.60

3217-7

19

Nut, Hex 3/8-16

Part# 3217-7

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.27

103-0815

20

Grip

Part# 103-0815

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.89

1-303435

21

Washer, Spring Disc 1/4

Part# 1-303435

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

103-1631

22

Latch, Thumb Lh

Part# 103-1631

Note: (Not Shown)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $22.36

103-1630

Latch, Thumb Rh

Part# 103-1630

Note: (Shown)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $22.36

296-42

23

Nut, Nyloc 1/4

Part# 296-42

OEM Warranty Repair Part for Exmark

Currently unavailable

103-0770-03

24

Wld, Handle

Part# 103-0770-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $407.57

98-5975

25

Washer, Spring Disc 3/8

Part# 98-5975

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.24

323-6

26

Screw, Hh 3/8-16 X 2 1/2

Part# 323-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.90

103-3536

27

Cap, Fuel Tank

Part# 103-3536 (Superseded to 109-0346)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.61

103-2893

28

Asm, Fuel Tank W/Fitting

Part# 103-2893

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $186.02

1-633023

29

Stud

Part# 1-633023

Note: Use Pro-Lock retaining type, Part no. 1-840023 (.5cc tube) on inside of bore of OPC hub and on fuel tank studs, where studs are inserted into tank.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.50

1-633349

30

Spring, Fuel Tank

Part# 1-633349

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

1-805005

31

Washer, Lock 5/16 Heavy

Part# 1-805005

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

3296-47

32

Nut, Nyloc 5/16-18

Part# 3296-47

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.19

322-3

33

Screw, Hex Cap 5/16-18 X 3/4

Part# 322-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.67

103-2605

34

Fitting, Fuel Bulkhead W/Strainer

Part# 103-2605

Note: Use Pro-Lock nut type, Part no. 1-840022 (.5cc tube) on setscrew threads, on thumblatch screws, and on fuel fitting.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $24.59

103-1797-01

35

Bracket, Choke Cable

Part# 103-1797-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.76

1-303077

36

Clamp, Fuel Line

Part# 1-303077

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

1-603955

37

Hose, Fuel Line 6"

Part# 1-603955

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.37

1-603770

38

Valve, Fuel

Part# 1-603770

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.70

1-303022

39

Hose, Fuel Line 8.5"

Part# 1-303022

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.37

Pn 41019-1055 W/6" Fuel Line

40

Pn 41019-1055 W/6" Fuel Line

Part# Pn 41019-1055 W/6" Fuel Line

Note: Kawasaki

Not available

103-1710

41

Harness, Wiring

Part# 103-1710

OEM Warranty Repair Part for Exmark

Not available

3296-39

42

Nut, Nyloc 3/8-16

Part# 3296-39

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.05

1-403121

43

Switch, On/Off

Part# 1-403121

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $17.88

1-603511

Key, Ignition

Part# 1-603511

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.34

103-2106

Key, Exmark Logo

Part# 103-2106

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.52

103-0498

44

Nut, Ignition Switch

Part# 103-0498

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

1-633181

45

Plate, Tapped

Part# 1-633181

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.69

3290-357

46

Nut, Whizlock 3/8-16

Part# 3290-357

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.73

3290-500

47

Screw, Pph #10-24 X 5/8

Part# 3290-500

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

1-513051

48

Switch, Neutral Lockout

Part# 1-513051

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.29

1-323229

49

Clip, Loom 3/8

Part# 1-323229

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.34

1-303287

50

Tie, Cable 5 1/2 (Small)

Part# 1-303287

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

1-323430

51

Module, Wiring Harness

Part# 1-323430

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $95.36

323-11

52

Screw, Hh 3/8-16 X 2 1/4

Part# 323-11

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.67

322-9

53

Screw, Hh 5/16-18 X 1 3/4

Part# 322-9

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.38

1-413152

54

Bearing

Part# 1-413152

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

103-2466-03

55

Lever, Drive Lh

Part# 103-2466-03 (Superseded to 103-2514)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $84.76

321-4

56

Screw, Hh 1/4-20 X 3/4

Part# 321-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.78

321-14

57

Screw, Hh 1/4-20 X 2 3/4

Part# 321-14

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.60

32128-33

58

Nut, Whizlock 1/4-20

Part# 32128-33

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.62

103-0464

59

Pin, Spring 1/8 X 1/2

Part# 103-0464 (Superseded to 126-2925)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

3256-22

60

Washer, 1/4 SAE

Part# 3256-22

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.13

103-0235

61

Screw, Hh 1/4-20 X 1 1/8 W/Nylon

Part# 103-0235

Note: Use Pro-Lock nut type, Part no. 1-840022 (.5cc tube) on setscrew threads, on thumblatch screws, and on fuel fitting.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

103-2465-03

62

Lever, Drive Rh

Part# 103-2465-03 (Superseded to 116-4082)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $34.13

3220-3

63

Nut, Jam 3/8-24

Part# 3220-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.28

103-2765

64

Console (103-0546-03) W/Decals

Part# 103-2765

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $154.23

3256-23

65

Washer, 5/16 SAE

Part# 3256-23

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.67

321-3

66

Screw, Hh 1/4-20 X 5/8

Part# 321-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.97

103-2513

67

Asm, Drive Lever Rh

Part# 103-2513

Note: (Shown)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $84.76

103-2514

Asm, Drive Lever Lh

Part# 103-2514

Note: (Not Shown)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $84.76

103-2463

68

Balljoint

Part# 103-2463

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $21.18

103-0489-03

69

Bracket, Opc Axle

Part# 103-0489-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $15.79

103-1796

70

Cable, Choke Push/Pull

Part# 103-1796

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $33.08

33113-016

71

Screw, Hh M6-1 X 16mm

Part# 33113-016

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.32

1-805004

72

Washer, Lock 1/4 Heavy

Part# 1-805004

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

1-303088

73

Clip, Cable

Part# 1-303088

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.34

1-413510

74

Clip, Loom 1/2

Part# 1-413510

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.34

33114-016

75

Screw, Hh M8-1.25 X 16mm

Part# 33114-016

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.45
