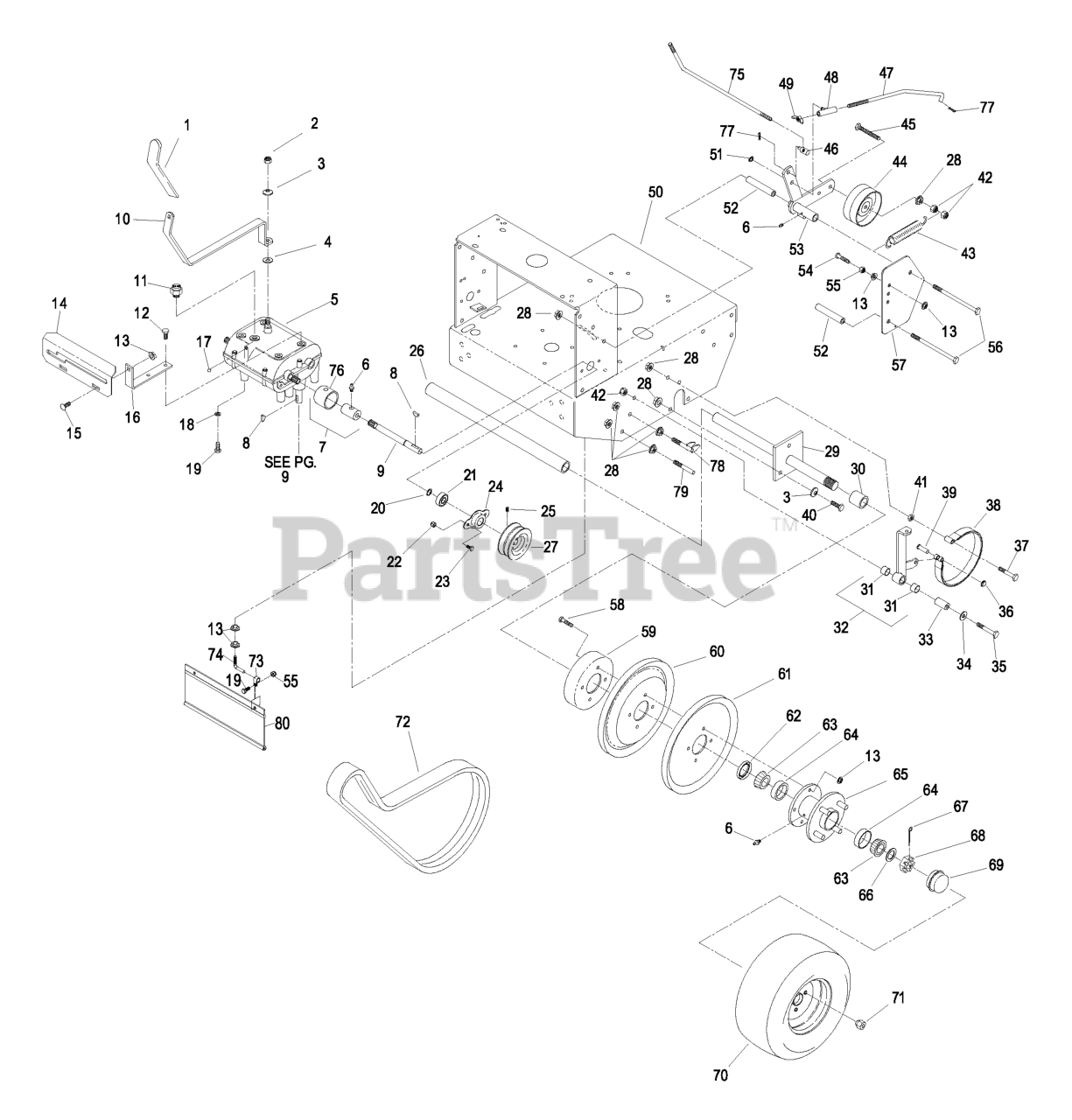

  • Title
103-1733

1

Grip, Foam

Part# 103-1733

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.40

3296-6

2

Nut, Nyloc 3/8-24

Part# 3296-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.24

98-5975

3

Washer, Spring Disc 3/8

Part# 98-5975

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.24

1-323379

4

Washer, Shifter Lever

Part# 1-323379

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

1-323500

5

Transmission, Peerless

Part# 1-323500 (Superseded to 137-4105)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $449.21

302-19

6

Zerk, 1/4-28 Str

Part# 302-19

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.77

1-324340

7

Asm, Coupling W/Guard & Zerk

Part# 1-324340

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $44.71

3257-5

8

Key Woodruff #9 3/4 X 3/16

Part# 3257-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.90

1-323502

9

Shaft, Transmission Output

Part# 1-323502

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $23.69

103-1606

10

Asm, Shift Lever W/Grip

Part# 103-1606

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $36.48

1-303282

11

Switch, Neutral Start

Part# 1-303282

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $34.11

9264964

12

Bolt, Hh 5/16-18 X 3/4 Tap

Part# 9264964

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.11

32128-20

13

Nut, Whizlock 5/16-18

Part# 32128-20

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.67

103-3498

14

Asm, Shifter Plate (1-323387-03) W/ Decals

Part# 103-3498

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $40.02

3230-1

15

Bolt, Carriage 5/16-18 X 3/4

Part# 3230-1

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.24

1-323389-03

16

Leg, Shifter Plate

Part# 1-323389-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $21.44

1-323526

17

Ball, Stainless Steel

Part# 1-323526

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.34

1-805005

18

Washer, Lock 5/16 Heavy

Part# 1-805005

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

322-3

19

Screw, Hh 5/16-18 X 3/4

Part# 322-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.67

32151-62

20

Ring, Retaining

Part# 32151-62

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.35

1-323252

21

Bearing, Transmission Shaft

Part# 1-323252

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.52

3296-42

22

Nut, Nyloc 1/4-20

Part# 3296-42

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.35

321-3

23

Screw, Hh 1/4-20 X 5/8

Part# 321-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.97

1-323254

24

Flange, Output

Part# 1-323254

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.03

1-803310

25

Setscrew, 5/16-18 X 3/8

Part# 1-803310

Note: Use Pro-lock (Nut Type) Part No. 1-840022 (.5ml tube) on setscrew threads.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.34

1-413355-03

26

Sleeve, Axle

Part# 1-413355-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $43.55

103-6513-03

27

Sheave, Transmission Output

Part# 103-6513-03

OEM Warranty Repair Part for Exmark

Currently unavailable

3290-357

28

Nut, Whizlock 3/8-16

Part# 3290-357

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.73

1-412376-03

29

Wld, Axle

Part# 1-412376-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $60.03

1-543556

30

Spacer, Wheel

Part# 1-543556

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.82

1-413347

31

Bushing, Sleeve

Part# 1-413347

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

103-1695

32

Asm, Brake Lever Rh W/Bushings (Shown)

Part# 103-1695

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $166.00

103-1694

Asm, Brake Lever Lh W/Bushings (Not Shown)

Part# 103-1694

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $166.00

1-413344

33

Bushing, Pivot

Part# 1-413344

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $13.41

3256-4

34

Washer, 3/8 Std

Part# 3256-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.20

323-10

35

Screw, Hh 3/8-16 X 2

Part# 323-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.62

1-803051

36

Nut, Push 3/8

Part# 1-803051

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

323-9

37

Screw, Hh 3/8-16 X 1 3/4

Part# 323-9

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.91

1-323262

38

Band, Brake

Part# 1-323262

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $41.76

1-323307

39

Pin, Clevis 1/2 X 1

Part# 1-323307

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

323-6

40

Screw, Hh 3/8-16 X 1

Part# 323-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.90

3218-3

41

Nut, Jam 3/8-16

Part# 3218-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.44

3296-39

42

Nut, Nyloc 3/8-16

Part# 3296-39

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.05

1-603402

43

Spring, Extension

Part# 1-603402

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.58

1-323277

44

Idler, Wheel Drive

Part# 1-323277

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $23.47

99-8664

45

Bolt, Hh 3/8-16 X 3 Tap

Part# 99-8664

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.32

103-1618

46

Swivel, Short

Part# 103-1618

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $11.76

103-1700

47

Linkage, Brake

Part# 103-1700

OEM Warranty Repair Part for Exmark

Not available

1-322125

48

Wld, Brake Linkage Swivel

Part# 1-322125 (Superseded to 110-5866)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $17.65

1-513959

49

Wingnut, Nyloc 5/16

Part# 1-513959

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.46

103-3497

50

Asm, Engine Deck Weldmt (103-2941-01) W/Decals

Part# 103-3497

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $784.15

32151-47

51

Klipring, (For 3/8 Shaft)

Part# 32151-47

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.27

1-323283

52

Spacer, Shield

Part# 1-323283

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.70

103-1703-03

53

Wld, Arm, Rh (Shown)

Part# 103-1703-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $65.27

103-1702-03

Wld, Arm, Lh

Part# 103-1702-03

Note: (Not Shown)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $65.92

322-7

54

Screw, Hh 5/16-18 X 1 1/2

Part# 322-7

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.78

3296-29

55

Nut, Nyloc 5/16-18

Part# 3296-29

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.81

323-39

56

Screw, Hh 3/8-16 X 5

Part# 323-39

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.47

1-413359-01

57

Shield, Wheel Drive

Part# 1-413359-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $36.87

322-6

58

Screw, Hh 5/16-18 X 1 1/4

Part# 322-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.09

1-323261

59

Drum, Brake

Part# 1-323261

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $15.29

1-413331

60

Sheave, Wheel Drive W/Offset

Part# 1-413331

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $230.30

1-413332

61

Sheave, Wheel Drive

Part# 1-413332

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $65.95

1-543511

62

Seal, Grease

Part# 1-543511

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.82

1-543509

63

Cone, Bearing L44643

Part# 1-543509

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.00

1-543508

64

Cup, Bearing L44610

Part# 1-543508

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.87

1-413333

65

Wheel, Hub W/Cups

Part# 1-413333

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $150.05

1-523157

66

Washer, Spacer

Part# 1-523157

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

1-806800

67

Pin, Cotter 9/64 X 1 1/2

Part# 1-806800

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

1-809082

68

Nut, Slotted 1-14

Part# 1-809082

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $10.05

1-543513

69

Cap, Grease

Part# 1-543513

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.58

1-413473

70

Asm, Wheel And Tire

Part# 1-413473

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $161.11

1-413474

Tire 16 X 6.50-8

Part# 1-413474

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $88.31

1-603715

Wheel

Part# 1-603715

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $48.53

242-50

71

Nut, Lug 1/2-20

Part# 242-50

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.43

1-413341

72

Belt, Wheel Drive Banded

Part# 1-413341

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $86.61

1-413510

73

Clip, Loom 1/2

Part# 1-413510

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.34

1-413511

74

Hanger, Drag Shield

Part# 1-413511

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.63

103-1701

75

Linkage, Drive

Part# 103-1701

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $20.00

51-4220

76

Guard, Coupler

Part# 51-4220

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.11

1-806003

77

Hairpin, Cotter

Part# 1-806003

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.22

1-412358

78

Wld, Scraper

Part# 1-412358

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $21.44

1-413353

79

Pin, Threaded

Part# 1-413353

OEM Warranty Repair Part for Exmark

Not available

98-3259

80

Shield, Trailing

Part# 98-3259

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $48.26
