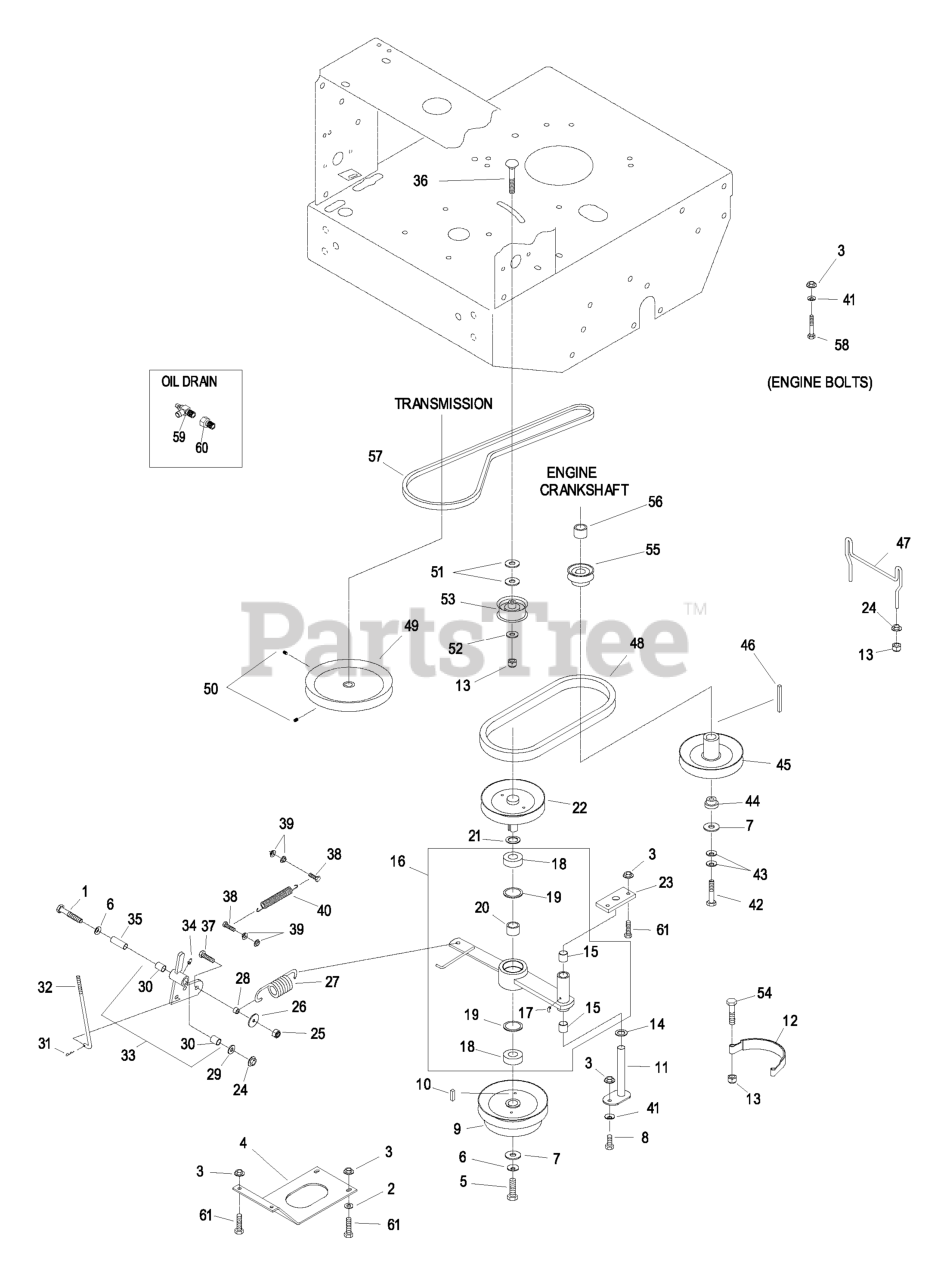

MHP4815KAC - Exmark 48" Metro HP Walk-Behind Mower, 15HP Kawasaki (SN: 510000 - 539999) (2005)

48" Metro HP Walk-Behind Mower, 15HP Kawasaki

MHP4815KAC - Exmark 48" Metro HP Walk-Behind Mower, 15HP Kawasaki (SN: 510000 - 539999) (2005) > Parts Diagrams (7) > Engine Deck Group (Cont.)

  • Title
323-11

1

Screw, 3/8-16 X 2-1/4

Part# 323-11

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.67

3256-3

2

Washer, 5/16 Std

Part# 3256-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.34

32128-20

3

Nut, Whizlock 5/16-18

Part# 32128-20

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.67

1-413009-01

4

Plate, Guard

Part# 1-413009-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $41.19

1-800521

5

Screw, Hh 3/8-24 X 1 Gr 8

Part# 1-800521

Note: Use Pro-lock (Nut type) Part No. 1-840022 (.5ml tube) in the following locations: On setscrew locations. On sheave retaining bolt in engine crankshaft. On sheave retaining bolt on clutch arm.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

98-5975

6

Washer, Spring Disc 3/8

Part# 98-5975

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.24

1-373034

7

Washer

Part# 1-373034

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.33

322-3

8

Screw, Hh 5/16-18 X 3/4

Part# 322-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.67

1-412031

9

Sheave, W/Drum (36")

Part# 1-412031

Note: Use anti-seize compound in the following locations: Between the sheave and the engine crankshaft. Between the sheave w/shaft and the bearing bores. Between the sheave w/shaft and the sheave w/drum. Between the transmission shaft and the sheave.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $117.38

1-412028

Sheave, W/Drum (48")

Part# 1-412028

Note: Use anti-seize compound in the following locations: Between the sheave and the engine crankshaft. Between the sheave w/shaft and the bearing bores. Between the sheave w/shaft and the sheave w/drum. Between the transmission shaft and the sheave.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $119.62

1-807259

10

Key, Mach 1/4 X 1/4 X 1

Part# 1-807259

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

1-412138-03

11

Wld, Pivot Pin

Part# 1-412138-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $26.82

1-413062

12

Band, Brake Clutch

Part# 1-413062

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $41.76

3296-39

13

Nut, Nyloc 3/8-16

Part# 3296-39

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.05

1-413235

14

Washer, Spacer

Part# 1-413235

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

1-413207

15

Pivot, Bearing

Part# 1-413207

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.93

1-414418

16

Asm, Clutch Arm (1-1-412417-03) W/Bearings

Part# 1-414418

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $279.49

1481

17

Zerk, 45° 1/4-28

Part# 1481

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.46

1-413111

18

Bearing, Clutch Shaf

Part# 1-413111

Note: Use anti-seize compound in the following locations: Between the sheave and the engine crankshaft. Between the sheave w/shaft and the bearing bores. Between the sheave w/shaft and the sheave w/drum. Between the transmission shaft and the sheave.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $30.18

32120-8

19

Ring, Retaining

Part# 32120-8

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.32

1-413012

20

Spacer, Bearing Clutch

Part# 1-413012

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.46

1-523157

21

Washer, Spacer

Part# 1-523157

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

103-6308

22

Sheave W/Shaft

Part# 103-6308

Note: Use anti-seize compound in the following locations: Between the sheave and the engine crankshaft. Between the sheave w/shaft and the bearing bores. Between the sheave w/shaft and the sheave w/drum. Between the transmission shaft and the sheave.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $108.44

1-413049-01

23

Plate, Clutch Pivot

Part# 1-413049-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $27.07

3290-357

24

Nut, Whizlock 3/8-16

Part# 3290-357

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.73

3296-29

25

Nut, Nyloc 5/16-18

Part# 3296-29

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.81

1-213069

26

Washer, Strut

Part# 1-213069

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

103-7398

27

Spring, Belt Tension

Part# 103-7398

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.29

1-543007

28

Spacer, Clutch Anchor

Part# 1-543007

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.58

3256-4

29

Washer, 3/8 Std

Part# 3256-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.20

103-4681

30

Pivot, Bearing

Part# 103-4681

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

1-806003

31

Hairpin, Cotter

Part# 1-806003

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.22

1-413282

32

Linkage, Lower

Part# 1-413282

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.94

1-414143

33

Asm, Link Pivot W/Bearings

Part# 1-414143

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $86.08

302-19

34

Zerk, 1/4-28 Str

Part# 302-19

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.77

1-603044

35

Bushing, Idler Pivot

Part# 1-603044

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.48

3231-6

36

Bolt, Carriage 3/8-16 X 2

Part# 3231-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

322-6

37

Screw, Hh 5/16-18 X 1 1/4

Part# 322-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.09

321-6

38

Screw, Hh 1/4-20 X 1

Part# 321-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.40

32128-33

39

Nut, Whizlock 1/4-20

Part# 32128-33

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.62

1-523498

40

Spring, Motion Control

Part# 1-523498

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.70

1-303334

41

Washer, Spring Disc 5/16

Part# 1-303334

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

3212-10

42

Screw, Hh 7/16-20 X 2 1/2

Part# 3212-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.62

1-603610

43

Washer, Spring Disc 7/16

Part# 1-603610

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

1-603609

44

Bushing, Clutch Keeper

Part# 1-603609

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $20.11

1-413339

45

Sheave, Engine

Part# 1-413339

Note: Use anti-seize compound in the following locations: Between the sheave and the engine crankshaft. Between the sheave w/shaft and the bearing bores. Between the sheave w/shaft and the sheave w/drum. Between the transmission shaft and the sheave.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $59.24

1-807264

46

Key, Machine 1/4 X 1/4 X 2 5/8

Part# 1-807264

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

103-6310

47

Wld, Belt Guide

Part# 103-6310

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $22.36

103-6317

48

Belt, Blade Clutch

Part# 103-6317

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $25.80

1-323278

49

Sheave, Transmission

Part# 1-323278

Note: Use anti-seize compound in the following locations: Between the sheave and the engine crankshaft. Between the sheave w/shaft and the bearing bores. Between the sheave w/shaft and the sheave w/drum. Between the transmission shaft and the sheave.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $56.50

3245-41

50

Setscrew, 1/4-20 X 3/8

Part# 3245-41

Note: Use Pro-lock (Nut type) Part No. 1-840022 (.5ml tube) in the following locations: On setscrew locations. On sheave retaining bolt in engine crankshaft. On sheave retaining bolt on clutch arm.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.34

3256-5

51

Washer, 7/16 Std

Part# 3256-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.27

3256-24

52

Washer, 3/8 SAE

Part# 3256-24

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.50

1-323285

53

Idler, Transmission Drive

Part# 1-323285 (Superseded to 130-8362)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $27.23

323-8

54

Screw, Hh 3/8-16 X 1 1/2

Part# 323-8

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.91

103-1666

55

Sheave, Transmission Drive

Part# 103-1666 (Superseded to 1-323256)

Note: Use anti-seize compound in the following locations: Between the sheave and the engine crankshaft. Between the sheave w/shaft and the bearing bores. Between the sheave w/shaft and the sheave w/drum. Between the transmission shaft and the sheave.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $54.77

1-413340

56

Spacer, Crankshaft

Part# 1-413340

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $7.82

1-323280

57

Belt, Transmission Drive

Part# 1-323280

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $24.16

322-7

58

Screw, Hh 5/16-18 X 1 1/2

Part# 322-7

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.78

103-1965

59

Valve, Oil Drain

Part# 103-1965

Note: Use Teflon Pipe Sealant or equivalent between oil drain valve and adapter.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $40.02

103-1966

60

Adapter, M20-2.5 / 3/8 Npt

Part# 103-1966

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.40

322-5

61

Screw, 5/16-18 X 1

Part# 322-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.42
