MHP4815KC - Exmark 48" Metro HP Walk-Behind Mower, 15hp Kohler (SN: 150000 - 189999) (1998) Engine Deck Group (Part 1) Parts Diagram

48" Metro HP Walk-Behind Mower, 15hp Kohler

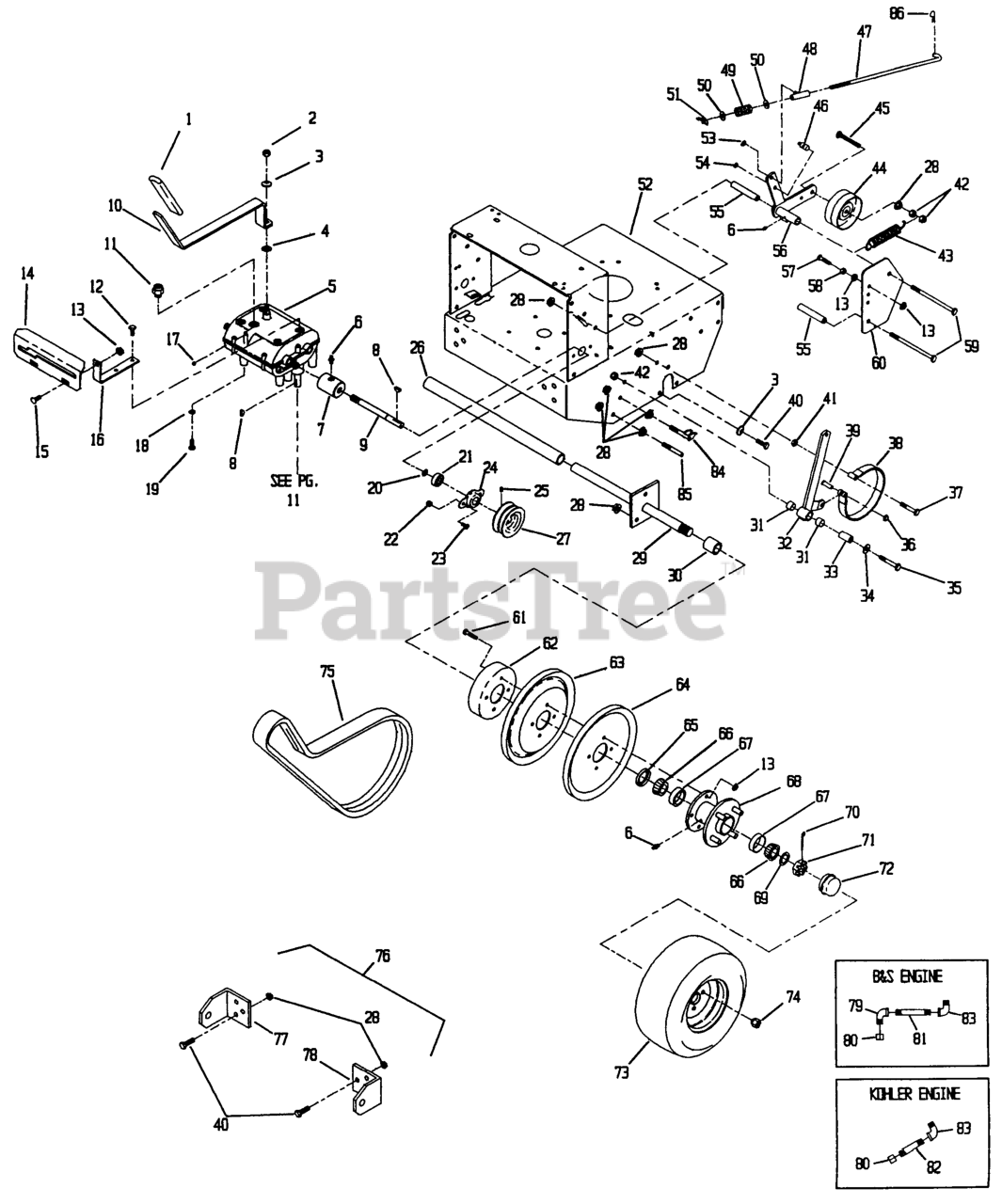

Engine Deck Group (Part 1) Parts Diagram

  • Title

1

Exmark 1-323250

DISCONTINUED (EXMARK)

$

$

Not available

2

Exmark 1-804264

3296-6
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

3

Exmark 1-303327

98-5975
(Superseded to 98-5975)

$3.99

$

In Stock, Qty 20+

0

4

Exmark 1-323379

WASHER

$3.49

$

In Stock, only 2 left!

0

5

Exmark 1-323500

137-4105
(Superseded to 137-4105)

$658.99

$

In Stock, Qty 14

0

6

Exmark 1-811006

302-19
(Superseded to 302-19)

$2.99

$

In Stock, Qty 20+

0

7

Exmark 1-323501

1-324340
(Superseded to 1-324340)

$61.99

$

Usually ships in 3-6 days

0

8

Exmark 1-807009

3257-5
(Superseded to 3257-5)

$5.99

$

In Stock, Qty 20+

0

9

Exmark 1-323502

SHAFT-TRANSMISSION

$31.99

$

In Stock, Qty 12

0

10

Exmark 1-322152

103-1606
(Superseded to 103-1606)

$64.99

$

Usually ships in 3-6 days

0

11

Exmark 1-303282

SWITCH-START, NEUTRAL

$53.99

$

In Stock, Qty 7

0

12

Exmark 1-809013

9264964
(Superseded to 9264964)

$1.99

$

Usually ships in 3-6 days

0

13

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

14

Exmark 1-323387-03

103-3498
(Superseded to 103-3498)

$69.99

$

Usually ships in 3-6 days

0

15

Exmark 1-807503

3230-1
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

16

Exmark 1-323389-03

BRACKET-PLATE, SHIFT

$33.99

$

Usually ships in 3-6 days

0

17

Exmark 1-323526

BALL,DETENT (SERVICE ONL

$2.99

$

In Stock, only 1 left!

0

18

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

19

Exmark 1-800271

322-3
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

20

Exmark 1-808523

32151-62
(Superseded to 32151-62)

$1.99

$

In Stock, Qty 20+

0

21

Exmark 1-323252

BEARING-SHAFT

$19.99

$

In Stock, Qty 15

0

22

Exmark 1-804255

3296-42
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

23

Exmark 1-800251

321-3
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

24

Exmark 1-323254

FLANGE-OUTPUT

$11.99

$

In Stock, Qty 11

0

25

Exmark 1-803310

SCREW-SET

Note: Use Pro-lock (Nut type) Part No. 840022 (.5ml tube) on setscrew threads.

$2.99

$

In Stock, only 2 left!

0

26

Exmark 1-413355-03

SLEEVE,AXLE

$

$

Not available

27

Exmark 1-413334-03

103-6513
(Superseded to 103-6513)

$173.99

$

Usually ships in 3-6 days

0

28

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

29

Exmark 1-412376-03

WLD,AXLE

$105.99

$

In Stock, only 1 left!

0

30

Exmark 1-543556

SPACER,WHEEL SHORT

$11.99

$

Usually ships in 3-6 days

0

31

Exmark 1-413347

SLEEVE-BUSHING

$2.99

$

In Stock, Qty 18

0

32

Exmark 1-414375

DISCONTINUED

$

$

Not available

Exmark 1-414374

LEVER ASM-LH

$

$

Not available

33

Exmark 1-413344

BUSHING-PIVOT

$20.99

$

In Stock, only 1 left!

0

34

Exmark 1-805260

3256-4
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

35

Exmark 1-800296

323-10
(Superseded to 323-10)

$1.49

$

In Stock, Qty 20+

0

36

Exmark 1-803051

RING-RETAIN,PUSH,EXT,FLAT

$2.99

$

In Stock, Qty 13

0

37

Exmark 1-800295

323-9
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

38

Exmark 1-323262

BAND-BRAKE

$93.99

$

In Stock, Qty 8

0

39

Exmark 1-323307

PIN-CLEVIS

$5.49

$

In Stock, Qty 6

0

40

Exmark 1-800292

323-6
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

41

Exmark 1-804752

3218-3
(Superseded to 3218-3)

$0.99

$

In Stock, Qty 14

0

42

Exmark 1-804257

3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

43

Exmark 1-603402

SPRING-EXTENSION

$8.49

$

In Stock, Qty 20+

0

44

Exmark 1-323277

IDLER-WHEEL, DRIVE

$34.99

$

Usually ships in 3-6 days

0

45

Exmark 1-800032

99-8664
(Superseded to 99-8664)

$2.99

$

In Stock, only 4 left!

0

46

Exmark 1-323368

SWIVEL-SHORT, ADJUSTABLE

$

$

Not available

47

Exmark 1-323548

LINKAGE-BRAKE

$28.99

$

In Stock, only 1 left!

0

48

Exmark 1-322125

110-5866
(Superseded to 110-5866)

$26.99

$

Usually ships in 3-6 days

0

49

Exmark 1-323245

SPRING-COMPRESSION

$6.99

$

In Stock, Qty 20+

0

50

Exmark 1-805257

3256-23
(Superseded to 3256-23)

$2.49

$

In Stock, Qty 20+

0

51

Exmark 1-513959

WINGNUT-NYLOCK

$6.99

$

In Stock, Qty 5

0

52

Exmark 1-412373

Deck, Weldmt Engine

$

$

Currently unavailable

53

Exmark 1-808522

32151-47
(Superseded to 32151-47)

$2.99

$

In Stock, Qty 20+

0

54

Exmark 1-808520

32151-73
(Superseded to 32151-73)

$3.49

$

In Stock, Qty 6

0

55

Exmark 1-323283

SPACER-SHIELD

$9.49

$

In Stock, Qty 6

0

56

Exmark 1-412379-03

WLD,ARM RH

Note: Shown

$

$

Not available

Exmark 1-412378-03

103-2140
(Superseded to 103-2140)

$

$

Not available

57

Exmark 1-800275

322-7
(Superseded to 322-7)

$1.49

$

In Stock, Qty 20+

0

58

Exmark 1-804256

3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

59

Exmark 1-800306

323-39
(Superseded to 323-39)

$12.99

$

In Stock, Qty 20+

0

60

Exmark 1-413359-01

SHIELD,WHEEL DRIVE

$

$

Not available

61

Exmark 1-800274

322-6
(Superseded to 322-6)

$4.49

$

In Stock, Qty 20+

0

62

Exmark 1-323261

DRUM-BRAKE

$20.99

$

In Stock, Qty 6

0

63

Exmark 1-413331

SHEAVE,WHEEL DRIVE

$391.99

$

Usually ships in 3-6 days

0

64

Exmark 1-413332

SHEAVE,WHEEL DRIVE

$112.99

$

Usually ships in 3-6 days

0

65

Exmark 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 15

0

66

Exmark 1-543509

Cone-Bearing Tapered Roller

Note: L44643

$14.99

$

In Stock, Qty 20+

0

67

Exmark 1-543508

CUP-BEARING

Note: L44610

$8.49

$

In Stock, Qty 17

0

68

Exmark 1-413333

HUB/WHEEL ASM

$

$

Not available

65

Exmark 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 15

0

66

Exmark 1-543509

Cone-Bearing Tapered Roller

Note: L44643

$14.99

$

In Stock, Qty 20+

0

67

Exmark 1-543508

CUP-BEARING

Note: L44610

$8.49

$

In Stock, Qty 17

0

68

Exmark 1-413333

HUB/WHEEL ASM

$

$

Not available

69

Exmark 1-523157

WASHER-SPACER

$1.99

$

In Stock, Qty 20+

0

70

Exmark 1-806800

PIN-COTTER

$2.99

$

In Stock, Qty 15

0

71

Exmark 1-809082

NUT-SHH

$15.99

$

In Stock, only 2 left!

0

72

Exmark 1-543513

CAP-GREASE

$8.49

$

In Stock, Qty 20+

0

73

Exmark 1-603714

1-413473
(Superseded to 1-413473)

$219.99

$

Usually ships in 3-6 days

0

Exmark 1-603427

1-413474
(Superseded to 1-413474)

$142.99

$

Usually ships in 3-6 days

0

Exmark 1-603715

RIM-WHEEL
(Superseded to 107-2475)

$77.99

$

In Stock, only 2 left!

0

74

Exmark 1-513011

242-50
(Superseded to 139-2564)

$1.49

$

In Stock, Qty 5

0

75

Exmark 1-413341

BELT,WHEEL DRIVE BANDED
(Superseded to 1-413341-SL)

$133.99

$

In Stock, only 4 left!

0

76

Exmark 1-411255

Kit, Sulky Hitch

$

$

Currently unavailable

77

Exmark 1-413252-01

DISCONTINUED

$

$

Not available

78

Exmark 1-413254-01

BRACKET,SULKY RH

$

$

Not available

79

Exmark 1-403124

ELBOW-90 DEG

Note: Use Teflon Pipe Sealant (or equivalent) on all threaded areas.

$

$

Not available

80

Exmark 1-543233

CAP-HEX

Note: Use Teflon Pipe Sealant (or equivalent) on all threaded areas.

$

$

Not available

81

Exmark 1-543232

NIPPLE

Note: Use Teflon Pipe Sealant (or equivalent) on all threaded areas.

$22.99

$

Usually ships in 3-6 days

0

82

Exmark 1-323326

NIPPLE

Note: Use Teflon Pipe Sealant (or equivalent) on all threaded areas.

$

$

Not available

83

Exmark 1-303431

FITTING-ELBOW-90

Note: Use Teflon Pipe Sealant (or equivalent) on all threaded areas.

$

$

Not available

84

Exmark 1-412358

SCRAPER

$34.99

$

Usually ships in 3-6 days

0

85

Exmark 1-413353

DISCONTINUED (EXMARK)

$

$

Not available

86

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

Exmark 1-850337

PAINT,SPRAY RED

$36.99

$

In Stock, Qty 12

0

Exmark 1-840022

PRO-LOCK,NUT TYPE

$21.99

$

Usually ships in 3-6 days

0
