MICRO XXV - Poulan Chainsaw CVA SYSTEM Parts Diagram

Chainsaw

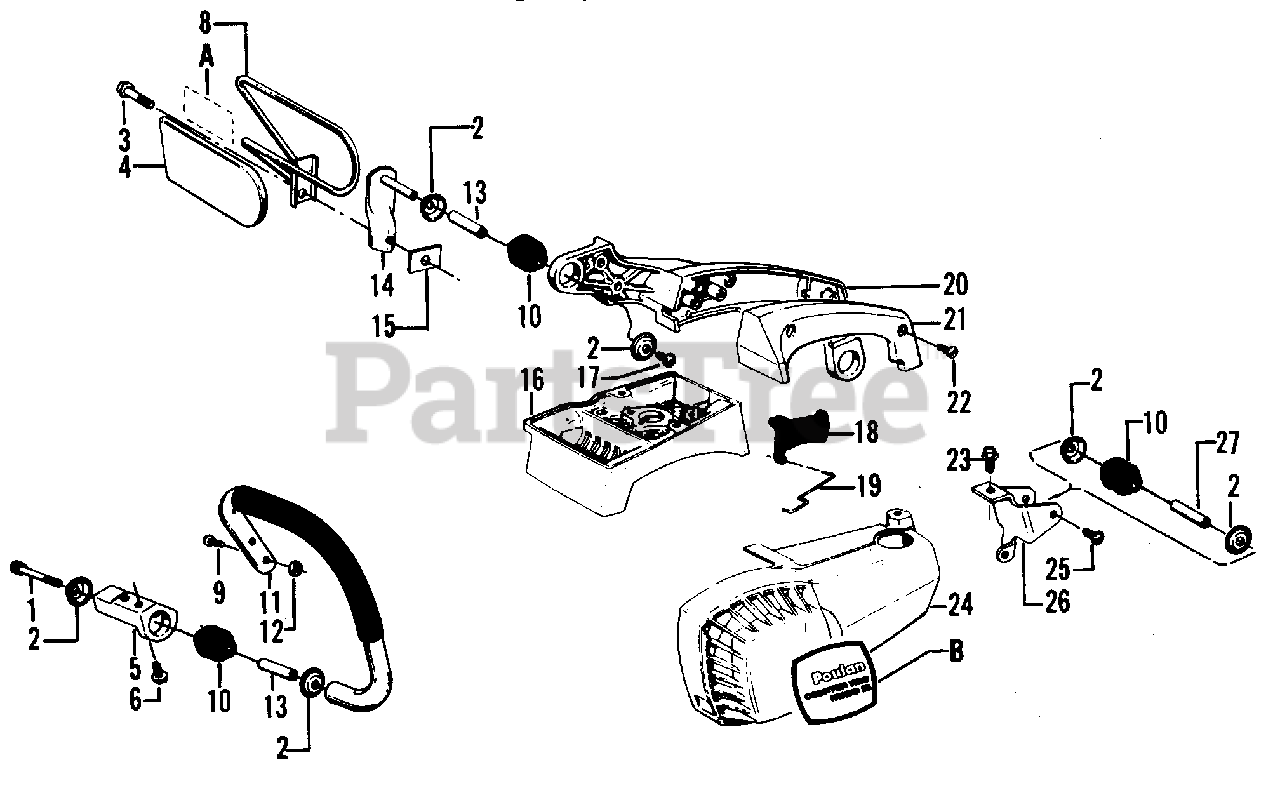

CVA SYSTEM Parts Diagram

  • Title

1

Poulan 530015338

Screw 1/4-20x1-3/4 Hex Socket Head

$2.49

$

Usually ships in 3-10 days

0

2

Poulan 530026163

Cup-Isolator - See Service Reference 1

$3.99

$

Usually ships in 3-10 days

0

3

Poulan 530001648

Screw 1/4-20x1-1/8 Hex Head

$

$

Not available

4

Poulan 530024562

Sleeve-Handguard

$7.49

$

Usually ships in 3-10 days

0

5

Poulan 530011612

Bracket-Isolator Mtg.

$

$

Not available

6

Poulan 530015037

Screw 10-24x5/8 Hex Washer Head

$2.49

$

Usually ships in 3-10 days

0

8

Poulan 530024581

Handguard (Inc. #4)

$18.99

$

Usually ships in 3-10 days

0

9

Poulan 530015392

Screw 10-32x1-1/4 Socket Head

$

$

Not available

10

Poulan 530024256

Isolator

$

$

Not available

11

Poulan 530022186

Handlebar Assy.

$

$

Not available

12

Poulan 530001720

Locknut-#10-32 Hex

$2.49

$

Usually ships in 3-10 days

0

13

Poulan 530015342

Spacer-Isolator

$3.99

$

Usually ships in 3-10 days

0

14

Poulan 530011615

Front Bracket & Spindle Assy.

$

$

Not available

15

Poulan 530024317

Pad-Isolator

$2.49

$

In Stock, only 1 left!

0

16

Poulan 530026158

Carburetor Housing

$

$

Not available

17

Poulan 530015129

Screw-8-32x9/16 Pan Hd. Taptite

$

$

Not available

18

Poulan 530024803

Trigger-Throttle

$

$

Not available

19

Poulan 530024253

Wire-Throttle

$3.99

$

Usually ships in 3-10 days

0

20

Poulan 530011685

Rear Handle

$

$

Not available

21

Poulan 530011682

Cover-Rear Handle

$

$

Not available

22

Poulan 530015411

Screw-#8-32x9/16 Pan Hd. Taptite

$2.49

$

Usually ships in 3-10 days

0

23

Poulan 530015426

Screw-1/4-20x1/2 Hex Cap

$2.49

$

Usually ships in 3-10 days

0

24

Poulan 530011603

Fan Housing

$54.99

$

Usually ships in 3-10 days

0

25

Poulan 530015129

Screw 8-32x7/16 Pan Head

$

$

Not available

26

Poulan 530011753

Bracket-Isolator Mtg. Rear

$

$

Not available

27

Poulan 530015343

Spacer-Rear Isolator

$3.99

$

Usually ships in 3-10 days

0

A

Poulan 530025631

Decal-Kickback Warning

$

$

Not available

B

Poulan 530025248

Decal-Fan Housing

$

$

Not available
