MICRO XXV - Poulan Chainsaw POWER SHARP SYSTEM Parts Diagram

Chainsaw

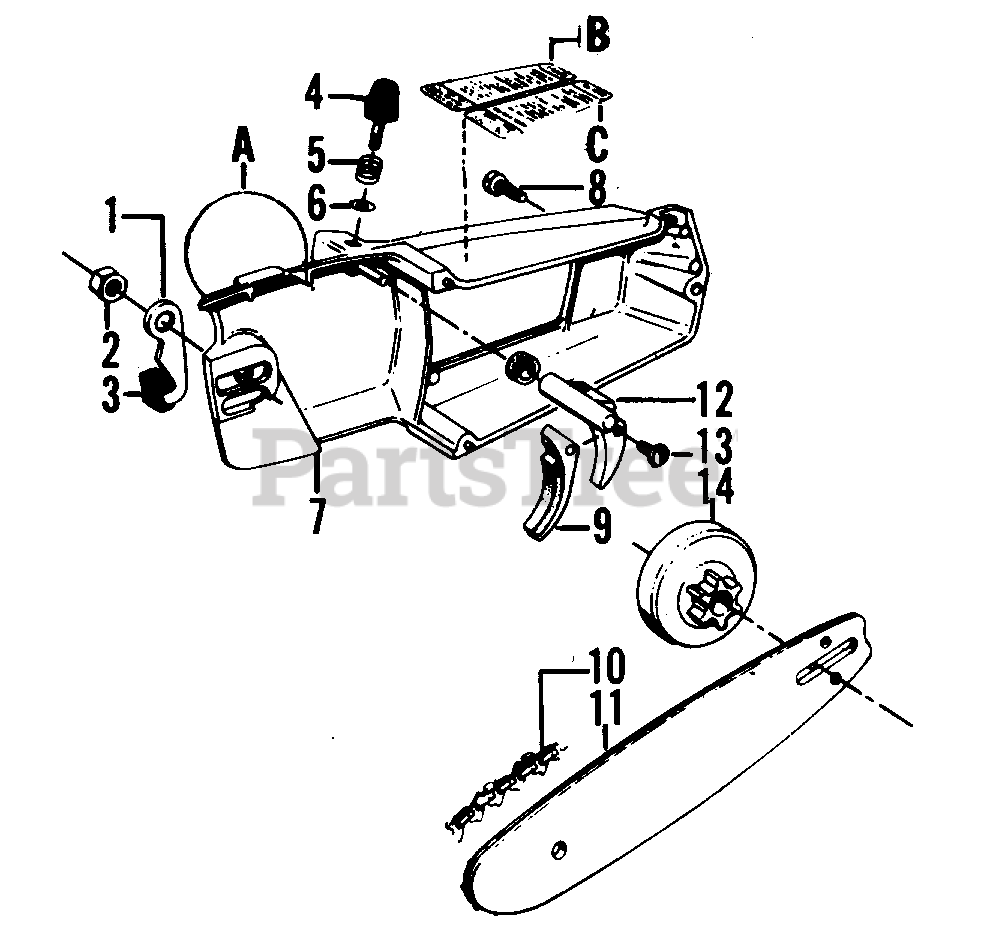

POWER SHARP SYSTEM Parts Diagram

  • Title

1

Poulan 530025257

Lever Chain Adj.

$

$

Not available

2

Poulan 530015303

Nut Bar Mounting

$

$

Not available

3

Poulan 530023764

Knob-Chain Adj.

$

$

Not available

4

Poulan 530023759

Knob-Sharpening

$

$

Not available

5

Poulan 530023762

Spring

$

$

Not available

6

Poulan 530023761

Washer

$2.49

$

Usually ships in 3-10 days

0

7

Poulan 530011311

Bar Clamp

$

$

Not available

8

Poulan 530015163

Screw-10-24x7/8

$2.49

$

Usually ships in 3-10 days

0

9

Poulan 530022166

Stone & Carrier Assy.

$14.99

$

Usually ships in 3-10 days

0

10

Poulan 530051176

Chain 14"

$

$

Not available

10

Poulan 530051234

Chain 16"

$

$

Not available

11

Poulan 530044172

Bar and Pin Assy. 14"

$

$

Not available

11

Poulan 530044204

Bar and Pin Assy. 16"

$

$

Not available

12

Poulan 530022167

Arm-Assy.-Sharpening Stone

$

$

Not available

13

Poulan 530015227

Screw-10-24x1/4

$

$

Not available

14

Poulan 530048067

Sprocket & Drum

$

$

Not available

A

Poulan 530025157

Decal-Bar Clamp

$

$

Not available

B

Poulan 530024795

Decal-Instruction (right half)

$

$

Not available

C

Poulan 530025165

Decal-Instruction (left half)

$

$

Not available
