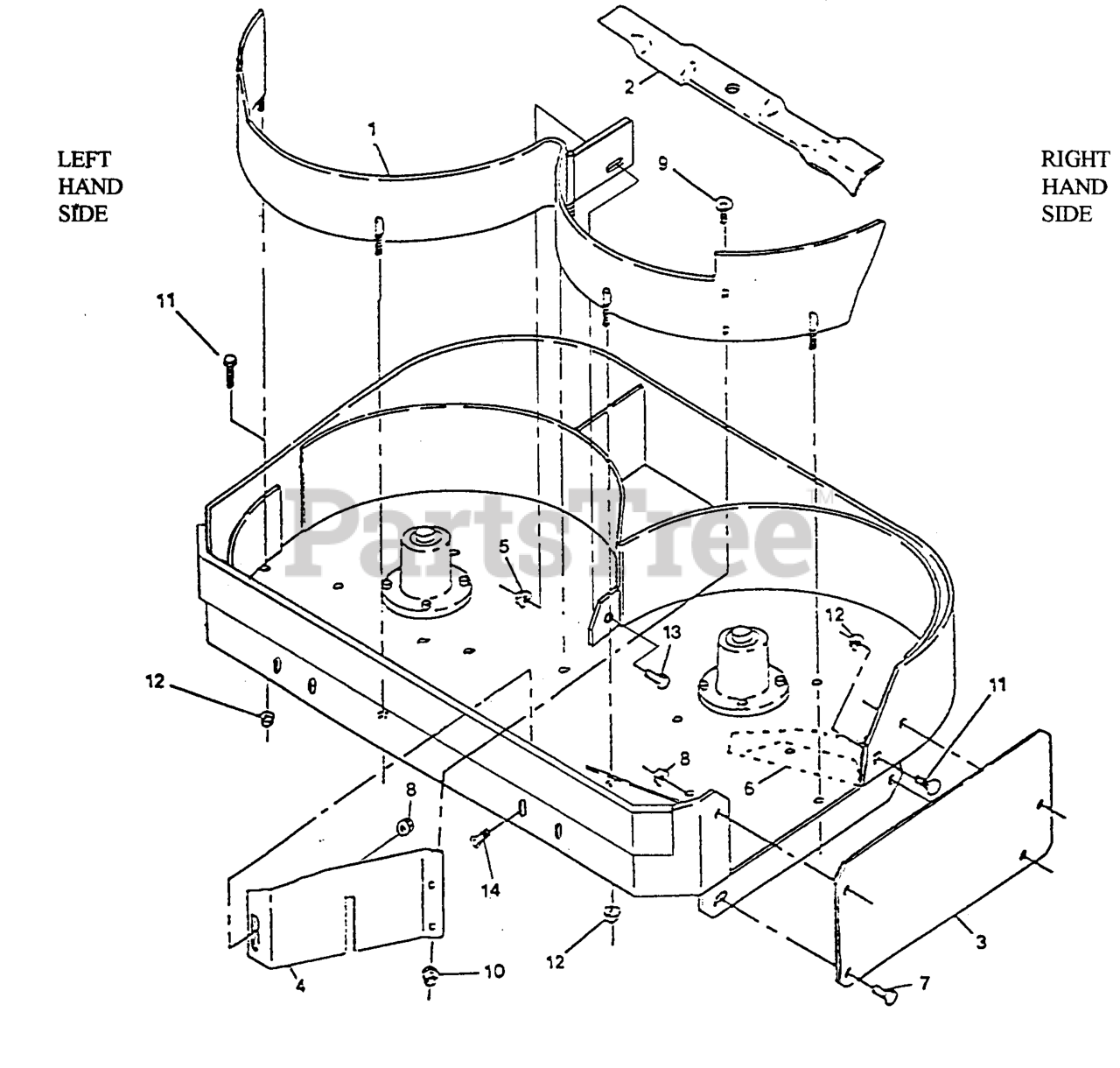

MK322 - Exmark 32" Mulching Kit Underside of 36" Mower Deck Parts Diagram

32" Mulching Kit

Underside of 36" Mower Deck Parts Diagram

  • Title

1

Exmark 1-302226-03

BAFFLE-MULCH

$

$

Not available

2

Exmark 1-303495

103-6582-S
(Superseded to 103-6582-S)

$34.99

$

In Stock, Qty 20+

0

3

Exmark 1-303494-01

PLATE-COVER

$76.99

$

In Stock, only 3 left!

0

4

Exmark 1-303492

1-303571-03
(Superseded to 1-303571-03)

$

$

Not available

5

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

6

Exmark 1-302189-01

BAFFLE-DOGLEG

Note: These items come installed on mower and are not in kit.

$57.99

$

Usually ships in 3-6 days

0

7

Exmark 1-800290

323-4
(Superseded to 323-4)

$4.49

$

In Stock, Qty 20+

0

8

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

9

Exmark 1-807512

BOLT-CARR

$1.49

$

In Stock, Qty 10

0

10

Exmark 1-809012

32128-33
(Superseded to 32128-33)

$0.99

$

In Stock, Qty 20+

0

11

Exmark 1-800270

322-2
(Superseded to 322-2)

Note: These items come installed on mower and are not in kit.

$2.99

$

In Stock, Qty 20+

0

12

Exmark 1-809001

32128-20
(Superseded to 32128-20)

Note: These items come installed on mower and are not in kit.

$1.49

$

In Stock, Qty 20+

0

13

Exmark 1-800270

322-2
(Superseded to 322-2)

$2.99

$

In Stock, Qty 20+

0

14

Exmark 1-800292

323-6
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0
