MK524 - Exmark 52" Floating Side Discharge Deck Mulching Kit Floating Side Discharge Deck Assembly Parts Diagram

52" Floating Side Discharge Deck Mulching Kit

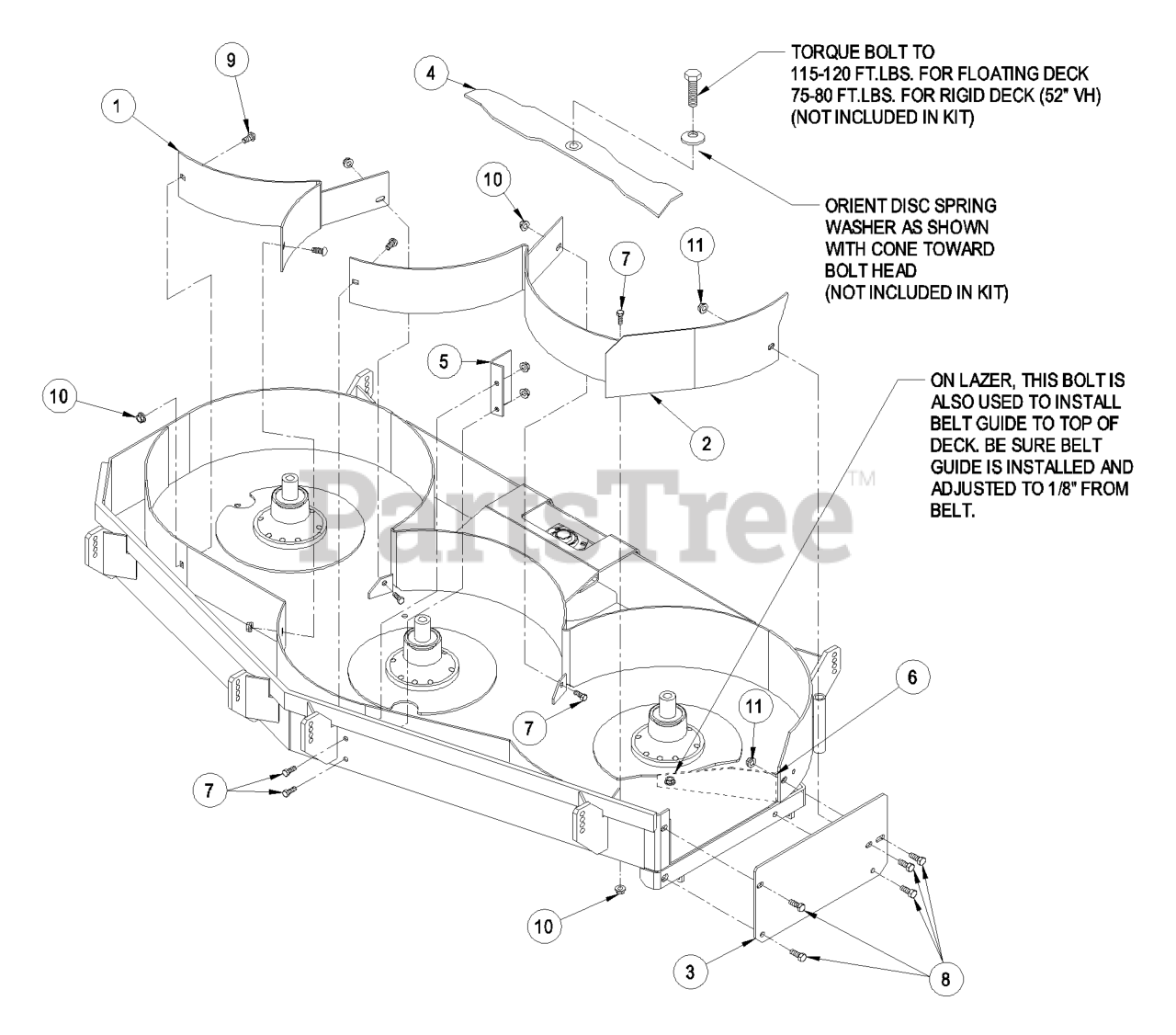

Floating Side Discharge Deck Assembly Parts Diagram

  • Title

1

Exmark 103-0910-03

WLD,BAFFLE MULCH LH 52

$96.99

$

Usually ships in 3-6 days

0

2

Exmark 103-0913-03

WLD,BAFFLE MULCH RH 52

$295.99

$

Usually ships in 3-6 days

0

3

Exmark 103-0916-01

COVER-MULCH PLATE

$49.99

$

In Stock, only 2 left!

0

4

Exmark 103-2518

103-6582-S
(Superseded to 103-6582-S)

$34.99

$

In Stock, Qty 20+

0

5

Exmark 103-0917-03

BAFFLE,ZEE MULCH 52

$23.99

$

Usually ships in 3-6 days

0

6

Exmark 1-602913-01

WLD,BAFFLE DISCHARGE

Note: This item comes installed on mower deck and is not in kit.

$54.99

$

In Stock, only 3 left!

0

Exmark 1-402057-01

WLD, DISCHARGE BAFFLE

Note: This item comes installed on mower deck and is not in kit.

$

$

Not available

7

Exmark 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

8

Exmark 323-4

SCREW-HH

$4.49

$

In Stock, Qty 14

0

9

Exmark 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

10

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

11

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0
