MM 60 RSe (59A40007727) - Cub Cadet Yanmar Tractor Mower Deck Mower Deck Parts Diagram

Tractor Mower Deck

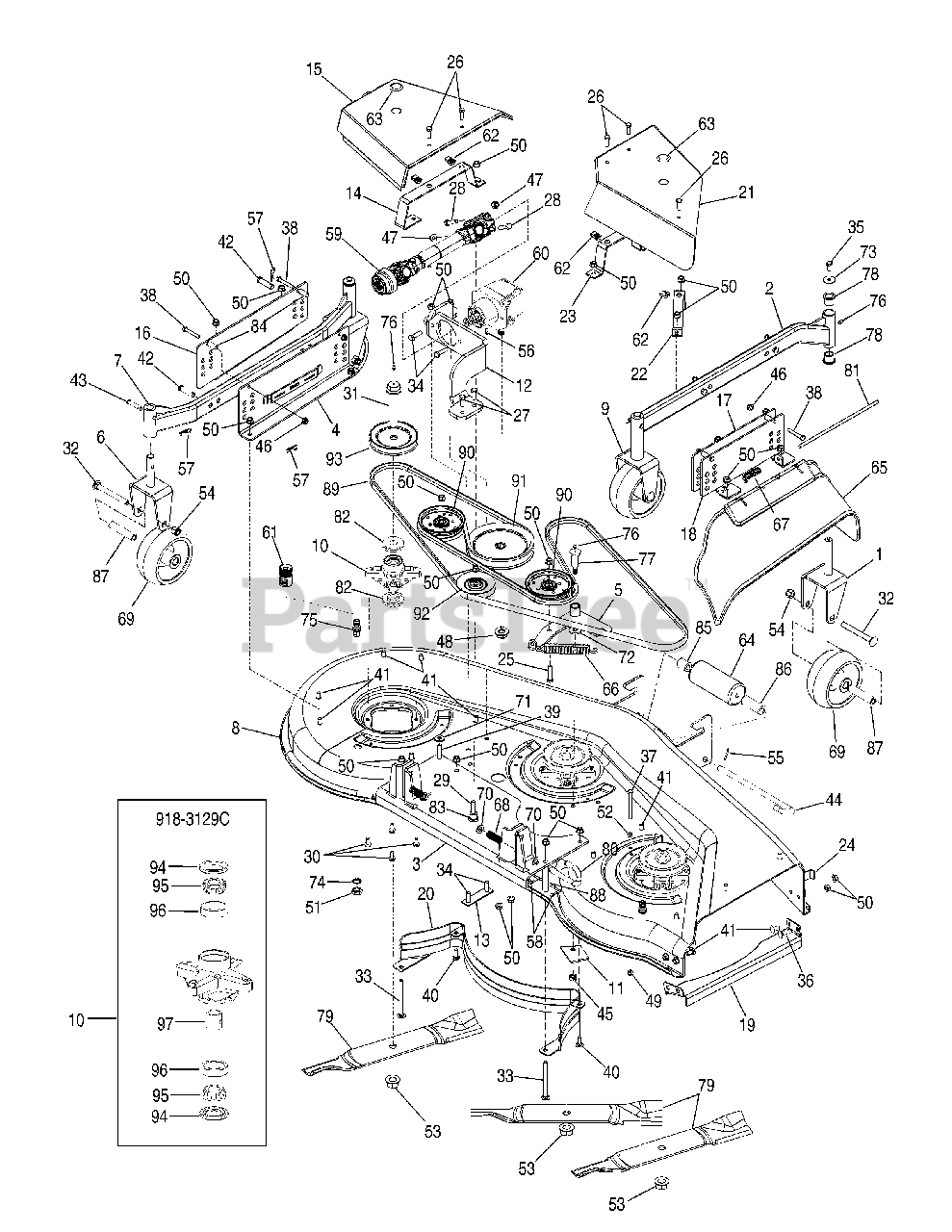

Mower Deck Parts Diagram

  • Title

1

Cub Cadet YS-603-04118B

Bracket, Front Caster Wheel
(Superseded to 603-04118B)

$151.99

$

Usually ships in 3-6 days

0

2

Cub Cadet YS-603-04119

Axle, Caster RH
(Superseded to 603-04119)

$151.99

$

Usually ships in 3-6 days

0

3

Cub Cadet YS-603-04462

Bracket, Rear Deck Hanger

$

$

Not available

4

Cub Cadet YS-603-04466

Bracket, Wheel Mntg. LH Inner

$

$

Not available

5

Cub Cadet YS-603-04520

Arm, Idler

$

$

Not available

6

Cub Cadet YS-603-04532

Caster, Rear LH 2.50 Shaft

$

$

Not available

7

Cub Cadet YS-603-04533

Axle, Caster LH

$

$

Not available

8

Cub Cadet YS-603-04540

Housing Deck

$

$

Not available

9

Cub Cadet YS-603-0783

Caster, Rear 4.25 Shaft
(Superseded to 603-0783)

$124.99

$

Usually ships in 3-6 days

0

10

Cub Cadet YS-918-3129C

Spindle Assembly
(Superseded to 918-3129C)

$112.99

$

In Stock, Qty 20+

0

11

Cub Cadet YS-703-05658

Plate Idler Support

$

$

Not available

12

Cub Cadet YS-703-06249

Bracket, Gear Box Mounting

$

$

Not available

13

Cub Cadet YS-703-06250

Plate Gear Box Support

$

$

Not available

14

Cub Cadet YS-703-06251

Bracket, Belt Cover Mounting

$

$

Not available

15

Cub Cadet YS-703-06253

Cover, Belt LH

$

$

Not available

16

Cub Cadet YS-703-06258

Bracket, Wheel Mntg. LH Outer

$

$

Not available

17

Cub Cadet YS-703-06260

Bracket, Wheel Mntg. RH Inner

$

$

Not available

18

Cub Cadet YS-703-06261

Bracket, Wheel Mntg, RH Outer

$

$

Not available

19

Cub Cadet YS-703-3247

Guard Deck Opening
(Superseded to 603-0662)

$92.99

$

Usually ships in 3-6 days

0

20

Cub Cadet YS-703-3248

Baffle, Rear Deck
(Superseded to 703-3248)

$136.99

$

Usually ships in 3-6 days

0

21

Cub Cadet YS-703-3272

Cover, Belt RH
(Superseded to 703-3272)

$114.99

$

Usually ships in 3-6 days

0

22

Cub Cadet YS-703-3274

Bracket, Belt Cover Mounting RH
(Superseded to 703-3274)

$

$

Not available

23

Cub Cadet YS-703-3275

Bracket, Belt Cover Mounting
(Superseded to 703-3275)

$

$

Not available

24

Cub Cadet YS-703-3280

Bracket, Chute Stop 2008 & Before
(Superseded to 703-3280)

$

$

Not available

24

Cub Cadet YS-703-06677

Bracket, Chute Stop 2009 & After

$

$

Not available

25

Cub Cadet YS-710-0347

Screw, Hex Cap, 3/8-16 x 1.75 Gr5
(Superseded to 710-0347)

$4.99

$

In Stock, Qty 20+

0

26

Cub Cadet YS-710-0376

Screw, Hex Cap, 5/16-18 x 1/0 Gr5
(Superseded to 710-0376)

$3.99

$

In Stock, Qty 17

0

27

Cub Cadet YS-710-0514

Screw, Hex Cap, 3/8-16 x 1.0 Gr5
(Superseded to 710-0514)

$3.99

$

In Stock, Qty 20+

0

28

Cub Cadet YS-710-0520

Screw, Hex Cap, 3/8-16 x 1.5 Gr5
(Superseded to 710-0520)

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet YS-710-0859

Screw, Hex Cap, 3/8-16 x 2.5 Gr5
(Superseded to 710-0859)

$6.49

$

In Stock, Qty 20+

0

30

Cub Cadet YS-710-1260A

Screw, Wash. Hd Tapp, 5/16-18 x .75
(Superseded to 710-1260A)

Note: 2008 & Before

$3.49

$

In Stock, Qty 20+

0

30

Cub Cadet YS-710-0650

Screw, Wash. Hd Tapp, 5/16-18 x .875
(Superseded to 710-0650)

Note: 2009 & After

$3.99

$

In Stock, Qty 20+

0

31

Cub Cadet YS-710-1336A

Bolt, Spindle, 3/4-16 x 4.25
(Superseded to 710-1336A)

$22.99

$

In Stock, Qty 18

0

32

Cub Cadet YS-710-1638

Screw, Carriage, 1/2-13 x 4.5 Gr5
(Superseded to 710-1638)

$10.99

$

In Stock, Qty 10

0

33

Cub Cadet YS-710-1649

Screw, Carriage, 3/8-16 x 4.50 Gr5
(Superseded to 710-1649)

$15.99

$

In Stock, only 2 left!

0

34

Cub Cadet YS-710-3005

Screw, Hex Cap, 3/8-16 x 1.25 Gr5
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

34

Cub Cadet YS-736-0169

Washer, Lock 3/8
(Superseded to 936-0169)

Note: Not shown, Use with YS-710-3005

$3.49

$

In Stock, Qty 20+

0

35

Cub Cadet YS-710-3008

Screw, Hex Cap, 5/16-18 x .75 Gr5
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

36

Cub Cadet YS-710-3034

Bolt Carriage, 3/8-16 x 1.25
(Superseded to 710-3034)

$3.99

$

In Stock, Qty 7

0

37

Cub Cadet YS-710-3251

Screw, Hex cap, 5/16-18 x 3.25 Gr5
(Superseded to 710-3251)

Note: 2008 & Before

$5.99

$

In Stock, Qty 13

0

37

Cub Cadet YS-710-0521

Screw, Hex cap, 3/8-16 x 3.0 Gr8
(Superseded to 710-0521)

Note: 2009 & After

$4.99

$

In Stock, Qty 15

0

38

Cub Cadet YS-710-3103

Screw, Hex Cap, 5/16-18 x 2.0 Gr5
(Superseded to 710-3103)

$4.49

$

In Stock, Qty 19

0

39

Cub Cadet YS-710-3144

Screw, Hex cap, 3/8-16 x 2.0 Gr5
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet YS-710-3168

Bolt, Carriage, 3/8-16 x 1.0
(Superseded to 710-3168)

$3.99

$

In Stock, Qty 20+

0

41

Cub Cadet YS-710-3178

Bolt, carriage, 3/8-16 x .75
(Superseded to 710-3178)

$3.99

$

In Stock, Qty 20+

0

42

Cub Cadet YS-711-04997

Pin, Clevis

$

$

Not available

43

Cub Cadet YS-711-0415

Pin, Clevis, .375 x 1.75
(Superseded to 911-0415)

$4.49

$

In Stock, Qty 20+

0

44

Cub Cadet YS-711-04877

Pin, Roller, 1/2 x 11.06

$

$

Not available

45

Cub Cadet YS-712-0290

Nut, Hex Lock, 7/16-14
(Superseded to 712-0290)

$4.49

$

In Stock, Qty 12

0

46

Cub Cadet YS-712-04063

Nut, Hex Insert Flange Lock, 5/16-18 GrF
(Superseded to 712-04063)

$3.99

$

In Stock, Qty 20+

0

47

Cub Cadet YS-712-3020

Nut, Hex Insert Jam Lock, 3/8-16 Gr5
(Superseded to 912-3020)

$5.99

$

In Stock, Qty 11

0

48

Cub Cadet YS-712-0417A

Nut, Hex Flange, 5/8-18
(Superseded to 712-0417A)

$6.99

$

In Stock, Qty 20+

0

49

Cub Cadet YS-712-0429

Nut, Hex Insert Lock, 5/16-18 Gr5
(Superseded to 912-0429)

Note: 2008 & Before

$3.99

$

In Stock, Qty 20+

0

49

Cub Cadet YS-712-0130

Nut, Hex Insert Lock, 3/8-16 Gr8
(Superseded to 712-0130)

Note: 2009 & After

$3.99

$

In Stock, Qty 20+

0

50

Cub Cadet YS-712-0431

Nut, Hex Flange lock, 3/8-16 GrF
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

51

Cub Cadet YS-712-0641

Nut, Hex, M16 - 1.5
(Superseded to 912-0641)

$5.99

$

In Stock, Qty 20+

0

52

Cub Cadet YS-712-3046

Nut, Hex Jam Lock, 5/16-18
(Superseded to 712-3046)

Note: 2008 & Before

$6.49

$

Usually ships in 3-6 days

0

52

Cub Cadet 912-3017

Nut, Hex Jam Lock, 3/8-16 Gr5
(Superseded to 712-3017)

Note: 2009 & After

$3.99

$

In Stock, Qty 20+

0

53

Cub Cadet YS-712-3078

Nut, hex Flange Lock, 3/4-16 Gr8
(Superseded to 712-3078)

$9.49

$

In Stock, Qty 20+

0

54

Cub Cadet YS-712-3083

Nut, Hex Insert Lock, 1/2-13 GrB
(Superseded to 712-3083)

$4.49

$

In Stock, Qty 20+

0

55

Cub Cadet YS-714-0115

Pin, Cotter, 1/8 x 1.0
(Superseded to 914-0115)

$3.49

$

In Stock, Qty 20+

0

56

Cub Cadet YS-714-0126

Key, Hi Pro, 3/16 x 3/4
(Superseded to 914-0126)

$4.49

$

In Stock, Qty 20+

0

57

Cub Cadet YS-714-0145

Pin, Internal Cotter, 3/16 x 1.0
(Superseded to 914-0145)

$4.49

$

In Stock, Qty 20+

0

58

Cub Cadet YS-714-3002

Pin, Cotter
(Superseded to 714-3002)

$3.49

$

In Stock, Qty 7

0

59

Cub Cadet YS-717-04527

Shaft, Deck Drive

$

$

Not available

59

Cub Cadet YS-759-04219

Repair Kit, Yoke Lock
(Superseded to 759-04219)

$90.99

$

Usually ships in 3-6 days

0

60

Cub Cadet YS-717-04528

Gearbox

$

$

Not available

61

Cub Cadet YS-721-04041

Adapter Nozzle
(Superseded to 921-04041)

$21.99

$

In Stock, Qty 20+

0

62

Cub Cadet YS-726-0211

Nut, Speed, 5/16-18
(Superseded to 926-0211)

$3.99

$

In Stock, only 1 left!

0

63

Cub Cadet YS-726-3045

Button, Plug
(Superseded to 726-3045A)

$4.49

$

In Stock, Qty 11

0

64

Cub Cadet YS-731-3005

Roller, Front
(Superseded to 731-3005)

$26.99

$

In Stock, Qty 20+

0

65

Cub Cadet YS-731-3257

Deflector Chute
(Superseded to 731-3257)

$77.99

$

In Stock, only 2 left!

0

66

Cub Cadet YS-732-0850

Spring, Extension, 1.0 x 6.14
(Superseded to 932-0850)

$22.99

$

In Stock, Qty 8

0

67

Cub Cadet YS-732-0939

Spring, Torsion
(Superseded to 732-0939)

$11.99

$

Usually ships in 3-6 days

0

68

Cub Cadet YS-732-3091

Spring Compression, .57 x 2.09
(Superseded to 732-3091)

$

$

Not available

69

Cub Cadet YS-734-04314

Wheel, Caster

$

$

Not available

70

Cub Cadet YS-736-0192

Washer, Flat, .535 x .93 x .09
(Superseded to 936-0192)

$3.99

$

In Stock, Qty 18

0

71

Cub Cadet YS-736-0258

Washer, Flat, .385 x 1.0 x .135
(Superseded to 736-0258)

$4.49

$

In Stock, Qty 5

0

72

Cub Cadet YS-736-0322

Washer, Flat, .45 x 1.25 x .164 HT
(Superseded to 736-0322)

$8.49

$

In Stock, Qty 20+

0

73

Cub Cadet YS-736-0362

Washer, Flat, .33 x 1.25 x .06 HT
(Superseded to 736-0362)

$4.49

$

In Stock, Qty 20+

0

74

Cub Cadet YS-736-0760

Washer, Lock
(Superseded to 936-0760)

$3.99

$

In Stock, Qty 14

0

75

Cub Cadet YS-737-04003C

Nozzle, Deck wash
(Superseded to 737-04003D)

$21.99

$

In Stock, Qty 20+

0

76

Cub Cadet YS-737-3000

Fitting, Lube
(Superseded to 937-3000)

$4.49

$

In Stock, Qty 20+

0

77

Cub Cadet YS-738-3005A

Bolt, Shoulder, .68 x 1.59:7/16-14
(Superseded to 638-04012A)

$20.99

$

In Stock, Qty 20+

0

78

Cub Cadet YS-741-0339

Bearing, Flange, .75ID
(Superseded to 941-0339)

$11.99

$

In Stock, Qty 20+

0

79

Cub Cadet YS-759-04013

Blade High-Lift
(Superseded to 759-04013)

$51.99

$

In Stock, Qty 12

0

80

Cub Cadet YS-747-04945

Rod, Deck Release

$

$

Not available

81

Cub Cadet YS-747-3384

Rod, Chute Deflector
(Superseded to 747-3384)

$26.99

$

In Stock, Qty 6

0

82

Cub Cadet YS-748-3065A

Spacer, Spindle
(Superseded to 748-3065A)

$12.99

$

In Stock, Qty 20+

0

83

Cub Cadet YS-750-04852

Spacer, Shoulder, .385 x .785 x .54
(Superseded to 750-04852)

$6.49

$

In Stock, only 1 left!

0

84

Cub Cadet YS-750-04947

Spacer, .35 x 1.03

$

$

Not available

85

Cub Cadet YS-750-04970

Spacer, .51 x 1.16

$

$

Not available

86

Cub Cadet YS-750-04971

Spacer, .51 x 2.5

$

$

Not available

87

Cub Cadet YS-750-3222

Axle, Caster Wheel
(Superseded to 750-3222)

$25.99

$

In Stock, Qty 19

0

88

Cub Cadet YS-750-3235

Spacer, .505 x .5 x 3.31
(Superseded to 750-3235)

$11.99

$

Usually ships in 3-6 days

0

89

Cub Cadet YS-754-3080

V-Belt, B Section x 157
(Superseded to 954-3080)

$138.99

$

In Stock, Qty 10

0

90

Cub Cadet YS-756-04129

Pulley Idler 4.25
(Superseded to 753-08171)

$33.99

$

In Stock, Qty 20+

0

91

Cub Cadet YS-756-04321

Pulley, Drive

$

$

Not available

92

Cub Cadet YS-756-3003

Pulley, V Idler 4.0 Dia
(Superseded to 756-3003)

Note: Replaces 756-0487 and YS-756-0487 in this application

$55.99

$

In Stock, Qty 8

0

93

Cub Cadet YS-756-3096

Pulley, Spindle
(Superseded to 756-3096)

$38.99

$

In Stock, Qty 13

0

94

Cub Cadet YS-721-3018A

Seal, Oil
(Superseded to 921-3018A)

$7.99

$

In Stock, Qty 20+

0

95

Cub Cadet YS-741-04129

Bearing, Cone
(Superseded to 941-04298)

$15.99

$

In Stock, Qty 20+

0

96

Cub Cadet YS-741-04130

Cup, Bearing
(Superseded to 941-04299)

$6.49

$

In Stock, Qty 20+

0

97

Cub Cadet YS-750-04409

Spacer, Bearing
(Superseded to 750-04409)

$19.99

$

In Stock, only 4 left!

0
