MM 60 RSe (59A40007727) - Cub Cadet Yanmar Tractor Mower Deck Subframe Parts Diagram

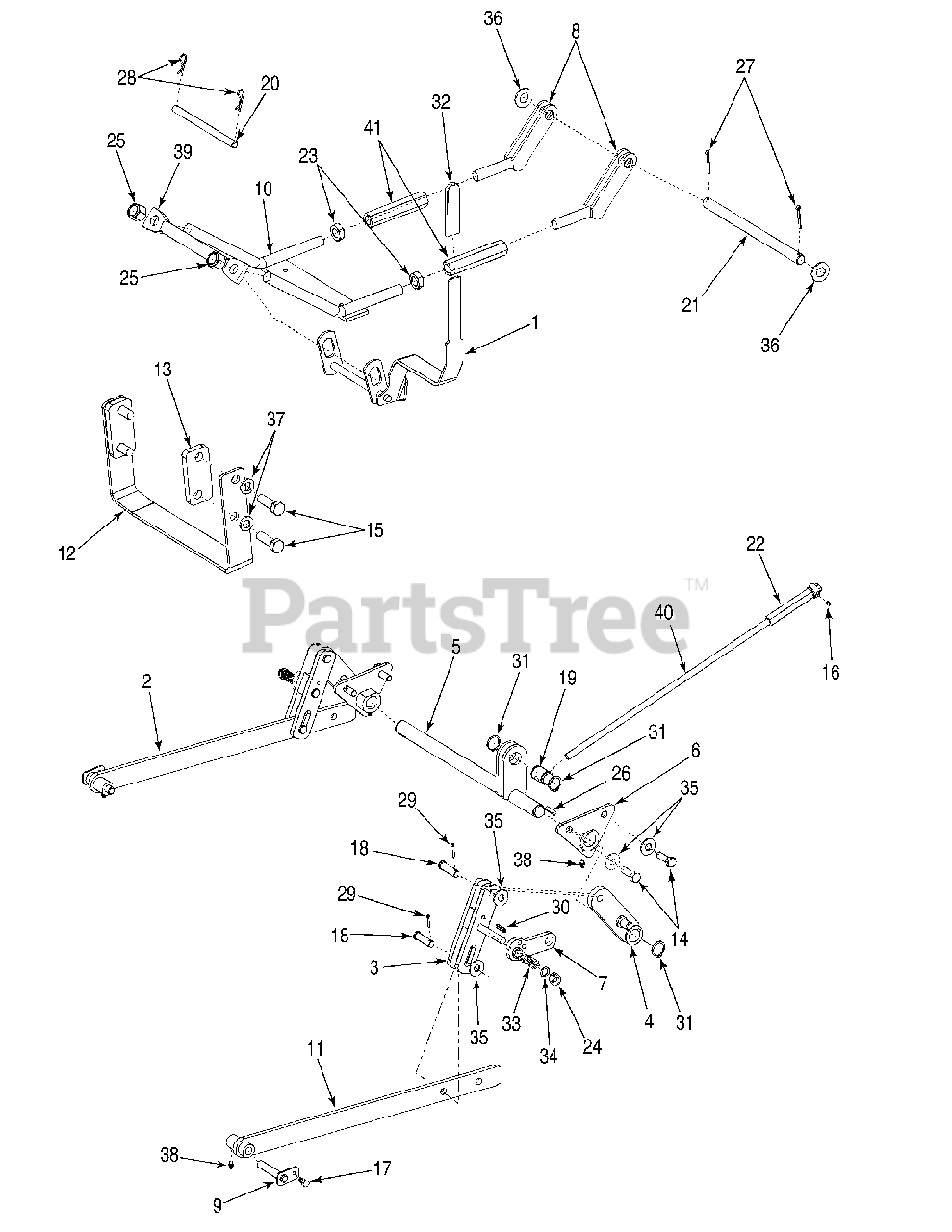

Tractor Mower Deck

Subframe Parts Diagram

  • Title

1

Cub Cadet YS-603-04438

Shaft, Tension

$

$

Not available

2

Cub Cadet YS-603-04471

Arm, Lift RH

$

$

Not available

3

Cub Cadet YS-603-04472

Link, Lift

$

$

Not available

4

Cub Cadet YS-603-04473

Arm, Rock Shaft Lift

$

$

Not available

5

Cub Cadet YS-603-04474

Shaft, Rock

$

$

Not available

6

Cub Cadet YS-603-04475

Bracket, Rock Shaft Mounting

$

$

Not available

7

Cub Cadet YS-603-04477

Latch, Lift Hanger

$

$

Not available

8

Cub Cadet YS-603-04493

Rod, Lower Front Hanger

$

$

Not available

9

Cub Cadet YS-603-04501

Pin, Deck Lift

$

$

Not available

10

Cub Cadet YS-603-04502

Hanger, Top Front

$

$

Not available

11

Cub Cadet YS-603-04529

Arm, Lift LH

$

$

Not available

12

Cub Cadet YS-703-06415

Bracket, Front Upstop

$

$

Not available

13

Cub Cadet YS-703-06416

Bracket, Front Upstop Spacer

$

$

Not available

14

Cub Cadet YS-710-04732

Screw, Hx Cap, M12-1.75 x 35 Gr8
(Superseded to 710-04732)

$

$

Not available

15

Cub Cadet YS-710-04741

Screw, Hx Cap, M16-2.0 x 50 Gr8
(Superseded to 710-04741)

$

$

Not available

16

Cub Cadet YS-710-1842

Screw, Socket Set, 1/4-20 x .38
(Superseded to 710-1842A)

$5.49

$

In Stock, Qty 8

0

17

Cub Cadet YS-710-3175

Screw, Hex Cap, M8-1.25 x 14 Gr8
(Superseded to 710-3175)

$6.49

$

Usually ships in 3-6 days

0

18

Cub Cadet YS-711-04997

Pin, Clevis

$

$

Not available

19

Cub Cadet YS-711-04862

Pin, Pivot Ferrule

$

$

Not available

20

Cub Cadet YS-711-04879

Pin, Front Hanger

$

$

Not available

21

Cub Cadet YS-711-04880

Pin, Front Hanger

$

$

Not available

22

Cub Cadet YS-711-04905

Sleeve, Lift Rod (Ajustment)

$

$

Not available

23

Cub Cadet YS-712-0301

Nut, Hex Jam, 3/4-10 Gr5
(Superseded to 712-0301)

$7.49

$

In Stock, only 1 left!

0

24

Cub Cadet YS-712-3022

Nut, Hex Center Lock 1/2-13 GrB
(Superseded to 712-3022)

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet YS-712-3107

Nut, Hex Lock, 3/4-10 GrC
(Superseded to 712-3107)

$10.99

$

In Stock, only 1 left!

0

26

Cub Cadet YS-714-0128

Key, Square, 1/4 x 1.0
(Superseded to 714-0128)

$4.49

$

In Stock, Qty 6

0

27

Cub Cadet YS-714-0142

Pin, Cotter, 3/16 x 1.5 Lg
(Superseded to 714-0142)

$6.49

$

In Stock, only 1 left!

0

28

Cub Cadet YS-714-0145

Pin, Internal Cotter
(Superseded to 914-0145)

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet YS-714-0474

Pin, Cotter, .125 x .75
(Superseded to 914-0474)

$

$

Not available

30

Cub Cadet YS-715-04034

Pin, Roll, .25 x 1.0
(Superseded to 715-04034)

$6.49

$

In Stock, Qty 7

0

31

Cub Cadet YS-716-0102

Ring, Snap, 1.0 Dia Shaft
(Superseded to 916-0102)

$4.99

$

In Stock, Qty 20+

0

32

Cub Cadet YS-720-0142

Grip, Black
(Superseded to 720-0142)

$3.49

$

Usually ships in 3-6 days

0

33

Cub Cadet YS-732-3091

Spring, Compression, .57 x 2.09
(Superseded to 732-3091)

$

$

Not available

34

Cub Cadet YS-736-0108

Washer, Flat, .51 x .75 x .033
(Superseded to 936-0108)

$6.49

$

In Stock, Qty 7

0

35

Cub Cadet YS-736-0179

Washer, Flat, .5 x 1.25 x .10
(Superseded to 936-0179)

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet YS-736-0315

Washer, Flat, .76 x 1.5 x .12
(Superseded to 736-0315)

$6.49

$

In Stock, Qty 7

0

37

Cub Cadet YS-736-0366

Washer, Flat, .64 x 1.12 x .125
(Superseded to 736-0366)

$4.49

$

In Stock, Qty 14

0

38

Cub Cadet YS-737-0146

Fitting, Lube
(Superseded to 937-0146)

$5.49

$

In Stock, only 2 left!

0

39

Cub Cadet YS-747-04725

Rod, Front Hanger Pivot

$

$

Not available

40

Cub Cadet YS-747-04856

Rod, Deck Height Adjust

$

$

Not available

41

Cub Cadet YS-747-3457

Rod, Deck Hanger Adjust
(Superseded to 747-3457)

$116.99

$

Usually ships in 3-6 days

0
