MM46 K1 A - Honda 46" Mid-Mount Mower for Honda Multi-Purpose Tractor, Made in Japan BLADE SHAFT Parts Diagram

46" Mid-Mount Mower for Honda Multi-Purpose Tractor, Made in Japan

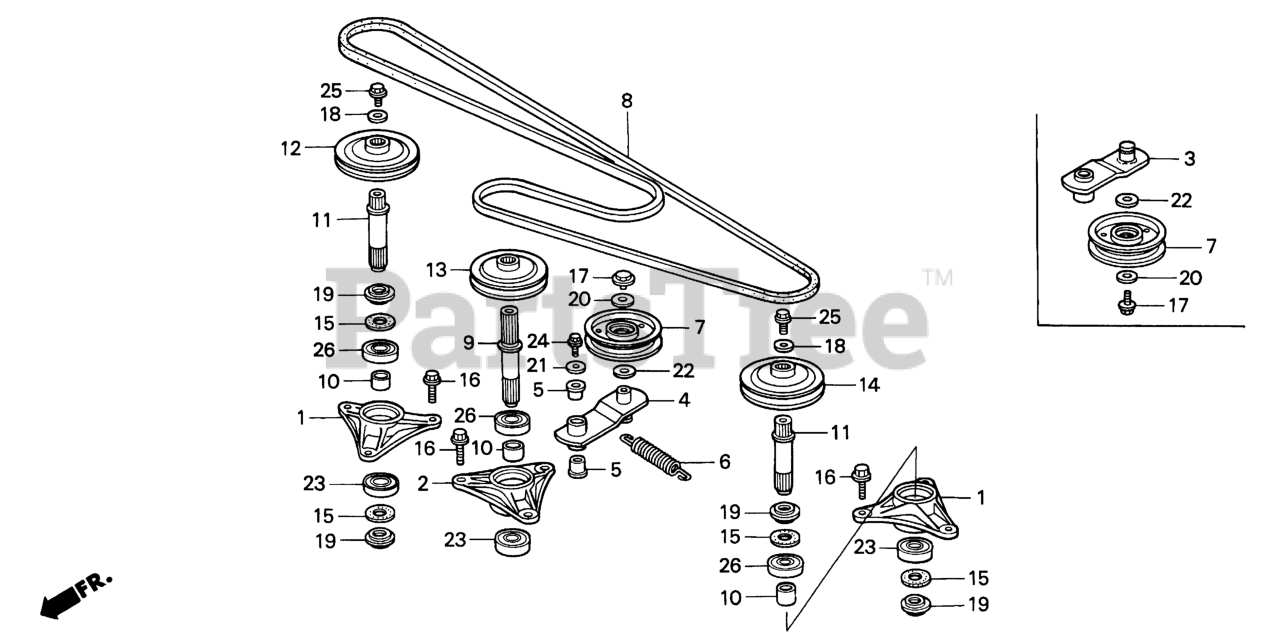

BLADE SHAFT Parts Diagram

  • Title

1

Honda 72711-763-A00

HOUSING, BEARING

$170.99

$

Usually ships in 3-6 days

0

2

Honda 72711-758-N00

HOUSING, BEARING

$

$

Not available

3

Honda 76120-752-J00

ARM, TENSIONER (DECK)

$

$

Not available

5

Honda 76121-752-830

BUSH, TENSIONER ARM (15X19X14)

$

$

Not available

6

Honda 76122-752-J00

SPRING, TENSIONER ARM

$

$

Not available

7

Honda 76130-750-000

ROLLER, TENSIONER

$

$

Not available

8

Honda 76181-752-831

V-BELT, BLADE (95)

$

$

Not available

9

Honda 76212-752-830

SHAFT C, BLADE

$

$

Not available

10

Honda 76213-751-700

COLLAR, BLADE SHAFT

$14.99

$

In Stock, only 2 left!

0

11

Honda 76212-758-L00

SHAFT, BLADE

$

$

Not available

12

Honda 76220-752-830

PULLEY, R. DECK

$

$

Not available

13

Honda 76220-758-N00

PULLEY, BLADE (120MM)

$

$

Not available

14

Honda 76240-752-830

PULLEY, DECK

$

$

Not available

15

Honda 76281-752-830

DUST SEAL, GAUGE ROLLER

$

$

Not available

16

Honda 90002-752-830

BOLT, FLANGE (10X28)

$

$

Not available

17

Honda 90110-VA4-000

SEE PART DETAILS - PRI; BOLT, WHEEL

$4.99

$

In Stock, Qty 20+

0

18

Honda 90405-758-L00

SEE PART DETAILS - PRI; WASHER (10.5X27X4)

$12.99

$

Usually ships in 3-6 days

0

19

Honda 90407-752-830

COLLAR, GAUGE ROLLER

$

$

Not available

20

Honda 90430-657-000

WASHER (8MM) (Honda Code 0612077).

$10.99

$

In Stock, only 2 left!

0

21

Honda 90473-896-000

WASHER (6MM)

$2.99

$

In Stock, only 1 left!

0

22

Honda 90532-750-000

WASHER, PLAIN (17.2MM)

$5.99

$

Usually ships in 3-6 days

0

23

Honda 91055-752-831

BEARING, RADIAL BALL

$25.99

$

In Stock, only 2 left!

0

24

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use from Engine SN 2086984.

$2.49

$

In Stock, Qty 20+

0

25

Honda 95900-10016-08

BOLT, FLANGE (10X16) (NA USE ALT:95700-10016-08)

$

$

Currently unavailable

26

Honda 96150-62040-10

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6204UU)

$30.99

$

In Stock, Qty 6

0
