MM52 A - Honda 52" Mid-Mount Mower for Honda Multi-Purpose Tractor, Made in Japan MM52 BLADE SHAFT Parts Diagram

52" Mid-Mount Mower for Honda Multi-Purpose Tractor, Made in Japan

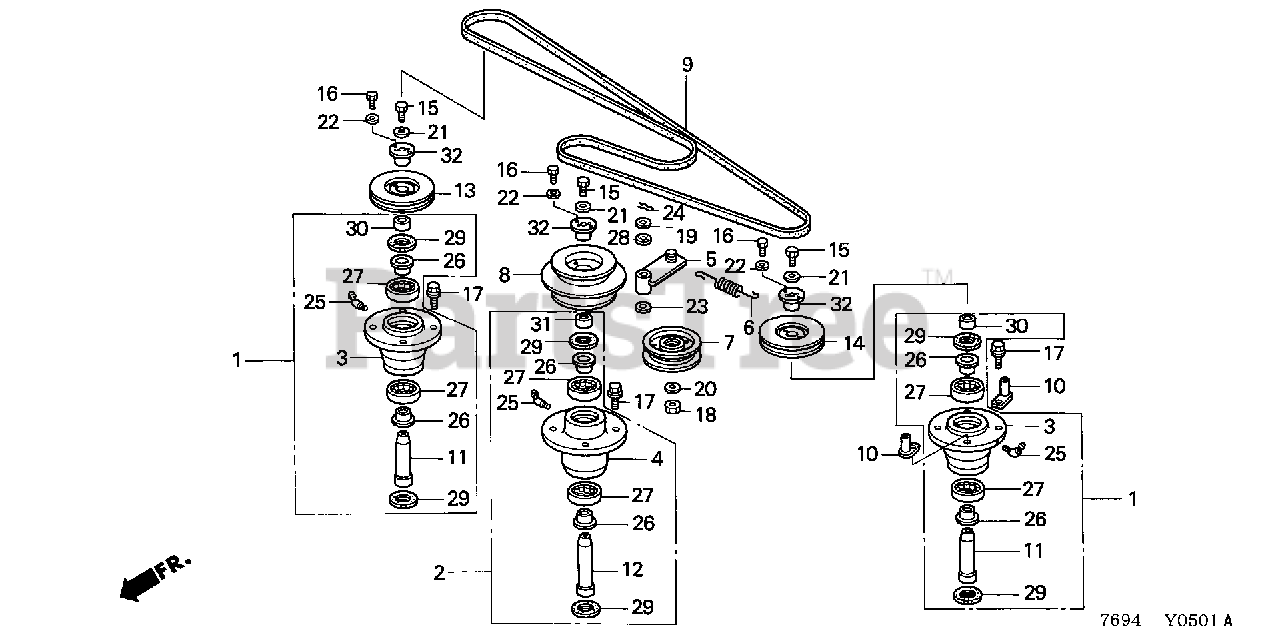

MM52 BLADE SHAFT Parts Diagram

  • Title

1

Honda 72701-769-M01

SPINDLE ASSY. (OUTER)

$

$

Currently unavailable

2

Honda 72702-769-M01

SPINDLE ASSY., CENTER

$

$

Currently unavailable

3

Honda 72711-769-M01

HOUSING, BEARING A

$

$

Currently unavailable

4

Honda 72712-769-M01

HOUSING, BEARING B

$165.99

$

Usually ships in 3-6 days

0

5

Honda 76120-769-M01

ARM, TENSION (DECK)

$

$

Currently unavailable

6

Honda 76122-769-M01

SPRING, TENSIONER ARM

$

$

Currently unavailable

7

Honda 76130-769-M01

ROLLER, TENSIONER

$248.99

$

Usually ships in 3-6 days

0

8

Honda 76140-769-M01

PULLEY, DRIVEN

$318.99

$

Usually ships in 3-6 days

0

9

Honda 76181-769-M01

V-BELT, BLADE

$

$

Not available

10

Honda 76183-769-M01

STOPPER, BELT

$33.99

$

Usually ships in 3-6 days

0

11

Honda 76212-769-M01

SHAFT, BLADE (A)

$

$

Not available

12

Honda 76214-769-M01

SHAFT, BLADE (B)

$

$

Not available

13

Honda 76220-769-M01

PULLEY, R. DECK

$

$

Not available

14

Honda 76221-769-M01

PULLEY, L. DECK

$

$

Not available

15

Honda 90106-769-M01

BOLT (1/4 NCX1/2 HHCS)

$2.49

$

In Stock, Qty 10

0

16

Honda 90104-769-M01

BOLT (1/4 NCX1 HHCS)

$1.99

$

Usually ships in 3-6 days

0

17

Honda 90105-769-M01

BOLT (1/2NF HHCS)

$3.99

$

Usually ships in 3-6 days

0

18

Honda 90304-769-M01

NUT (5/8 NC JAM)

$0.99

$

In Stock, Qty 10

0

19

Honda 90502-769-M01

WASHER (3/4X1-1/2X18 GA)

$2.49

$

Usually ships in 3-6 days

0

20

Honda 90504-769-M01

WASHER (.63X.94X10 GAUGE)

$

$

Not available

21

Honda 90508-769-M01

WASHER, FLAT (1/4X7/8X7GA)

$8.99

$

In Stock, only 1 left!

0

22

Honda 90509-769-M01

WASHER, LOCK (1/4)

$

$

Not available

23

Honda 90515-769-M01

WASHER (3/4X1-9/16X10GA)

$

$

Not available

24

Honda 90756-769-M01

PIN, LOCK (19MM)

$0.99

$

Usually ships in 3-6 days

0

25

Honda 90951-769-M01

NIPPLE, GREASE

$8.99

$

Usually ships in 3-6 days

0

26

Honda 91052-769-M01

CONE, BEARING

$48.99

$

Usually ships in 3-6 days

0

27

Honda 91053-769-M01

CUP, BEARING

$26.99

$

Usually ships in 3-6 days

0

28

Honda 91251-769-M01

DUST SEAL (5/8X1X1/4)

$

$

Not available

29

Honda 91252-769-M01

DUST SEAL

$14.99

$

Usually ships in 3-6 days

0

30

Honda 91553-769-M01

COLLAR, BEARING A HOUSING

$

$

Not available

31

Honda 91554-769-M01

COLLAR, BEARING B HOUSING

$12.99

$

Usually ships in 3-6 days

0

32

Honda 91556-769-M01

BUSH, PULLEY SETTING

$121.99

$

Usually ships in 3-6 days

0
