MM60 A (MM2) - Honda 60" Mid-Mount Mower, Made in Japan (SN: MM2-1000001 - MM2-9999999) BLADE PULLEY Parts Diagram

60" Mid-Mount Mower, Made in Japan

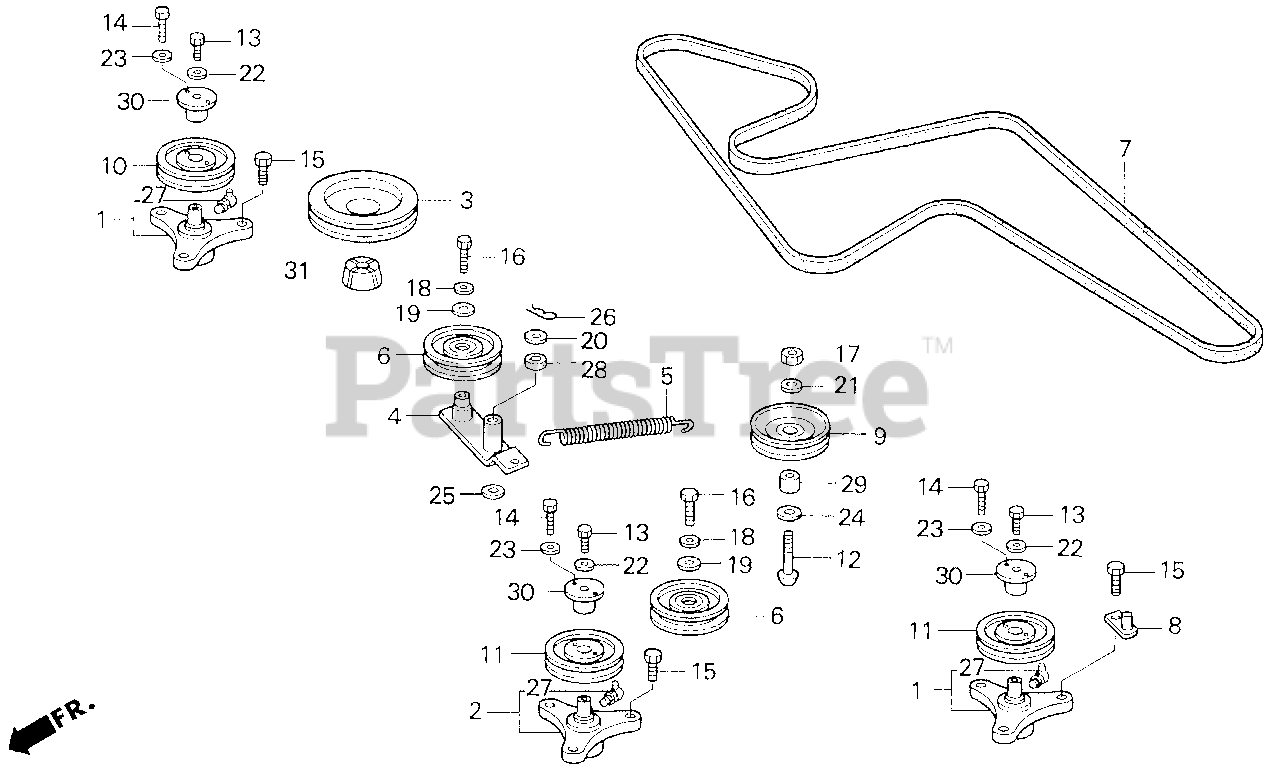

BLADE PULLEY Parts Diagram

  • Title

1

Honda 72701-764-L31

HOUSING ASSY., BEARING

$630.99

$

Usually ships in 3-6 days

0

2

Honda 72702-764-L31

SPINDLE ASSY., CENTER

$610.99

$

Usually ships in 3-6 days

0

3

Honda 75171-764-L31

PULLEY, DRIVE

$285.99

$

Usually ships in 3-6 days

0

4

Honda 76120-764-L31

ARM, TENSION

$

$

Not available

5

Honda 76121-764-L31

SEE PART DETAILS - SUP; SPRING ASSY.

$

$

Currently unavailable

5

Honda 76122-764-L31

SEE PART DETAILS - SUP; SPRING, TENSIONER ARM

$

$

Currently unavailable

5

Honda 76122-764-L32AH

SEE PART DETAILS - PRI; SPRING, TENSIONER ARM

$

$

Not available

6

Honda 76130-769-M01

ROLLER, TENSIONER

$258.99

$

Usually ships in 3-6 days

0

7

Honda 76181-764-L31

V-BELT, BLADE

$

$

Not available

8

Honda 76183-769-M01

STOPPER, BELT

$34.99

$

Usually ships in 3-6 days

0

9

Honda 76195-764-L31

SEE PART DETAILS - PRI; PULLEY, IDLER

$

$

Not available

10

Honda 76220-764-L31

PULLEY, R. BLADE

$178.99

$

Usually ships in 3-6 days

0

11

Honda 76221-764-L31

PULLEY, L. BLADE

$125.99

$

Usually ships in 3-6 days

0

12

Honda 90101-764-L31

BOLT (5/8X2-1/2)

$2.49

$

Usually ships in 3-6 days

0

13

Honda 90106-769-M01

BOLT (1/4 NCX1/2 HHCS)

$2.49

$

In Stock, Qty 10

0

14

Honda 90104-769-M01

BOLT (1/4 NCX1 HHCS)

$1.99

$

Usually ships in 3-6 days

0

15

Honda 90105-769-M01

BOLT (1/2NF HHCS)

$4.49

$

Usually ships in 3-6 days

0

16

Honda 90110-764-L31

BOLT, TENSIONER

$0.99

$

Usually ships in 3-6 days

0

17

Honda 90309-764-L31

NUT (5/8 NC HEX. LOCK)

$1.99

$

Usually ships in 3-6 days

0

18

Honda 90501-764-L31

WASHER (3/8 STD LOCK)

$3.99

$

Usually ships in 3-6 days

0

19

Honda 90502-764-L31

WASHER, TENSIONER ARM

$1.49

$

Usually ships in 3-6 days

0

20

Honda 90504-764-L31

WASHER (5/8X1-1/8X0.095)

$15.99

$

Usually ships in 3-6 days

0

21

Honda 90506-769-M01

WASHER, FLAT (5/8)

$3.99

$

In Stock, Qty 5

0

22

Honda 90508-769-M01

WASHER, FLAT (1/4X7/8X7GA)

$9.49

$

In Stock, only 1 left!

0

23

Honda 90509-769-M01

WASHER, LOCK (1/4)

$

$

Not available

24

Honda 90511-769-M01

WASHER, SAE FLAT (7/8)

$

$

Not available

25

Honda 90515-764-L31

WASHER (5/8X1-1/16X10GA)

$0.99

$

Usually ships in 3-6 days

0

26

Honda 90756-769-M01

PIN, LOCK (19MM)

$0.99

$

Usually ships in 3-6 days

0

27

Honda 90951-764-M01

NIPPLE, GREASE (NOT AVAILABLE)

$

$

Currently unavailable

28

Honda 91251-769-M01

DUST SEAL (5/8X1X1/4)

$

$

Not available

29

Honda 91551-764-L31

COLLAR (5/8X1X43/64)

$5.49

$

Usually ships in 3-6 days

0

30

Honda 91556-764-L31

BUSH, PULLEY SETTING

$

$

Not available

31

Honda 91557-764-L31

BUSH ASSY., TAPER LOCK (3/4)

$94.99

$

Usually ships in 3-6 days

0
