MMZ-1848 (53AB555M195) - MTD Pro Zero-Turn Mower B&S Electric Starter - Roll Pin Style Parts Diagram

Pro Zero-Turn Mower

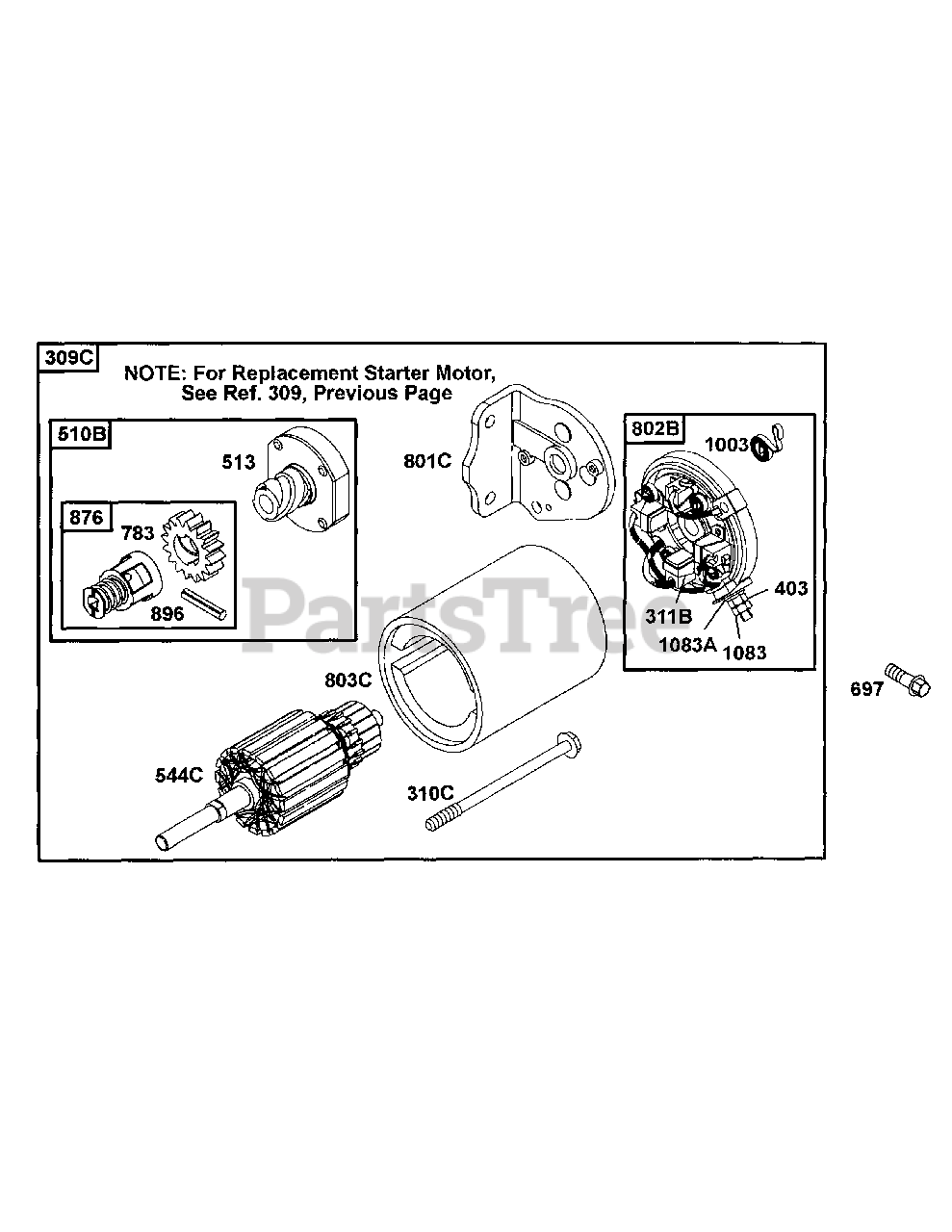

B&S Electric Starter - Roll Pin Style Parts Diagram

  • Title

309C

MTD n/a

Motor-Starter

$

$

Currently unavailable

310C

MTD BS-692329

Screw (Starter Motor)

Note: NLA

$3.49

$

Usually ships in 3-6 days

0

311B

MTD BS-490311

Brush Set (For 4 9/16" Housing Length)

Note: NLA

$35.99

$

Usually ships in 2-12 days

0

403

MTD BS-690288

Washer (End Cap)

Note: NLA

$3.99

$

Usually ships in 2-12 days

0

510B

MTD BS-696540

Drive-Starter

$29.99

$

In Stock, only 1 left!

0

513

MTD BS-692024

Clutch-Drive

$21.99

$

Usually ships in 2-12 days

0

544C

MTD BS-490309

Armature-Starter (For 4 3/8" Housing Length)

Note: NLA

$74.99

$

Usually ships in 2-12 days

0

697

MTD BS-805247

Screw (Drive Cap)

$

$

Not available

783

MTD BS-695708

Gear-Pinion

$6.99

$

In Stock, Qty 20+

0

801C

MTD BS-394856

Cap-Drive

Note: NLA

$

$

Not available

802B

MTD BS-494988

Cap-End (For 4 3/8" Housing Length)

Note: NLA

$57.99

$

Usually ships in 2-12 days

0

802B

MTD BS-498233

Cap-End (For 4 9/16" Housing Length)

Note: NLA

$76.99

$

Usually ships in 2-12 days

0

803C

MTD BS-398892

Housing-Starter (For 4 9/16" Housing Length)

Note: NLA

$74.99

$

Usually ships in 2-12 days

0

803C

MTD BS-494205

Housing-Starter (For 4 3/8" Housing Length)

Note: NLA

$73.99

$

In Stock, only 1 left!

0

876

MTD BS-696540

Kit-Pinion Spring

$29.99

$

In Stock, only 1 left!

0

896

MTD BS-691641

Pin-Drive Retainer

$4.99

$

In Stock, only 1 left!

0

1003

MTD BS-490316

Spring-Brush

Note: NLA

$5.49

$

Usually ships in 2-12 days

0

1083

MTD 712-3006

Nut (End Cap)

$4.49

$

In Stock, Qty 20+

0

1083A

MTD BS-690958

Nut (End Cap)

$3.49

$

In Stock, Qty 7

0
