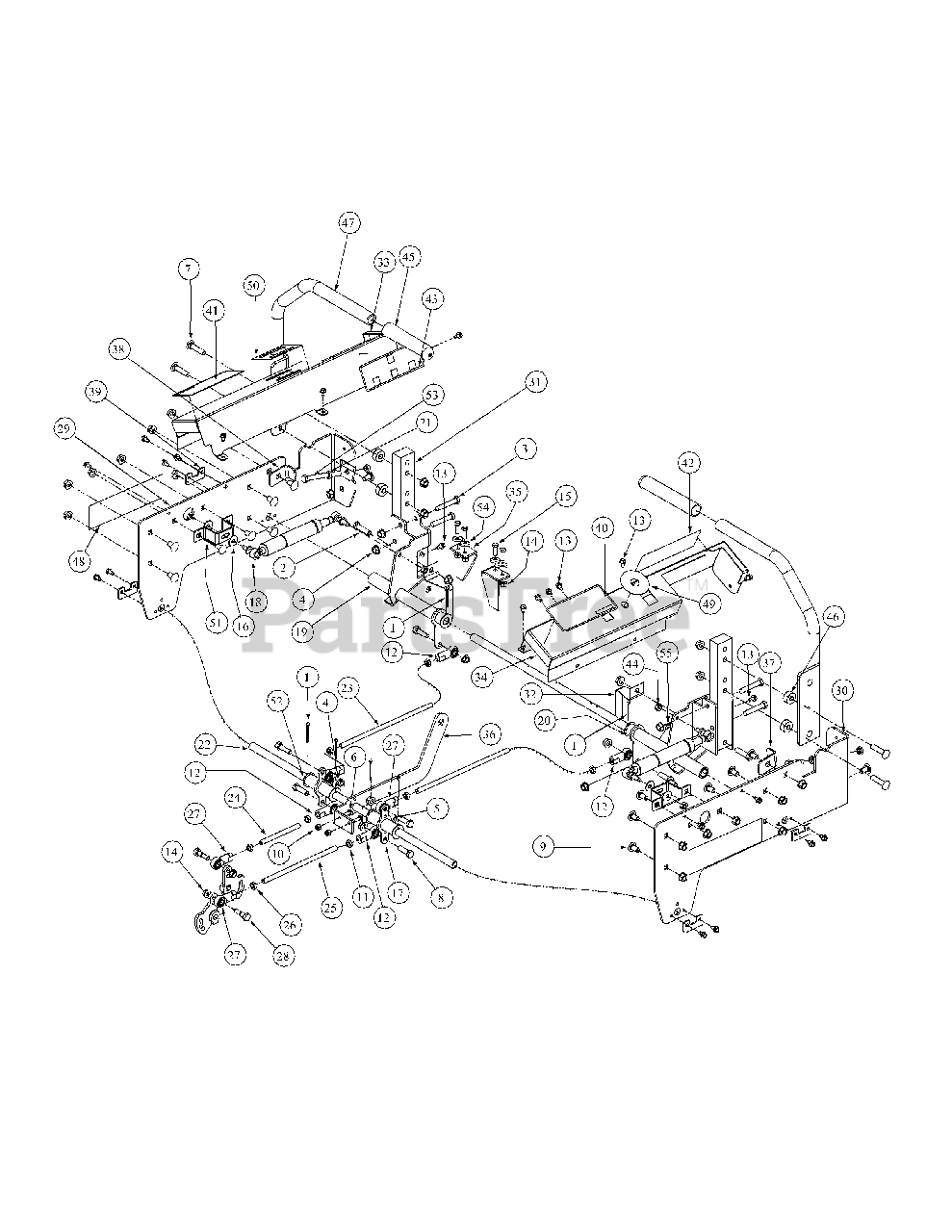

MMZ-1848 (53AB555M195) - MTD Pro Zero-Turn Mower Control Assembly Parts Diagram

Pro Zero-Turn Mower

Control Assembly Parts Diagram

  • Title

1

MTD 00003107

Cotter Pin .125 Dia x 1.0
(Superseded to 914-0115)

$3.49

$

In Stock, Qty 20+

0

2

MTD 00010980

Hex Cap Screw, 3/8-16, 1.50

$5.99

$

Usually ships in 3-6 days

0

3

MTD 00011861

Hex Cap Screw, 3/8-16, 2.5
(Superseded to 710-0859)

$6.49

$

In Stock, Qty 20+

0

4

MTD 00022560

Hex Nut, 3/8-16, Lock Flange
(Superseded to 712-05007)

$3.99

$

In Stock, Qty 20+

0

5

MTD 737-04345

Grease Fitting, 1/4-28 x 3/16

$4.49

$

In Stock, Qty 18

0

6

MTD 710-0751

Hex Cap Screw, 1/4-20, .620

$3.99

$

In Stock, Qty 20+

0

7

MTD 00012172

Hex Carriage Screw, 3/8-16 x 2
(Superseded to 710-3096)

$7.49

$

In Stock, Qty 20+

0

8

MTD 710-3005

Hex Cap Screw, 3/8-16, 1.25

$3.99

$

In Stock, Qty 20+

0

9

MTD 710-3178

Carriage Bolt, 3/8-16 x .75

$3.99

$

In Stock, Qty 20+

0

10

MTD 712-0324

Lock Hex Nut, 1/4-20

$3.49

$

In Stock, Qty 20+

0

11

MTD 912-3001

Hex Jam Nut, 3/8-24

$6.49

$

In Stock, Qty 20+

0

12

MTD 723-04080

B/Joint, 3/8-24, Right Hand Female

$38.99

$

In Stock, only 2 left!

0

13

MTD 710-0599

Screw, TT, 1/4-20, 0.5, Hex Index Washer

$3.99

$

In Stock, Qty 20+

0

14

MTD 712-3004A

Nut, Lock, Hex Flange, 5/16-18

$3.49

$

In Stock, Qty 20+

0

15

MTD 00013406

Hex, Cap Screw, 5/16-18 x 3/4
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

16

MTD 936-0425

Belle Washer, .325 x .930 x .045
(Superseded to 736-0425)

$

$

Not available

17

MTD 01001696

Belle Crank Assembly,

$

$

Not available

17

MTD 01000308

Bushing
(Superseded to 741-04555)

$15.99

$

In Stock, Qty 11

0

18

MTD 01001727

Cylinder Return to Neutral

$247.99

$

In Stock, Qty 9

0

19

MTD 01001946

Hub Assy, Control LH Bearing

Note: NLA

$

$

Not available

19

MTD 01004265

Bearings

$19.99

$

Usually ships in 3-6 days

0

20

MTD 01001947

Hub Assy, Control RH Bearing

$

$

Not available

20

MTD 01004265

Bearings

$19.99

$

Usually ships in 3-6 days

0

21

MTD 01002511

Nut, 3/8-16, Jam

$5.99

$

Usually ships in 3-6 days

0

22

MTD 01002980

Shaft Mounting Belle Crank

$

$

Not available

23

MTD 01002982

Rod Connector 3/8 OD x 10.125

$

$

Not available

24

MTD 01002983

Rod Connector, 3/8 OD x 4.28 LG LH

$

$

Not available

25

MTD 01002984

Rod Connector, 3/8 OD x 8.06 LG RH

$

$

Not available

26

MTD 01002986

Nut, 3/8-24, Jam, LH Third

$6.49

$

Usually ships in 3-6 days

0

27

MTD 01002987

B/Joint, 3/8-24, LH Female

$

$

Not available

28

MTD 01002988

Screw, Shoulder Control Rod
(Superseded to 738-05006)

$8.99

$

Usually ships in 3-6 days

0

29

MTD 01005769

Side Panel, Control, Left

$

$

Not available

30

MTD 01003005-0637

Side Panel, Control, Right

$

$

Not available

31

MTD 01003009

Mounting Handle

$

$

Not available

32

MTD 01003011

Lever, Safety Switch

$34.99

$

Usually ships in 3-6 days

0

33

MTD 01001639

Control Panel, LH

Note: NLA

$

$

Not available

34

MTD 01001640

Control Panel, RH

$

$

Not available

35

MTD 01003114-0637

Switch Mounting Bracket, Lapbar

$29.99

$

Usually ships in 3-6 days

0

36

MTD 01001968

Link Mounting Control Shaft, Bracket

$

$

Not available

37

MTD 01005771

Stop, RH

$

$

Not available

38

MTD 01005772

Stop, LH

$

$

Not available

39

MTD 01003591

Holder Shaft, Park Brake

$34.99

$

In Stock, only 1 left!

0

40

MTD 01003449

Decal, Right Hand Console

$32.99

$

Usually ships in 3-6 days

0

41

MTD 01003450

Decal, Left Hand Console

$20.99

$

Usually ships in 3-6 days

0

42

MTD 01003451

Decal Right Hand Control

$

$

Not available

43

MTD 01003452

Decal, Left Hand Control

$28.99

$

Usually ships in 3-6 days

0

44

MTD 01003561

Nut, Hex, Center Lock, M8 x 1.2

$3.99

$

Usually ships in 3-6 days

0

45

MTD 00022223

Grip, 1

$

$

Not available

46

MTD 750-3119

Spacer, .406 ID x 1.00 OD x .38

$10.99

$

In Stock, Qty 20+

0

47

MTD 01006519

Lapbar Handle, One Position

$

$

Not available

48

MTD 01003856

Side Label, MTD Pro

$

$

Not available

48

MTD 01006688

Label, MMZ 1848

Note: NLA

$

$

Not available

48

MTD 01006688

Label, MMZ 1848

Note: NLA

$

$

Not available

49

MTD 01003857

Label, Ignition, 2.5 Diameter

$

$

Not available

50

MTD 01003858

Label, Control, Throttle and Choke

$

$

Not available

51

MTD 01004000-0637

Bracket Assembly, Mount Dampener

$

$

Not available

52

MTD 01004003

Flat Washer, 5/8 Nylon
(Superseded to 736-04602)

$3.99

$

In Stock, Qty 20+

0

53

MTD 01004127

HHCS, 3/8-16, 3.00
(Superseded to 710-0521)

$4.99

$

In Stock, Qty 15

0

54

MTD 00009812

Flat Washer, 5/16

$

$

Not available

55

MTD 737-3004

Grease Fitting, 90°, 1/4-28

$10.99

$

In Stock, Qty 5

0
