MMZ-1848 (53AB555M195) - MTD Pro Zero-Turn Mower Front Caster Assembly Parts Diagram

Pro Zero-Turn Mower

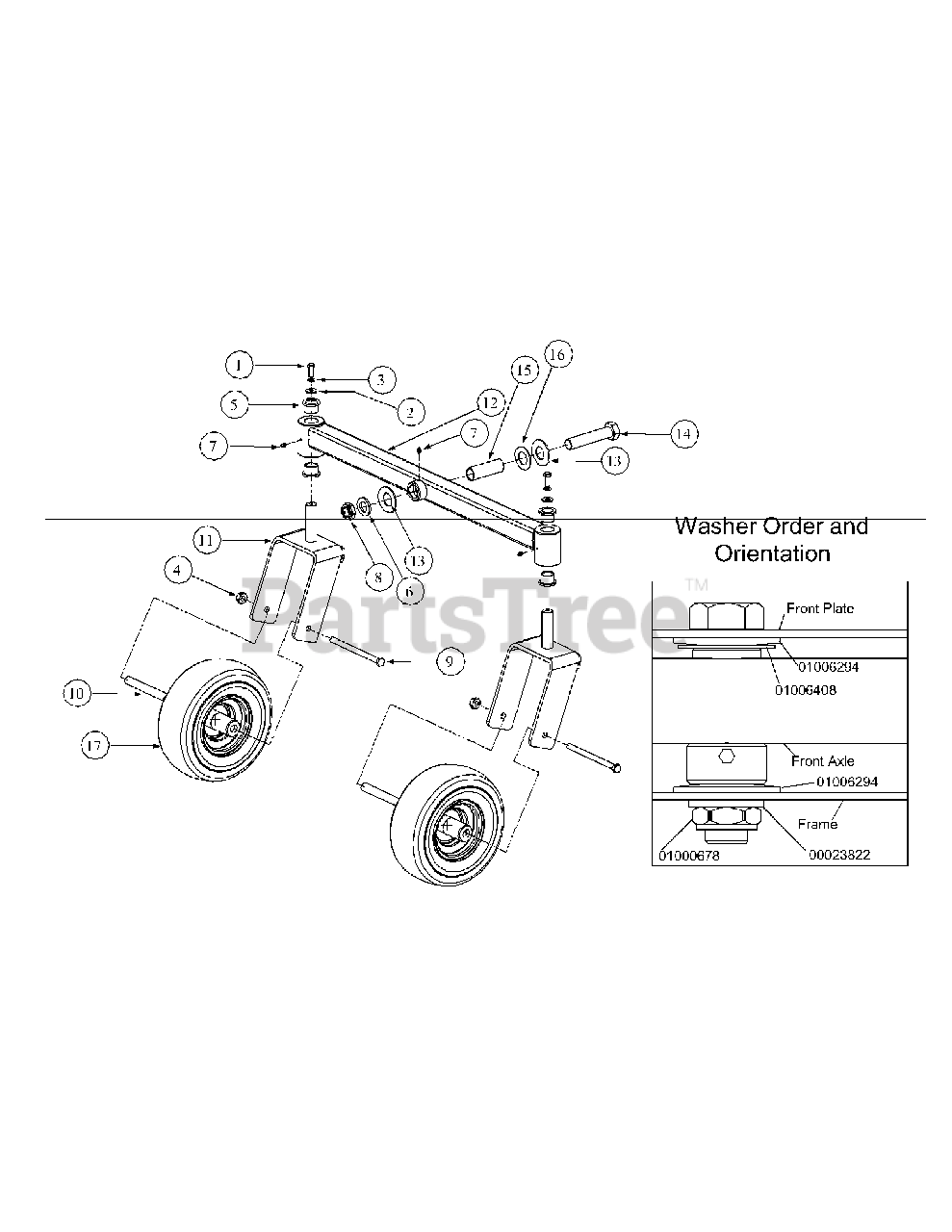

Front Caster Assembly Parts Diagram

  • Title

1

MTD 00006144

Hex Cap Screw, 3/8-16, 1

$6.49

$

Usually ships in 3-6 days

0

2

MTD 936-0133

Flat Washer, .411 x 1.25 x 1.00
(Superseded to 736-0133)

$

$

Not available

3

MTD 936-0169

Lock Washer, 3/8
(Superseded to 736-0169)

$3.49

$

In Stock, Qty 20+

0

4

MTD 00023287

Center Lock Nut, 1/2-20
(Superseded to 712-0239)

$

$

Not available

5

MTD 00023793

Flange Bearing, 1.013

$14.99

$

In Stock, Qty 11

0

6

MTD 00023822

Special Washer
(Superseded to 936-0274)

$8.49

$

In Stock, Qty 19

0

7

MTD 737-04345

Grease Fitting, 1/4-28 x 3/16

$4.49

$

In Stock, Qty 18

0

8

MTD 01000678

Jam Lock Nut, 1.0-14
(Superseded to 712-05008)

$13.99

$

In Stock, Qty 5

0

9

MTD 01002611

Hex Cap Screw, 1/2-2, 7.00

$

$

Not available

10

MTD 02002153

Spacer, .51 ID x .75 OD x 5.83 Lg

$13.99

$

Usually ships in 3-6 days

0

11

MTD 01006209

Caster Wheel Bracket Assembly

$

$

Not available

12

MTD 01006210

Narrow Front Axle Assembly

Note: NLA

$

$

Not available

13

MTD 01006294

Belle Washer, 1.25 ID x 2.500 OD x .1
(Superseded to 736-04604)

$7.99

$

In Stock, Qty 13

0

14

MTD 01006309

Hex Cap Screw, 1-14 x 5.0

$28.99

$

In Stock, only 4 left!

0

15

MTD 01006310

Spacer, 1.005 ID x 1.25 OD x 3.6

$77.99

$

In Stock, only 1 left!

0

16

MTD 01006408

Flat Washer, 1.25 ID x 2.25 OD x .0

$11.99

$

In Stock, only 1 left!

0

17

MTD 02001562

Wheel Assembly, 11 x 4-5.00

$188.99

$

In Stock, only 1 left!

0
