MMZ-2554 - MTD Pro Zero-Turn Mower Control Assembly Parts Diagram

Pro Zero-Turn Mower

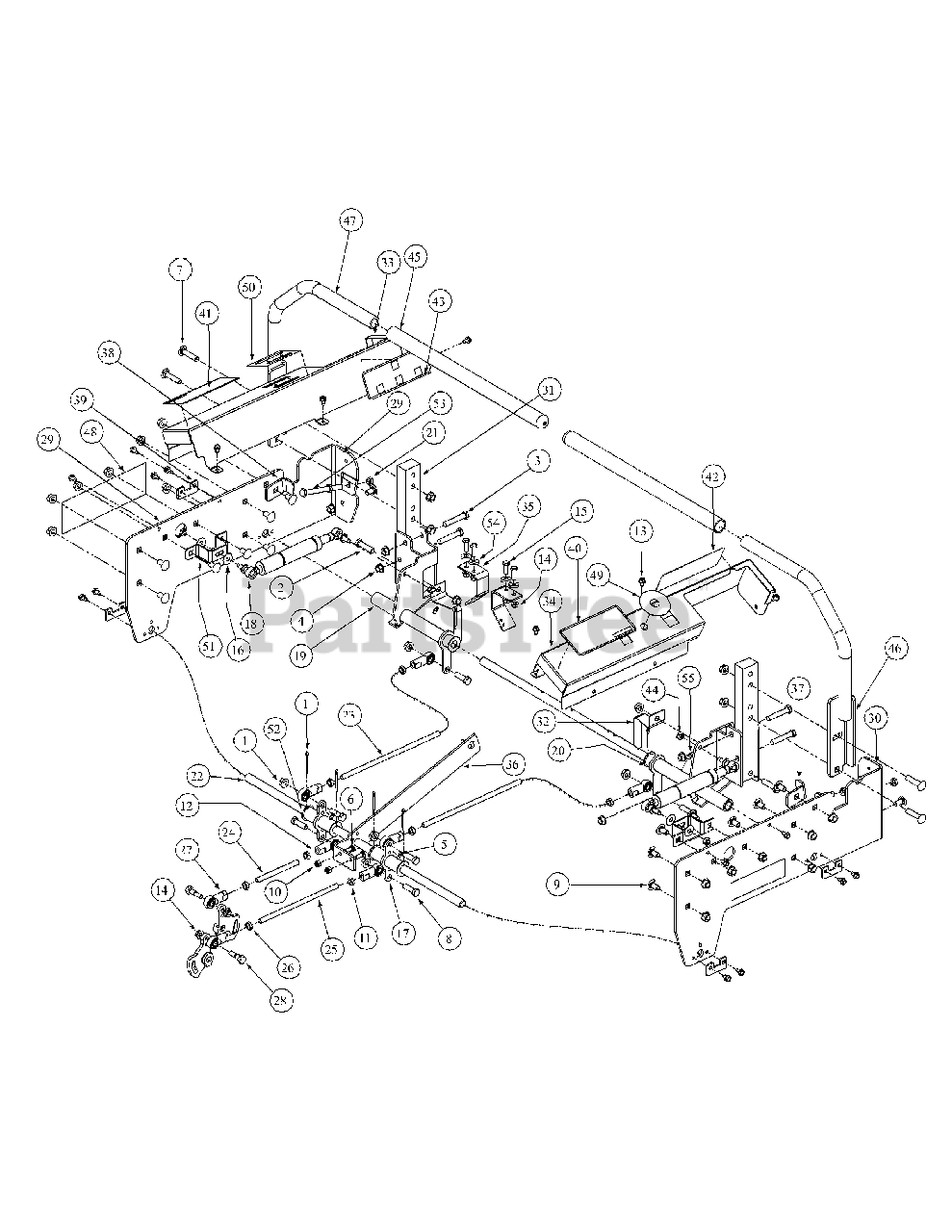

Control Assembly Parts Diagram

  • Title

1

MTD 00003107

Cotter Pin 5/32 x 1-1/2
(Superseded to 914-0115)

$4.49

$

In Stock, Qty 20+

0

2

MTD 00010980

HHCS, 3/8-16, 2.00

$6.99

$

Usually ships in 3-6 days

0

3

MTD 00011861

HHCS, 3/8-16, 2.25
(Superseded to 710-0859)

$7.49

$

In Stock, Qty 20+

0

4

MTD 00022560

Hex Nut, 3/8-16, Lock Flange
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

5

MTD 737-04345

Grease Fitting, 1/4-28 x 3/16

$4.99

$

In Stock, Qty 6

0

6

MTD 710-0751

HHCS, 1/4-20, .620

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-0560

Hex Carriage Screw, 3/8-16, 1.75

$7.49

$

In Stock, Qty 13

0

8

MTD 710-3005

HHCS, 3/8-16, 1.25

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-3178

Carriage Bolt, 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

10

MTD 712-0324

Lock Hex Nut, 1/4-20

$3.99

$

In Stock, only 4 left!

0

11

MTD 912-3001

Hex Jam Nut, 3/8-24

$7.49

$

In Stock, Qty 16

0

12

MTD 723-04080

B/Joint, 3/8-24, Right Hand Female

$43.99

$

In Stock, only 2 left!

0

13

MTD 710-0599

Screw, TT, 1/4-20, 0.5, Hex Index

$4.49

$

In Stock, Qty 20+

0

14

MTD 712-3004A

Nut, Lock, Hex Flange, 5/16-18

$3.99

$

In Stock, Qty 20+

0

15

MTD 00013406

Hex, Cap Screw, 5/16-18 x 3/4
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

16

MTD 936-0425

Belle Washer, .325 x .930 x .045
(Superseded to 736-0425)

$

$

Not available

17

MTD 01001696

Belle Crank Assembly

$

$

Not available

17

MTD 01000308

Bushing
(Superseded to 741-04555)

$17.99

$

In Stock, only 2 left!

0

18

MTD 01001727

Cylinder Return to Neutral

$281.99

$

In Stock, Qty 7

0

19

MTD 01001946

Hub Assy, Control LH Bearing

Note: NLA

$

$

Not available

19

MTD 01004265

Bearings

$22.99

$

Usually ships in 3-6 days

0

20

MTD 01001947

Hub Assy, Control RH Bearing

$

$

Not available

20

MTD 01004265

Bearings

$22.99

$

Usually ships in 3-6 days

0

21

MTD 01002511

Nut, 3/8-16, Jam

$

$

Not available

22

MTD 01002980

Shaft Mounting Belle Crank

$

$

Not available

23

MTD 01002982

Rod Connector 3/8 OD x 10.125

$

$

Not available

24

MTD 01002983

Rod Connector, 3/8 OD x 4.28 LG LH

$

$

Not available

25

MTD 01002984

Rod Connector, 3/8 OD x 8.06 LG RH

$

$

Not available

26

MTD 01002986

Nut, 3/8-24, Jam, LH Third

$7.49

$

Usually ships in 3-6 days

0

27

MTD 01002987

B/Joint, 3/8-24, LH Female

$

$

Not available

28

MTD 01002988

Screw, Shoulder Control Rod
(Superseded to 738-05006)

$10.99

$

Usually ships in 3-6 days

0

29

MTD 01005769

Mounting Shaft, Control, Left

$

$

Not available

30

MTD 01003005-0637

Mounting Shaft, Control, Right

$

$

Not available

31

MTD 01003009

Mounting Handle

$

$

Not available

32

MTD 01003011

Lever, Safety Switch

$39.99

$

Usually ships in 3-6 days

0

33

MTD 01001639

Control Panel, LH

Note: NLA

$

$

Not available

34

MTD 01001640

Control Panel, RH

$

$

Not available

35

MTD 01003114-0637

Switch Mounting Bracket, MMZ Lapbar

$31.99

$

Usually ships in 3-6 days

0

36

MTD 01001968

Link Mounting Control Shaft, Bracket

$

$

Not available

37

MTD 01005771

Stop, RH

$

$

Not available

38

MTD 01005772

Stop, LH

$

$

Not available

39

MTD 01003591

Holder Shaft, Park Brake

$34.99

$

In Stock, only 1 left!

0

40

MTD 01003449

Decal MMZ, Right Hand Console

$32.99

$

Usually ships in 3-6 days

0

41

MTD 01003450

Decal, Left Hand Console

$23.99

$

Usually ships in 3-6 days

0

42

MTD 01003451

Decal Right Hand Control

$

$

Not available

43

MTD 01003452

Decal, Left Hand Control

$28.99

$

Usually ships in 3-6 days

0

44

MTD 01003561

Nut, Hex, Center Lock, M8

$

$

Not available

45

MTD 01003715

Grip, 1.0

$23.99

$

In Stock, only 1 left!

0

46

MTD 01001615

Lapbar, Weldment, Right Handle

$

$

Not available

47

MTD 01003729

Lapbar, Weldment, Left Handle

$

$

Not available

48

MTD 01003856

Side Label, MTD Pro

$

$

Not available

49

MTD 01003857

Label, Ignition, 2.5 Diameter

$

$

Not available

50

MTD 01003858

Label, Control, Throttle and Choke

$

$

Not available

51

MTD 01004000-0637

Bracket Assembly, Mount Dampener

$

$

Not available

52

MTD 01004003

Flat Washer, 5/8 Nylon
(Superseded to 736-04602)

$4.49

$

In Stock, Qty 12

0

53

MTD 01004127

HHCS, 3/8-16, 3.00
(Superseded to 710-0521)

$5.49

$

In Stock, Qty 6

0

54

MTD 00009812

Flat Washer, 5/16

$

$

Not available

55

MTD 737-3004

Grease Fitting, 90°.

$12.99

$

In Stock, only 3 left!

0
