MNA 152701 - Hyper Tough 20" Walk-Behind Mower (2020) Handles & Controls Group Parts Diagram

20" Walk-Behind Mower

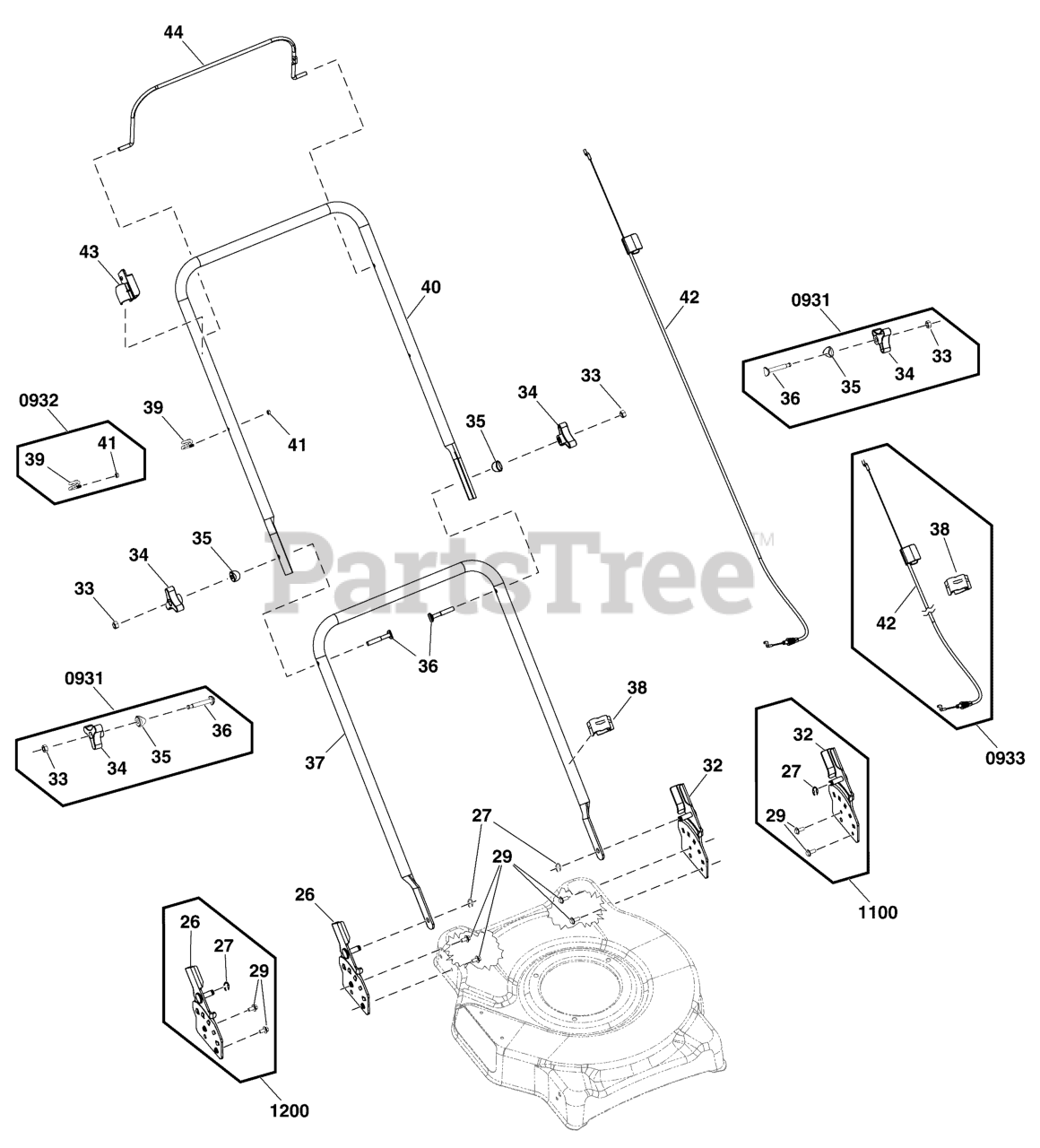

Handles & Controls Group Parts Diagram

  • Title

37

21063002950001A

HANDLE, Lower

$

$

Not available

40

21063002940001A

HANDLE, Upper

$

$

Not available

43

84005228

BRACKET, Rod

$

$

Not available

44

84005227

BAIL ASSEMBLY

$

$

Not available

0931

84005209

KIT, Wing Knob, Handle

Note: (Incl. Ref. Nos. 33, 34, 35, 36)

$

$

Not available

33

NUT

$

$

Not available

34

KNOB, Wing

$

$

Not available

35

WASHER, Curved

$

$

Not available

36

BOLT, Carriage

$

$

Not available

0932

Briggs & Stratton 84005211

KIT, Rope Guide

Note: (Incl. Ref. Nos. 39, 41)

$6.49

$

Usually ships in 2-12 days

0

39

GUIDE, Rope

$

$

Not available

41

NUT, Lock

$

$

Not available

0933

84005208

KIT, Cable, Engine Stop

Note: (Incl. Ref. Nos. 38, 42)

$

$

Not available

38

CLIP, Cable

$

$

Not available

42

CABLE, Engine Stop

$

$

Not available

0994

2100200994

KIT, Bracket, Right

Note: (Incl. Ref. Nos. 26, 27, 29)

$

$

Not available

26

BRACKET, Handle, Right

$

$

Not available

27

E-CLIP

$

$

Not available

29

BOLT, Hex Head, Flange

$

$

Not available

0995

2100200995

KIT, Bracket, Left

Note: (Incl. Ref. Nos. 27, 29, 32)

$

$

Not available

27

E-CLIP

$

$

Not available

29

BOLT, Hex Head, Flange

$

$

Not available

32

BRACKET, Handle, Left

$

$

Not available
