38", 42" Mower Deck, 3-Spindle

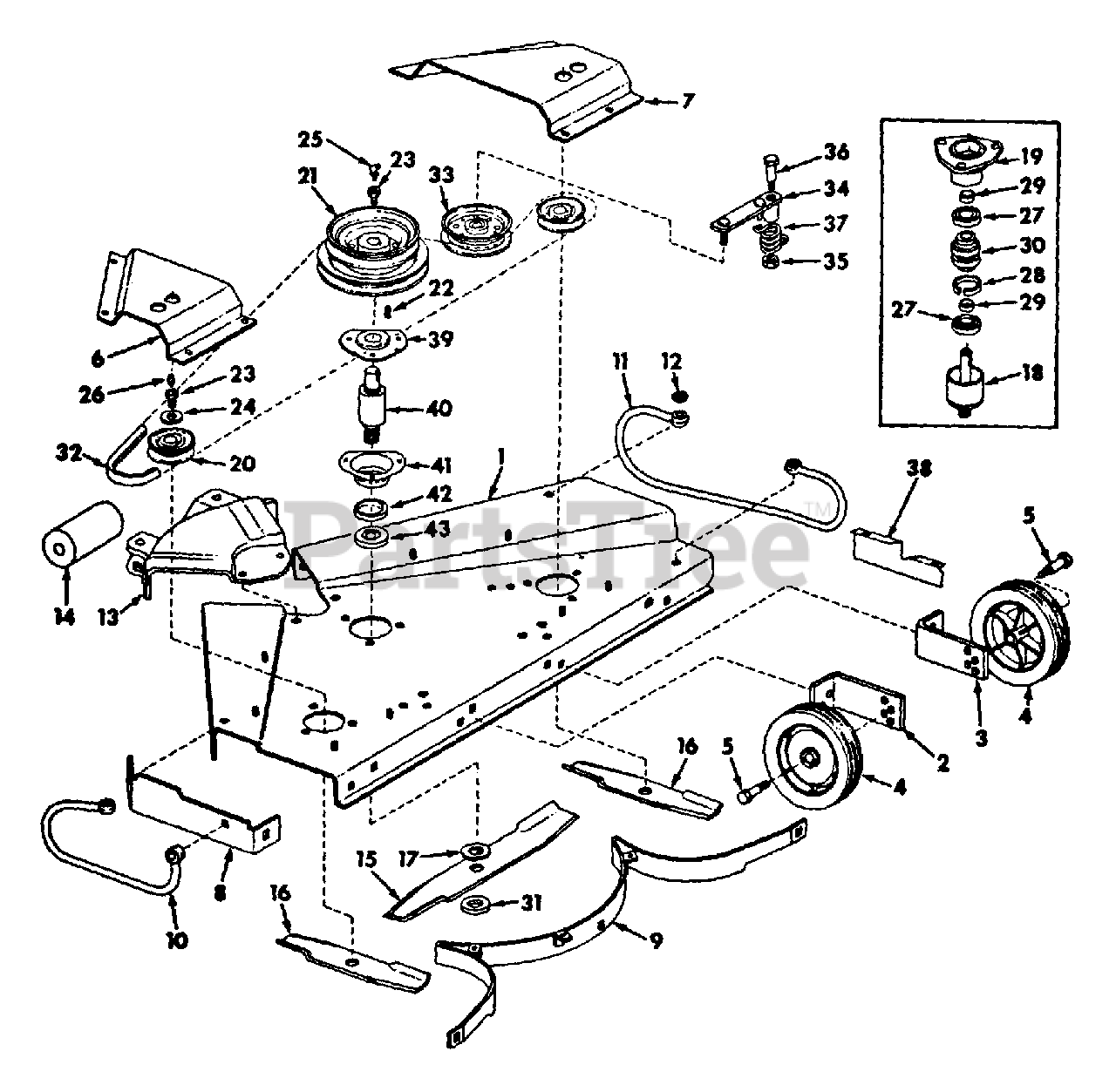

Main Frame and Knife Unit -38" and 42" Blade- Part 2 (1968-1971) Parts Diagram

  • Title

1

Cub Cadet IH-489336-R5

HOUSING ASSY, ROTOR - 38 IN. BLADE

$

$

Currently unavailable

1

Cub Cadet IH-489338-R4

HOUSING ASSY, ROTOR - 42 IN. BLADE

$

$

Not available

Cub Cadet IH-171103

SCREW, 5/16-18 x 3/4 HEX-HD TAP.

$

$

Not available

18494 R1

BOLT, 3/8-16 x 1 ZND HEX-HD MACH

$

$

Not available

2

Cub Cadet IH-489340-R1

ARM, GAUGE WHEEL LH
(Superseded to 759-3042-0498)

$

$

Not available

3

Cub Cadet IH-489341-R1

ARM GAUGE WHEEL RH
(Superseded to 759-3043-0498)

$

$

Not available

Cub Cadet 21860-R1

BOLT, 3/8 x 7/8 ZND SQ-NK CRG

$

$

Currently unavailable

Cub Cadet IH-120382

WASHER, 3/8 C-Z MED LOCK
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120377

NUT, 3/8-16 C-Z HEX.
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

4

Cub Cadet IH-479427-R91

WHEEL, 7 IN. GAUGE

$

$

Not available

5

Cub Cadet IH-489429-R1

BOLT, SHOULDER
(Superseded to 938-3006)

$

$

Not available

Cub Cadet IH-120394

WASHER, 13/32 x 13/16 x .065 C-Z
(Superseded to 936-0140)

$

$

Not available

Cub Cadet IH-124829

NUT, 3/8-16 C-Z HEX. JAM
(Superseded to 912-3008)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120382

WASHER, 3/8 C-Z MED LOCK
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

6

Cub Cadet IH-489342-R2

SHIELD, BELT LH
(Superseded to 703-0091)

$

$

Not available

Cub Cadet IH-120214

WASHER, 5/16 C-Z MED LOCK
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120376

NUT, 5/16-18 C-Z HEX.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet IH-489343-R1

SHIELD BELT RH

$

$

Not available

Cub Cadet IH-120214

WASHER, 5/16 C-Z MED LOCK
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120376

NUT, 5/16-18 C-Z HEX.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 499344-R2

SIDE, HOUSING LH - 38 IN. BLADE

$

$

Currently unavailable

Cub Cadet IH-18508-R1

BOLT, 3/8 x 3/4 C-Z SQ-NK CRG
(Superseded to 710-0389)

$4.49

$

In Stock, Qty 10

0

Cub Cadet IH-120382

WASHER, 3/8 C-Z MED LOCK
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120377

NUT, 3/8-16 C-Z HEX.
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

8

Cub Cadet IH-489350-R2

SIDE, HOUSING LH - 42 IN. BLADE
(Superseded to 759-3045-0499)

$

$

Not available

18685-R1

BOLT, 3/8 x 1-1/2 C-Z SQ-NK CRG

$

$

Not available

18684-R1

BOLT, 3/8 x 1-1/4 C-Z SQ-NK CRG

$

$

Not available

Cub Cadet IH-120382

WASHER, 3/8 C-Z MED LOCK
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120377

NUT, 3/8-16 C-Z HEX.
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

9

Cub Cadet IH-489345-R1

SHROUD ASSY, BLADE - 38 IN. BLADE
(Superseded to 703-0720-0499)

$

$

Not available

Cub Cadet IH-16897-R1

BOLT, 5/16 x 3/4 C-Z SQ-NK CRG
(Superseded to 710-0451)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120214

WASHER, 5/16 C-Z MED LOCK
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120376

NUT, 5/16-18 C-Z HEX.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 18653-R1

BOLT, 1/4 x 1/2 C-Z HEX-HD MACH

$

$

Currently unavailable

Cub Cadet IH-120380

WASHER, 1/4 C-Z MED LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

9

Cub Cadet IH-489351-R1

SHROUD ASSY, BLADE - 42 IN. BLADE
(Superseded to 759-3117-0499)

$165.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-16897-R1

BOLT, 5/16 x 3/4 C-Z SQ-NK CRG
(Superseded to 710-0451)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120214

WASHER 5/16 C-Z MED LOCK
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120376

NUT, 5/16-18 C-Z HEX.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 18653-R1

BOLT, 1/4 x 1/2 C-Z HEX-HD MACH

$

$

Currently unavailable

Cub Cadet IH-120380

WASHER, 1/4 C-Z MED LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

10

Cub Cadet IH-489347-R1

RUNNER, MOWER LH
(Superseded to IH-489347-R2)

$

$

Not available

22476-R1

BOLT, 3/8 x 1-1/8 ZNP SQ-NK CRG

$

$

Not available

Cub Cadet IH-120382

WASHER, 3/8 C-Z MED LOCK
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120377

NUT, 3/8-16 C-Z HEX.
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

11

Cub Cadet IH-489348-R1

RUNNER, MOWER RH
(Superseded to IH-489348-R2)

$

$

Not available

18685-R1

BOLT, 3/8 x 1-1/2 C-Z SQ-NK CRG

$

$

Not available

18684-R1

BOLT, 3/8 x - 4 C-Z SQ-NK CRG

$

$

Not available

Cub Cadet IH-120382

WASHER, 3/8 C-Z MED LOCK
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120377

NUT, 3/8-16 C-Z HEX.
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 485651-R1

WASHER, PLAIN 13/32 x 13/16 x .065 INCH

Note: BETWEEN FRONT OF HOUSING AND RH RUNNER - USE ON 38 IN. MOWERS ONLY

$

$

Currently unavailable

Cub Cadet IH-120382

WASHER, 3/8 C-Z MED LOCK
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120377

NUT, 3/8-16 C-Z HEX.
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

13

Cub Cadet IH-489349-R3

HOUSING, CENTER

$

$

Not available

Cub Cadet IH-17351-R1

BOLT, 3/8 x 1 C-Z SQ-NK CRG
(Superseded to 710-3097)

$6.49

$

In Stock, Qty 5

0

Cub Cadet IH-21741-R1

WASHER, .406 x .875 x .105
(Superseded to 936-3004)

$

$

Not available

Cub Cadet IH-120377

NUT, 3/8-16 C-Z HEX.
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

14

Cub Cadet IH-489470-R1

ROLLER, FRONT
(Superseded to 731-3005)

$26.99

$

In Stock, Qty 20+

0

Cub Cadet 20914 R1

BOLT, 1/2 x 7-1/2 C-Z SQ-NK CRG

$

$

Currently unavailable

Cub Cadet IH-19676-R1

NUT, 1/2-13 CDP NYLON INSERT

$

$

Not available

15

Cub Cadet IH-490476-R1

BLADE, CENTER - 38 IN. BLADE
(Superseded to 759-3835)

Note: HARD SURFACED - OPTIONAL WITH 487 761 R1

$69.99

$

In Stock, only 1 left!

0

15

Cub Cadet IH-487761-R1

BLADE, CENTER - 38 IN. BLADE

Note: OPTIONAL WITH 490 476 R1

$

$

Not available

15

Cub Cadet IH-490473-R1

BLADE, CENTER - 42 IN. BLADE
(Superseded to 759-3850)

Note: HARD SURFACED - OPTIONAL WITH 477 597 R3

$60.99

$

Usually ships in 3-6 days

0

15

Cub Cadet IH-477597-R3

BLADE, CENTER - 42 IN. BLADE
(Superseded to IH-477597-R4)

Note: OPTIONAL WITH 490 473 R1-

$53.99

$

Usually ships in 3-6 days

0

16

Cub Cadet IH-490470-R1

BLADE, OUTER - 38 IN. BLADE
(Superseded to 759-3836)

Note: HARD SURFACED - OPTIONAL WITH 473 427 R3

$51.99

$

In Stock, only 1 left!

0

16

Cub Cadet IH-473427-R3

BLADE, OUTER - 38 IN. BLADE
(Superseded to 759-3811)

Note: OPTIONAL WITH 490 470 R1

$26.99

$

Usually ships in 3-6 days

0

16

Cub Cadet IH-490471-R1

BLADE, OUTER - 42 IN. BLADE
(Superseded to IH-490471-R2)

Note: HARD SURFACED - OPTIONAL WITH 477 598 R3

$30.99

$

Usually ships in 3-6 days

0

16

Cub Cadet IH-477598-R3

BLADE, OUTER - 42 IN. BLADE
(Superseded to IH-477598-R4)

Note: OPTIONAL WITH 490 471 R1

$

$

Not available

17

Cub Cadet IH-473860-R1

WASHER, BLADE FRICTION
(Superseded to 959-3486)

$12.99

$

Usually ships in 3-6 days

0

18

Cub Cadet IH-489389-R1

SPINDLE ASSY, BLADE DRIVE DISC

$198.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-16066-R1

WASHER, 25/32 x 1-1/2 x 16 GA
(Superseded to 936-0316)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-219753

NUT, 3/4-16 HEX. JAM
(Superseded to 912-3026)

$4.99

$

In Stock, Qty 10

0

19

Cub Cadet IH-489391-R1

HOUSING, SPINDLE

$

$

Not available

Cub Cadet IH-19019-R1

BOLT, 3/8 x 1 C-Z NO. 3 PLOW
(Superseded to IH-19030-R2)

$

$

Not available

Cub Cadet IH-120382

WASHER, 3/8 C-Z MED LOCK
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120377

NUT, 3/8-16 C-Z HEX.
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

20

Cub Cadet IH-473432-R91

PULLEY, OUTER
(Superseded to 956-3006)

$42.99

$

In Stock, only 2 left!

0

21

Cub Cadet IH-473433-R91

PULLEY, CENTER
(Superseded to IH-473433-R92)

$117.99

$

Usually ships in 3-6 days

0

22

Cub Cadet IH-452779-R1

KEY, 1/4 x 3/4 x SQ. PARALLEL
(Superseded to IH-452779-R2)

$

$

Not available

23

Cub Cadet IH-473435-R1

BOLT, END
(Superseded to 710-06455)

$13.99

$

Usually ships in 3-6 days

0

24

Cub Cadet IH-490196-R1

WASHER SPINDLE
(Superseded to 936-3055)

$8.49

$

In Stock, only 2 left!

0

Cub Cadet IH-173128

WASHER, 3/8 INT-EXT-TOOTH LOCK
(Superseded to IH-178551P)

$6.49

$

Usually ships in 3-6 days

0

25

Cub Cadet IH-19700-R91

FITTING, 3/8 DRIVE TYPE 45 DEG ANGLE LUB
(Superseded to 737-0108)

Note: END BOLT FOR CENTER ROTOR

$11.99

$

Usually ships in 3-6 days

0

26

Cub Cadet IH-443566

FITTING, 5/16 DRIVE TYPE STR LUB
(Superseded to 937-3000)

Note: END BOLT FOR OUTER ROTORS

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet IH-473428-R91

SEAL, SPINDLE OIL
(Superseded to IH-473428-R92)

$16.99

$

In Stock, only 4 left!

0

28

Cub Cadet IH-473429-R2

SPACER, SPINDLE OUTER
(Superseded to 941-3031)

$

$

Not available

29

Cub Cadet IH-473431-R3

SPACER, PULLEY

$

$

Not available

30

Cub Cadet IH-473430-R91

BEARING, SPINDLE

$60.99

$

Usually ships in 3-6 days

0

31

Cub Cadet IH-575814-R1

WASHER, 25/32 x 2 x 11 GA
(Superseded to 736-3014)

Note: BLADE DRIVE DISC SPACING

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet IH-473468-R2

BELT, SPINDLE DRIVE - 38 IN. BLADE
(Superseded to 954-3002)

$41.99

$

In Stock, only 1 left!

0

32

Cub Cadet IH-477599-R2

BELT, SPINDLE DRIVE - 42 IN. BLADE

$46.99

$

In Stock, only 1 left!

0

33

Cub Cadet IH-542520-R91

PULLEY, FLAT IDLER
(Superseded to 756-3005)

$42.99

$

In Stock, Qty 20+

0

34

Cub Cadet IH-486355-R1

ARM ASSY, IDLER

$

$

Not available

35

Cub Cadet IH-385525-R1

NUT, CENTER LOCK
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

36

Cub Cadet IH-486360-R1

BOLT, IDLER ARM PIVOT
(Superseded to 638-04012A)

$20.99

$

In Stock, Qty 20+

0

37

Cub Cadet IH-486361-R1

SPRING, TORSION
(Superseded to IH-486361-R2)

$29.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-188755-R1

WASHER, 15/32 x 1-1/2 x 11 GA C-Z
(Superseded to 736-3030)

$

$

Not available

Cub Cadet IH-120383

WASHER, 7/16 C-Z MED LOCK
(Superseded to 936-0171)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-271501

NUT, 7/16-14 C-Z HEX.
(Superseded to 912-3019)

$6.49

$

In Stock, only 3 left!

0

Cub Cadet IH-142619-H

WASHER, 13/32 x 3/4 x 11 GA C-Z
(Superseded to 736-0275)

$

$

Not available

Cub Cadet IH-469668-R1

WASHER, 13/32 x 3/4 x 16 GA C-Z
(Superseded to 936-0140)

$

$

Not available

38

Cub Cadet 490561-R1

MULCHER - 38 IN. BLADE

$

$

Currently unavailable

38

Cub Cadet IH-490562-R1

MULCHER - 42 IN. BLADE

$

$

Currently unavailable

39

492105-R1

CAP, SPINDLE HOUSING

Note: USED ONLY W/U1115 MOWERS

$

$

Not available

40

Cub Cadet IH-ST745

BEARING, BALL FAN & PUMP TYPE
(Superseded to 759-3479P)

Note: USED ONLY W/U1115 MOWERS

$307.99

$

Usually ships in 3-6 days

0

41

Cub Cadet IH-492106-R1

HOUSING, SPINDLE
(Superseded to 903-0117)

Note: USED ONLY W/U1115 MOWERS

$

$

Not available

Cub Cadet IH-17351-R1

BOLT, 3/8 x 1 ZND SQ-NK CRG
(Superseded to 710-3097)

$6.49

$

In Stock, Qty 5

0

Cub Cadet IH-120377

NUT 3/8-16 C-Z HEX.
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-120382

WASHER, 3/8 C-Z MED LOCK
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

42

Cub Cadet IH-492108-R1

CUP, SPINDLE
(Superseded to 903-1387)

Note: USED ONLY W/U1115 MOWERS

$23.99

$

In Stock, Qty 16

0

43

Cub Cadet IH-492107-R1

SPACER, BLADE

Note: USED ONLY W/U1115 MOWERS

$

$

Not available

Cub Cadet 2752016-R1

PRODUCT GRAPHIC, IH

$

$

Currently unavailable
