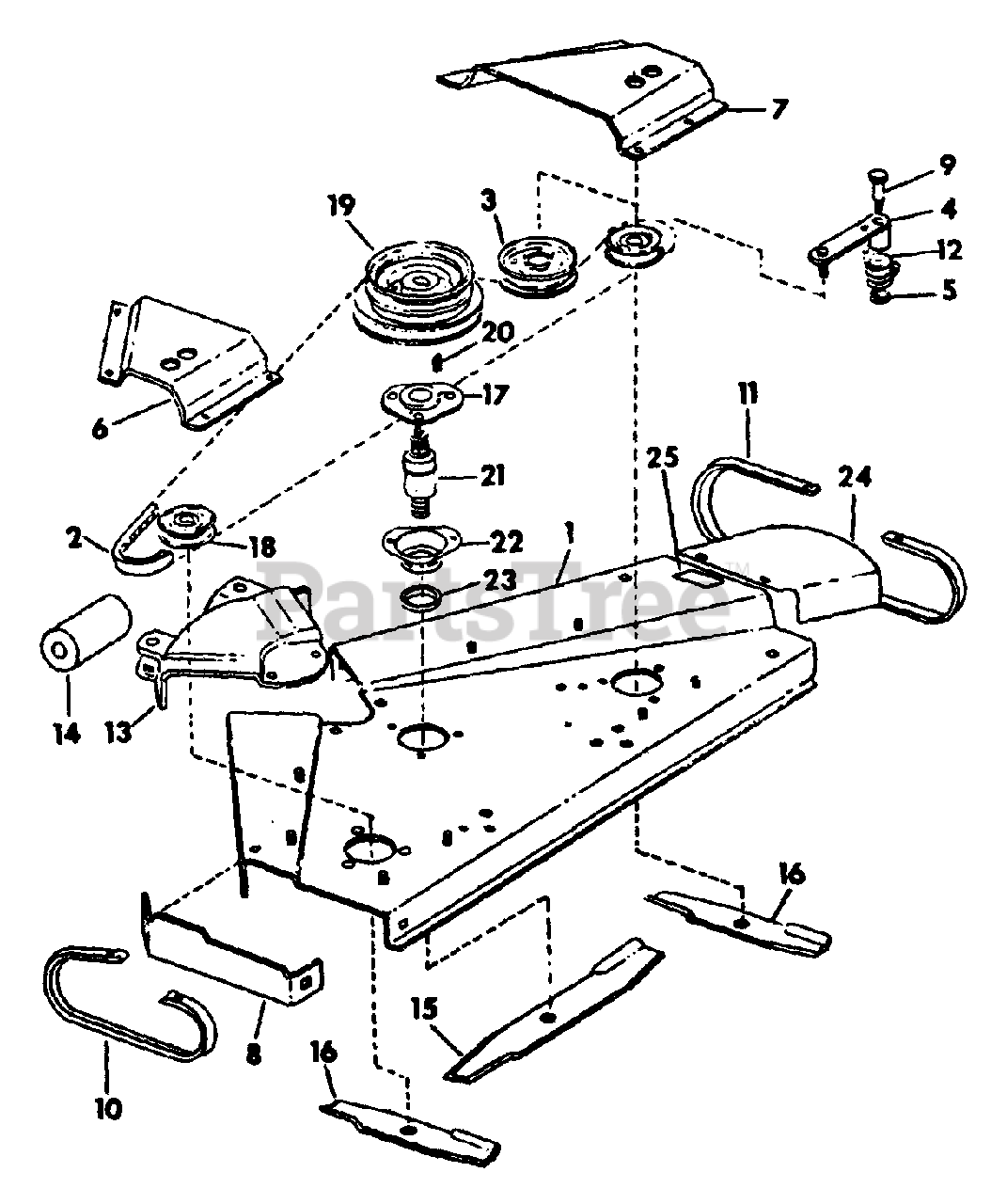

Mower Deck - Cub Cadet 38" Mower Deck, 3-Spindle Main Frame and Knife Unit Parts Diagram

38" Mower Deck, 3-Spindle

Main Frame and Knife Unit Parts Diagram

  • Title

1

Cub Cadet IH-489336-R5

HOUSING ASSY W/PRODUCT GRAPHIC, 57801-C2, ROTOR

$

$

Currently unavailable

Cub Cadet IH-172451

SCREW, 5/16 x 5/8 H/HD TAP
(Superseded to 710-3021)

$

$

Not available

18494-R1

BOLT, 3/8 X 1 ZND HEX-HD MACH

$

$

Not available

2

Cub Cadet IH-473468-R2

BELT, SPINDLE DRIVE -38 IN. BLADE-
(Superseded to 954-3002)

$41.99

$

In Stock, only 1 left!

0

3

Cub Cadet IH-542520-R91

PULLEY, FLAT IDLER
(Superseded to 756-3005)

$42.99

$

In Stock, Qty 20+

0

4

Cub Cadet IH-548457-R1

ARM ASSY, IDLER
(Superseded to 759-04324B)

$175.99

$

In Stock, Qty 18

0

5

Cub Cadet IH-385525-R1

NUT, CENTER LOCK
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet IH-489342-R2

SHIELD, BELT LH
(Superseded to 703-0091)

$

$

Not available

Cub Cadet IH-120214

WASHER, 5/16 C-Z MED LOCK
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120376

NUT, 5/16-18 C-Z HEX.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet IH-489343-R1

SHIELD, BELT RH

$

$

Not available

Cub Cadet IH-120214

WASHER, 5/16 C-Z MED LOCK
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120376

NUT, 5/16-18 C-Z HEX.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet IH-489344-R2

SIDE, HOUSING LH -38 IN. BLADE-

$

$

Not available

Cub Cadet IH-18508-R1

BOLT, 3/8 x 3/4 C-Z SQ-W CRG
(Superseded to 710-0389)

$4.49

$

In Stock, Qty 10

0

Cub Cadet IH-120382

WASHER 3/8 C-Z MED LOCK
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120377

NUT, 3/8-16 C-Z HEX.
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

9

Cub Cadet IH-486360-R1

BOLT, IDLER ARM PIVOT
(Superseded to 638-04012A)

$20.99

$

In Stock, Qty 20+

0

10

Cub Cadet IH-548273-R1

RUNNER, MOWER LH
(Superseded to 703-0094-0499)

$

$

Not available

22476-R1

BOLT, 3/8 x 1-1/8 ZND SQ-W CRG

$

$

Not available

Cub Cadet IH-120382

WASHER 3/8 C-Z MED LOCK
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120377

NUT, 3/8-16 C-Z HEX.
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

11

Cub Cadet IH-548274-R1

RUNNER, MOWER RH
(Superseded to 703-0095-0499)

$

$

Not available

22476-R1

BOLT, 3/8 x 1-1/8 ZND SQ-W CRG

$

$

Not available

Cub Cadet IH-18684-R1

BOLT, 3/8 x 1-1/4 C-Z SQ-W CRG

Note: USED w/ 42" BLADE

$

$

Currently unavailable

Cub Cadet IH-120382

WASHER, 3/8 ZND REG LOCK
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120377

NUT, 3/8-16 ZND HEX.
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

12

Cub Cadet IH-548458-R1

SPRING, TORSION
(Superseded to 932-3009)

$22.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120383

WASHER, 7/16 C-Z MED LOCK
(Superseded to 936-0171)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-271501

NUT, 7/16-14 C-Z HEX.
(Superseded to 912-3019)

$6.49

$

In Stock, only 3 left!

0

Cub Cadet IH-469668-R1

WASHER, 13/32 x 3/4 x 16 GA C-Z
(Superseded to 936-0140)

$

$

Not available

Cub Cadet IH-180122

SCREW, 3/8-16 x 1 ZND HEX-HD CAP
(Superseded to 710-0514)

$3.99

$

In Stock, Qty 20+

0

21904-R1

WASHER, 15/32 x 7/8 x 11 GA C-Z

$

$

Not available

Cub Cadet IH-150031-C1

SCREW, 3/8 x 3/4 ZNP SLT-TRUSS-HD

$

$

Not available

24764-R1

NUT, 3/8-16 ZND NYLON LOCK

$

$

Not available

Cub Cadet IH-21438-R1

SCREW, 3/8 x 3/4 ZNP P/HDS MACH

$

$

Not available

13

Cub Cadet IH-489349-R3

HOUSING CENTER

$

$

Not available

Cub Cadet IH-17351-R1

BOLT, 3/8 x 1 C-Z SQ-NK CRG
(Superseded to 710-3097)

$6.49

$

In Stock, Qty 5

0

Cub Cadet IH-21741-R1

WASHER, .406 x .875 x .105
(Superseded to 936-3004)

$

$

Not available

Cub Cadet IH-120377

NUT, 3/8-16 C-Z HEX.
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

14

Cub Cadet IH-489470-R1

ROLLER FRONT
(Superseded to 731-3005)

$26.99

$

In Stock, Qty 20+

0

20914-R1

BOLT, 1/2 x 7-1/2 C-Z SQ-NK CRG

$

$

Not available

Cub Cadet IH-19676-R1

NUT, 1/2-13 CDP NYLON INSERT

Note: OPTIONAL W/19 696 R1

$

$

Not available

15

Cub Cadet IH-490476-R1

BLADE, CENTER -38 IN. BLADE- -HARD SURFACED-
(Superseded to 759-3835)

Note: OPTIONAL WITH 487 761 R1-

$69.99

$

In Stock, only 1 left!

0

15

Cub Cadet IH-487761-R1

BLADE, CENTER -38 IN. BLADE-

Note: OPTIONAL WITH 490 476 R1-

$

$

Not available

477243-R1

WASHER, .781 x 2 x 16 GA ZND)

$

$

Not available

16

Cub Cadet IH-490470-R1

BLADE, OUTER -38 IN. BLADE- -HARD SURFACED-
(Superseded to 759-3836)

$51.99

$

In Stock, only 1 left!

0

16

Cub Cadet IH-473427-R3

BLADE OR OUTER -38 IN. BLADE-
(Superseded to 759-3811)

$26.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-575814-R1

WASHER, 25/32 x 2 x 11 GA
(Superseded to 736-3014)

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet IH-492105-R1

CAP, SPINDLE HOUSING
(Superseded to 703-0115-0499)

$35.99

$

Usually ships in 3-6 days

0

18

Cub Cadet IH-473432-R91

PULLEY, OUTER
(Superseded to 956-3006)

$42.99

$

In Stock, only 2 left!

0

19

Cub Cadet IH-473433-R91

PULLEY, CENTER
(Superseded to IH-473433-R92)

$117.99

$

Usually ships in 3-6 days

0

20

Cub Cadet IH-127559

KEY, 1/4 x 3/4 WOODRUFF 91
(Superseded to 914-0135)

$

$

Not available

21

Cub Cadet ST-745

BEARING, BALL

$

$

Currently unavailable

Cub Cadet IH-219753

NUT, 3/4-16 HEX. JAM
(Superseded to 912-3026)

$4.99

$

In Stock, Qty 10

0

22

Cub Cadet IH-492106-R1

HOUSING SPINDLE
(Superseded to 903-0117)

$

$

Not available

Cub Cadet IH-495967-R1

BOLT, 3/8-16 x 1 ZND SQ-NK CRG
(Superseded to 710-3097)

$6.49

$

In Stock, Qty 5

0

Cub Cadet IH-120377

NUT, 3/8-16 C-Z HEX.
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-120382

WASHER, 3/8 C-Z MED LOCK
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet IH-102609-R1

NUT, 3/4-16 ZND NYLON HEX LOCK
(Superseded to 912-3026)

$4.99

$

In Stock, Qty 10

0

23

Cub Cadet IH-492108-R1

CUP, SPINDLE
(Superseded to 903-1387)

$23.99

$

In Stock, Qty 16

0

24

Cub Cadet IH-58455-C1

DEFLECTOR, 38 IN.

$

$

Not available

Cub Cadet IH-180077

SCREW, 5/16-18 x 3/4 ZND HEX-HD CAP
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120214

WASHER 5/16 ZND REG LOCK
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120393

WASHER, 11/32 x 1-1/16 x .051 C-Z
(Superseded to 936-0275)

$

$

Not available

Cub Cadet IH-120376

NUT, 5/16-16 ZND HEX.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet IH-57801-C2

PRODUCT GRAPHIC, CAUTION

$

$

Not available
