Mower Deck - Cub Cadet 44", 50" Mower Deck, 3 Blade (SN: 665000 & Below) Deck Assembly Parts Diagram

44", 50" Mower Deck, 3 Blade

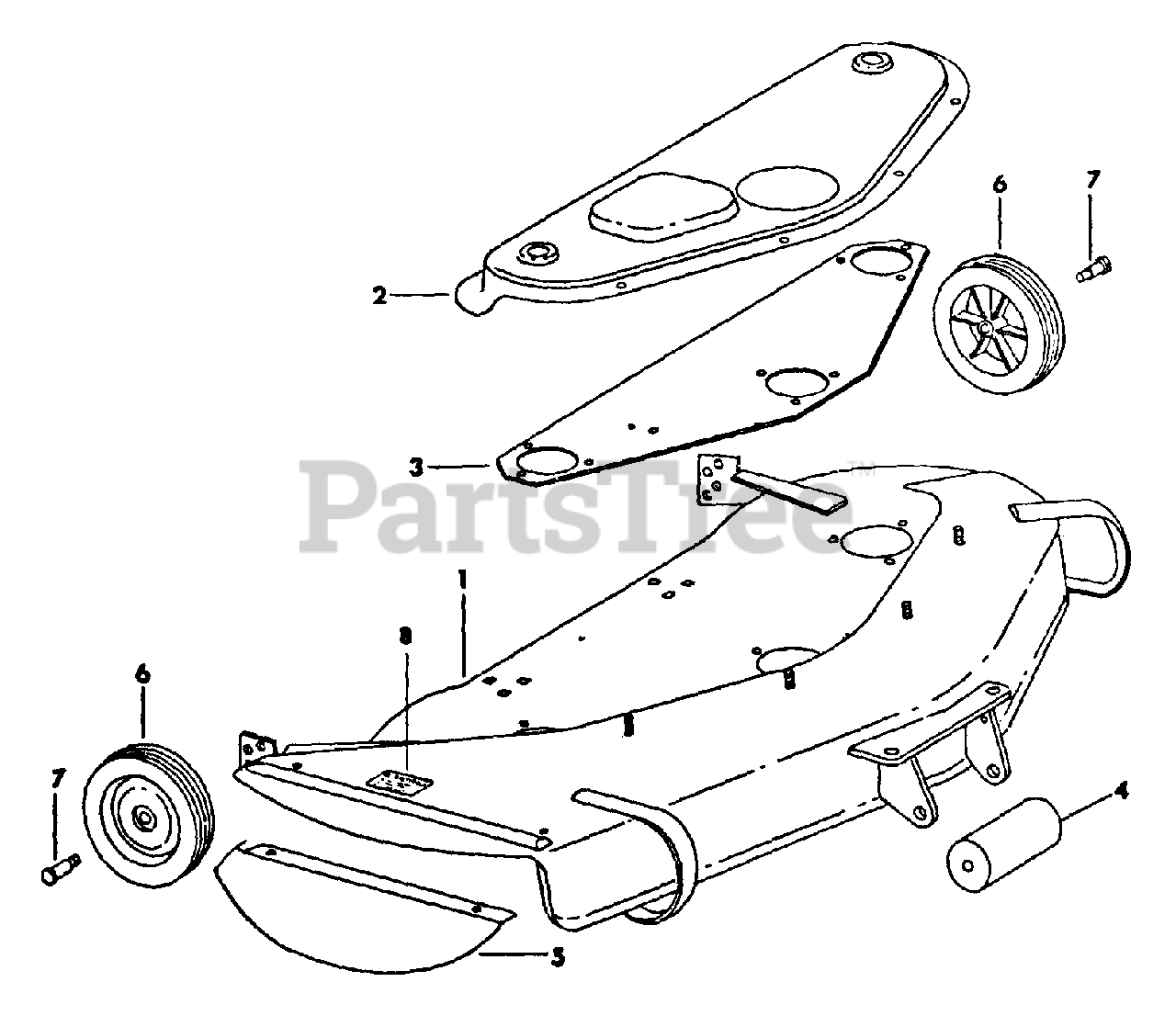

Deck Assembly Parts Diagram

  • Title

1

Cub Cadet 759-3050

HOUSING w/PRODUCT GRAPHIC 57801-C2

Note: FOR 44" MOWER

$

$

Not available

Cub Cadet 710-3021

SCREW, 5/16-18 5/8 CL-REC-HEX-HD TAP.

$

$

Not available

Cub Cadet 759-3008

HOUSING w/PRODUCT GRAPHIC 57801-C2

Note: FOR 50" MOWER

$

$

Not available

Cub Cadet 710-3021

SCREW, 5/16-18 x 5/8 CL-REC-HEX-HD TAP.

$

$

Not available

2

Cub Cadet IH-59526-C1

COVER, MOWER BELT

Note: FOR 44" MOWER

$

$

Not available

Cub Cadet IH-120393

WASHER, 11/32 x 11/16 x .065 ZND
(Superseded to 936-0275)

$

$

Not available

Cub Cadet IH-120376

NUT, 5/16-18 ZND HEX.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-59528-C1

COVER, MOWER BELT
(Superseded to 703-0136-0498)

Note: FOR 50" MOWER

$

$

Not available

Cub Cadet IH-120393

WASHER 11/32 x 11/16 x .065 ZND
(Superseded to 936-0275)

$

$

Not available

Cub Cadet IH-120376

NUT, 5/16-18 ZND HEX.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet IH-59675-C1

PLATE, SPINDLE MTG

Note: FOR 44" MOWER

$

$

Not available

Cub Cadet IH-59679-C1

PLATE, SPINDLE MTG

Note: FOR 50" MOWER

$

$

Not available

4

Cub Cadet IH-489470-R1

ROLLER, FRONT
(Superseded to 731-3005)

$26.99

$

In Stock, Qty 20+

0

Cub Cadet IH-27358-R1

PIN, 1/2 x 7 STD-HD
(Superseded to 911-3019)

$29.99

$

In Stock, Qty 5

0

Cub Cadet IH-18481-R1

PIN, 3/16 x 1 COTTER

$

$

Currently unavailable

Cub Cadet IH-120396

WASHER, 17/32 x 1-1/16 x .074 ZND
(Superseded to 936-0272)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet IH-1254726-C1

SHIELD, DEFLECTOR REPLACES 59676-C1
(Superseded to 703-0132-0498)

$

$

Not available

Cub Cadet IH-180075

SCREW, 5/16-18 x 5/8 ZND HEX-HD CAP

$

$

Not available

Cub Cadet IH-120214

WASHER, 5/16 ZND REG LOCK
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120376

NUT, 5/16-18 ZND HEX.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet IH-479427-R91

WHEEL, 7 IN. GAUGE

$

$

Not available

7

Cub Cadet IH-489429-R1

BOLT, SHOULDER
(Superseded to 938-3006)

$

$

Not available

Cub Cadet IH-120394

WASHER, 13/32 x 13/16 x .065 ZND
(Superseded to 936-0140)

$

$

Not available

Cub Cadet IH-120382

WASHER 3/8 ZND REG LOCK
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet IH-124829

NUT, 3/8-16 ZND HEX. JAM
(Superseded to 912-3008)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet IH-57801-C2

PRODUCT GRAPHIC, CAUTION

$

$

Not available
