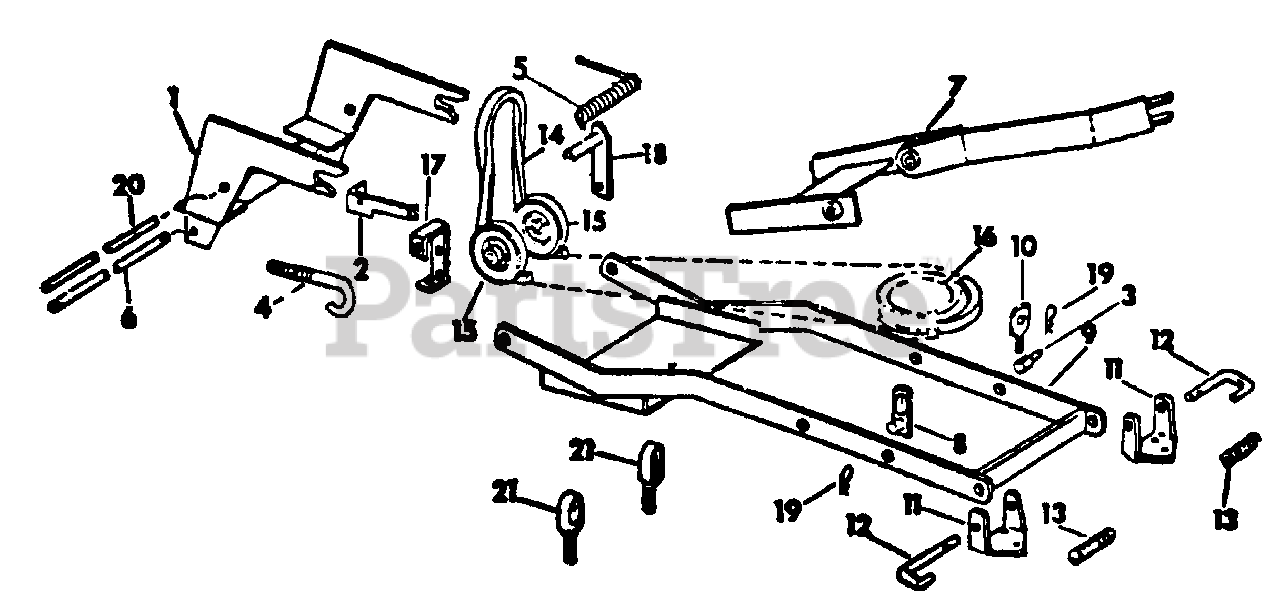

Mower Deck - Cub Cadet 44", 50" Mower Deck, 3 Blade (SN: 665000 & Below) Hitch Parts Diagram

44", 50" Mower Deck, 3 Blade

Hitch Parts Diagram

  • Title

1

Cub Cadet IH-59681-C2

Hanger Assy, Front

$

$

Not available

2

Cub Cadet IH-59690-C3

Ratchet, Idler

$

$

Not available

Cub Cadet 912-3000

Nut, 3/8-16 Phc Hex.Lock
(Superseded to 712-3000)

$4.49

$

In Stock, Qty 19

0

3

Cub Cadet 911-3021

Block, Adjusting

$36.99

$

In Stock, only 1 left!

0

4

Cub Cadet 947-3012

Bolt, Idler Adjusting

Note: Replaces 59 685 C1

$22.99

$

In Stock, only 1 left!

0

Cub Cadet 936-0275

Washer, .344 X .688 X .051 Znd
(Superseded to 736-0275)

$

$

Not available

Cub Cadet 912-0429

Nut, 5/16-18 Nylon Insert Lock
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet IH-59691-C2

Spring, Mule Drive Idler

$

$

Not available

6

Cub Cadet IH-545689-R1

Shaft, Frt Hanger

$

$

Not available

Cub Cadet 714-3002

Pin, 3/16 X 1 C-Z Cotter

$3.99

$

In Stock, Qty 7

0

Cub Cadet 936-0160

Washer, 17/32 X 1 X 16 Ga Znd

$4.49

$

In Stock, only 1 left!

0

7

Frame Assy, Center

Note: (NLA)

$

$

Not available

Cub Cadet 711-3024

Pin, 1/2 X 2.250 Hd Type 5
(Superseded to 711-0761)

$21.99

$

Usually ships in 3-6 days

0

Cub Cadet 936-0160

Washer, 17/32 X 1 X 16 Ga Znd

$4.49

$

In Stock, only 1 left!

0

Cub Cadet 714-3002

Pin, 3/16 X 1 C-Z Cotter

$3.99

$

In Stock, Qty 7

0

8

Cub Cadet 959-3030

Link Assy, Lift

$

$

Not available

9

Cub Cadet IH-59692-C3

Frame Assy, Outer Lift

$

$

Not available

10

Cub Cadet 719-3008

Link, Adjustable Lift

$

$

Not available

11

Cub Cadet 703-0101-0498

Bracket, Mower Support

$

$

Not available

12

Cub Cadet 747-3013

Pin, Mower Support

$

$

Not available

Cub Cadet 715-3003

Pin, 3/16 X 3/4 Hv Coiled Spring

$7.49

$

In Stock, only 4 left!

0

Cub Cadet 936-0272

Washer, 17/32 X 1-1/16 X .074 Znd
(Superseded to 736-0272)

$5.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 932-3007

Spring, Mower Support Pin

$

$

Not available

Cub Cadet 936-0169

Washer, 3/8 Znd Reg Lock
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 912-0798

Nut, 3/8-16 Znd Hex
(Superseded to 712-0798)

$4.49

$

In Stock, only 2 left!

0

Cub Cadet 710-3097

Bolt, 3/8-16 X 1 Sq-Nk Crg

$6.99

$

In Stock, Qty 5

0

Cub Cadet 936-0140

Washer, 13/32 X 13/16 X .065 Znd
(Superseded to 736-0140)

$

$

Not available

14

Cub Cadet IH-490489-R2

Belt, Mule Drive

Note: -44A Mowers w/59 703 C2 Center Pulley on Tractors w/Serial No. 400,000 and below- -44A Mower w/Serial No. 81741 and below on Cadet 1100 Tractors- -50A Mowers on Cadet 1100 Tractor

$46.99

$

In Stock, only 3 left!

0

Cub Cadet IH-59971-C1

Belt, Mule Drive

Note: -44A Mowers w/59 703 C2 Center Pulley on Tractors w/Serial No. 400,001 to 529,999- 44A Mowers w/Serial No. 81742 and above all Tractors w/Serial No. 530,000 and above-except Cadet 1100 Tractors- -50A Mowers on Tractors w/Serial No. 400,001 to 529,999

$53.99

$

In Stock, only 2 left!

0

Cub Cadet IH-117465-C1

Belt, Mule Drive

Note: -44A Mowers w/Serial No. 81741 and below on Tractors w/Serial No. 530,000 and above-except Cadet 1100 Tractors- 44A Mowers w/Serial No. 81742 and above on Cadet 1100 Tractors- -50A Mowers on Tractors w/Serial No. 530,00 and above-except Cadet 1100 Tractors

$55.99

$

In Stock, only 2 left!

0

15

Cub Cadet IH-61176-C92

Pulley, Drive Belt Idler

$40.99

$

In Stock, only 2 left!

0

16

Pulley, Center

Note: -See Drive Unit-

$

$

Not available

17

Cub Cadet IH-59684-C1

Arm, Idler LH

$

$

Not available

Cub Cadet 710-0520

Screw, 3/8-16 X 1-1/2 Znd Hex-Hd Cap

$4.99

$

In Stock, Qty 11

0

Cub Cadet 936-0169

Washer, 3/8 Znd Reg Lock
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 912-0798

Nut, 3/8-16 Znd Hex
(Superseded to 712-0798)

$4.49

$

In Stock, only 2 left!

0

18

Cub Cadet 759-3053

Arm Assy, RH Idler

$

$

Not available

Cub Cadet 910-0427

Screw, 3/8-16 X 2 Znd Hex-Hd Cap
(Superseded to 710-3144)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet 936-0169

Washer, 3/8 Znd Reg Lock
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 912-0798

Nut, 3/8-16 Znd Hex.
(Superseded to 712-0798)

$4.49

$

In Stock, only 2 left!

0

Cub Cadet 714-3002

Pin, 3/16 X 1 C-Z Cotter

$3.99

$

In Stock, Qty 7

0

Cub Cadet 736-3012

Washer, Wave
(Superseded to 736-0413)

$7.49

$

In Stock, only 1 left!

0

19

Cub Cadet 914-3003

Pin, Quick Attachable Cotter

$

$

Not available

Cub Cadet 936-3013

Washer, 17/32 X 1 X 22 Ga
(Superseded to 736-3013)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet 936-0160

Washer, 17/32 X 1 X 16 Ga Znd

$4.49

$

In Stock, only 1 left!

0

Cub Cadet 714-3002

Pin, 3/16 X 1 C-Z Cotter

$3.99

$

In Stock, Qty 7

0

20

Cub Cadet IH-59683-C1

Shaft, Idler Pivot

$53.99

$

Usually ships in 3-6 days

0

Cub Cadet 914-0115

Pin, 1/8 X 1 Znd Cotter
(Superseded to 714-0115)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 936-0160

Washer, 17/32 X 1 X 16 Ga Znd

$4.49

$

In Stock, only 1 left!

0

21

Cub Cadet 919-3009

Hanger, Mower Support Front

$73.99

$

Usually ships in 3-6 days

0

Cub Cadet 912-3015

Nut, 5/8-11 Hex Jam
(Superseded to 712-3015)

$4.99

$

In Stock, Qty 17

0

Cub Cadet 712-3016

Nut, 5/8-11 Nylon Lock

$7.49

$

In Stock, Qty 14

0
