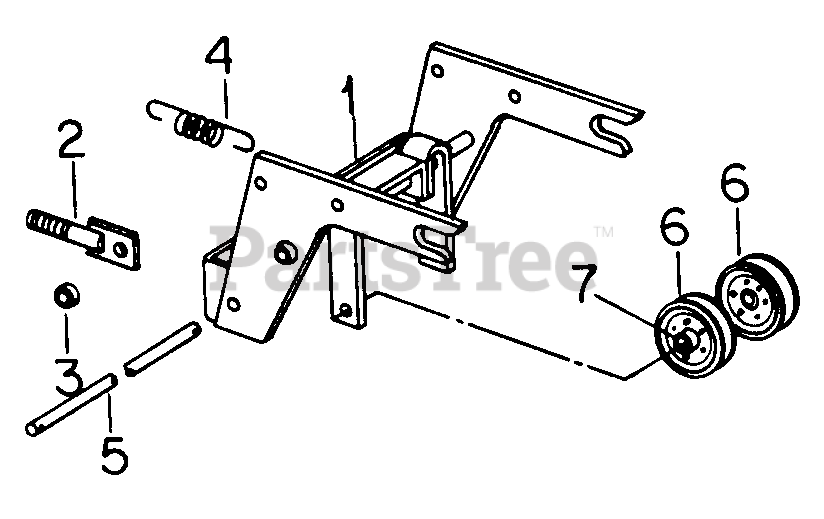

Mower Deck - Cub Cadet 48" Mower Deck, 3-Spindle 3 Spindle - Hitch Attachment - For Mowers Prior To 1968 Parts Diagram

48" Mower Deck, 3-Spindle

3 Spindle - Hitch Attachment - For Mowers Prior To 1968 Parts Diagram

  • Title

Cub Cadet 490-556-R91

Parts Accessory Package

$

$

Currently unavailable

Cub Cadet 490-557-R91

Parts Accessory Package

$

$

Currently unavailable

1

Cub Cadet 489-369-R1

Hanger Assy, Front

$

$

Currently unavailable

Cub Cadet 364-436-R1

Pin, 3/16 X 1 Hv Coiled Spring

$

$

Currently unavailable

Cub Cadet 20-249-R1

Screw, 1/2-13 X 1 C-Z Slt-Truss -Hd Mach

$

$

Currently unavailable

Cub Cadet 17-433-R1

Bolt, 1/2-13 X 1 C-Z Hex-Hd Mach

$

$

Currently unavailable

Cub Cadet 460-908-R1

Washer, 17/32 X 1-1/2 X 11 Ga C-Z

$

$

Currently unavailable

Cub Cadet IH-120384

Washer, 1/2 C-Z Med Lock
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120378

Nut, 1/2-13 Hex
(Superseded to 912-0206)

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 489-375-R1

Bracket Assy, Idler Adjuster

$

$

Currently unavailable

Cub Cadet IH-120393

Washer, 11/32 X 11/16 X .065 C-Z
(Superseded to 936-0275)

$

$

Not available

Cub Cadet 668-569-R1

Washer, 11/32 X 1-1/2 X .119 C-Z

$

$

Currently unavailable

Cub Cadet 411-597-R1

Nut, 5/16-18 Zn Nylon Insert

$

$

Currently unavailable

3

Cub Cadet 489-378-R1

Spacer, Idler Adjuster

$

$

Currently unavailable

4

Cub Cadet 489-607-R4

Spring, Mule Dr. Extension

$

$

Currently unavailable

5

Cub Cadet 489-379-R1

Pin, Front Mtg

$

$

Currently unavailable

Cub Cadet 473-443-R1

Pin, Quick Attachable Cotter

$

$

Currently unavailable

Cub Cadet IH-137175

Pin, 3/32 X 1-1/8 C-Z Cotter
(Superseded to 914-0111)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 493-164-R91

Pulley, Drive Belt Idler

$

$

Currently unavailable

Cub Cadet 18-253-R1

Nut, 3/8-16 Nylon Lock

$

$

Currently unavailable

Cub Cadet IH-120377

Nut, 3/8-16 C-Z Hex
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-180130

Screw, 3/8-16 X 2 C-Z Hex-Hd Cap
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-180128

Screw, 3/8-16 X 1-3/4 C-Z Hex-Hd Cap
(Superseded to 710-0347)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120394

Washer, 13/32 X 11/16 X .065 C-Z
(Superseded to 936-0140)

$

$

Not available

7

Cub Cadet 542-122-R91

Bearing Assy, Idler Pulley

$

$

Currently unavailable

Cub Cadet 490-489-R2

Belt, Mule Drive -Use on 72 Cadet Tractor only

$

$

Currently unavailable
