Mower Deck - Cub Cadet 48" Mower Deck, 3-Spindle Main Frame and Knife Unit -48" Blade- Part 1 (1963-1968) Parts Diagram

48" Mower Deck, 3-Spindle

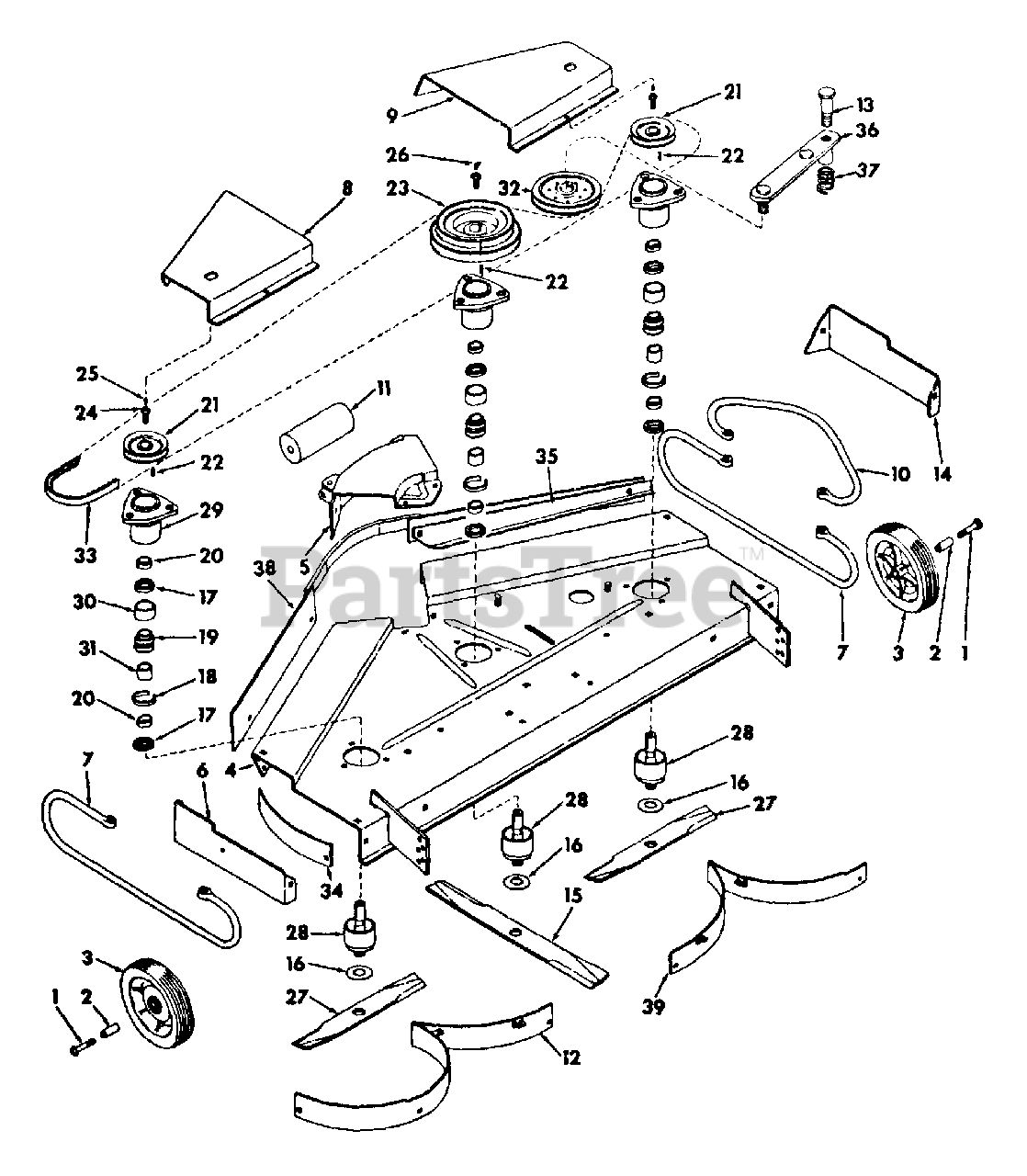

Main Frame and Knife Unit -48" Blade- Part 1 (1963-1968) Parts Diagram

  • Title

1

Cub Cadet IH-489429-R1

BOLT, SHOULDER
(Superseded to 938-3006)

Note: REPLACES 478451-R1

$

$

Not available

Cub Cadet IH-120394

WASHER, 13/32 x 13/16 x .065 C-Z
(Superseded to 936-0140)

$

$

Not available

Cub Cadet IH-120382

WASHER, 3/8 C-Z MED LOCK
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120377

NUT, 3/8-16 C-Z HEX.
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

2

Cub Cadet IH-478452-R1

BUSHING, WHEEL
(Superseded to 938-3006)

Note: ORDER BOLT, 489429-R1

$

$

Not available

3

Cub Cadet IH-479427-R91

WHEEL, 7 IN. GAUGE

$

$

Not available

4

Cub Cadet IH-481079-R93

HOUSING ASSY, ROTOR

$

$

Not available

18685-R1

BOLT, 3/8 x 1-1/2 C-Z SQ-NK CRG

$

$

Not available

Cub Cadet IH-142619-H

WASHER, 13/32 x 3/4 x 11 GA C-Z
(Superseded to 736-0275)

$

$

Not available

Cub Cadet IH-120382

WASHER, 3/8 C-Z MED LOCK
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120377

NUT, 3/8-16 C-Z HEX.
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

Cub Cadet 187463

SCREW, 10-24 x 1/2 C-Z SLT TRUSS-HD MACH

$

$

Currently unavailable

Cub Cadet IH-120217

WASHER, NO. 10 C-Z MED LOCK
(Superseded to 736-0722)

$6.49

$

Usually ships in 3-6 days

0

Cub Cadet IH-120361

NUT, NO. 10-24 C-Z HEX. MACH SCREW

$

$

Not available

Cub Cadet IH-385525-R1

NUT, CENTERLOCK
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-180118

SCREW, 3/8-16 x 5/8 C-Z HEX-HD CAP
(Superseded to 710-0216)

$3.99

$

In Stock, Qty 17

0

5

Cub Cadet 481082-R2

HOUSING, CENTER

$

$

Currently unavailable

Cub Cadet IH-488150-R1

BOLT, 3/8 x 3/4 TYPE 2 C-Z SQ-NK CRG
(Superseded to 710-0389)

$4.49

$

In Stock, Qty 10

0

Cub Cadet IH-120382

WASHER, 3/8 C-Z MED LOCK
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120377

NUT, 3/8-16 C-Z HEX.
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-18253-R1

NUT, 3/8-16 ESNA LOCK
(Superseded to 912-0181)

$

$

Not available

6

Cub Cadet 481083-R1

SIDE, HOUSING LH

$

$

Currently unavailable

Cub Cadet IH-18508-R1

BOLT, 3/8 x 3/4 C-Z SQ-NK CRG
(Superseded to 710-0389)

$4.49

$

In Stock, Qty 10

0

Cub Cadet IH-120382

WASHER, 3/8 C-Z MED LOCK
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120377

NUT, 3/8-16 C-Z HEX.
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

7

Cub Cadet IH-481084-R1

RUNNER

$

$

Not available

Cub Cadet IH-550796-R1

BOLT, 3/8 x 1-1/4 C-Z SQ-NK CRG
(Superseded to 710-3034)

$3.99

$

In Stock, Qty 7

0

Cub Cadet 18422-R1

BOLT, 3/8 x 1-3/4 C-Z SQ-NK CRG

$

$

Currently unavailable

Cub Cadet IH-142619-H

WASHER, 13/32 x 3/4 x 11 GA C-Z
(Superseded to 736-0275)

$

$

Not available

Cub Cadet IH-120382

WASHER, 3/8 C-Z MED LOCK
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120377

NUT, 3/8-16 C-Z HEX.
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

8

Cub Cadet IH-481085-R1

SHIELD, BELT LH

$

$

Currently unavailable

Cub Cadet IH-18626-R1

BOLT, 1/4 x 1/2 C-Z SQ-NK CRG

$

$

Currently unavailable

Cub Cadet IH-120380

WASHER, 1/4 C-Z MED LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

Cub Cadet IH-120375

NUT, 1/4-20 C-Z HEX.
(Superseded to 712-3006)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet IH-481086-R1

SHIELD, BELT RH

$

$

Currently unavailable

18626-R1

BOLT, 1/4 x 1/2 C-Z SQ-NK CRG

$

$

Not available

Cub Cadet IH-120380

WASHER, 1/4 C-Z MED LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

Cub Cadet IH-120375

NUT, 1/4-20 C-Z HEX.
(Superseded to 712-3006)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 481087-R1

GUARD, DISCHARGE

$

$

Currently unavailable

11

Cub Cadet IH-489155-R1

ROLLER, FRONT
(Superseded to 731-3005)

Note: WILL WORK FOR 481088-R1

$26.99

$

In Stock, Qty 20+

0

20914-R1

BOLT, 1/2 x 7-1/2 C-Z SQ-NK CRG

$

$

Not available

Cub Cadet IH-19676-R1

NUT, 1/2-13 C-Z ESNA STOP

$

$

Not available

12

Cub Cadet IH-481089-R11

SHROUD ASSY, LH

$

$

Not available

18626-R1

BOLT, 1/4 x 1/2 C-Z SQ-NK CRG

$

$

Not available

Cub Cadet 18653-R1

BOLT, 1/4 x 1/2 C-Z HEX-HD MACH

$

$

Currently unavailable

Cub Cadet IH-120380

WASHER, 1/4 C-Z MED LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

Cub Cadet IH-120375

NUT, 1/4-20 C-Z HEX.
(Superseded to 712-3006)

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet IH-486360-R1

BOLT, IDLER ARM PIVOT
(Superseded to 638-04012A)

$20.99

$

In Stock, Qty 20+

0

Cub Cadet IH-188755-R1

WASHER, 15/32 x 1-1/2 x 11 GA C-Z
(Superseded to 736-3030)

$

$

Not available

Cub Cadet IH-120383

WASHER, 7/16 C-Z MED LOCK
(Superseded to 936-0171)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-271501

NUT, 7/16-14 C-Z HEX
(Superseded to 912-3019)

$6.49

$

In Stock, only 3 left!

0

180123

SCREW, 3/8-16 x 1-1/8 C-Z HEX-HD CAP

$

$

Not available

Cub Cadet IH-142619-H

WASHER, 13/32 x 3/4 x 11 GA C-Z
(Superseded to 736-0275)

$

$

Not available

Cub Cadet IH-469668-R1

WASHER, 13/32 x 3/4 x 16 GA C-Z
(Superseded to 936-0140)

$

$

Not available

Cub Cadet IH-385525-R1

NUT, CENTERLOCK
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 481091-R1

MULCHER PARTS ACCESSORY

$

$

Currently unavailable

Cub Cadet IH-18508-R1

BOLT, 3/8 x 3/4 C-Z SQ-NK CRG
(Superseded to 710-0389)

$4.49

$

In Stock, Qty 10

0

Cub Cadet IH-120382

WASHER, 3/8 C-Z MED LOCK
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120377

NUT, 3/8-16 C-Z HEX.
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

15

Cub Cadet IH-490476-R1

BLADE, CENTER
(Superseded to 759-3835)

Note: HARD SURFACED; OPTIONAL WITH 487761-R1

$69.99

$

In Stock, only 1 left!

0

Cub Cadet IH-487761-R1

BLADE, CENTER

Note: OPTIONAL WITH 490476-R1

$

$

Not available

16

Cub Cadet IH-473860-R1

WASHER, BLADE FRICTION
(Superseded to 959-3486)

$12.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 473428-R91

SEAL, SPINDLE OIL

$

$

Currently unavailable

18

Cub Cadet 473429-R1

SPACER, SPLIT OUTER

$

$

Currently unavailable

19

Cub Cadet 473430-R91

BEARING ASSY, SPINDLE

$

$

Currently unavailable

20

Cub Cadet 473431-R1

SPACER, PULLEY

$

$

Currently unavailable

21

Cub Cadet IH-481095-R92

PULLEY, OUTER
(Superseded to 756-3026)

$58.99

$

Usually ships in 3-6 days

0

22

Cub Cadet IH-452779-R1

KEY, 1/4 x 3/4 x SQ. PARALLEL
(Superseded to IH-452779-R2)

$

$

Not available

23

Cub Cadet 473433-R91

PULLEY, CENTER

$

$

Currently unavailable

24

Cub Cadet 473435-R1

BOLT, END

$

$

Currently unavailable

Cub Cadet IH-614452-R1

WASHER, 13/32 x 1-1/4 x 11 GA C-Z
(Superseded to 936-0133)

$

$

Not available

Cub Cadet IH-173128

WASHER, 3/8 INT-EXT TOOTH LOCK
(Superseded to IH-178551P)

$6.49

$

Usually ships in 3-6 days

0

25

Cub Cadet IH-443566

FITTING, 5/16 DRIVE TYPE STR LUB
(Superseded to 937-3000)

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet IH-19700-R91

FITTING, 3/8 x 45 DEG ANGLE LUB
(Superseded to 737-0108)

$11.99

$

Usually ships in 3-6 days

0

27

Cub Cadet IH-487762-R1

BLADE, OUTER
(Superseded to 759-3845)

Note: FURNISH 490472-R1

$

$

Not available

Cub Cadet IH-490472-R1

BLADE, OUTER
(Superseded to 759-3849)

$58.99

$

In Stock, only 2 left!

0

28

Cub Cadet IH-481093-R91

DISK AND SPINDLE ASSY, BLADE DRIVE
(Superseded to IH-481093-R93)

$

$

Not available

Cub Cadet IH-219753

NUT, 3/4-16 HEX. JAM
(Superseded to 912-3026)

$4.99

$

In Stock, Qty 10

0

29

Cub Cadet IH-541494-R2

HOUSING, SPINDLE
(Superseded to IH-541494-R3)

Note: REPLACES 481096-R1

$

$

Not available

Cub Cadet IH-19019-R1

BOLT, 3/8 x 1 C-Z NO. 3 PLOW
(Superseded to IH-19030-R2)

$

$

Not available

Cub Cadet IH-120382

WASHER, 3/8 C-Z MED LOCK
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120377

NUT, 3/8-16 C-Z HEX.
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

30

Cub Cadet IH-481097-R1

BUSHING, BRG SEPARATOR - OUTER

$69.99

$

Usually ships in 3-6 days

0

31

Cub Cadet IH-543196-R1

BUSHING, BRG SEPARATOR - INNER

Note: REPLACES 481098-R1

$28.99

$

Usually ships in 3-6 days

0

32

Cub Cadet IH-542520-R91

PULLEY, FLAT IDLER
(Superseded to 756-3005)

$42.99

$

In Stock, Qty 20+

0

18685-R1

BOLT, 3/8-16 x 1-1/2 C-Z SQ-NK CRG

$

$

Not available

Cub Cadet IH-120382

WASHER, 3/8 C-Z MED LOCK
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

178372-R1

WASHER, 13/32 x 1-1/4 x 16 GA C-Z

$

$

Not available

Cub Cadet IH-120377

NUT, 3/8-16 C-Z HEX.
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

33

Cub Cadet IH-481099-R2

BELT, SPINDLE DRIVE

$51.99

$

Usually ships in 3-6 days

0

34

Cub Cadet IH-482075-R1

SHROUD, FRONT LH
(Superseded to IH-482075-R2)

$

$

Not available

18626-R1

BOLT, 1/4 x 1/2 C-Z SQ-NK CRG

$

$

Not available

Cub Cadet IH-120380

WASHER, 1/4 C-Z MED LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

Cub Cadet IH-120375

NUT, 1/4-20 C-Z HEX.
(Superseded to 712-3006)

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 482076-R1

BAFFLE, FRONT GRASS

$

$

Currently unavailable

Cub Cadet 19280-R1

BOLT, 1/4 x 3/4 C-Z SQ-NK CRG

$

$

Currently unavailable

Cub Cadet IH-120380

WASHER, 1/4 C-Z MED LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

Cub Cadet IH-120375

NUT, 1/4-20 C-Z HEX.
(Superseded to 712-3006)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 97865-R1

WASHER, 9/32 x 7/8 x 16 GA. C-Z

$

$

Currently unavailable

36

Cub Cadet IH-486355-R1

ARM ASSY, IDLER

$

$

Not available

37

Cub Cadet IH-486361-R1

SPRING, TORSION
(Superseded to IH-486361-R2)

$29.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 487781-R1

BAFFLE ASSY, MOWER FRONT

$

$

Currently unavailable

Cub Cadet 19280-R1

BOLT, 1/4 x 3/4 C-Z SQ-NK CRG

$

$

Currently unavailable

Cub Cadet IH-120375

NUT, 1/4-20 C-Z HEX.
(Superseded to 712-3006)

$4.49

$

In Stock, Qty 20+

0

180020

SCREW, 1/4-20 x 3/4 C-Z HEX-HD CAP

$

$

Not available

Cub Cadet IH-120380

WASHER 1/4 C-Z MED LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

Cub Cadet 97865-H

WASHER 9/32 x 7/8 x 16 GA C-Z

$

$

Currently unavailable

39

Cub Cadet IH-487896-R1

SHROUD ASSY, RH BLADE

$

$

Not available

Cub Cadet 18653-R1

BOLT, 1/4 x 1/2 C-Z HEX-HD MACH

$

$

Currently unavailable

18626-R1

BOLT, 1/4 x 1/2 C-Z SQ-NK CRG

$

$

Not available

Cub Cadet IH-120375

NUT, 1/4-20 C-Z HEX.
(Superseded to 712-3006)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120380

WASHER, 1/4 C-Z MED LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

Cub Cadet IH-120380

WASHER, 1/4 C-Z MED LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

Cub Cadet IH-486352-R91

SPRING IDLER CONVERSION PACKAGE

Note: CONSISTS OF REF. NO. 13, 36 AND 37 PLUS ATTACHING HARDWARE

$

$

Not available
