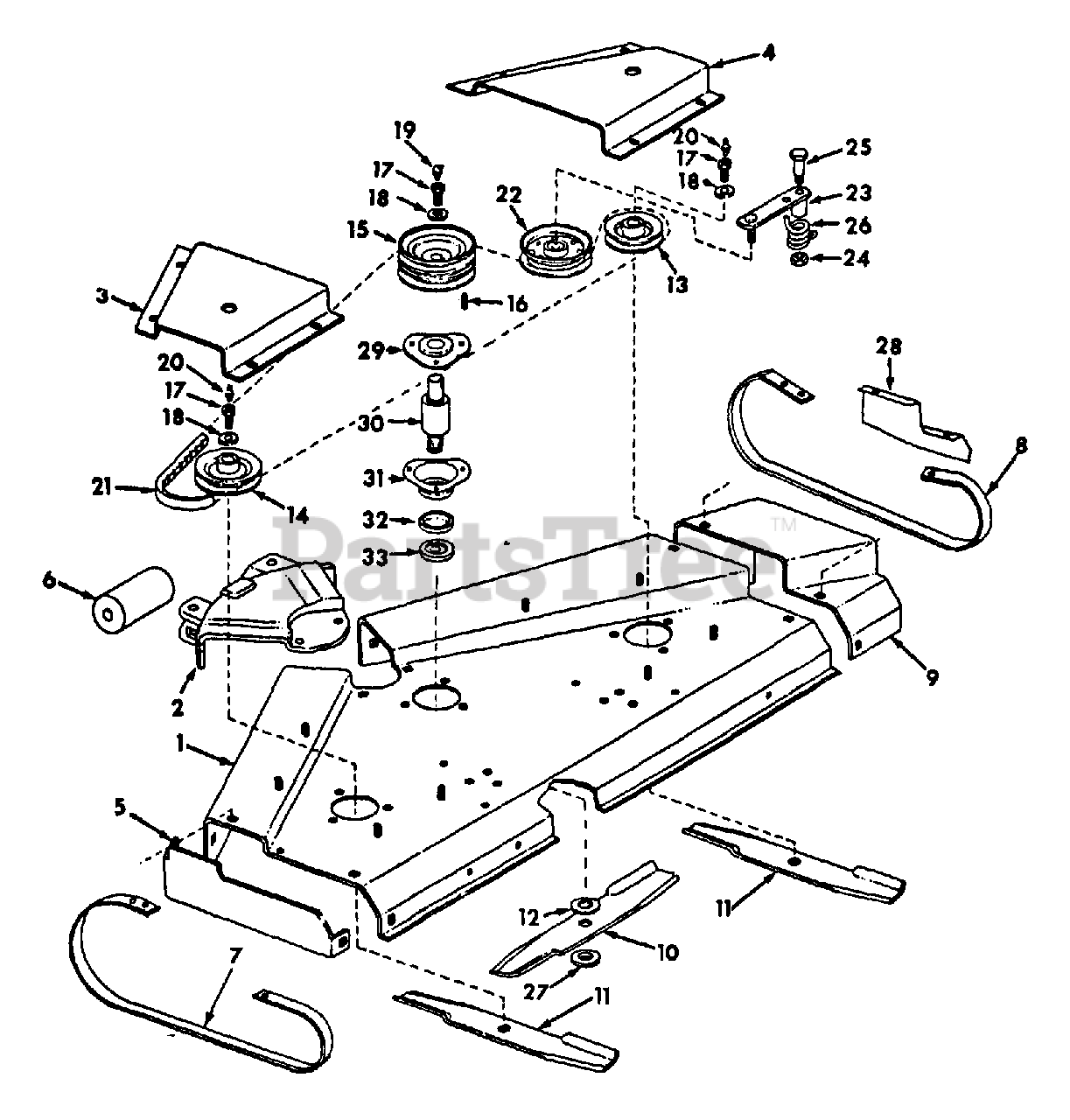

Mower Deck - Cub Cadet 48" Mower Deck, 3-Spindle Main Frame and Knife Unit -48" Blade- Part 3 (1971-1973) Parts Diagram

48" Mower Deck, 3-Spindle

Main Frame and Knife Unit -48" Blade- Part 3 (1971-1973) Parts Diagram

  • Title

1

Cub Cadet IH-489353-R3

HOUSING ASSY

$

$

Not available

Cub Cadet IH-171103

SCREW, 5/16-18 x 3/4 HEX-HD TAP.

$

$

Not available

18494-R1

BOLT, 3/8 x 1 ZND HEX-HD MACH

$

$

Not available

2

Cub Cadet IH-489356-R3

HOUSING, CENTER

$

$

Not available

Cub Cadet IH-17351-R1

BOLT, 3/8 x 1 C-Z SQ-NK CRG
(Superseded to 710-3097)

$6.49

$

In Stock, Qty 5

0

Cub Cadet IH-120382

WASHER, 3/8 C-Z MED LOCK
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120377

NUT, 3/8-16 C-Z HEX.
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 489357-R1

SHIELD, LH

$

$

Currently unavailable

Cub Cadet IH-120214

WASHER, 5/16 C-Z MED LOCK
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120376

NUT, 5/16-18 C-Z HEX.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 489358-R1

SHIELD, RH

$

$

Currently unavailable

Cub Cadet IH-120214

WASHER, 5/16 C-Z MED LOCK
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120376

NUT, 5/16-18 C-Z HEX.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 489359-R2

SIDE HOUSING LH

$

$

Currently unavailable

Cub Cadet IH-18508-R1

BOLT, 3/8 x 3/4 ZND SQ-NK CRG
(Superseded to 710-0389)

$4.49

$

In Stock, Qty 10

0

Cub Cadet IH-120382

WASHER, 3/8 C-Z MED LOCK
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120377

NUT, 3/8-16 C-Z HEX.
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

6

Cub Cadet IH-489470-R1

ROLLER, FRONT
(Superseded to 731-3005)

$26.99

$

In Stock, Qty 20+

0

20914-R1

BOLT, 1/2 x 7-1/2 C-Z SQ-NK CRG

$

$

Not available

Cub Cadet IH-19676-R1

NUT, 1/2-13 CDP NYLON INSERT

$

$

Not available

7

Cub Cadet 548271-R1

RUNNER LH

$

$

Currently unavailable

22476-R1

BOLT, 3/8 x 1-1/8 ZND SQ-NK CRG

$

$

Not available

Cub Cadet IH-120377

NUT, 3/8-16 C-Z HEX.
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-120382

WASHER, 3/8 C-Z MED LOCK
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

8

Cub Cadet IH-548272-R1

RUNNER, RH

$

$

Not available

22476-R1

BOLT, 3/8 x 1-1/8 ZND SQ-NK CRG

$

$

Not available

Cub Cadet IH-120377

NUT, 3/8-16 C-Z HEX.
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-120382

WASHER, 3/8 C-Z MED LOCK
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

9

Cub Cadet 57808-C1

SHIELD, DISCHARGE

$

$

Currently unavailable

10

Cub Cadet IH-490474-R1

BLADE, CENTER -HARD SURFACED- w/489392-R1
(Superseded to 759-3851)

Note: OPTIONAL

$73.99

$

Usually ships in 3-6 days

0

10

Cub Cadet IH-489392-R1

BLADE, CENTER -w/490474-R1
(Superseded to 759-3846)

Note: OPTIONAL

$

$

Not available

11

Cub Cadet IH-490475-R1

BLADE, OUTER -HARD SURFACED- w/489393-R1
(Superseded to 759-3852)

Note: OPTIONAL

$

$

Not available

11

Cub Cadet IH-489393-R1

BLADE, OUTER -w/490475-R1
(Superseded to 759-3847)

Note: OPTIONAL

$

$

Not available

12

Cub Cadet IH-473860-R1

WASHER, BLADE FRICTION
(Superseded to 959-3486)

$12.99

$

Usually ships in 3-6 days

0

13

Cub Cadet IH-481095-R9

PULLEY, RH DISCHARGE OUTER

$

$

Currently unavailable

14

Cub Cadet IH-489394-R2

PULLEY, LH OUTER
(Superseded to 756-3008)

$50.99

$

In Stock, Qty 16

0

15

Cub Cadet IH-489395-R2

PULLEY, CENTER
(Superseded to IH-489395-R3)

$104.99

$

Usually ships in 3-6 days

0

16

Cub Cadet IH-473434-R1

KEY, 1/4 x 3/4 SQ-PARALLEL
(Superseded to IH-452779-R2)

$

$

Not available

17

Cub Cadet IH-473435-R1

BOLT, END
(Superseded to 710-06455)

$13.99

$

Usually ships in 3-6 days

0

18

Cub Cadet IH-490196-R1

WASHER, SPINDLE
(Superseded to 936-3055)

$8.49

$

In Stock, only 2 left!

0

Cub Cadet IH-173128

WASHER, 3/8 INT-EXT-TOOTH LOCK
(Superseded to IH-178551P)

$6.49

$

Usually ships in 3-6 days

0

19

Cub Cadet IH-19700-R91

FITTING, 3/8 DRIVE TYPE 45ø ANGLE LUB - END BOLT FOR CENTER ROTOR
(Superseded to 737-0108)

$11.99

$

Usually ships in 3-6 days

0

20

Cub Cadet IH-443566

FITTING, 5/16 DRIVE TYPE STR LUB END BOLT FOR OUTER ROTORS
(Superseded to 937-3000)

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet IH-489399-R1

BELT, SPINDLE DRIVE

$49.99

$

Usually ships in 3-6 days

0

22

Cub Cadet IH-542520-R91

PULLEY, FLAT IDLER
(Superseded to 756-3005)

$42.99

$

In Stock, Qty 20+

0

23

Cub Cadet IH-548457-R1

ARM ASSY, IDLER
(Superseded to 759-04324B)

$175.99

$

In Stock, Qty 18

0

24

Cub Cadet IH-385525-R1

NUT, CENTER LOCK
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet IH-486360-R1

BOLT, IDLER ARM PIVOT
(Superseded to 638-04012A)

$20.99

$

In Stock, Qty 20+

0

26

Cub Cadet IH-548458-R1

SPRING, TORSION
(Superseded to 932-3009)

$22.99

$

In Stock, Qty 20+

0

21904-R1

WASHER, .469 x .875 x .105

$

$

Not available

Cub Cadet IH-120383

WASHER,7/16 C-Z MED LOCK
(Superseded to 936-0171)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-271501

NUT, 7/16-14 C-Z HEX.
(Superseded to 912-3019)

$6.49

$

In Stock, only 1 left!

0

Cub Cadet IH-21438-R1

SCREW, 3/8 x 3/4 ZNP P/HDS MACH

$

$

Not available

27

Cub Cadet IH-575814-R1

WASHER, 25/32 x 2 x 11 GA - BLADE DRIVE DISC SPACING
(Superseded to 736-3014)

$4.49

$

In Stock, Qty 19

0

28

Note: NOT USED IN THIS APPLICATION

$

$

Not available

29

Cub Cadet IH-492105-R1

CAP, SPINDLE HOUSING
(Superseded to 703-0115-0499)

$35.99

$

Usually ships in 3-6 days

0

30

IH-ST-722

BEARING, BALL FAN & PUMP

$

$

Not available

Cub Cadet IH-219753

NUT, 3/4-16 HEX. JAM
(Superseded to 912-3026)

$4.99

$

In Stock, Qty 10

0

31

Cub Cadet IH-492106-R1

HOUSING, SPINDLE
(Superseded to 903-0117)

$

$

Not available

Cub Cadet IH-17351-R1

BOLT, 3/8 x 1 ZND SQ-NK CRG
(Superseded to 710-3097)

$6.49

$

In Stock, Qty 5

0

Cub Cadet IH-120377

NUT, 3/8-16 C-Z HEX.
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-120382

WASHER, 3/8 C-Z MED LOCK
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

32

492108-R1

CUP, SPINDLE

$

$

Not available

33

Cub Cadet 492846-R1

SPACER, BLADE

$

$

Currently unavailable

Cub Cadet 2752016-R1

GRAPHICS PRODUCT-IH

$

$

Currently unavailable
