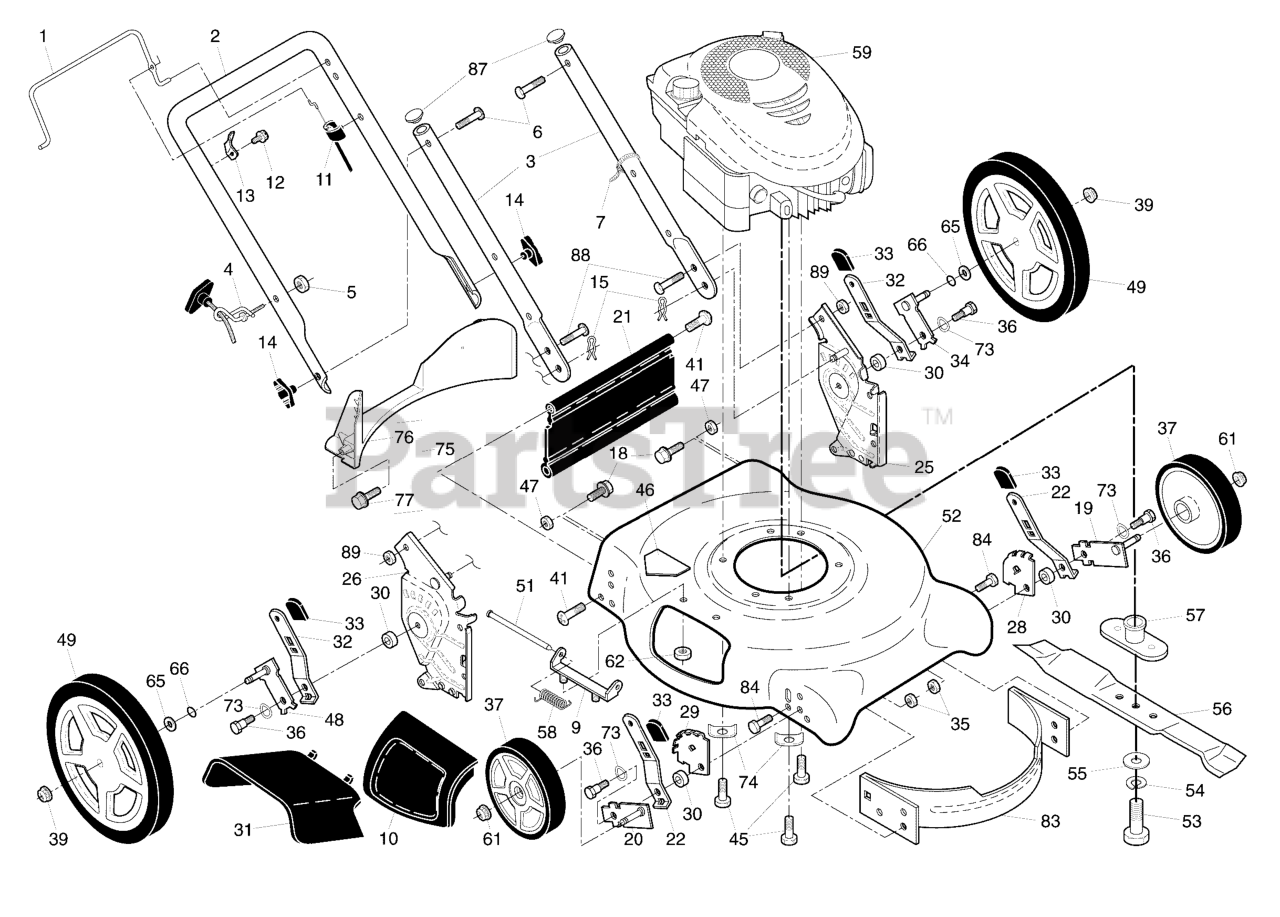

MP 21500 HW (2691619-00) - Murray 21" Walk-Behind Mower (2019) Deck Group Parts Diagram

21" Walk-Behind Mower

Deck Group Parts Diagram

  • Title

1

Murray 709273

Control Bar

$40.99

$

Usually ships in 2-12 days

0

2

Murray 709384

Upper Handle

$85.99

$

Usually ships in 2-12 days

0

3

Murray 709389

Bar, Lower Handle

$

$

Not available

4

Murray 709279

Rope Guide

$35.99

$

In Stock, only 1 left!

0

5

Murray 709054

Nut, Hex

$4.99

$

Usually ships in 2-12 days

0

6

Murray 709234

Handle Bolt

$7.49

$

Usually ships in 2-12 days

0

7

Murray 709409

Wire Tie

$6.99

$

In Stock, only 1 left!

0

9

Murray 709098

Hinge Bracket

$15.99

$

Usually ships in 2-12 days

0

10

Murray 709128

Mulcher Door

$22.99

$

Usually ships in 2-12 days

0

11

Murray 709382

Engine Zone Control Cable

$41.99

$

In Stock, only 2 left!

0

12

Murray 709195

Hex Washer Head Screw

$4.49

$

Usually ships in 2-12 days

0

13

Murray 709368

Up-Stop Bracket
(Superseded to 707659)

$9.99

$

Usually ships in 2-12 days

0

14

Murray 709219

Handle Knob

$7.49

$

In Stock, only 2 left!

0

15

Murray 709387

Hairpin Cotter

$9.99

$

Usually ships in 2-12 days

0

18

Murray 709185

Screw 1/4-20 x 3/8

$5.99

$

In Stock, only 1 left!

0

19

Murray 709300

Axle Arm Assembly, Front, LH

$14.99

$

Usually ships in 2-12 days

0

20

Murray 709301

Axle Arm Assembly, Front, RH

$16.99

$

In Stock, only 1 left!

0

21

Murray 709334

Kit, Rear Skirt

$40.99

$

Usually ships in 2-12 days

0

22

Murray 709304

Selector Spring, Front

$12.99

$

In Stock, only 1 left!

0

25

Murray 709390

Handle Bracket Assy., LH

$35.99

$

Usually ships in 2-12 days

0

26

Murray 709391

Handle Bracket Assy., RH

$25.99

$

Usually ships in 2-12 days

0

28

Murray 709316

Wheel Adjuster Bracket, LH

$7.99

$

Usually ships in 2-12 days

0

29

Murray 709317

Wheel Adjuster Bracket, RH

$7.49

$

Usually ships in 2-12 days

0

30

Murray 709305

Spacer

$10.99

$

Usually ships in 2-12 days

0

31

Murray 709129

Discharge Deflector

$37.99

$

In Stock, only 1 left!

0

32

Murray 709381

Selector Spring, Rear

$9.49

$

Usually ships in 2-12 days

0

33

Murray 709451

Selector Knob

$9.49

$

In Stock, only 2 left!

0

34

Murray 709302

Axle Arm Assembly, Rear, LH

$16.99

$

Usually ships in 2-12 days

0

35

Murray 709354

Locknut, Hex

$8.99

$

Usually ships in 2-12 days

0

36

Murray 709307

Shoulder Bolt

$7.99

$

In Stock, only 1 left!

0

37

Murray 708058

Wheel & Tire Assembly, Front, 7"

$32.99

$

Usually ships in 2-12 days

0

39

Murray 409149

Locknut, Hex

$4.99

$

In Stock, Qty 20+

0

41

Murray 709275

Hinge Screw

$8.99

$

Usually ships in 2-12 days

0

45

Murray 709093

Screw, Hex Head, Threaded, Rolled 3/8-16 x 1
(Superseded to 709443)

$8.49

$

Usually ships in 2-12 days

0

46

Murray 709203

Danger Decal

$8.99

$

Usually ships in 2-12 days

0

47

Murray 709445

Locknut, Hex 5/16-18
(Superseded to 709354)

$8.99

$

Usually ships in 2-12 days

0

48

Murray 709303

Axle Arm Assembly, Rear, RH

$13.99

$

Usually ships in 2-12 days

0

49

Murray 709395

Wheel & Tire Assembly, Rear, 12"

$63.99

$

In Stock, only 1 left!

0

51

Murray 709090

Hinge Rod

$13.99

$

In Stock, only 1 left!

0

52

Murray 708528

Kit, Lawn Mower Housing

Note: (Includes Ref. No. 46)

$282.99

$

Usually ships in 2-12 days

0

53

Murray 709449

Screw, Hex Head, 3/8-24 x 1-3/8 Grade 8

$9.99

$

In Stock, only 1 left!

0

54

Murray 705316

Helical Lockwasher

$5.49

$

In Stock, only 1 left!

0

55

Murray 709448

Hardened Washer

$9.99

$

Usually ships in 2-12 days

0

56

Murray 709315

21" Blade

$38.99

$

In Stock, only 1 left!

0

57

Murray 709333

Blade Adapter

$21.99

$

Usually ships in 2-12 days

0

58

Murray 709094

Hinge Spring

$8.99

$

In Stock, only 2 left!

0

59

Murray 122T02-5935-H1

* Engine, Briggs & Stratton

Note: ( Engine Model: 122T02-5935-H1 )

$

$

Currently unavailable

61

Murray 709321

Locknut, Hex, Flanged

$9.99

$

In Stock, only 1 left!

0

62

Murray 709432

Locknut, Hex 1/4-20
(Superseded to 705713)

$5.99

$

Usually ships in 2-12 days

0

65

Murray 709452

Washer, Flat

$6.99

$

Usually ships in 2-12 days

0

66

Murray 709288

O-Ring

$7.49

$

Usually ships in 2-12 days

0

73

Murray 709306

Washer, Curved, Cylindrical

$10.99

$

Usually ships in 2-12 days

0

74

Murray 709450

Washer, Special, Engine

$6.99

$

Usually ships in 2-12 days

0

75

Murray 709327

Kit, Rear Baffle

Note: (Includes 3 Screws)

$71.99

$

Usually ships in 2-12 days

0

76

Murray 709325

Baffle, Rear

$22.99

$

Usually ships in 2-12 days

0

77

Murray 709159

Screw, Rear Baffle

$7.99

$

Usually ships in 2-12 days

0

83

Murray 709361

Baffle, Front

$35.99

$

Usually ships in 2-12 days

0

84

Murray 709147

Screw, Front Baffle
(Superseded to 705320)

$10.99

$

Usually ships in 2-12 days

0

87

Murray 709379

Plug, Handle Bar
(Superseded to 707666)

$6.49

$

Usually ships in 2-12 days

0

88

Murray 705344

Bolt, Hex Head

$7.99

$

In Stock, only 1 left!

0

89

Murray 709435

Nut, Hex

$9.49

$

Usually ships in 2-12 days

0

--

Murray 182191

Warning Decal

Note: (Not Shown)(This Part is not serviced by Briggs & Stratton.)

$2.49

$

Usually ships in 3-10 days

0

--

Murray 709266

Operator's Manual, English

$9.49

$

Usually ships in 2-12 days

0

--

Murray 709268

Operator's Manual, French

$227.99

$

Usually ships in 2-12 days

0

--

Murray 709269

Operator's Manual, Spanish

$9.49

$

Usually ships in 2-12 days

0

--

Murray 709019

Operator's Manual, Portuguese

$5.49

$

Usually ships in 2-12 days

0

--

Murray 585587526

Repair Parts Manual

$1.99

$

Usually ships in 3-10 days

0
